ToolkitRC M6D V3 Dual Channel 500W Lipo Charger

Compact dual‑channel control for 1-6S packs

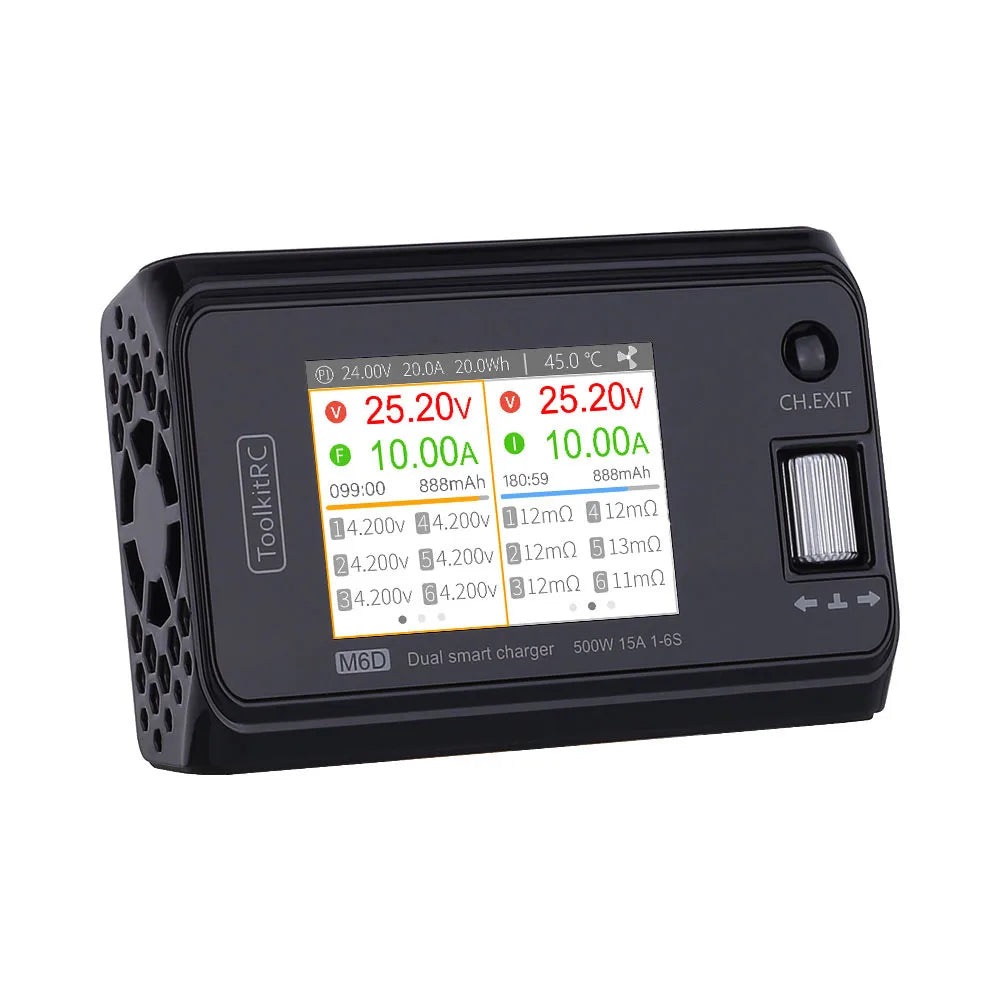

The ToolkitRC M6D V3 DC Dual Channel MINI Smart Charger Discharger delivers accurate, controlled charging and discharging for a wide range of RC and FPV batteries. Designed for field and bench use, it lets you manage two battery packs at the same time while monitoring key data on a clear 2.4 inch IPS color display.

The M6D V3 supports LiPo, LiHV, LiFe and Li‑ion packs from 1-6S, as well as NiMH (1-16S) and Pb (1-10S), making it suitable for most FPV quads, fixed‑wing models and RC applications. With a DC input of 7-28V (max 30A), it delivers up to 250W per channel in asynchronous mode (0.1-15A) or up to 500W total in synchronous mode (0.1-25A). Balancing current is 800mA for 2-6S packs, helping maintain cell consistency over time.

The smart microprocessor manages charge, discharge and recycle modes with precision accuracy of <0.005V, helping protect your packs from overcharge and excessive stress. Discharge options include up to 250W per channel in recycle mode (0.1-15A) and up to 12W per channel in normal mode (0.1-3A). The charger can also measure battery voltage (1.0-5.0V per cell, 1-6S) and internal resistance (1-100mΩ, 1-6S), giving you clear insight into pack health before flight.

For everyday convenience, the M6D V3 includes a 5V/2.1A USB output, ideal for powering or charging small devices at the field. The compact housing and light weight make it easy to carry in your FPV toolkit, while the high‑resolution 320×240 IPS display keeps all parameters visible, even outdoors.

Why It's a Smart Choice

• Dual independent channels allow simultaneous charge or discharge of two packs, improving turnaround time between flights.
• Wide chemistry and cell‑count support means one charger can handle LiPo, LiHV, LiFe, Li‑ion, NiMH and Pb packs used across your fleet.
• Accurate balancing, internal resistance measurement and safety‑oriented control help maintain battery health and consistent performance.

FAQ

Q: Which batteries are compatible with the M6D V3?
A: It supports LiPo, LiHV, LiFe and Li‑ion from 1-6S, NiMH from 1-16S and Pb from 1-10S. Always confirm your pack type and cell count before starting a charge cycle.

Q: Can I charge two different battery types at the same time?
A: Yes, each channel operates independently. You can set different chemistries, cell counts and currents on channel A and channel B, as long as each pack is configured correctly.

Q: What power supply do I need?
A: Use a DC input between 7-28V capable of providing sufficient current for your target power level, up to a maximum of 30A. A stable, quality DC power source is recommended.

Q: Does it help assess battery condition?
A: Yes, the charger can display per‑cell voltage and internal resistance (1-100mΩ per cell), allowing you to monitor aging packs and identify when it is time to retire or relegate them to less demanding use.
