Timegrapher Mechanical Watch Timing Tester

Professional Timegrapher for Accurate Watch Diagnostics

This Timegrapher Mechanical Watch Timing Tester is designed for precise analysis of mechanical watches, making it a dependable tool for watchmakers, technicians, and serious hobbyists. Available in two versions (No.1000 metal housing and No.1900 ABS housing), it measures rate deviation, amplitude, beat error, and lift angle with clear, real-time data displayed on an easy-to-read screen.

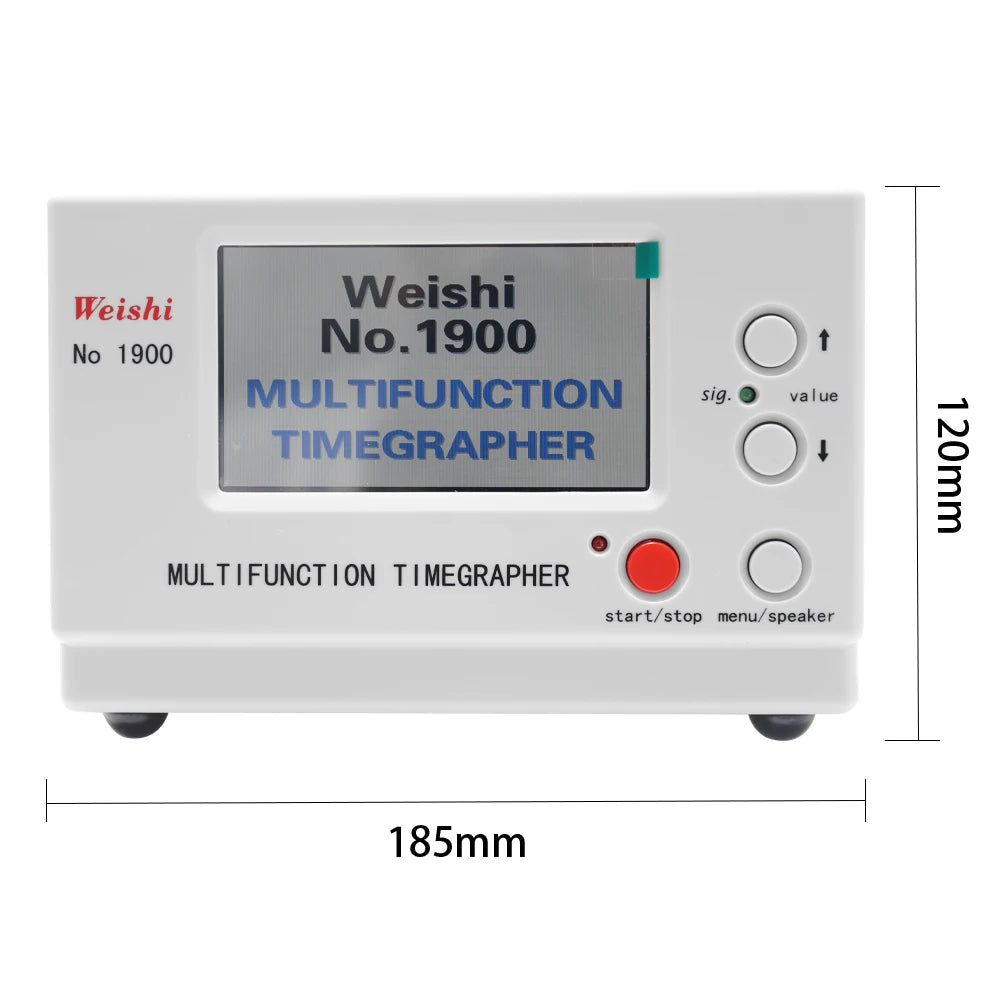

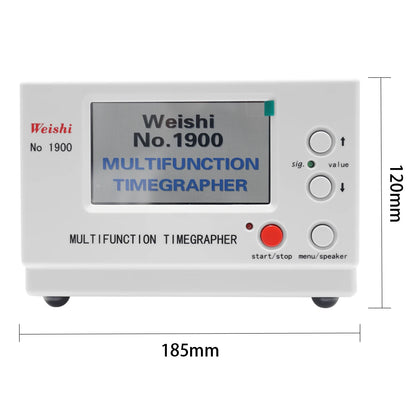

The instrument captures the acoustic signal of the watch movement and automatically calculates key parameters. With selectable sampling periods from 2 to 60 seconds and support for 1-6 testing positions, it allows you to evaluate performance in multiple orientations. The No.1900 model features a color LCD graphic monitor (480 × 272 pixels), while the No.1000 provides a crisp numerical display. Both models support multiple languages (Chinese, English, Japanese) and are suitable for continuous workshop use.

Why It's a Smart Choice

• Comprehensive timing analysis - Measures rate deviation (up to ±999 s/d), amplitude (100°-360°), beat error (0.0-9.9 ms), and lift angle (30°-70°) for detailed diagnostics.

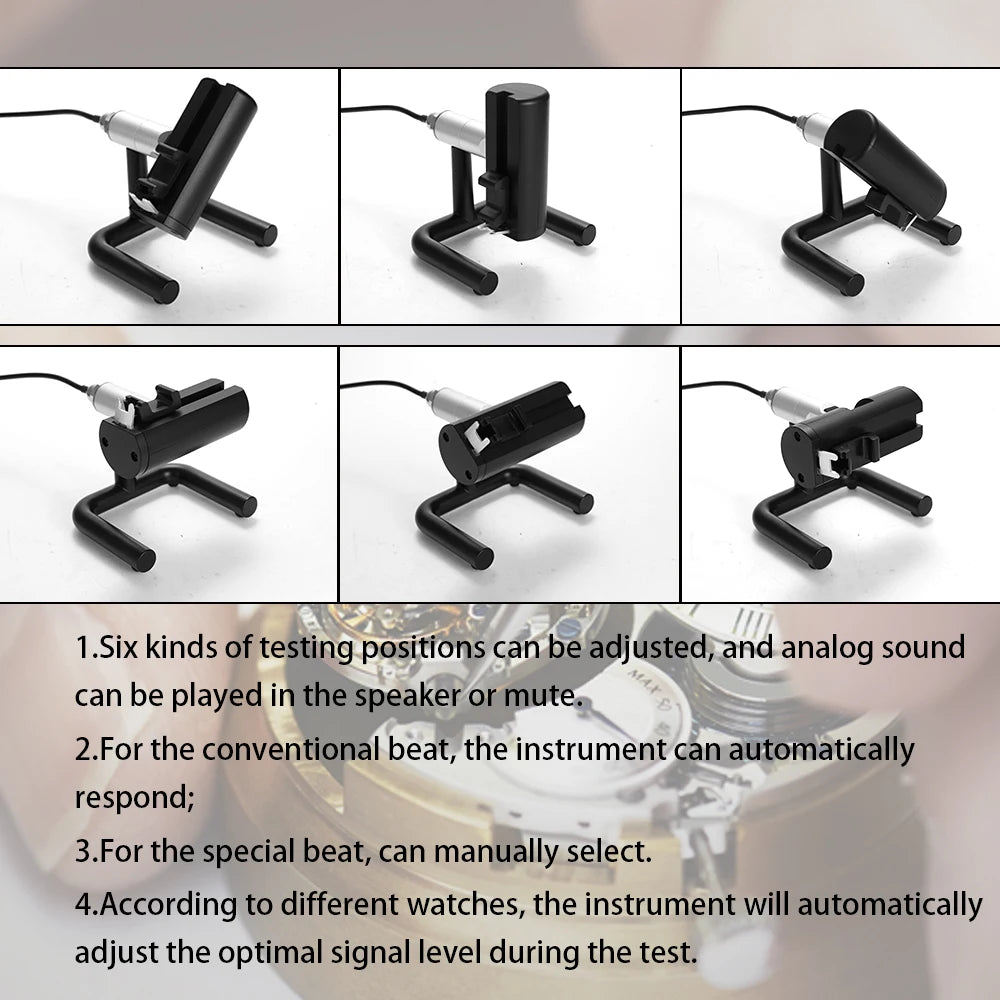

• Flexible testing options - Adjustable sampling periods (2/4/6/8/12/20/30/60 seconds) and up to six test positions help you closely replicate real wrist conditions.
• Workshop-ready design - Stable construction, clear display, and straightforward controls make it suitable for daily use in both professional and home repair environments.

FAQ

Q: Which model should I choose, No.1000 or No.1900?
A: Both provide the same core measurements. Choose No.1000 for a metal housing and compact numeric display, or No.1900 for an ABS housing with a larger color LCD graphic screen.

Q: Can this tester be used with all mechanical watches?

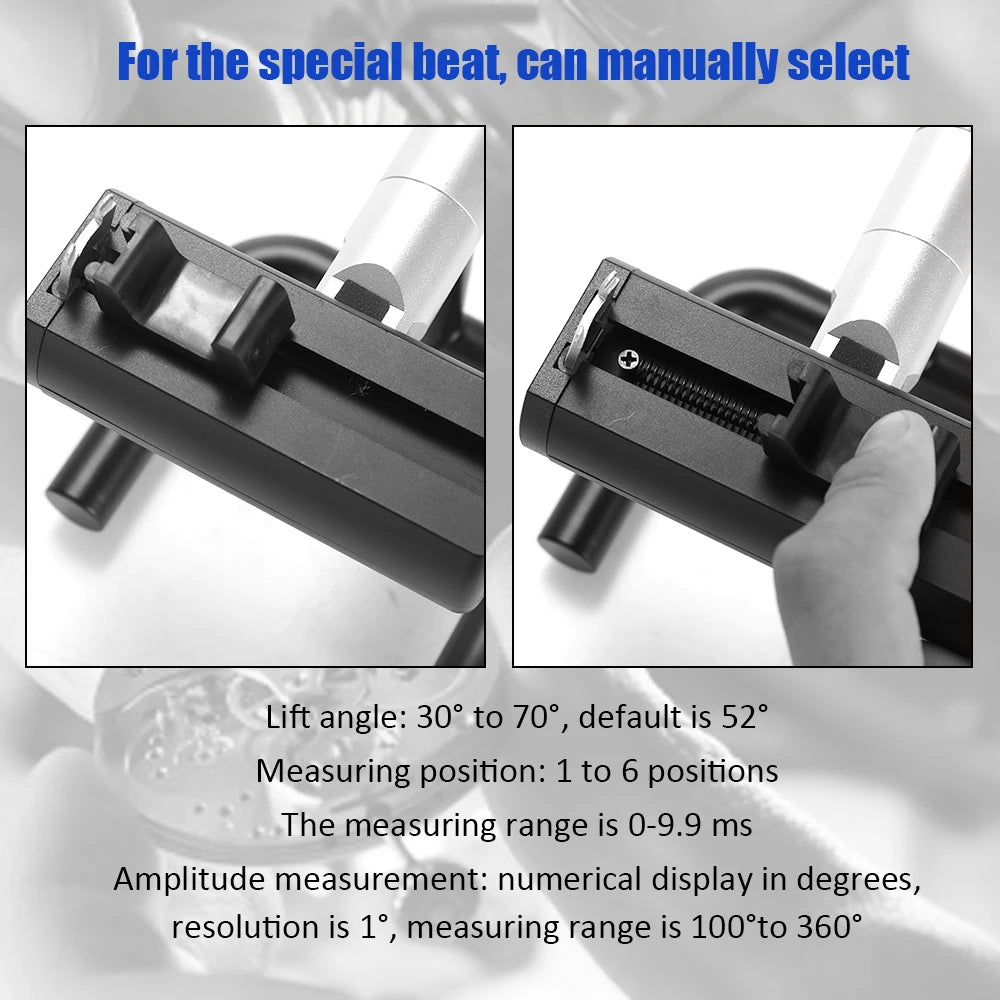

A: It is suitable for most mechanical and automatic watches. The lift angle is adjustable from 30° to 70°, with a default of 52°, covering the majority of common movements.

Q: Does it support different plug types?

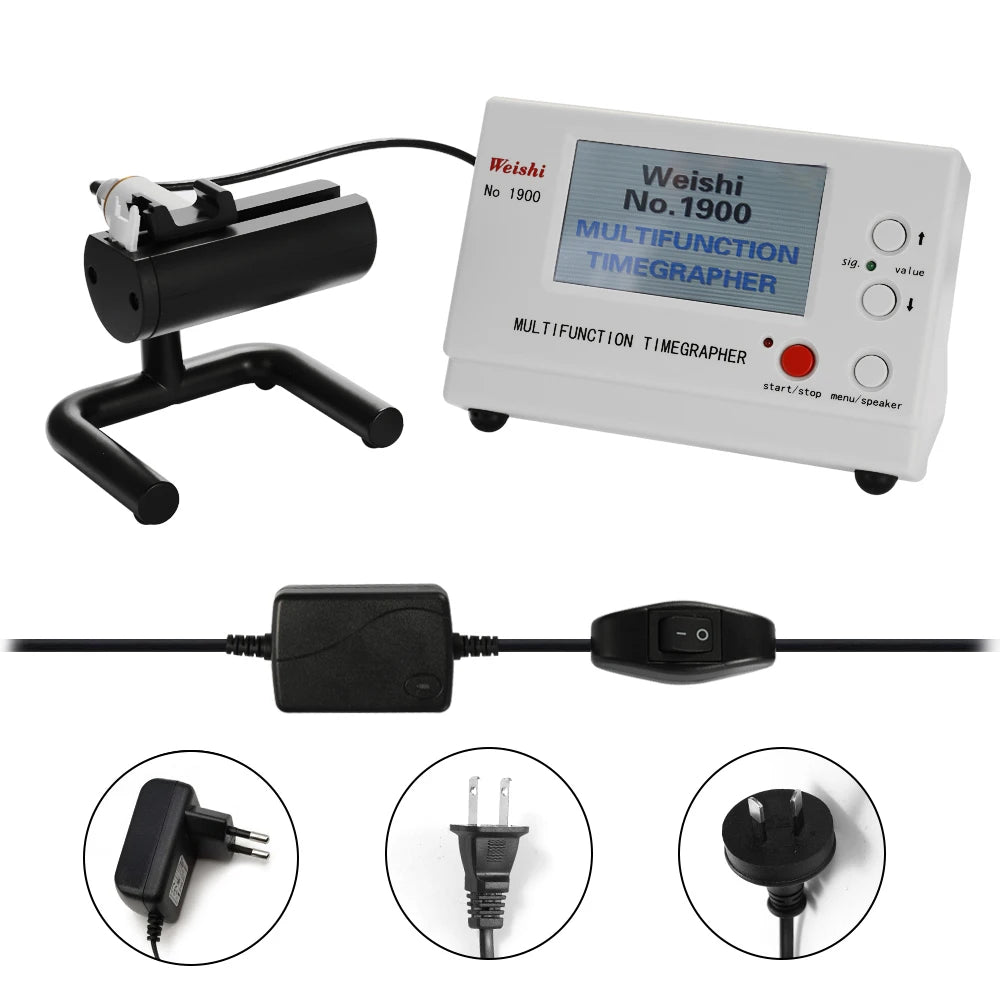

A: Yes. The Timegrapher is available with EU, US, UK, or AU plug options, so you can select the version that matches your local power standard.

Q: What is included in the package?

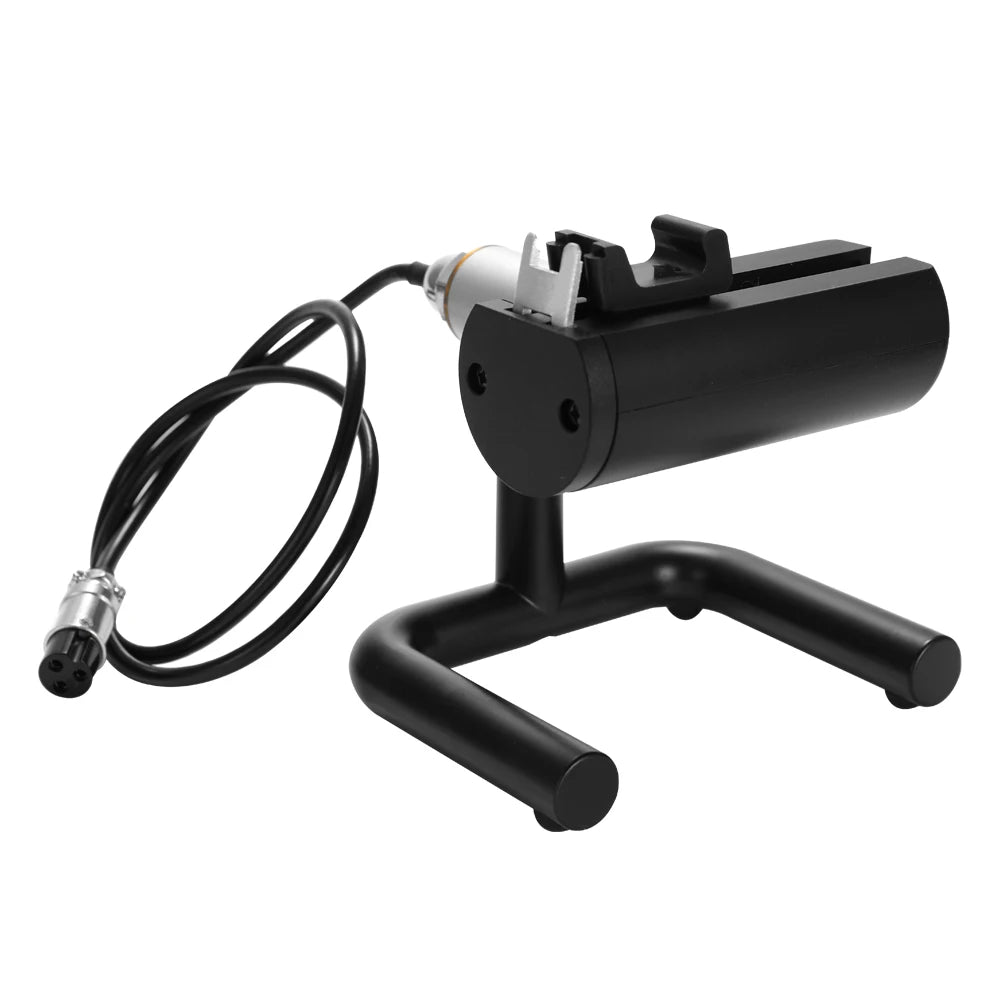

A: Each package includes 1 x Timegrapher unit, 1 x Timegrapher sensor, 1 x power cable, and 1 x user manual.
