T238 Brushless Long Axis High Torque Airsoft AEG Motor

Brushless power and precise control for demanding AEG builds

- the T238 Long Axis Brushless Motor delivers strong torque, fast response and consistent speed for airsoft players who need reliable, repeatable performance from their electric guns.

Engineered for long-axis AEG platforms, this motor is compatible with popular models such as M4, M16, MP5, G3, P90 and other replicas using a long-type motor. The CNC-machined aluminum housing provides a rigid, accurately aligned body that supports smooth rotation and stable output under rapid fire. As a brushless design, it operates with reduced mechanical wear and lower heat generation at high output, helping maintain performance during extended skirmishes or training sessions.

With a maximum power rating of 380W and an input voltage range of 7.4-16.8V, the T238 motor is suitable for a wide range of battery setups commonly used in airsoft. At 11.1V, it offers a no‑load speed of approximately 33,000-39,000 rpm with a current draw of about 1.8A, and a loaded speed around 28,500 rpm with a current draw of about 20A (values may vary depending on build, spring strength and overall system condition). The D‑type motor gear interface supports secure coupling with compatible pinion gears and drivetrains.

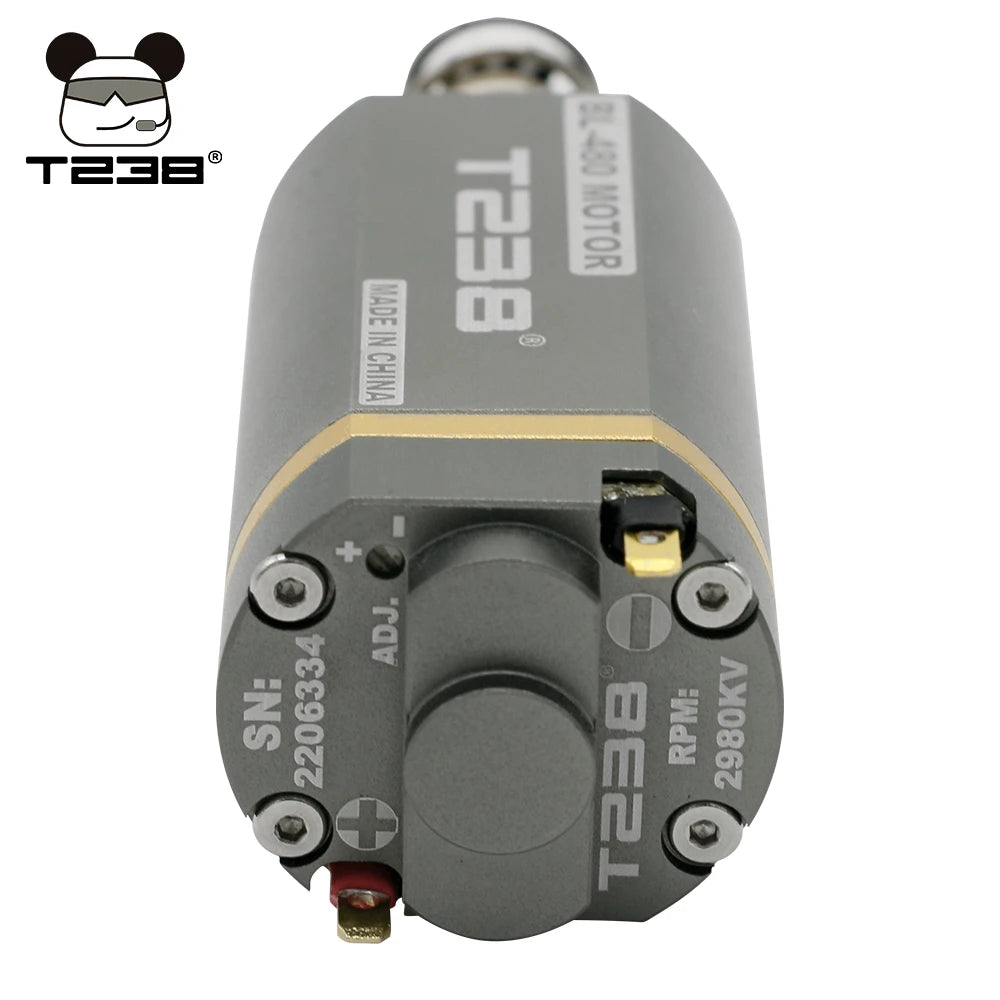

The integrated control system provides stepless speed regulation from approximately 50-100%, adjusted via the potentiometer accessible through the small hole in the tail cover. This allows fine tuning of rate of fire to suit field rules, play style or specific replica requirements. Built‑in electronic protections include overheat protection, low‑voltage protection and locked‑rotor protection, supporting safer operation and helping protect both motor and connected electronics in abnormal conditions. In the event of power loss, the motor executes an emergency stop with no buffer, contributing to predictable behavior and consistent shot control.

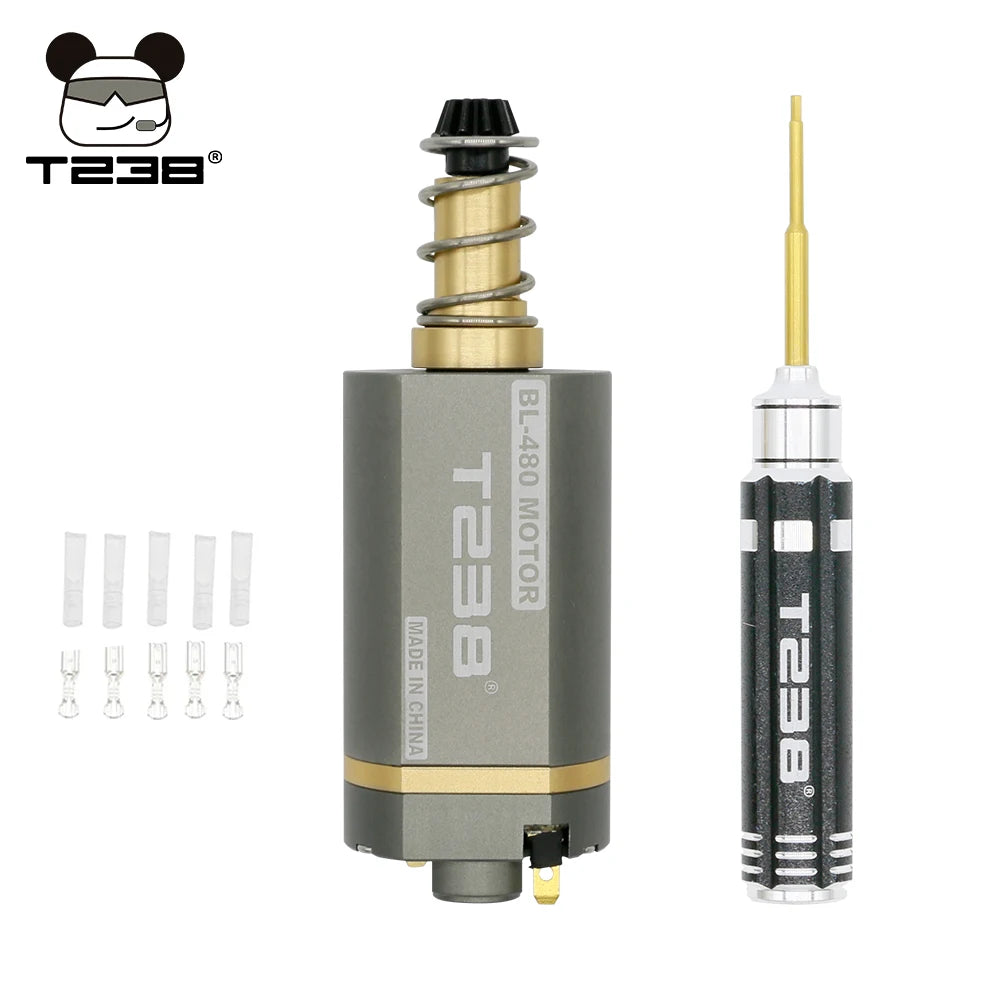

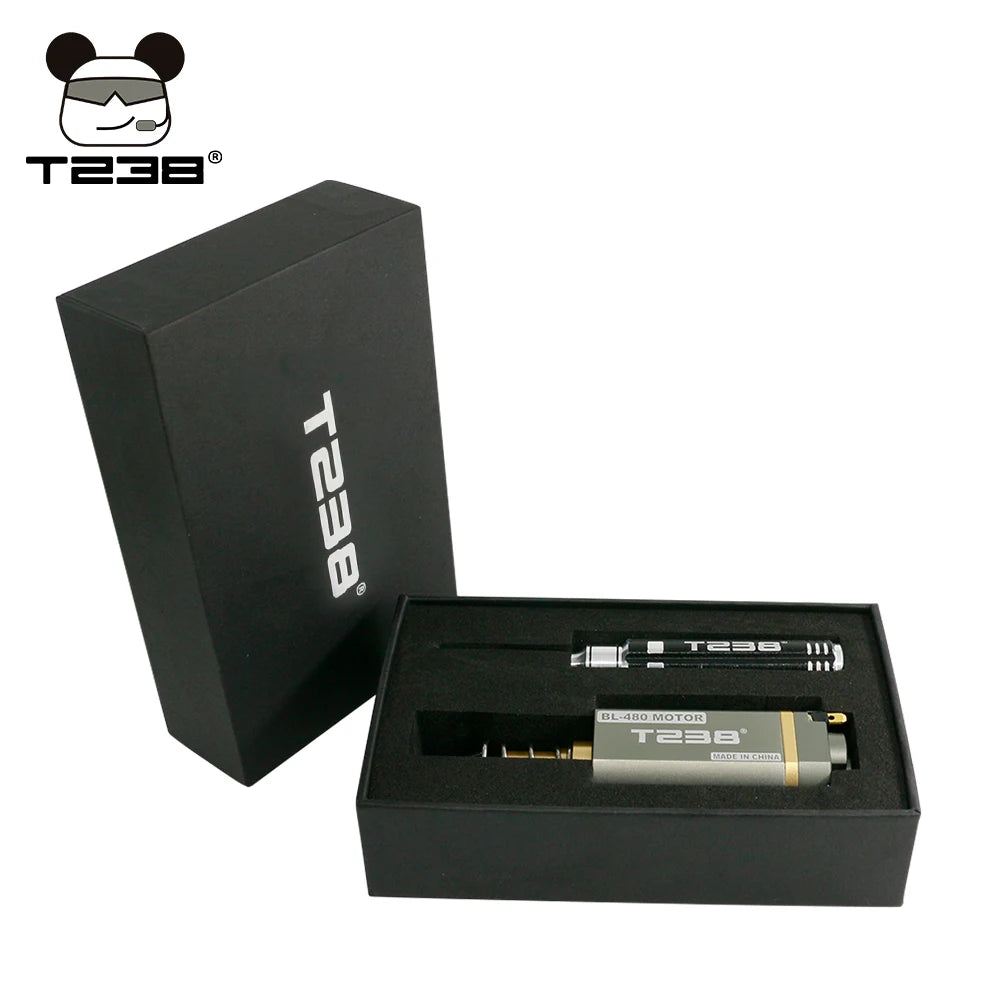

For best results and proper protection behavior, this brushless motor is designed to be used with the T238 brand ETU/MOSFET. Use with other electronic trigger units or MOSFET brands may cause malfunction and is not covered by warranty. The package includes one brushless motor and one screwdriver to assist with installation and adjustment.

Why It's a Smart Choice

• Brushless construction and CNC aluminum housing support stable performance and reduced wear in intensive airsoft use.
• Stepless speed regulation (approx. 50-100%) allows precise rate‑of‑fire adjustment to match field limits and personal preferences.
• Integrated electronic protections and emergency stop behavior help safeguard the motor, battery and connected electronics.

FAQ

Q: Which AEGs are compatible with this motor?
A: The long axis version fits platforms that use a long‑type motor, such as many M4, M16, MP5, G3 and P90 series AEGs. Always confirm your replica's motor type before purchase.

Q: Can I use this motor with any ETU or MOSFET?
A: It is intended for use with T238 brand ETU/MOSFET units. Use with other brands may lead to improper operation or damage and is not covered by warranty.

Q: How do I adjust the speed?
A: Rate of fire can be adjusted steplessly within an approximate 50-100% range using the potentiometer located in the small hole on the tail cover. Make small adjustments and test fire to verify the desired setting.

Q: Is this motor suitable for high‑demand builds?
A: The brushless design, 380W maximum power rating and integrated protections make it suitable for well‑planned high‑demand builds, provided that the rest of the gearbox, wiring and battery are correctly matched and installed.
