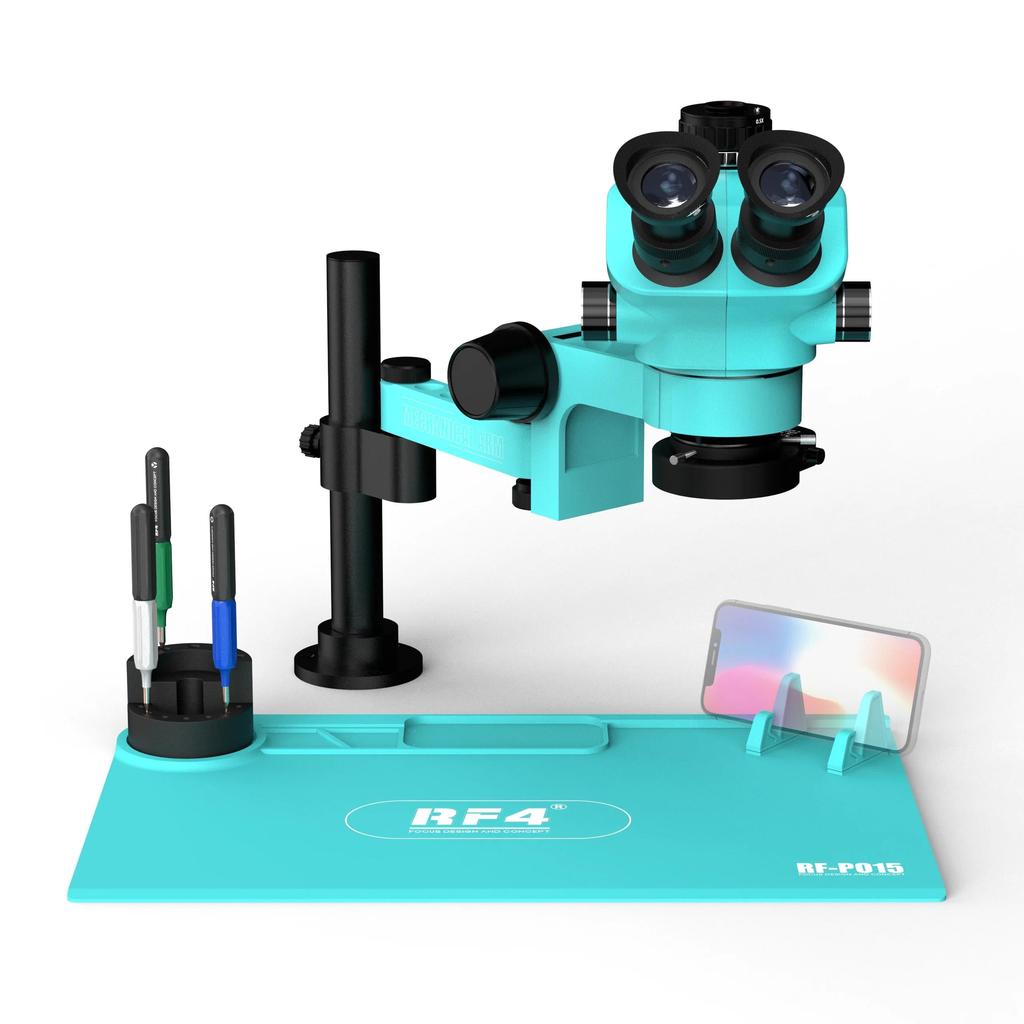

RF4 RF7050TVPRO-F019 7-50X Stereo Zoom Microscope

RF4 RF7050TVPRO-F019 7-50X Stereo Zoom Microscope with 6-Speed Locking

delivers stable, repeatable magnification and flexible positioning for electronics work, inspection, research and education. The 360° rotation adjustable swing arm and metal lifting support give you a wide operating range, while the stereo optical system provides a clear 3D view of your subject for confident analysis and precise manual work.

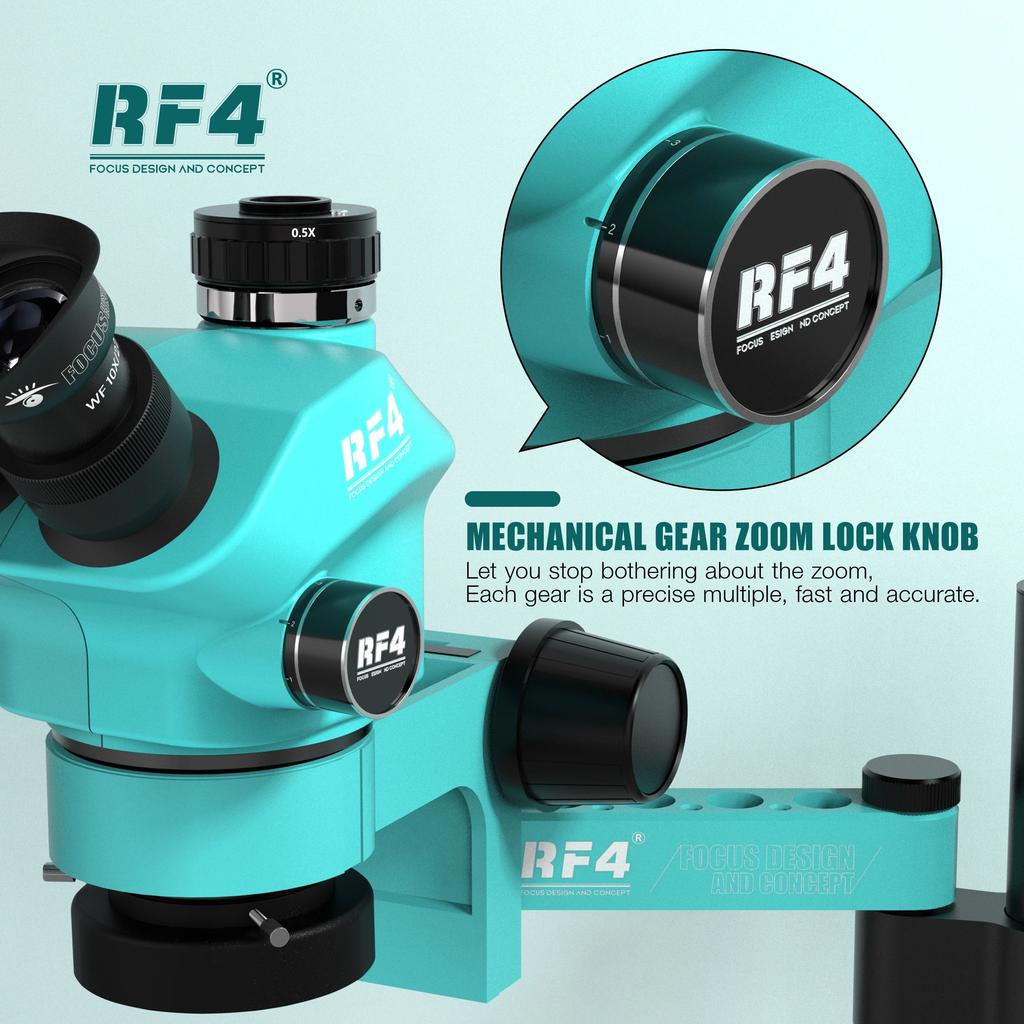

This universal stereo microscope offers a 7-50X zoom range with a 6-speed mechanical locking system, so you can set magnification in defined steps and keep it locked during soldering, assembly or inspection. The observation head is inclined at 45° with interpupillary distance adjustment (approx. 54-75 mm) and diopter adjustment on both tubes, allowing users to fine-tune focus and comfort, including those who wear glasses. The wide-field WF10X/22 mm eyepieces provide a broad, flat field of view that makes searching, positioning and comparing details more efficient.

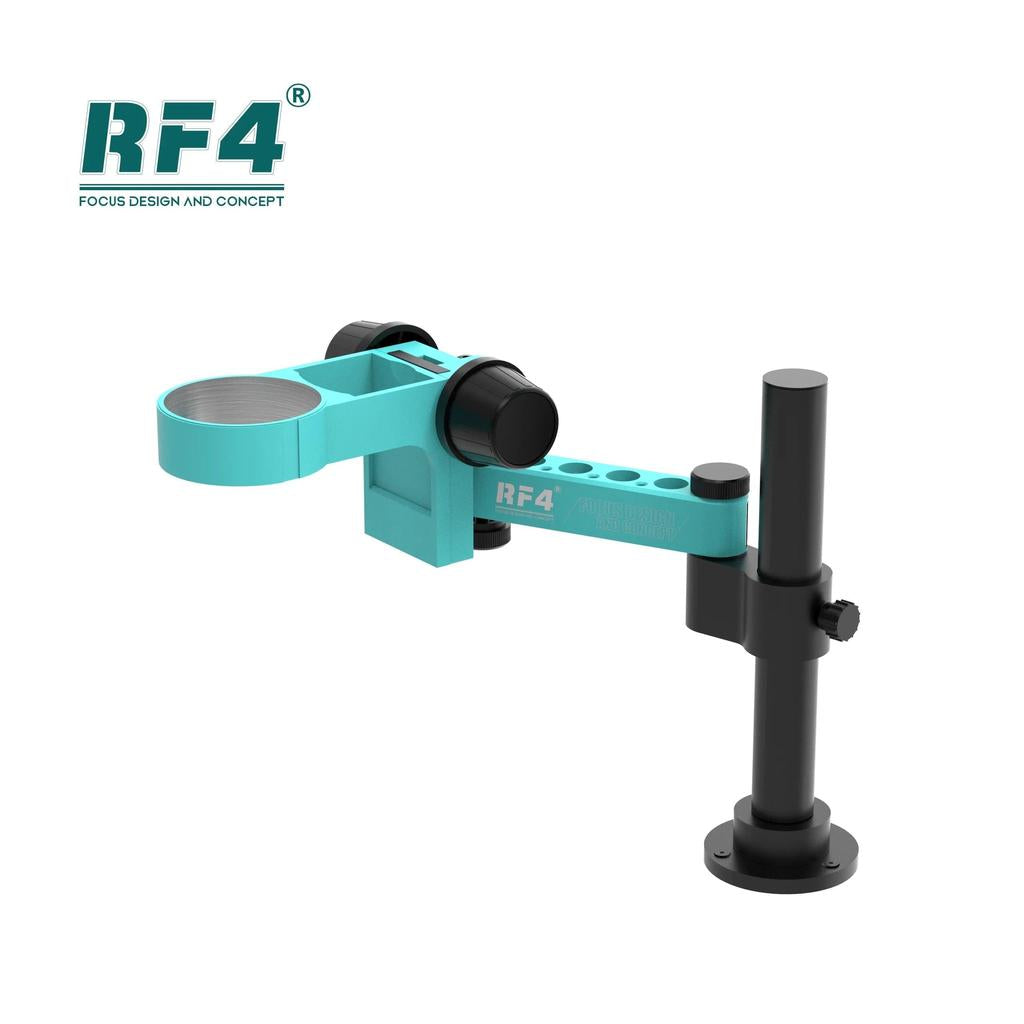

The robust support system includes a metal column and swing arm with telescopic and lifting adjustment for accurate height control over the workpiece. Column and lens apertures are engineered to match common stereo microscope configurations, and the 0.5X metal adapter (aluminium alloy and copper chrome-plated bayonet) allows connection to LCD or camera systems. The adapter's internal transparent element supports synchronous zoom between the eyepieces and external display when focusing manually.

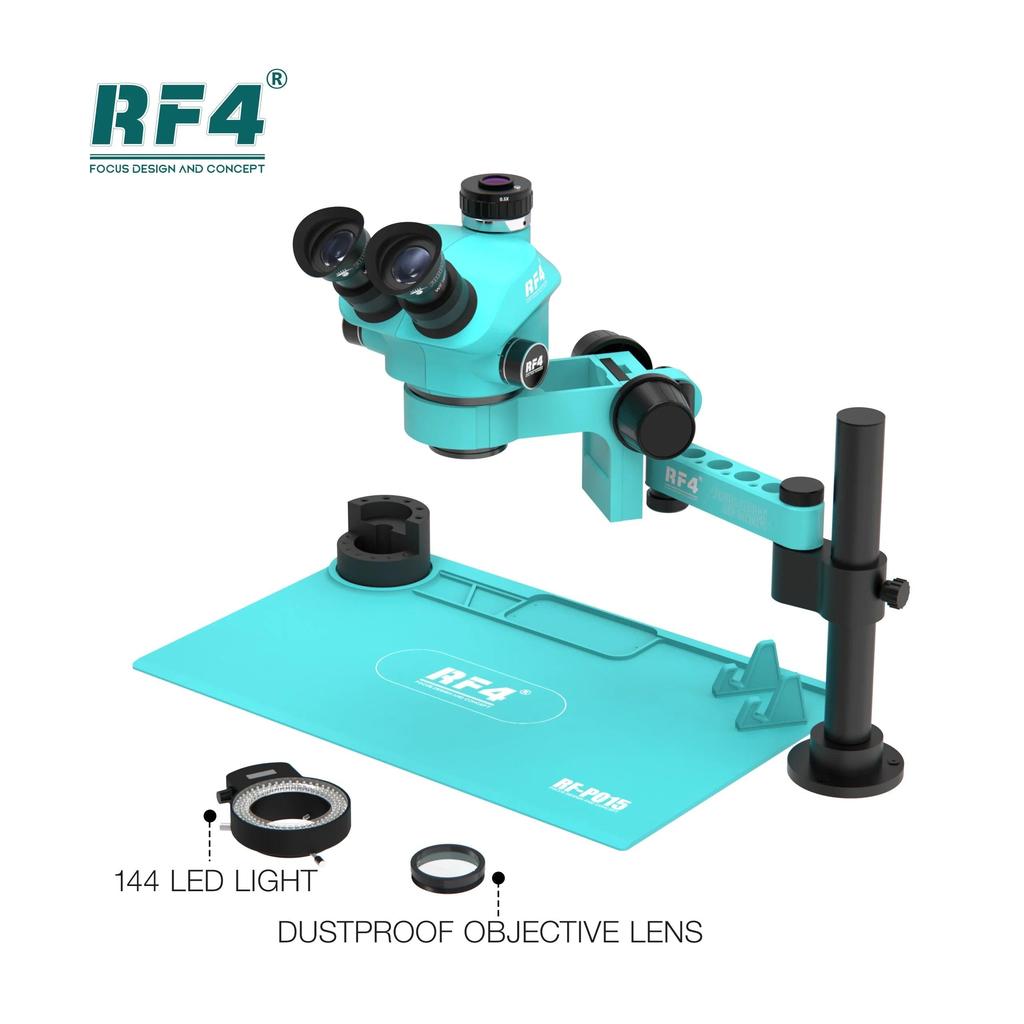

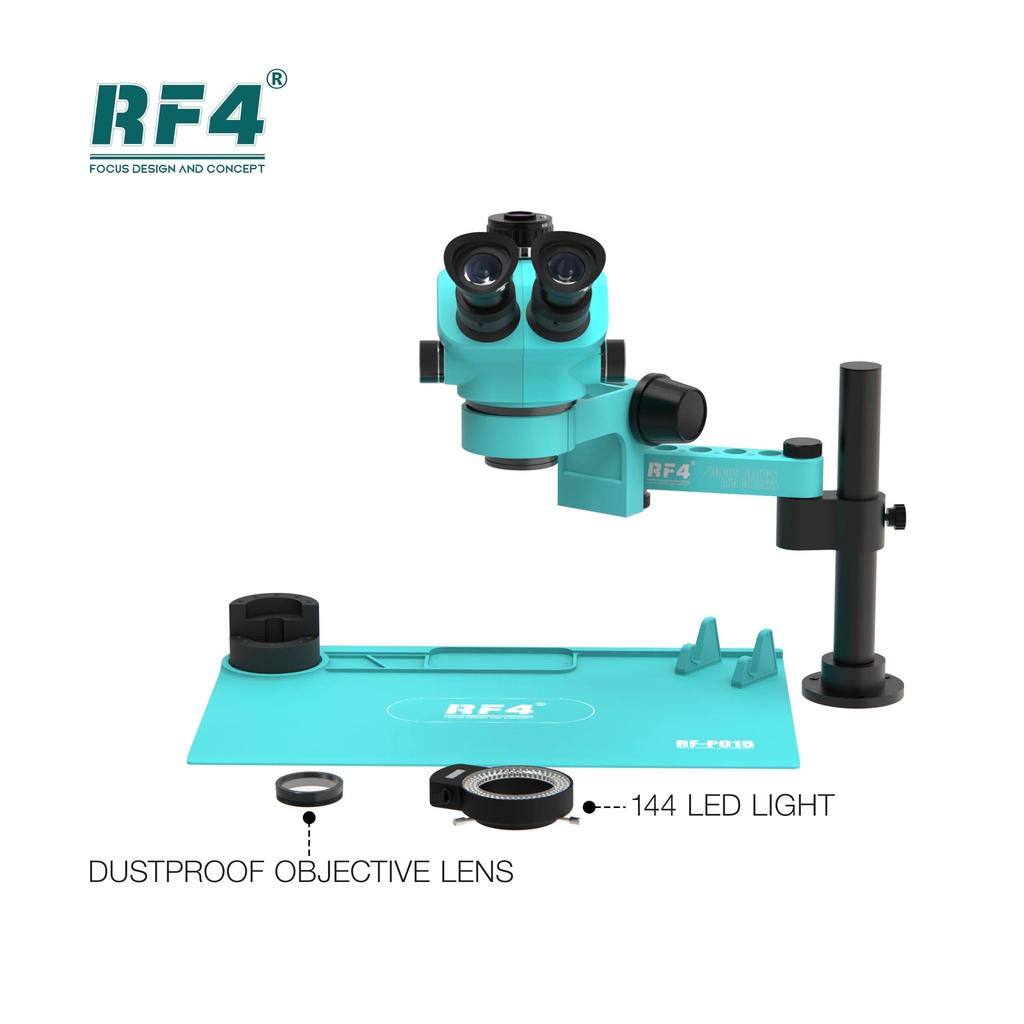

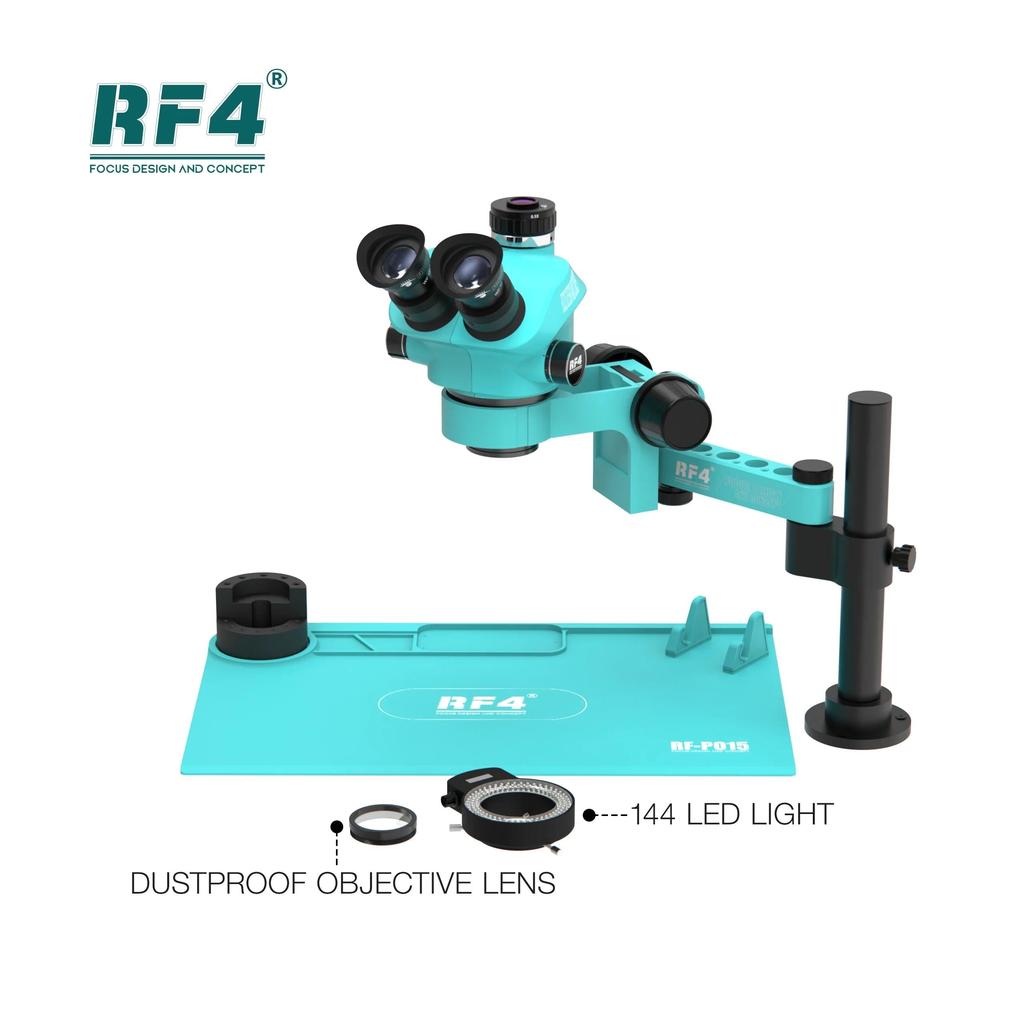

To ensure consistent illumination, the RF4 RF7050TVPRO-F019 is supplied with an adjustable 144-LED ring light. Operating on AC 100-240 V (50/60 Hz) with DC 12 V output, it delivers approximately 30,000-35,000 lux of cool white light (about 6000-7000 K). Brightness can be finely adjusted to suit reflective or matte surfaces, and the ring design provides uniform, shadow-free lighting with minimal glare. Integrated mounting screws secure the light firmly to the microscope for stable, repeatable setups.

Operator comfort is enhanced by upgraded ergonomic eye masks designed to reduce light leakage and afterglow. These eye sleeves help maintain image visibility even when the operator's eyes move slightly, supporting long observation sessions with reduced visual fatigue. Included dust goggles protect the objective area from smoke, oil and dust, helping to maintain optical clarity and extend the service life of the microscope in demanding environments such as soldering or machining.

The RF4 RF7050TVPRO-F019 is suitable for a wide range of tasks: zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology; textile inspection of fibers and fabrics; electronics assembly, rework and fault-finding; watch and small mechanism maintenance; precision parts inspection and assembly; surface quality checks on lenses, prisms and other transparent components; as well as cultural relics, coins, artworks, plastics, chemicals, pharmaceutical samples and more. Its straightforward controls, horizontal (axial) shift handwheel and high repeatability make it practical both for professional labs and production lines, as well as teaching and training environments.

Why It's a Smart Choice

• 6-speed locking zoom from 7-50X supports repeatable, stable magnification for inspection and rework.
• 360° adjustable swing arm and lifting support give a large working area for tools, PCBs and samples.
• Wide-field WF10X/22 eyepieces, ergonomic eye masks and adjustable LED ring light improve clarity and reduce fatigue in long sessions.

FAQ

Q: Is this microscope suitable for electronics soldering and PCB inspection?
A: Yes. The 360° swing arm, large working distance and 144-LED adjustable ring light make it well suited for soldering, rework, connector inspection and fine-pitch component analysis.

Q: Can I connect a camera or LCD screen to this microscope?
A: Yes. The included 0.5X metal adapter is designed to connect to compatible LCD or camera systems and supports manual focusing with synchronous zoom between the microscope and display.

Q: Is it comfortable for long-term use?
A: The 45° inclined head, wide-field eyepieces, adjustable interpupillary distance, diopter adjustment and upgraded ergonomic eye masks are all designed to support long observation periods with reduced eye strain.

Q: What types of applications can it handle outside of electronics?
A: It is widely used for biological and zoological observation, textile and material inspection, precision mechanical assembly, surface quality checks on optical components, and examination of cultural relics, coins, artworks and printed materials.
