Multifunction Milling Drill Worktable with Vise

Precision Worktable for Milling, Drilling and Assembly

This multifunction milling and drilling worktable provides a stable, adjustable platform for accurate positioning of small workpieces. Designed for use with drill presses and similar machines, it features a smooth-working slide table and integrated vise fixture for controlled linear movement along both X and Y axes.

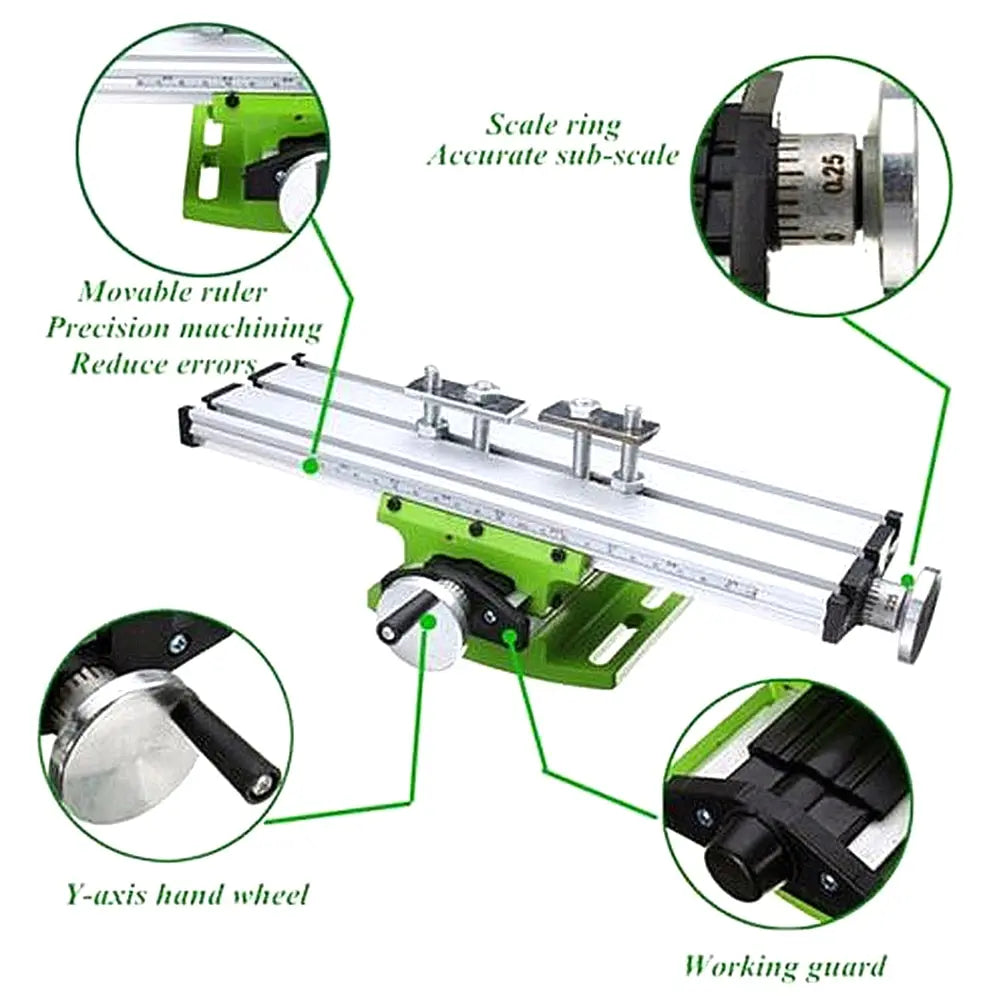

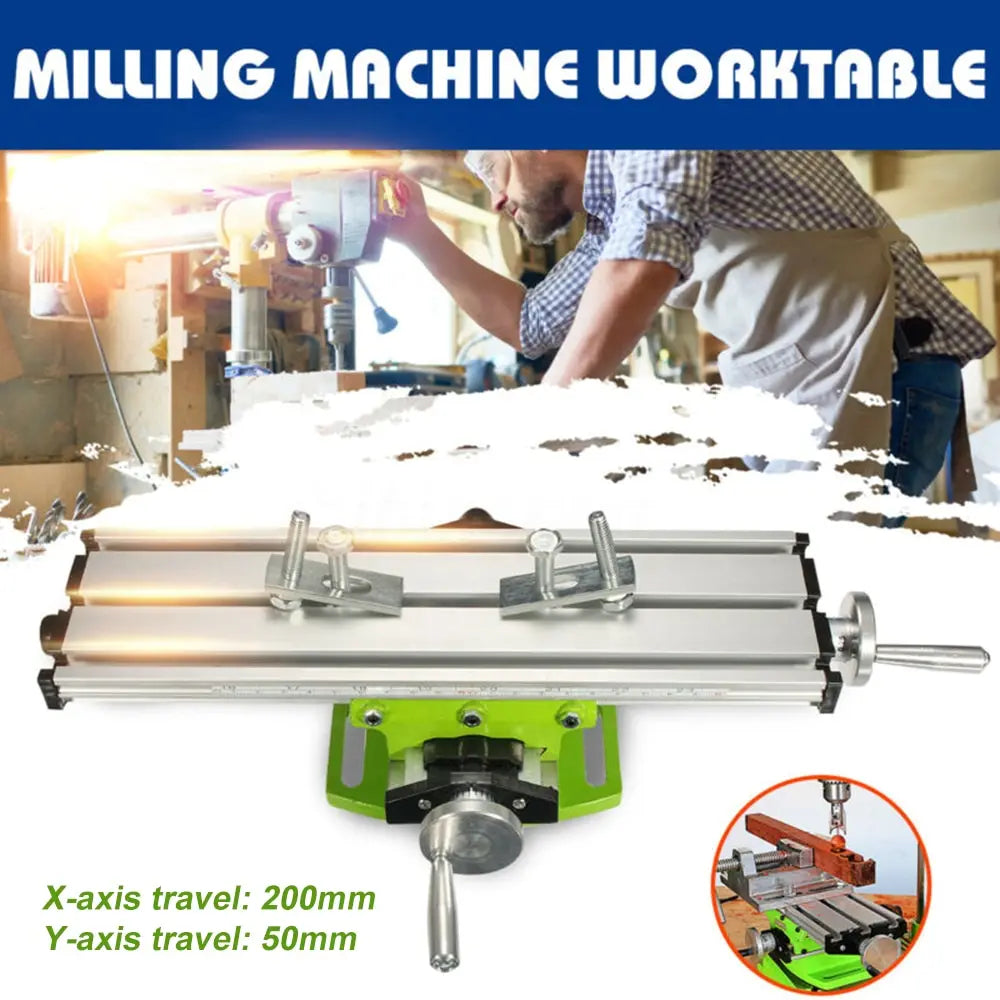

The table measures 300 x 85 x 78 mm and is manufactured with machined T-slots for secure clamping of jigs and fixtures. X-axis travel of 200 mm and Y-axis travel of 50 mm allow fine positioning across a compact footprint. Graduated dials offer clear, repeatable adjustments: 1 ring = 1.25 mm and 1 scale = 0.05 mm, supporting precise incremental movements for drilling, light milling, layout work, and small part machining.

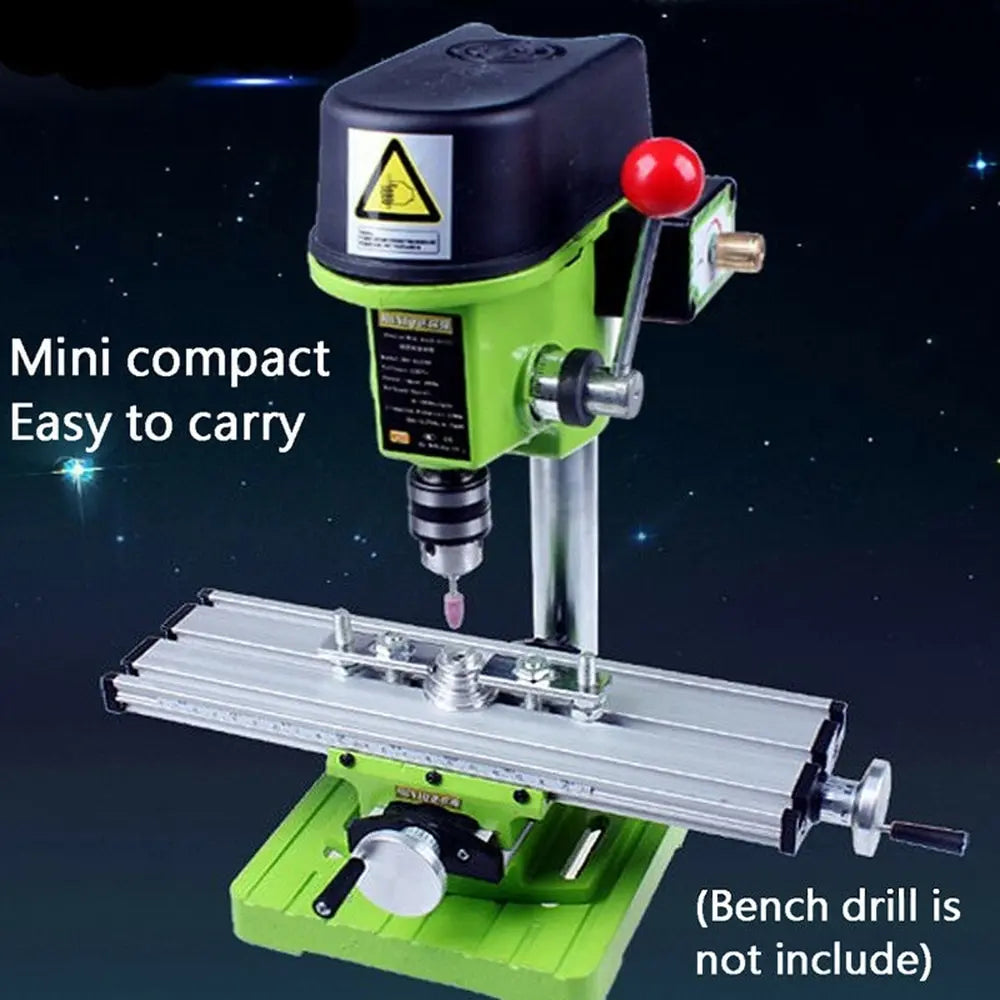

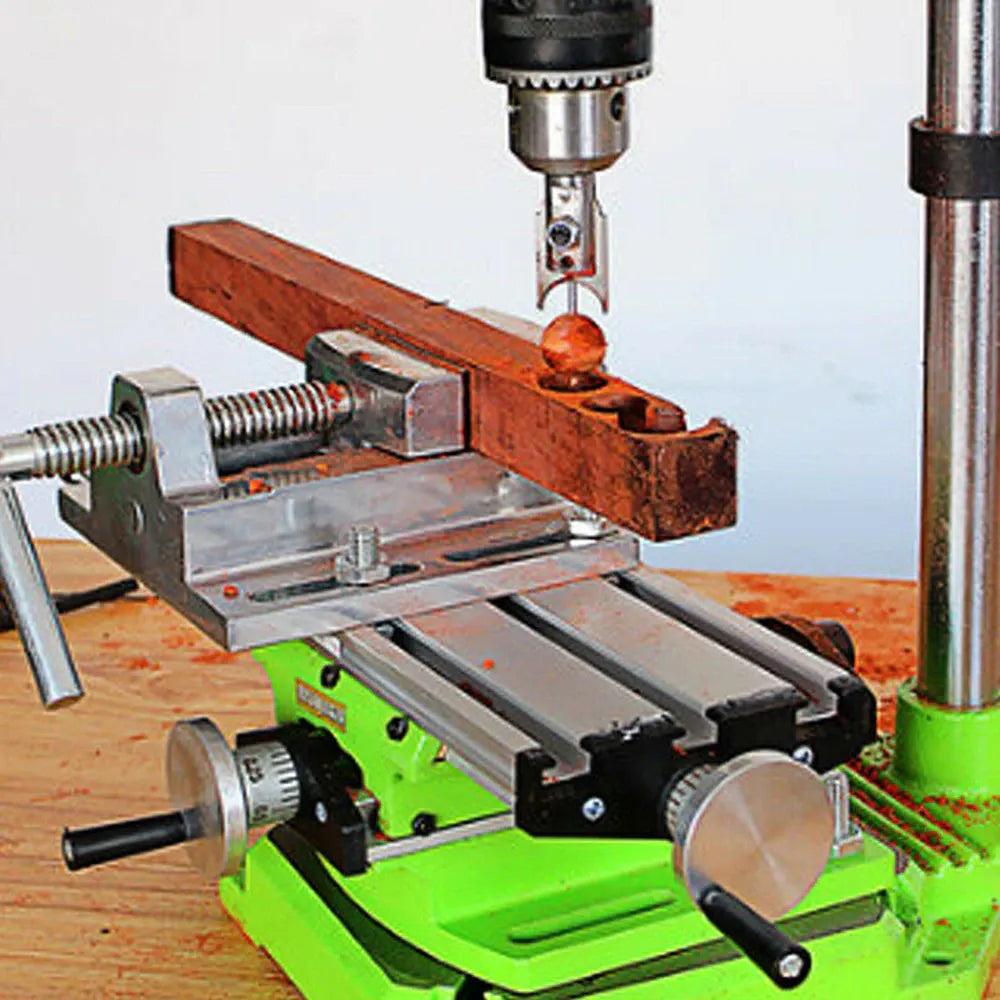

Supplied with an accessories set and flat nose pliers, this kit supports a wide range of workshop tasks, from electronics and model making to small metal and wood components. The worktable mounts under a drill to hold the workpiece securely while you position it accurately under the bit, reducing misalignment and rework. The flat nose pliers assist with handling, bending, and cutting small parts and wire during setup and finishing.

Why It's a Smart Choice

• Accurate Two-Axis Positioning - 200 mm X-axis and 50 mm Y-axis travel with clear graduations enable controlled, repeatable movements.
• Stable Clamping Surface - Machined table with 34 mm groove spacing provides reliable support for small workpieces and fixtures.
• Compact, Workshop-Friendly Design - At 350 x 200 x 80 mm package size and approx. 1.65 kg, it fits easily on benchtop drill presses and small workstations.

FAQ

Q: What machines is this worktable compatible with?
A: It is designed for use with small drill presses, bench drills, and similar machines that can accept a clamped or bolted auxiliary table. Always check your machine's mounting and clearance before installation.

Q: Can it be used for heavy milling operations?
A: This worktable is suitable for light milling, drilling, and positioning of small parts. It is not intended for heavy-duty milling or high material removal rates.

Q: What is included in the package?
A: The package contains 1 x mini multifunction table and 1 x accessories set, including clamping hardware and flat nose pliers for handling small components.

Q: How precise are the adjustments?
A: The handwheels are graduated so that 1 ring corresponds to 1.25 mm of travel and each scale division equals 0.05 mm, allowing fine, controlled positioning for detailed work.
