Mini LED Moving Head DMX512 RGBW 4-in-1 Stage Light

Mini LED Moving Head Light for Dynamic Stage Effects

Elevate your lighting setup with a compact moving head fixture that combines RGBW color mixing, precise pan/tilt control, and multiple control modes. Designed for DJs, small venues, bars, KTV rooms, and event planners, this unit delivers tight beams, fast movement, and responsive effects for Christmas events, weddings, parties, and club shows.

The Mini LED Moving Head Light uses a 10W RGBW 4-in-1 LED light source, allowing smooth color mixing from rich saturated tones to clean whites. With a 1° beam angle, it produces concentrated, clearly defined beams suitable for aerial effects, spot accents, and synchronized chases. The fixture operates on the standard DMX512 protocol and supports 11/13-channel modes, giving lighting operators detailed control over dimming, color, pan/tilt movement, strobe, and built-in programs. It also offers voice-activated, self-propelled (auto), and master-slave modes for fast setup without a console.

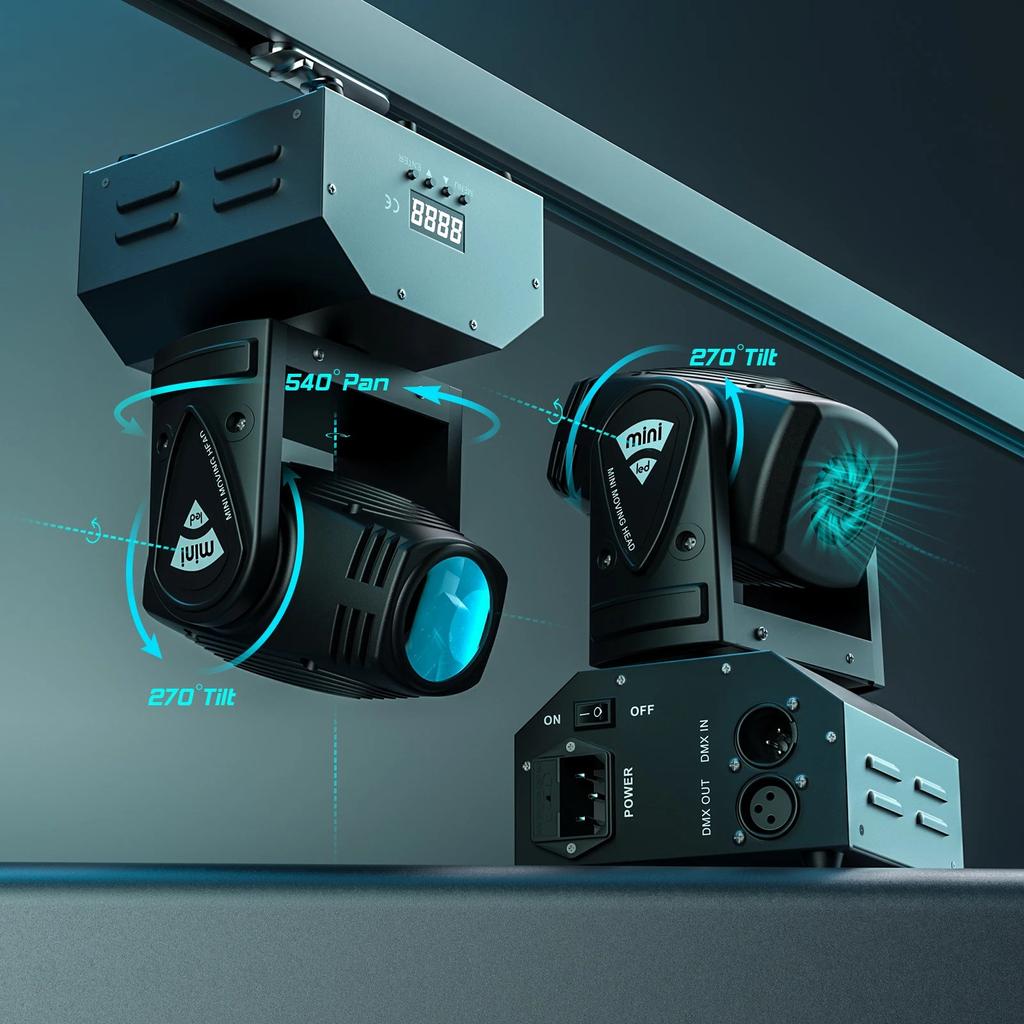

The housing combines aerospace aluminum alloy and ABS plastic, balancing durability with reduced weight. A fan-assisted cooling system helps maintain stable performance and extends LED service life, rated at up to 50,000 hours. The fixture delivers approximately 1130 lux at 5 m, with a color temperature range of about 700-8000K and a color rendering index of Ra ≥ 70, suitable for general stage, club, and entertainment lighting. Pan (X-axis) movement reaches up to 540° with fine-tuning capability, while tilt (Y-axis) covers up to 205°, enabling wide coverage and versatile positioning.

The 0-100% linear dimmer supports smooth fades and intensity changes, and the 1-25 Hz strobe function covers everything from subtle pulses to rapid flashes. Control and setup are managed via a 4-digit digital display with a clear menu structure and tactile keys, making addressing and mode selection straightforward. Three-core XLR input/output connectors provide standard DMX signal daisy-chaining. With an IP20 protection rating, this fixture is designed for indoor use in environments such as bars, KTV, dance halls, nightclubs, shows, weddings, and general entertainment spaces. Operating temperature ranges from approximately -20°C to 40°C.

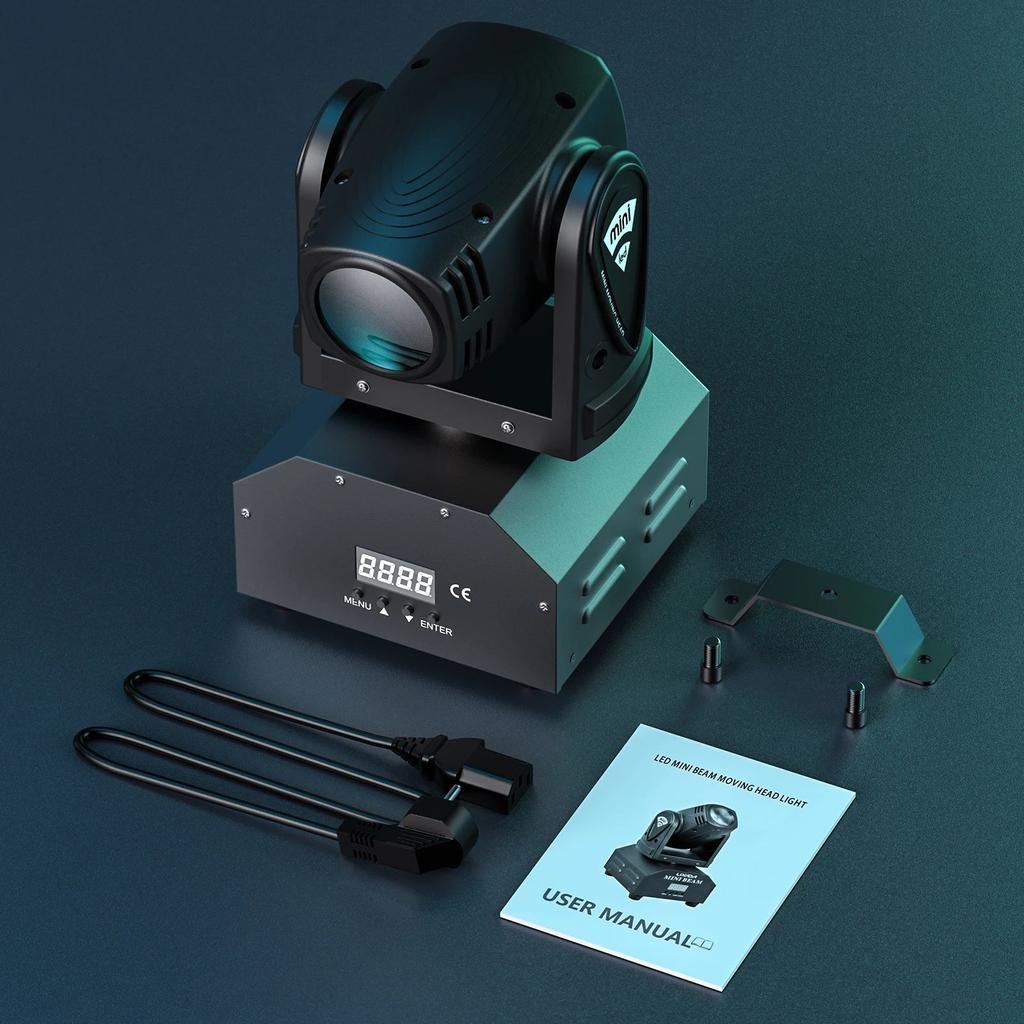

The internal transmission structure uses precision chain teeth and a rubber synchronous belt, supporting smooth, low-noise movement even during fast pan/tilt changes. The ABS shell helps simplify maintenance and keeps the exterior looking consistent over time. Each package includes one stage light, a power cord, an install hanger, mounting screws, and an English manual, allowing quick integration into truss, lighting stands, or ceiling mounts.

Why It's a Smart Choice

• Versatile control options: DMX512, sound-activated, auto, and master-slave modes adapt to both professional and plug-and-play setups.
• Precise movement and tight beams: 540° pan, 205° tilt, and a 1° beam angle create focused, dynamic effects for stages and dance floors.
• Long LED life and stable performance: efficient cooling and robust materials support extended use in clubs, bars, and event environments.

FAQ

Q: Can this light be controlled with a standard DMX controller?
A: Yes. It uses the standard DMX512 protocol and supports 11/13-channel modes, making it compatible with most DMX controllers.

Q: Does it work without a DMX console?
A: Yes. You can use the voice-activated, self-propelled (auto), or master-slave modes when you do not want to program a controller.

Q: Is this fixture suitable for permanent installation in a bar or club?
A: It is suitable for indoor fixed installations in bars, KTV, clubs, and similar venues, provided it is mounted securely and operated within the specified temperature range.

Q: What type of events is it best for?
A: It works well for weddings, parties, DJ sets, small shows, and club environments where compact moving beams and color effects are needed.

Q: Can multiple units be linked together?
A: Yes. You can daisy-chain several units via three-core XLR for DMX control or set them in master-slave mode for synchronized effects.
