LED Dimmer Wireless Remote Switch 5-24V 12A

Wireless LED Dimming for Flexible, Efficient Lighting

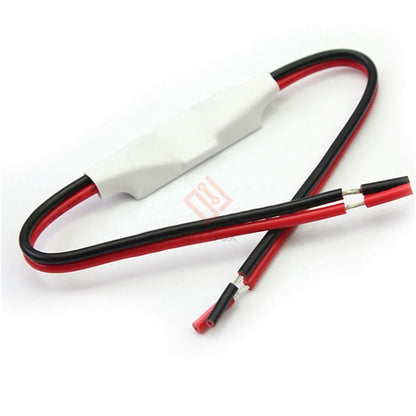

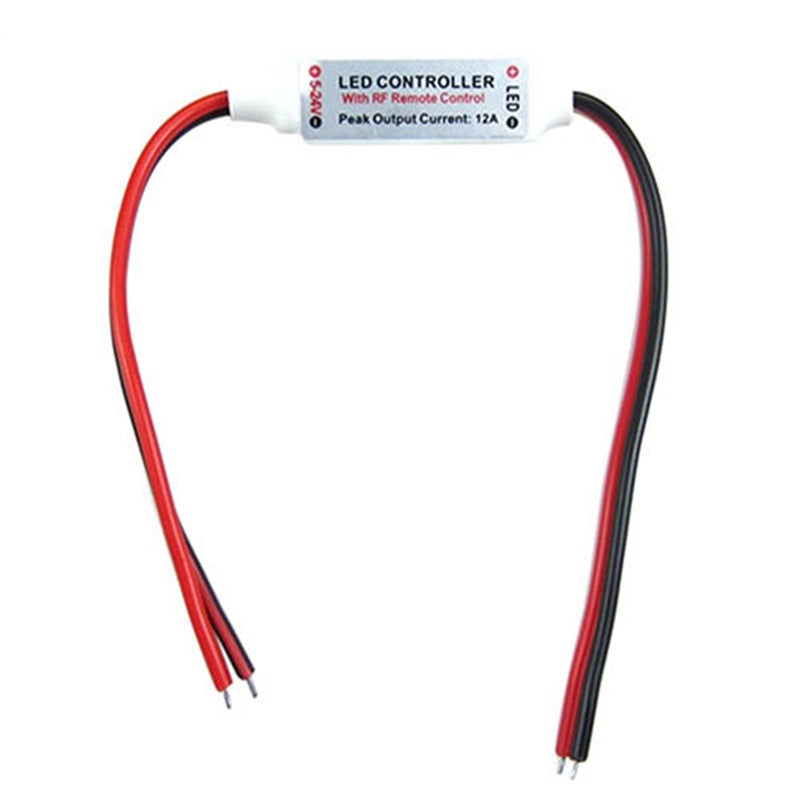

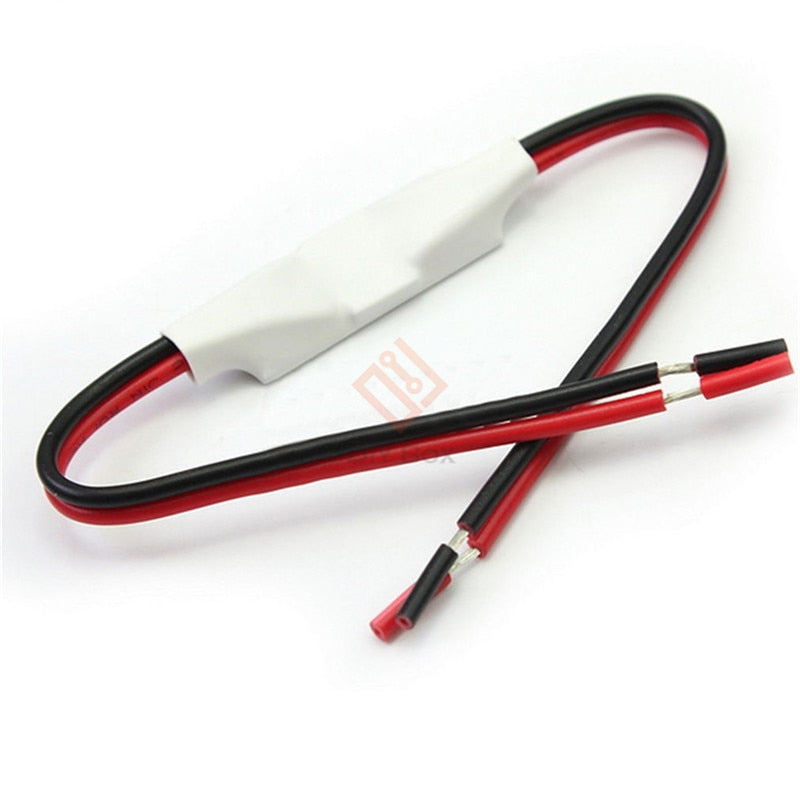

Enhance the control and efficiency of your LED lighting with this LED Dimmer Wireless Remote Switch. Designed for DC 5-24V LED installations, it supports up to 12A peak output current, making it suitable for a wide range of low-voltage LED strips and fixtures. The compact in-line controller connects directly between your power supply and LED load, allowing smooth brightness adjustment without flicker.

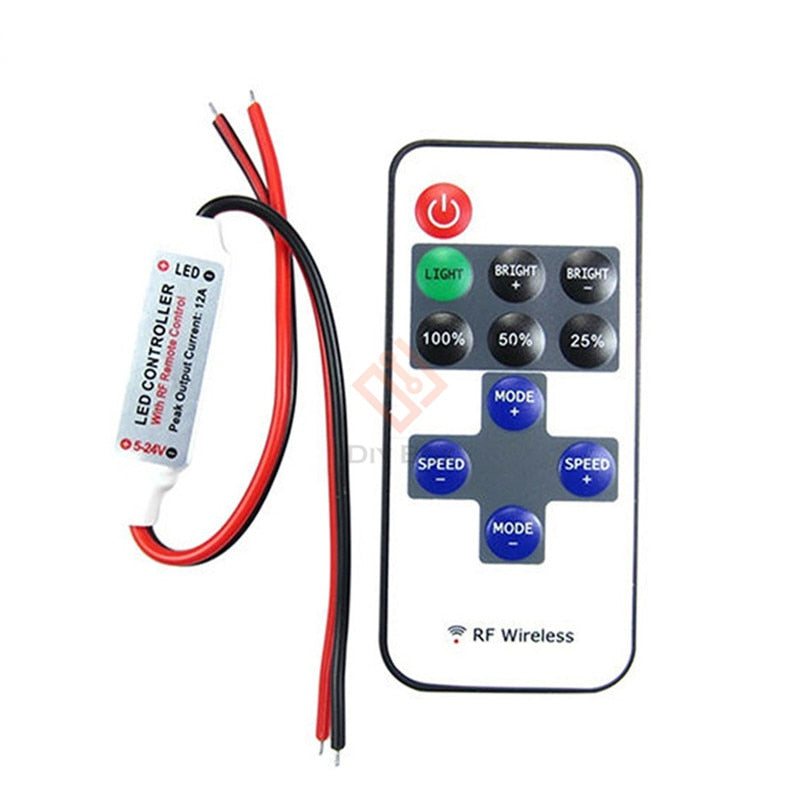

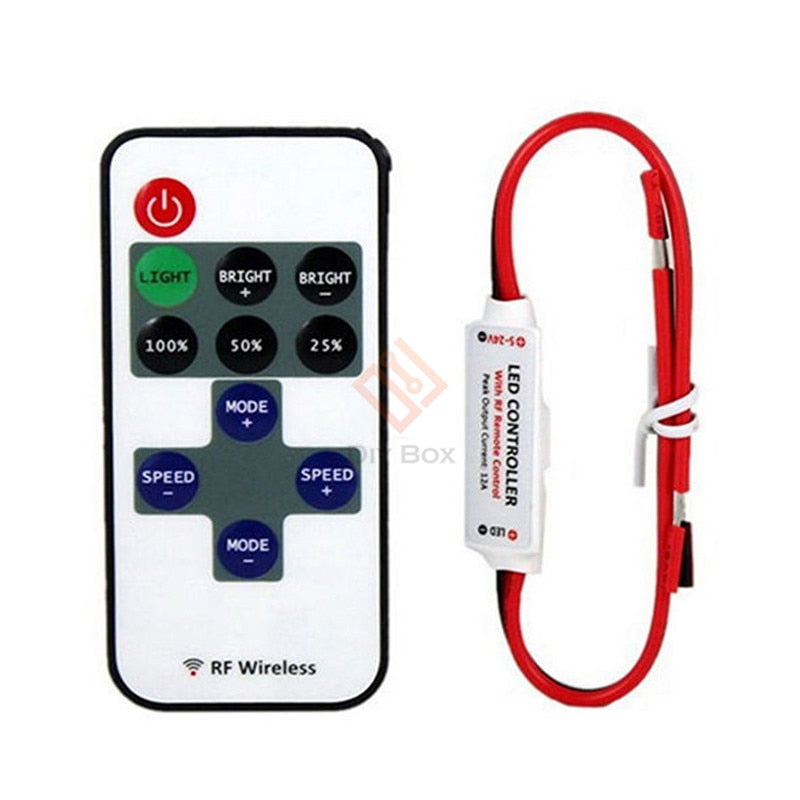

The included RF remote (433.92 MHz) offers 8 dynamic lighting modes, 10 speed levels, and 10 dimming levels, so you can fine-tune both brightness and effects. With an open-area control distance of over 15 m, you can adjust your lighting from across the room without line-of-sight. Clearly labeled buttons and dedicated keys for on/off, brightness up/down, preset brightness (25%, 50%, 100%), mode selection, and speed control ensure straightforward operation.

Why It's a Smart Choice

• Flexible DC 5-24V compatibility - Works with a wide range of low-voltage LED strips and fixtures, ideal for under-cabinet, accent, or task lighting projects.
• Precise brightness and effect control - 10 dimming levels, 8 dynamic modes, and 10 speed settings allow you to tailor lighting to work, relaxation, or display environments.
• Simple installation and remote convenience - In-line wiring with clear polarity (red positive, black negative) and RF remote control mean no need to access the physical switch once installed.

FAQ

Q: What power supply do I need?
A: Use a DC power supply between 5V and 24V that matches your LED strip's voltage and provides sufficient current without exceeding the controller's 12A peak rating.

Q: Can this dimmer be used with non-LED bulbs or mains voltage?
A: No. This controller is for low-voltage DC LED products only and must not be connected directly to AC mains.

Q: Is the battery for the remote included?
A: No. The remote uses one 3V CR2025 coin cell battery, which must be purchased separately.

Q: How do I install the dimmer?

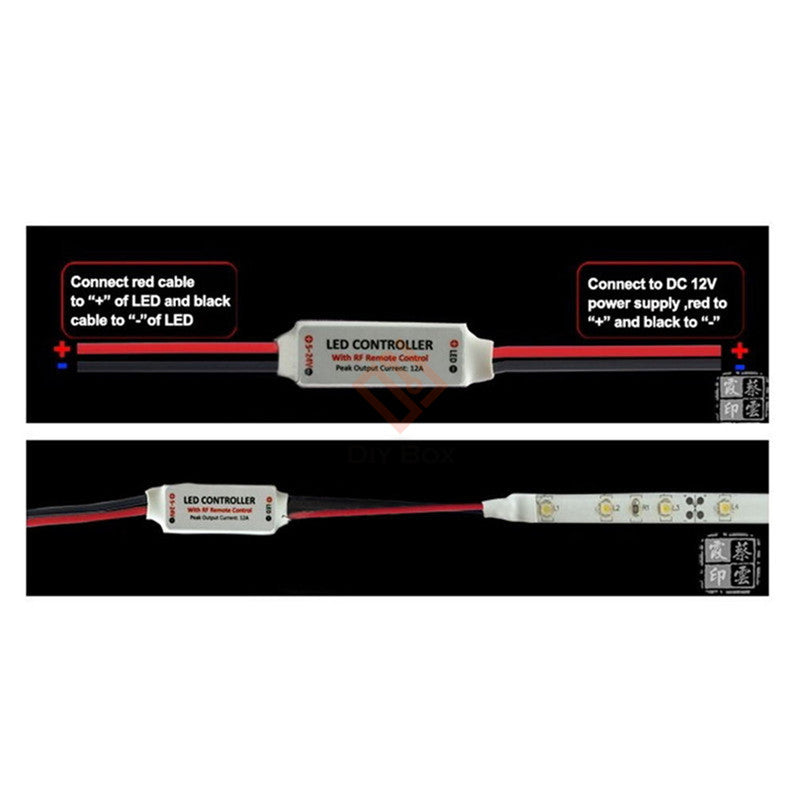

A: Connect the power supply's positive to the controller's red input wire and negative to the black input wire. Then connect the LED load's positive to the controller's red output wire and negative to the black output wire, ensuring no short circuits.

Q: What should I do if the controller overheats?
A: Reduce the connected LED load so that the current remains within the safe operating range (below the 12A peak) and ensure adequate ventilation around the controller.
