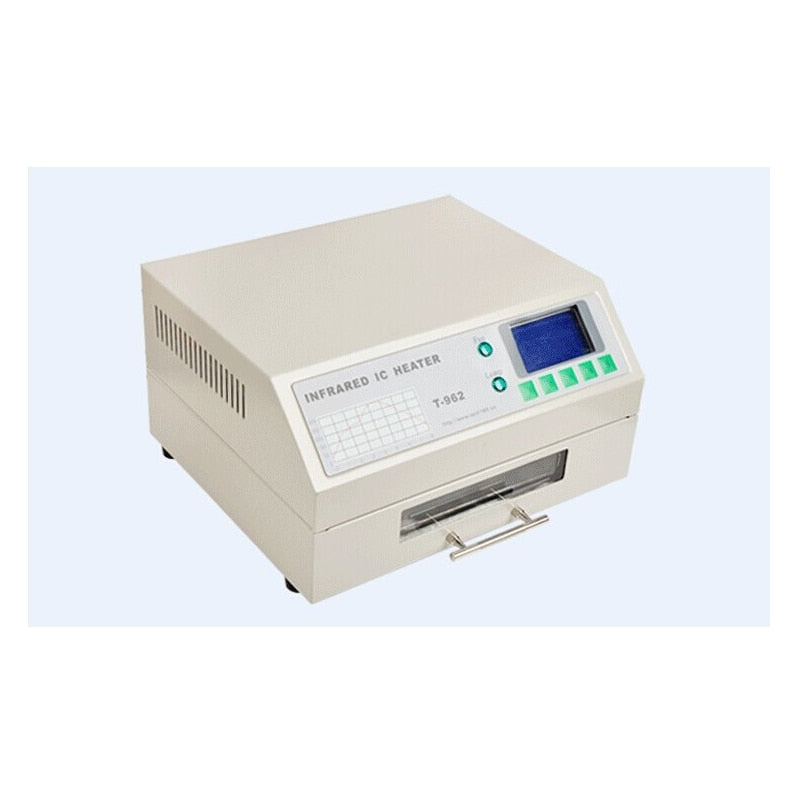

Infrared Reflow Oven IC Heater 800W

Compact Infrared Reflow Oven for Precise SMD Soldering

This Infrared IC Reflow Oven is designed for reliable, repeatable reflow soldering of SMD and BGA components in a compact benchtop format. With an 800 W heating system, integrated hot-air circulation and infrared elements, it delivers stable temperature profiles suitable for both leaded and lead-free solder pastes.

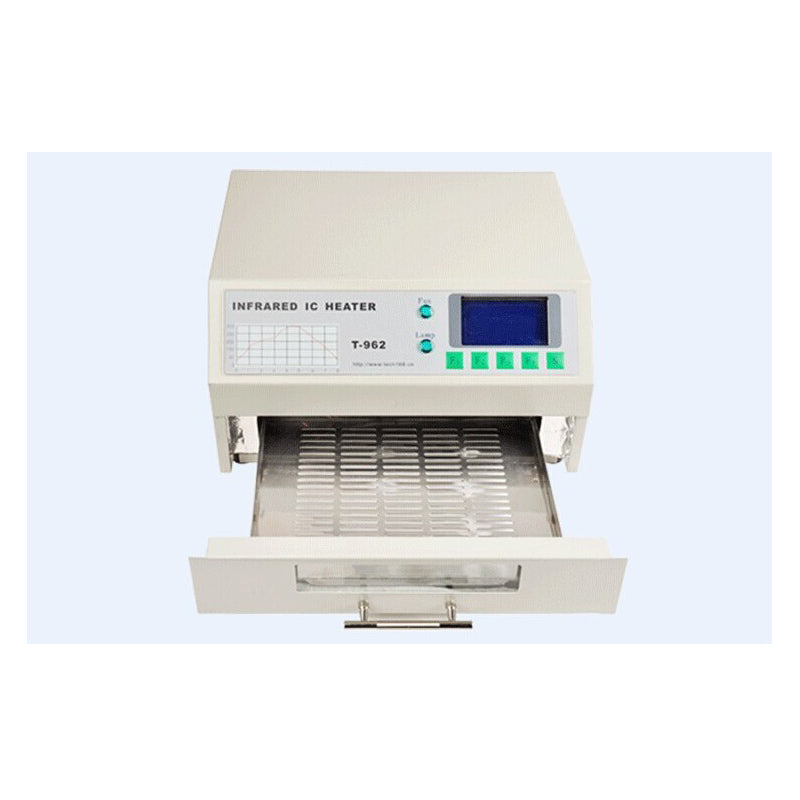

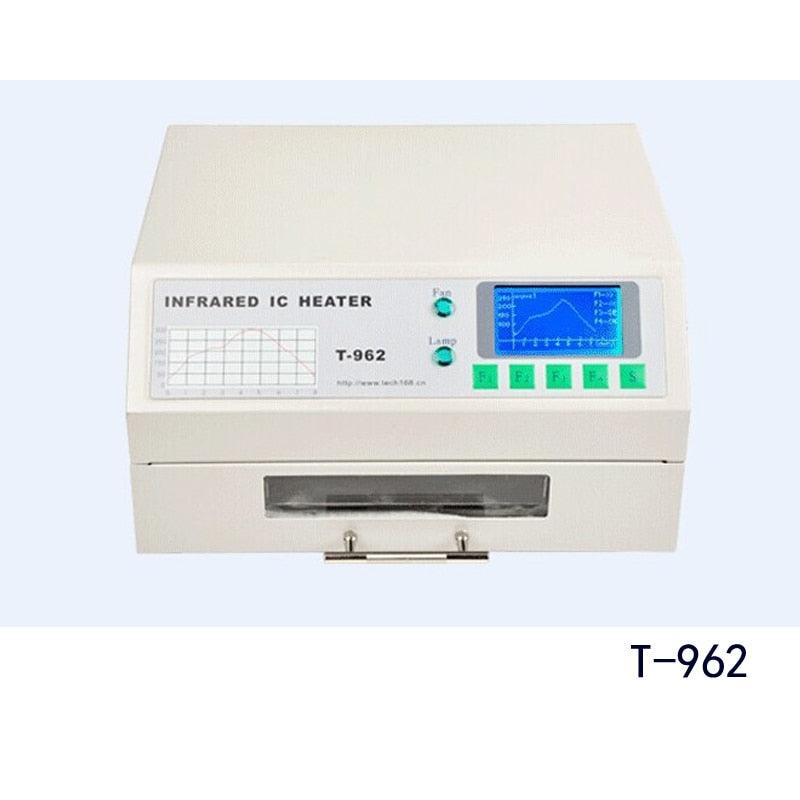

The unit features a clear LCD display for real-time temperature and cycle monitoring, along with an intuitive control panel. An intelligent microcomputer controller allows you to store and recall up to eight temperature profiles, covering the full process stages of preheat, soak and reflow. The pull-out drawer (180 x 235 mm) provides a flat, accessible work area for small PCBs and assemblies, while the overall compact footprint (375 x 240 x 375 mm) fits easily on most workbenches.

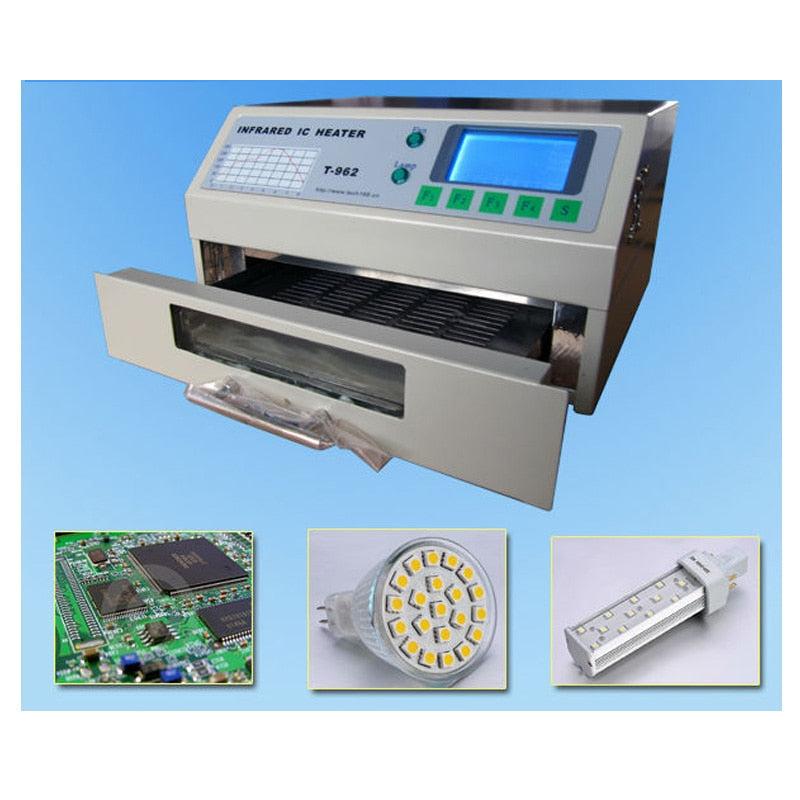

Designed for both hobby and professional environments, this oven supports rework and small-batch production of a wide range of packages including CHIP, SOP, PLCC, QFP, BGA and similar SMD components. The 1-8 minute adjustable cycle time helps you match the process to different board masses and solder pastes, while the efficient 800 W power rating keeps energy consumption under control.

Why It's a Smart Choice

• Consistent reflow profiles - Infrared heating with hot-air circulation helps ensure even temperature distribution across the PCB.
• Profile memory - Built-in microcomputer stores up to eight temperature curves for different boards and solder pastes.
• Bench-friendly design - Compact size, pull-out drawer and LCD interface make it suitable for labs, repair shops and home workspaces.

FAQ

Q: Can this oven be used with both leaded and lead-free solder paste?
A: Yes. It supports temperature profiles suitable for both leaded and lead-free SMD soldering when configured with appropriate profiles.

Q: What types of components can it handle?
A: It is suitable for most standard SMD packages, including CHIP, SOP, PLCC, QFP, BGA and similar surface-mount components.

Q: What is the power and input voltage of the oven?

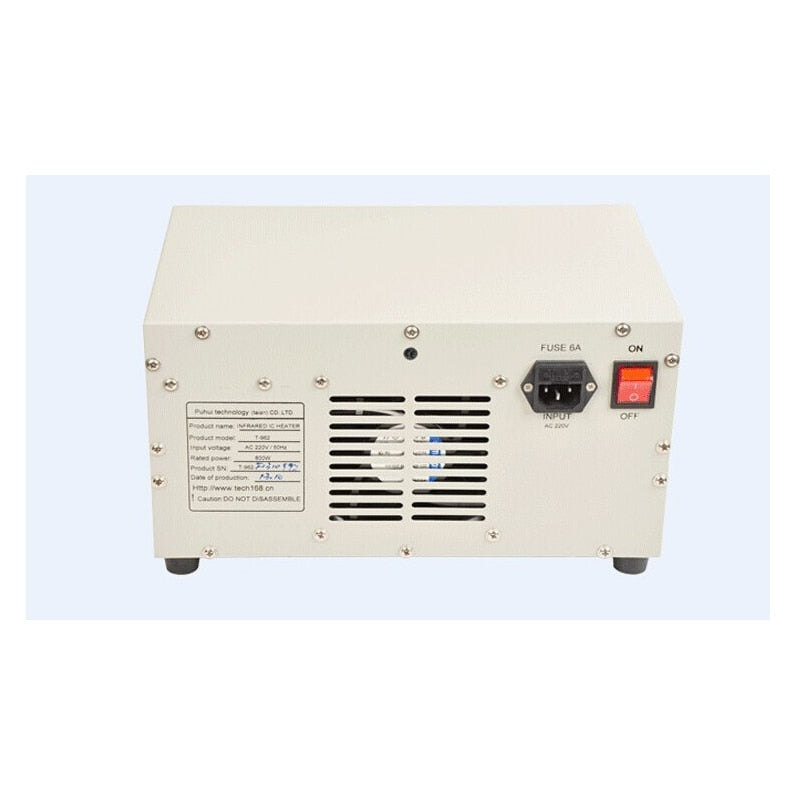

A: The rated power is 800 W. It supports AC 220 V or 110 V input at 50-60 Hz (model or region dependent).

Q: How large a PCB can fit in the drawer?
A: The usable drawer area is approximately 180 x 235 mm, suitable for small to medium-sized boards and assemblies.

Q: What is included in the package?

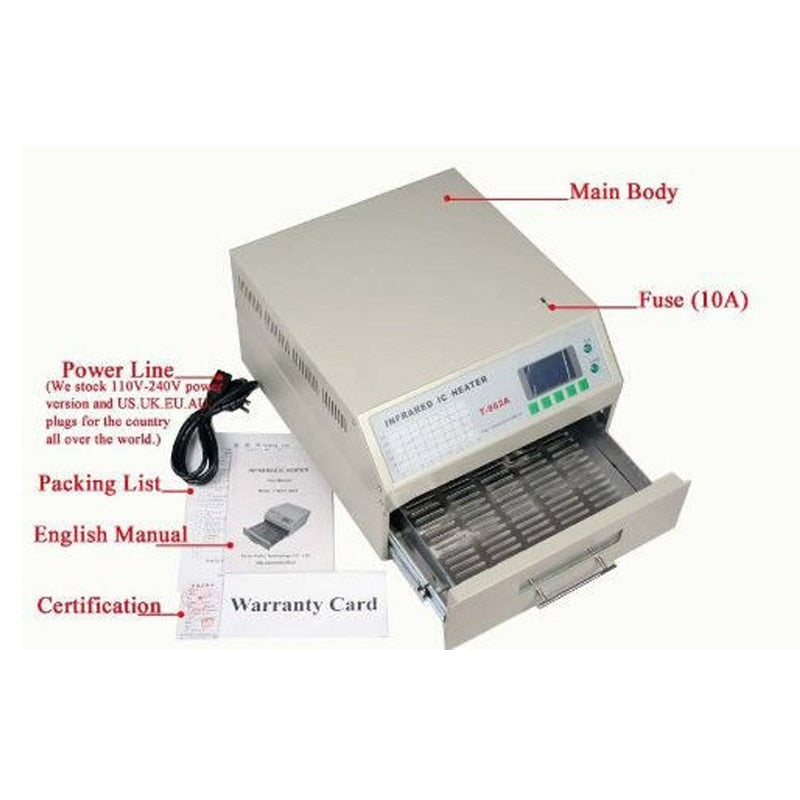

A: Package contents include: 1 x Infrared Reflow Oven IC Heater, 1 x Power Line, 1 x User Manual, 1 x Packing List and 1 x Certification document.
