Hot Air Single Cylinder Stirling Engine Generator Toy

Hands-On Hot Air Stirling Engine Generator Toy

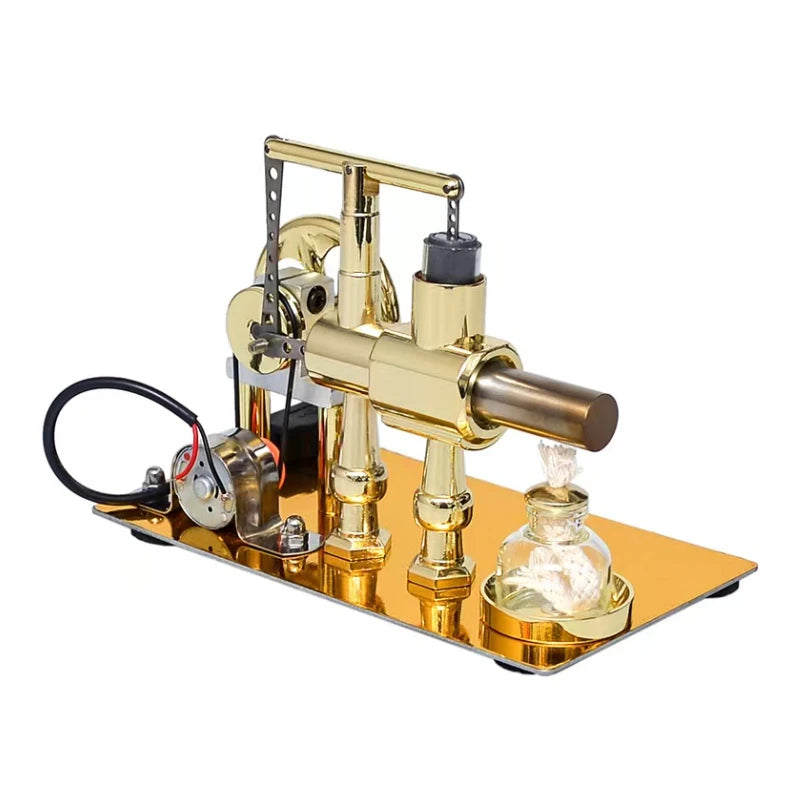

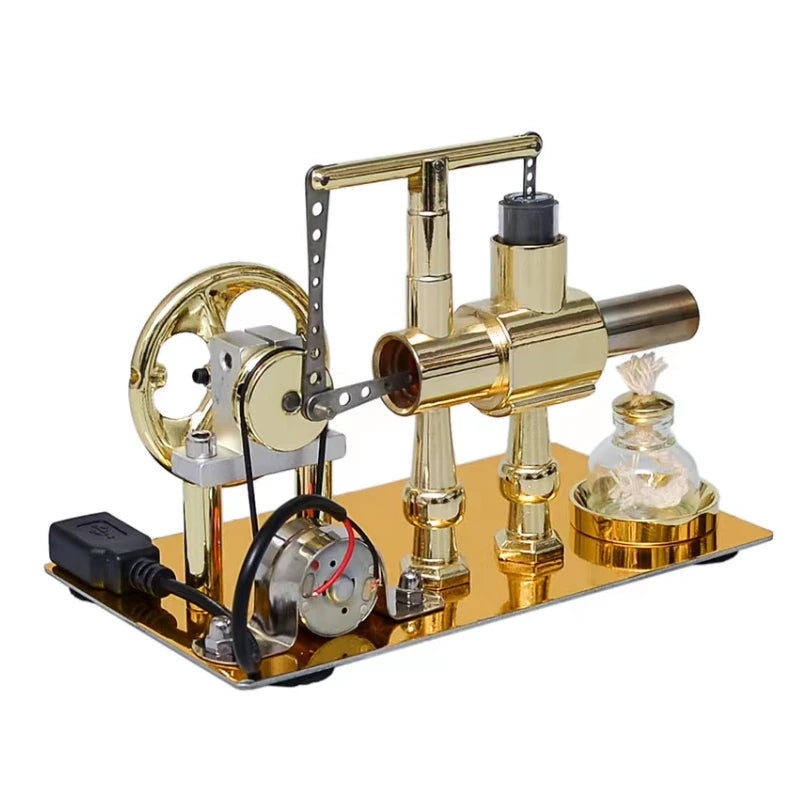

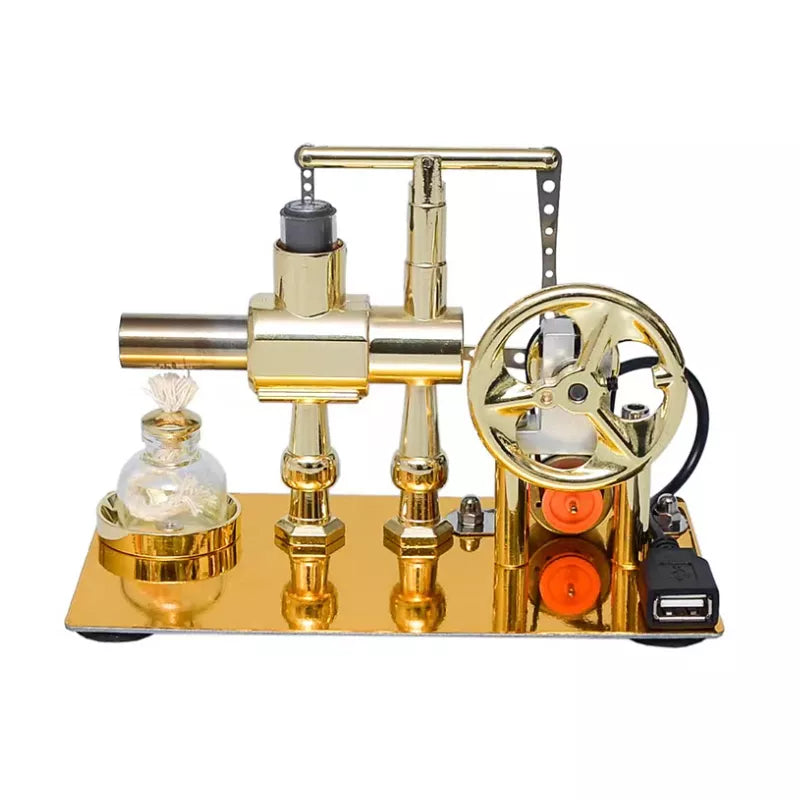

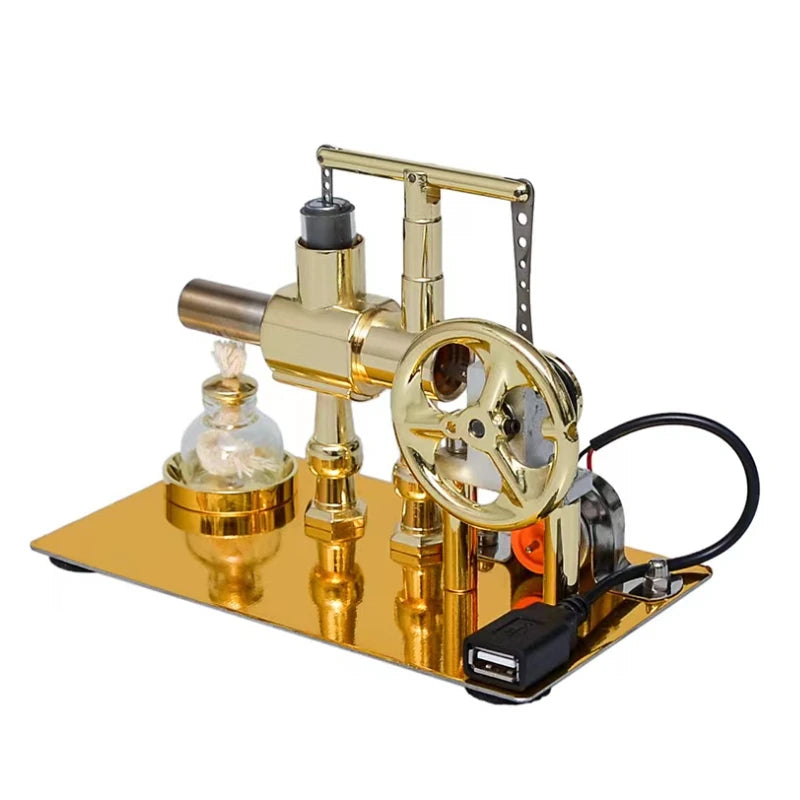

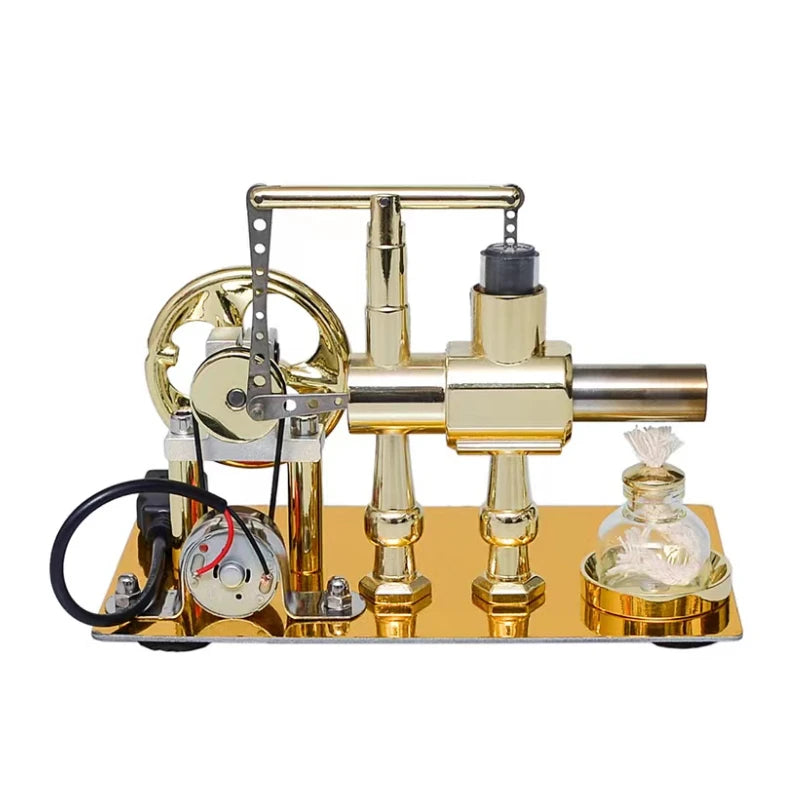

This hot air single cylinder Stirling engine generator is a working tabletop model designed to clearly demonstrate core physics and thermodynamics principles. When heated, the closed-cycle engine converts thermal energy into mechanical motion, driving a flywheel and small generator so users can directly observe how heat becomes motion and motion becomes electricity. Its compact layout, visible moving parts, and simple operating steps make it suitable for classrooms, study desks, laboratories, and hobby collections focused on scientific demonstration.

The engine operates on the Stirling cycle: air inside the cylinder is alternately heated and cooled, causing changes in pressure that move the piston and spin the flywheel. The generator section then uses this motion to produce a small electrical output, illustrating electromagnetic induction and the interaction between magnets and coils. A dedicated alcohol lamp serves as the controllable heat source. The model is assembled with transparent and metal components that allow learners to track the motion of the piston, connecting rod, and flywheel throughout the cycle. It is intended for teaching concepts such as energy conversion, gas expansion and compression, and the relationship between temperature, pressure, and volume.

The package includes one Stirling engine generator model and one alcohol bottle for fueling the lamp (use high-concentration alcohol, 95% or above, filled to less than two-thirds of the lamp). Before use, check that the flywheel rotates smoothly and that all sliding parts are clean. Ignite the alcohol lamp at the heating end of the test tube and allow about one minute for warm-up, then gently turn the flywheel to start the engine. When used with the generator, the warm-up time may be slightly longer. For safety, keep hands away from the heated test tube and connected metal parts during and immediately after operation.

Why It's a Smart Choice

• Provides a clear, visual demonstration of thermodynamics and energy conversion for students and enthusiasts.
• Combines mechanical motion and electrical generation in one model, supporting multi-topic physics lessons.
• Durable, display-ready design that functions as both a teaching aid and a collectible science piece.

FAQ

Q: Who is this Stirling engine generator suitable for?
A: It is suited for students, teachers, hobbyists, and anyone interested in physics, engineering, or scientific demonstration. Adult supervision is recommended when using the alcohol lamp.

Q: Does it require any special tools to operate?
A: No additional tools are required. Fill the alcohol lamp correctly, ignite it, allow the engine to warm up, and then gently start the flywheel by hand.

Q: Can it be used as a regular power source?
A: No. The generator output is intended for demonstration and teaching purposes only, not for powering household devices.

Q: How should it be handled after use?
A: Extinguish the alcohol lamp, allow all heated parts to cool completely, and then store the model in a dry, stable location away from flammable materials.
