HD 1000 Line Ice Fishing Underwater Camera 4.3" IPS

See Clearly Under the Ice, Even in Low Light

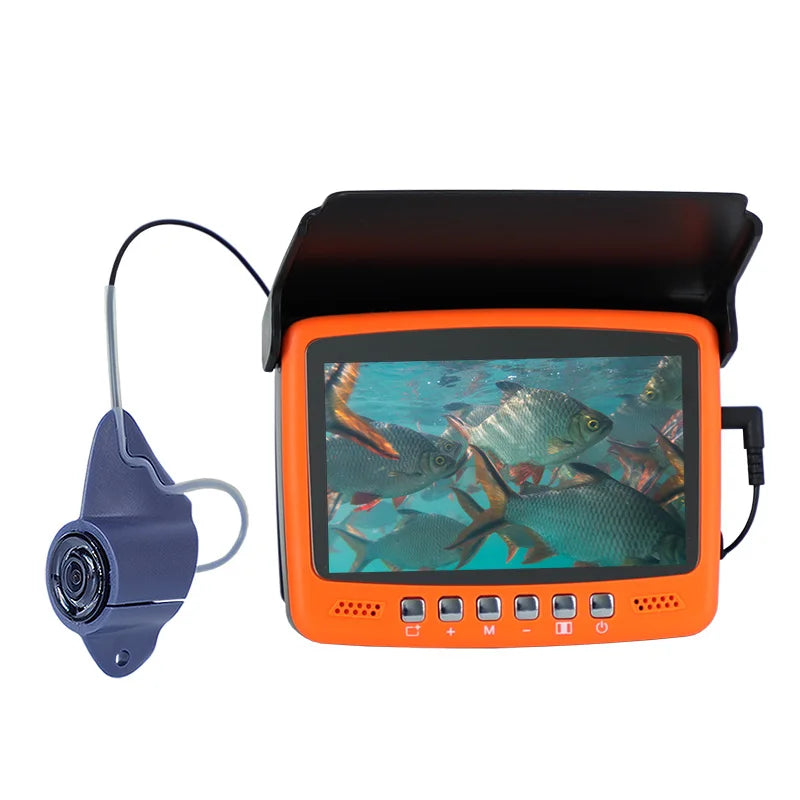

The HD 1000 Line Ice Fishing Underwater Camera with 4.3 inch IPS screen is built for anglers who want accurate, real-time visuals beneath the ice. The compact camera and bright IPS display work together to show structure, fish movement and lure action, helping you decide exactly where and when to drop your line.

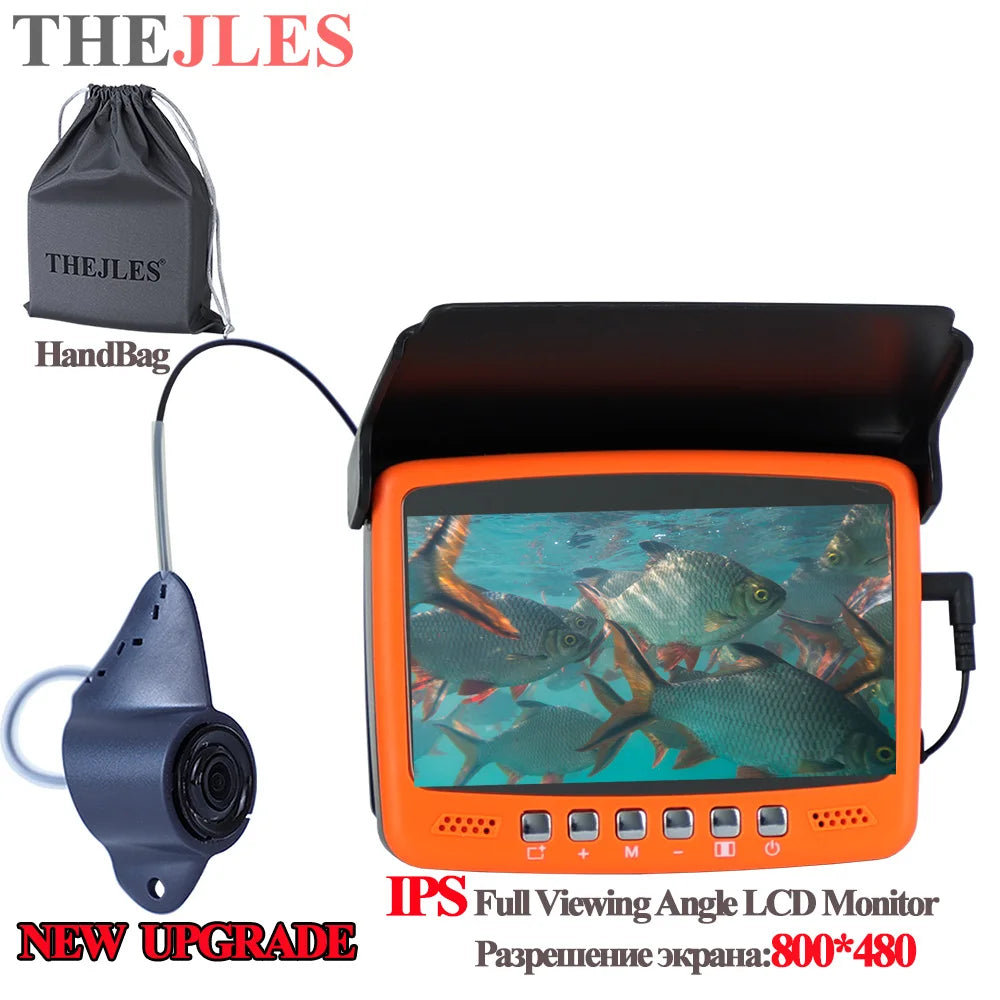

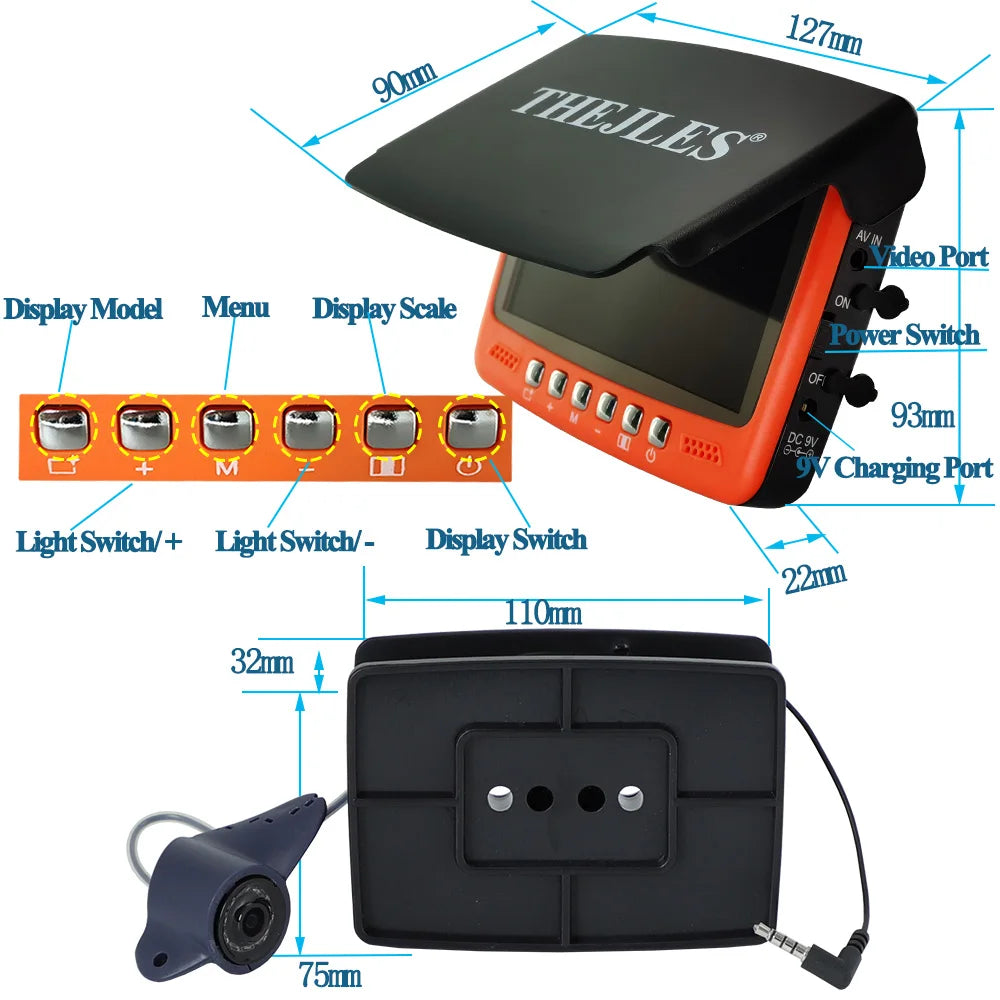

The 4.3 inch IPS-LCD color monitor delivers a clear 800(H) x 480(V) image with a wide viewing angle and a built-in sunshield to reduce glare outdoors. Powered by a rechargeable 2600mAh lithium battery, the system can typically run for 5-8 hours on a full charge, making it suitable for a full session on the ice. The on-screen display supports multiple languages (including English and Russian) and offers a 16:9 viewing format. Brightness/backlight can be adjusted directly with the "+" and "-" buttons on the monitor, allowing you to fine-tune the screen for changing light conditions.

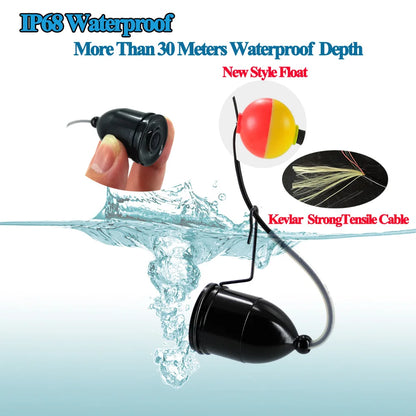

The underwater camera uses a 1/3 inch CMOS sensor with 1000TVL resolution and a 120° viewing angle to provide a broad, detailed view of the underwater environment. Eight infrared LEDs are integrated around the lens and can be switched on or off as needed, improving visibility in dark or stained water without relying on external lights. The camera housing is made from a durable metal case with sapphire glass for impact and scratch resistance, and is rated IP68 for continuous underwater use. It is designed to operate in harsh winter environments, with an operating temperature range of approximately -20°C to +60°C and construction that helps reduce fogging in cold conditions.

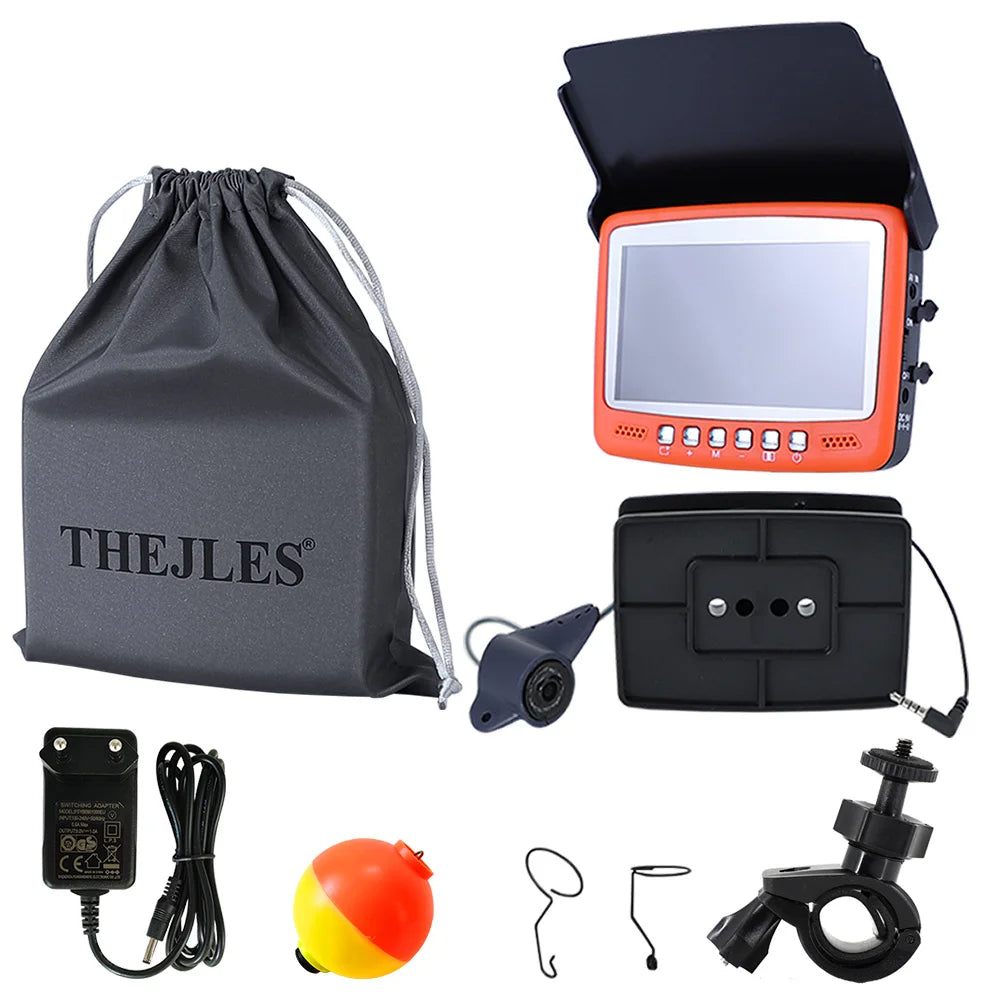

Different cable lengths are available to match your fishing depth and style. The 7HBS-15M version includes a 4.3 inch IPS monitor and camera with 15 m cable, the 7HBS-20M version includes a camera with 20 m cable, and the 7HBS-30M version includes a camera with 30 m cable. Each set comes with a floater, rings, charger, camera holder, carrying handbag and a user manual (English/Russian). The system is suitable for ice fishing, general freshwater or saltwater inspection, underwater structure scouting and basic seabed or hull checks. Note: this model does not support video recording or memory card storage.

Why It's a Smart Choice

• Improves your ability to locate and identify fish, structure and bottom type in real time under the ice.
• Infrared LEDs and IPS display enhance visibility in low light and harsh winter conditions.
• Durable, waterproof IP68 camera and long-lasting battery support extended use in demanding environments.

FAQ

Q: Can this camera record video to a memory card or other device?
A: No. This model does not include a recording function and cannot save video to a memory card.

Q: Is it suitable only for ice fishing?
A: It is optimized for ice fishing but can also be used for general underwater observation, structure inspection and basic seabed viewing in lakes, rivers or coastal areas.

Q: How do I control the infrared lights and screen brightness?
A: The infrared LEDs can be switched on or off from the camera system controls, and the monitor backlight/brightness is adjusted using the "+" and "-" buttons on the screen unit.

Q: How long does the battery last in typical use?
A: The built-in 2600mAh lithium battery usually provides about 5-8 hours of operation per full charge, depending on settings and infrared light usage.

Q: Can it be used in very cold weather on the ice?
A: Yes. The system is designed to operate in low temperatures and includes features to help reduce fogging and maintain visibility in cold, icy conditions.
