ET692C Handheld Thermal Imaging Camera 256x192

Professional handheld thermal imaging for fast, accurate diagnostics.

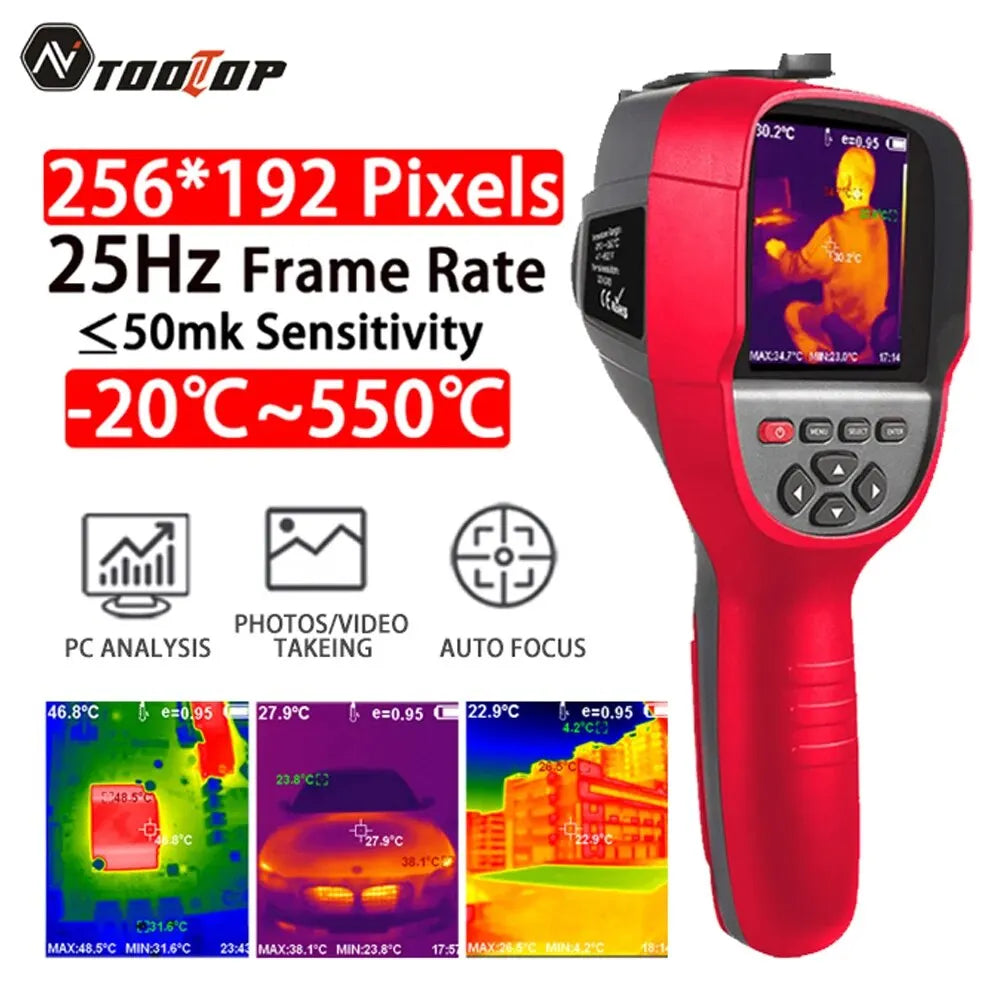

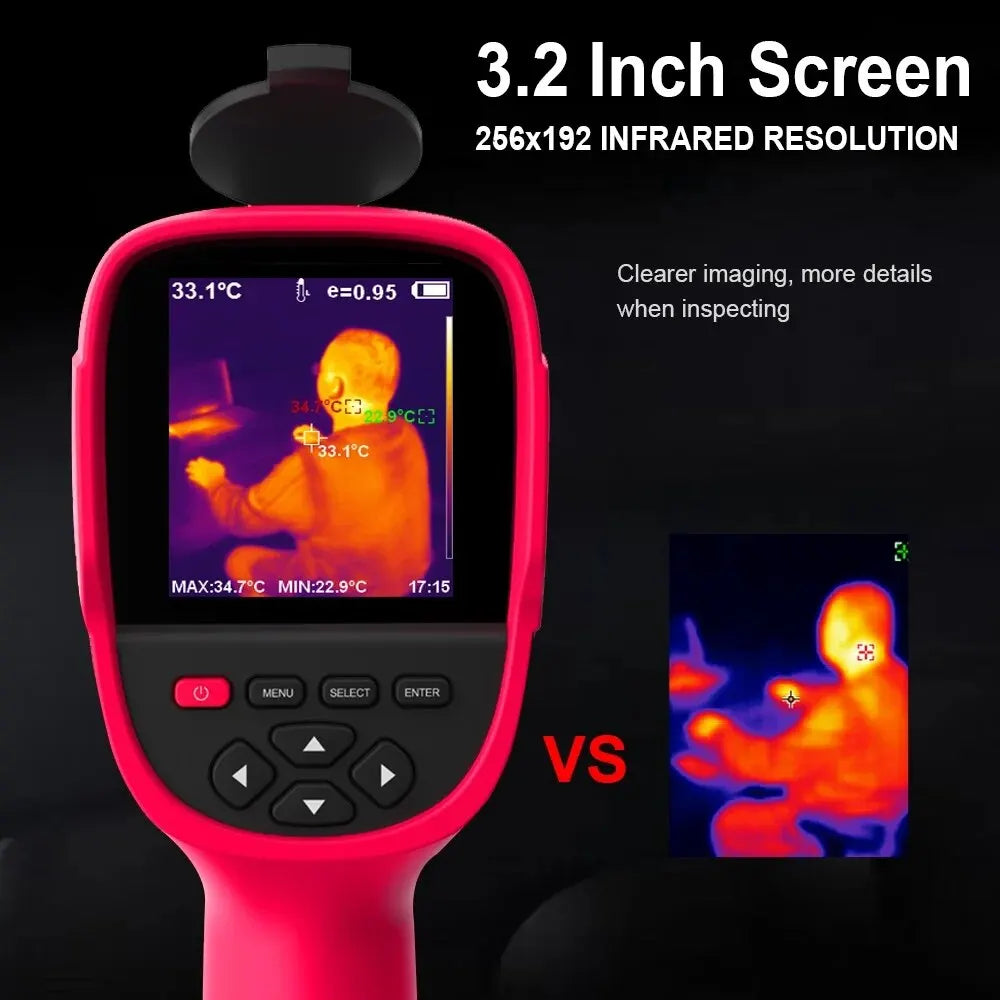

The ET692C Infrared Thermal Imager combines non-contact surface temperature measurement with real-time thermal and visible-light imaging in a compact, 389 g handheld unit. Its 256 × 192 infrared resolution, 3.2" color display (320 × 240), and ≥25 Hz frame rate deliver clear, smooth images that reveal subtle temperature differences. An uncooled vanadium oxide focal plane detector with <50 mK NETD ensures high sensitivity across the 8-14 µm wavelength range.

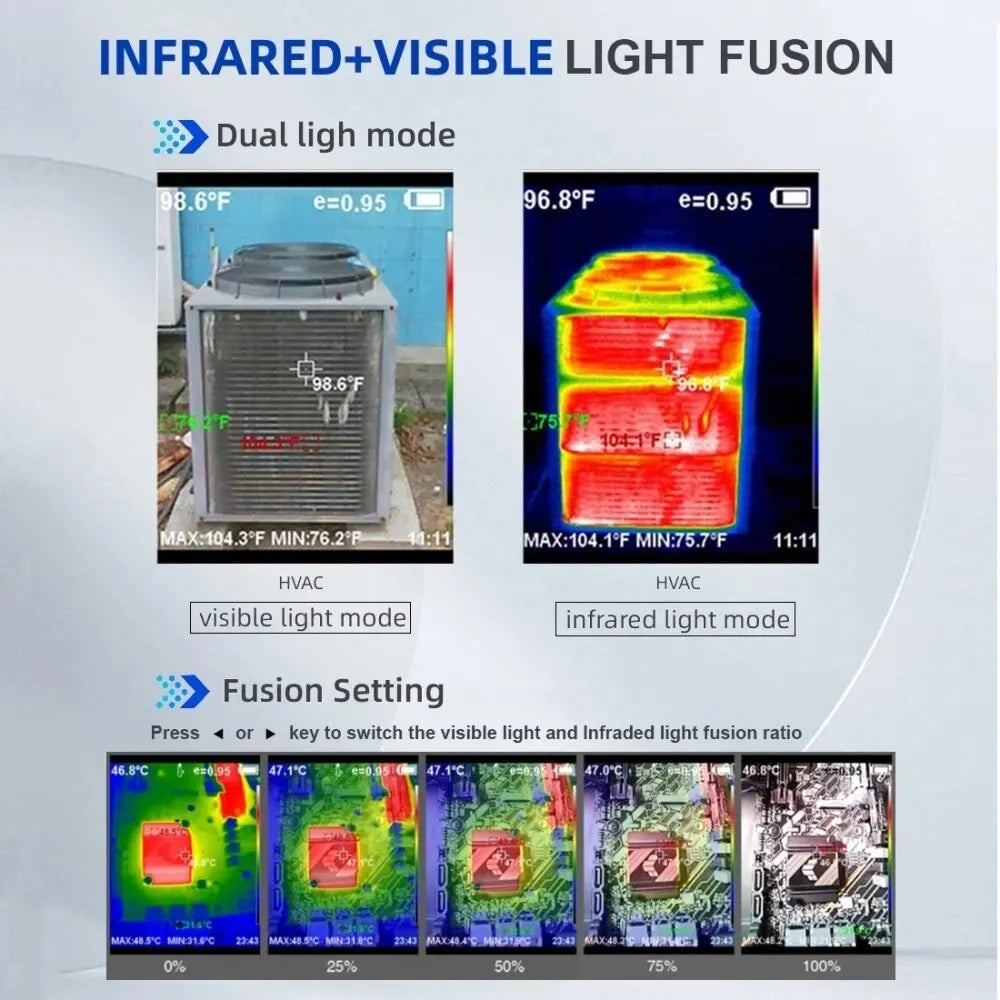

Designed for professional inspections, this camera measures from -20 °C to +550 °C (-4 °F to 1022 °F) with adjustable emissivity (0.01-1.0) to improve accuracy on different surfaces. Dual imaging modes (infrared, visible, and fusion) let you overlay thermal data on visual images with adjustable fusion levels. Five color palettes (rainbow, iron red, cold, white hot, black hot) help you highlight anomalies in pipelines, electrical panels, HVAC systems, and automotive components.

Why It's a Smart Choice

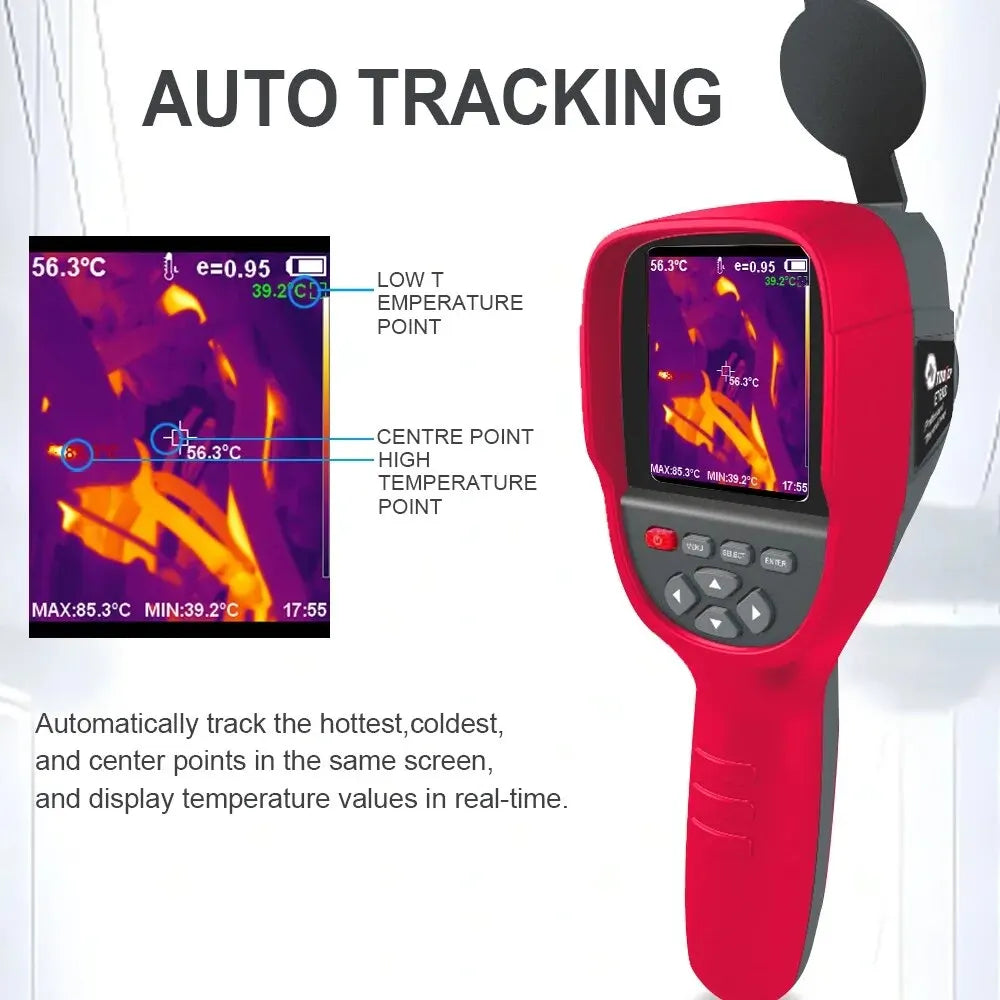

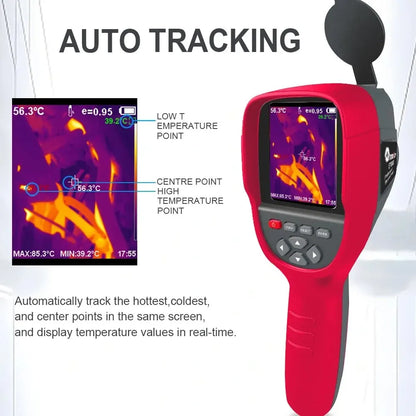

• Efficient fault detection - Real-time hot, cold, and center-spot auto tracking quickly locates leaks, overloads, and abnormal heat patterns.
• Integrated documentation - Built-in 8 GB storage (approx. 6.6 GB usable) records JPG images and MP4 video, with easy data transfer and PC analysis via Type‑C.
• Field-ready design - Fixed-focus optics, 56° × 42° field of view, 2-3 hours battery life, and multilingual interface (Chinese/English/German/Italian) support daily professional use.

FAQ

Q: What applications is this thermal imager suitable for?

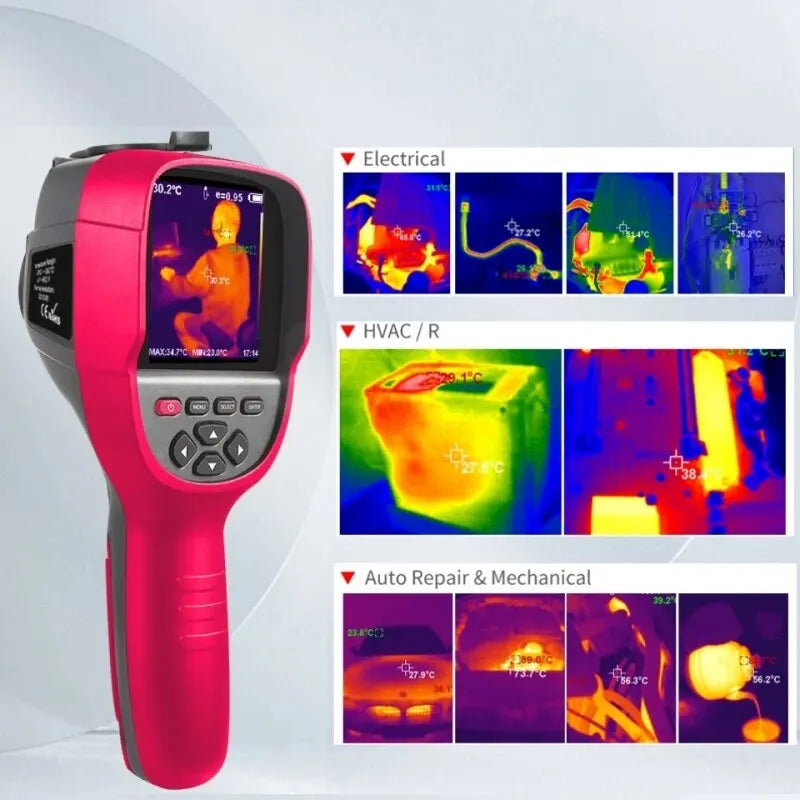

A: It is well-suited for pipeline leak detection, electrical and electronic inspections, HVAC and building diagnostics, automotive troubleshooting, and general industrial maintenance.

Q: Can I analyze images on a computer?

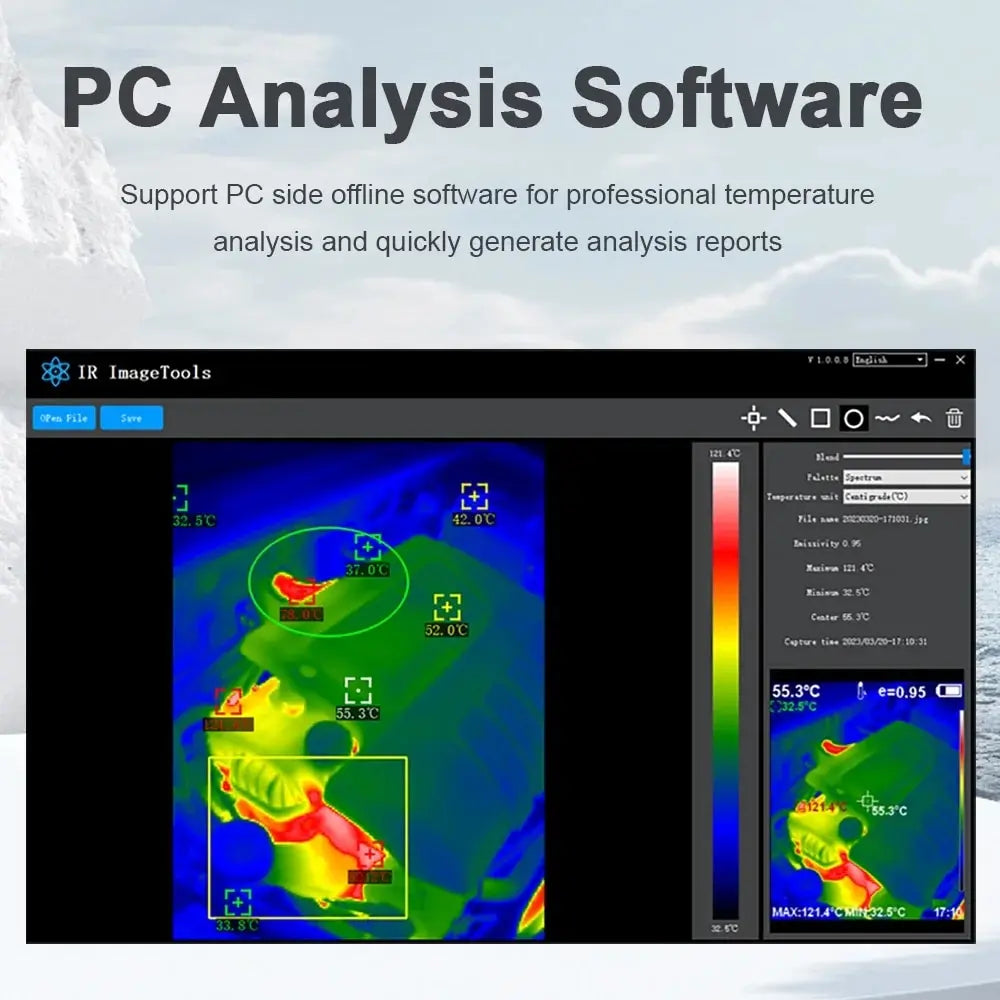

A: Yes. Images and videos can be transferred via the Type‑C cable to Windows PCs (XP/7/8/10) for offline analysis and reporting.

Q: Does the device pause briefly during use?
A: A short 1-3 second pause may occur during automatic calibration using the internal shutter plate. This is normal and ensures more accurate temperature measurements.

Q: What is included in the package?
A: 1 × ET692C 256 × 192 Thermal Imager, 1 × Type‑C Cable, 1 × English User Manual, 1 × Box.
