Digital Dual-Axis Inclinometer Rechargeable Angle Gauge

Digital Dual‑Axis Accuracy for Fast, Reliable Angle Measurement

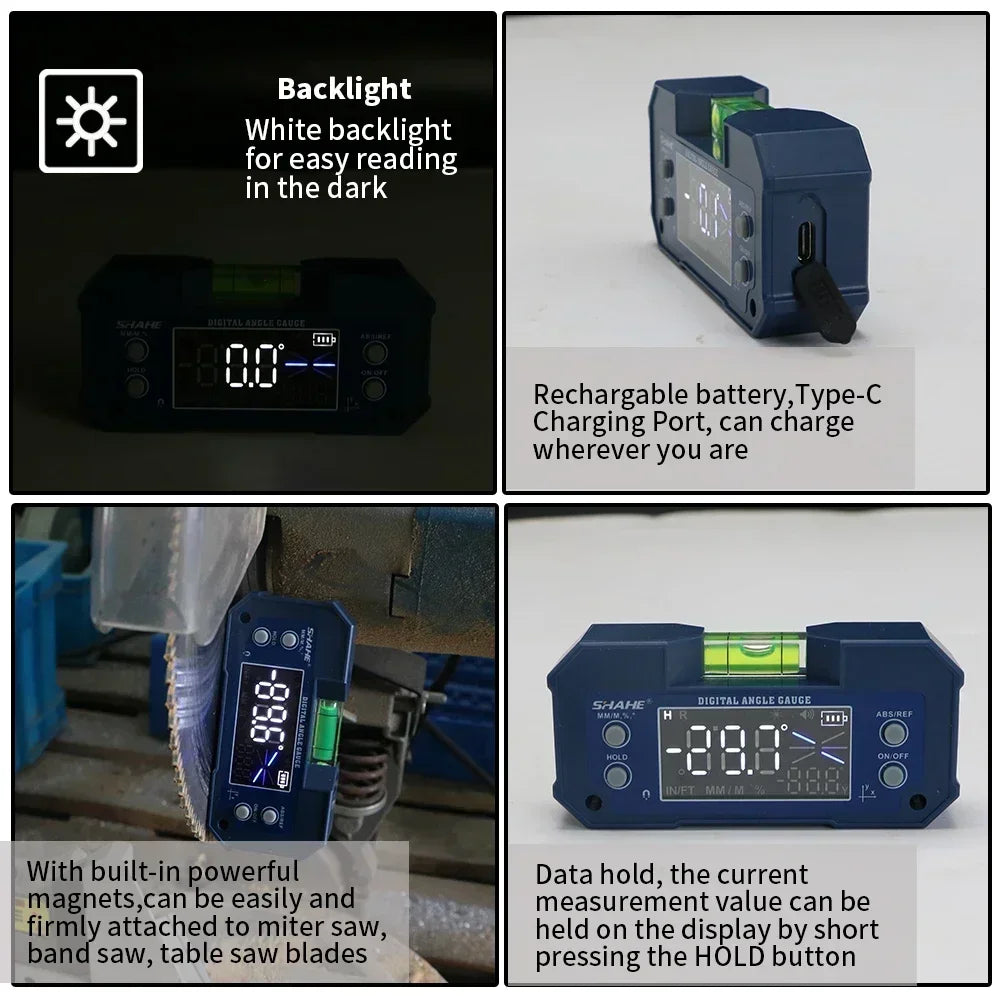

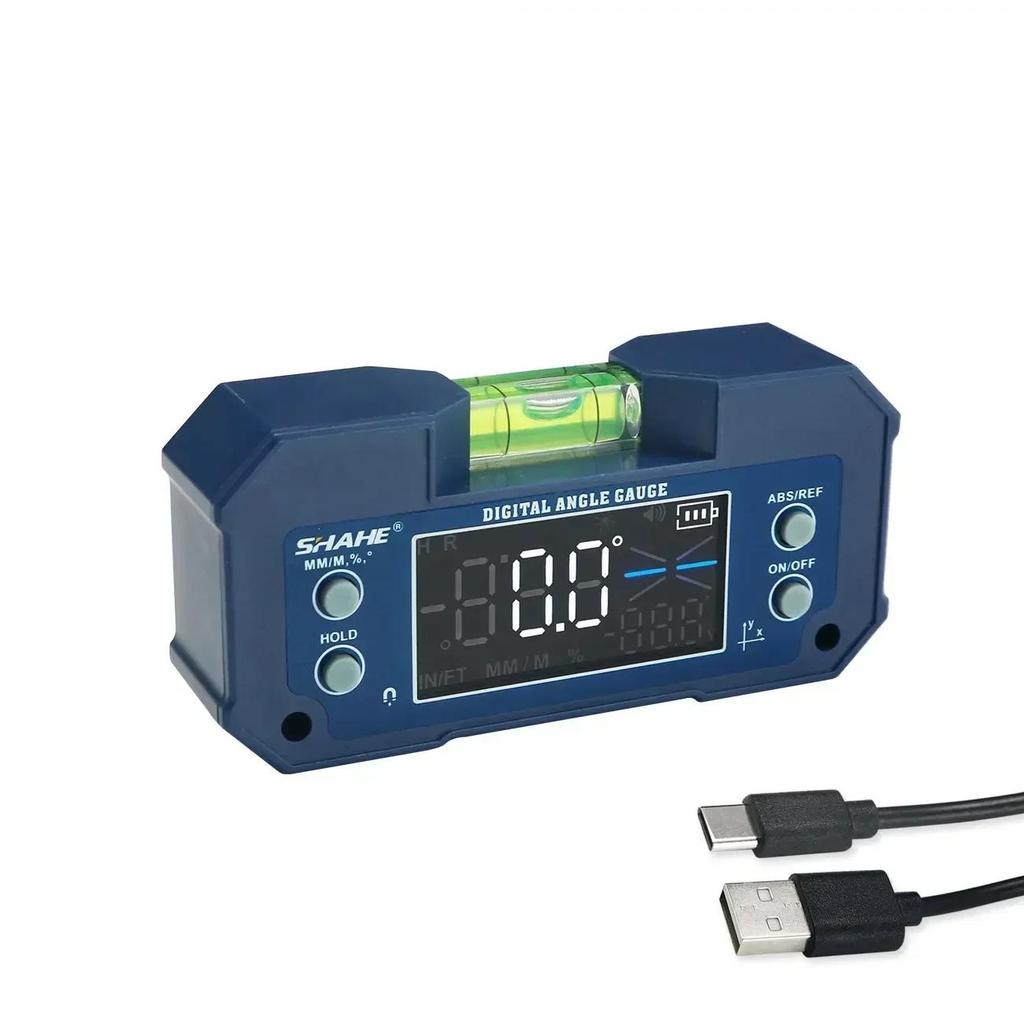

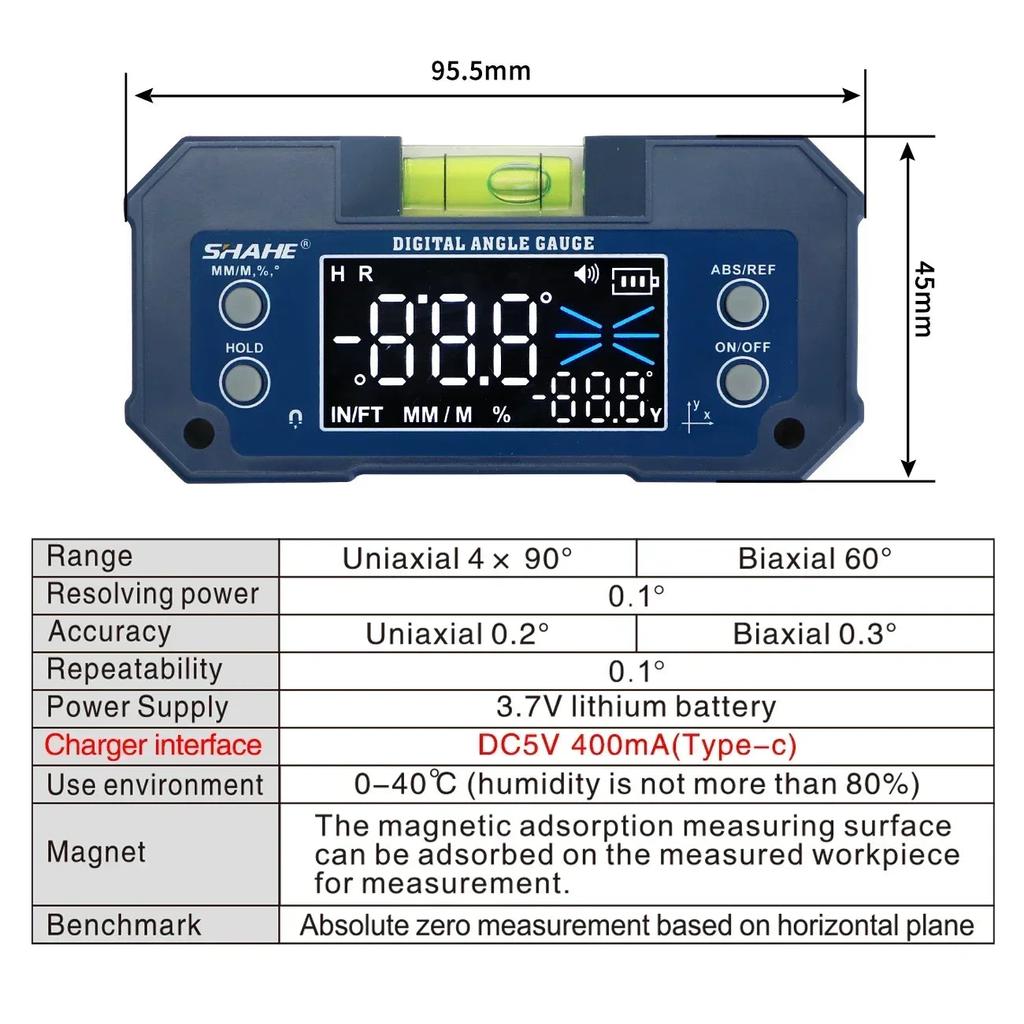

This digital level inclinometer combines dual‑axis measurement, an electronic protractor, and a bevel box in one compact tool sized approximately 9.5 × 4.5 cm. Designed for accurate angle and slope measurement on two planes at once, it is well suited for construction, woodworking, metalworking, installation, and automotive alignment tasks where consistent, repeatable readings matter. A clear LCD with backlight delivers instant digital feedback, helping you set and verify angles with confidence, even in low‑light workspaces or tight areas.

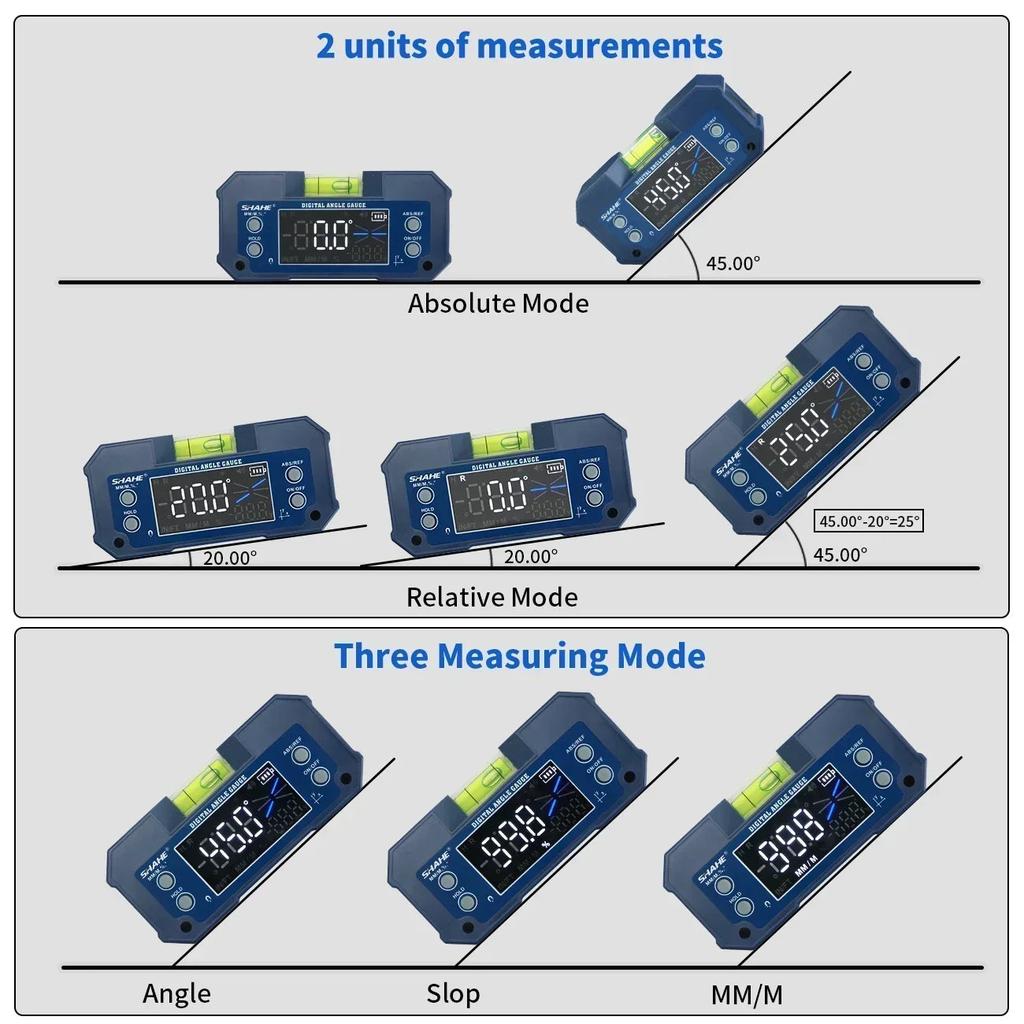

The unit offers both absolute and relative angle modes. Absolute mode lets you measure the true angle against level, while relative mode lets you zero on a reference surface and measure the difference between two surfaces. This flexibility is useful for setting saw blades, checking machine setups, aligning fixtures, and verifying bevels. A built‑in horizontal bubble vial provides an extra visual reference to support the digital reading. Strong integrated magnets allow the gauge to attach firmly to miter saw, band saw, and table saw blades, as well as to other ferrous surfaces, improving stability during measurements.

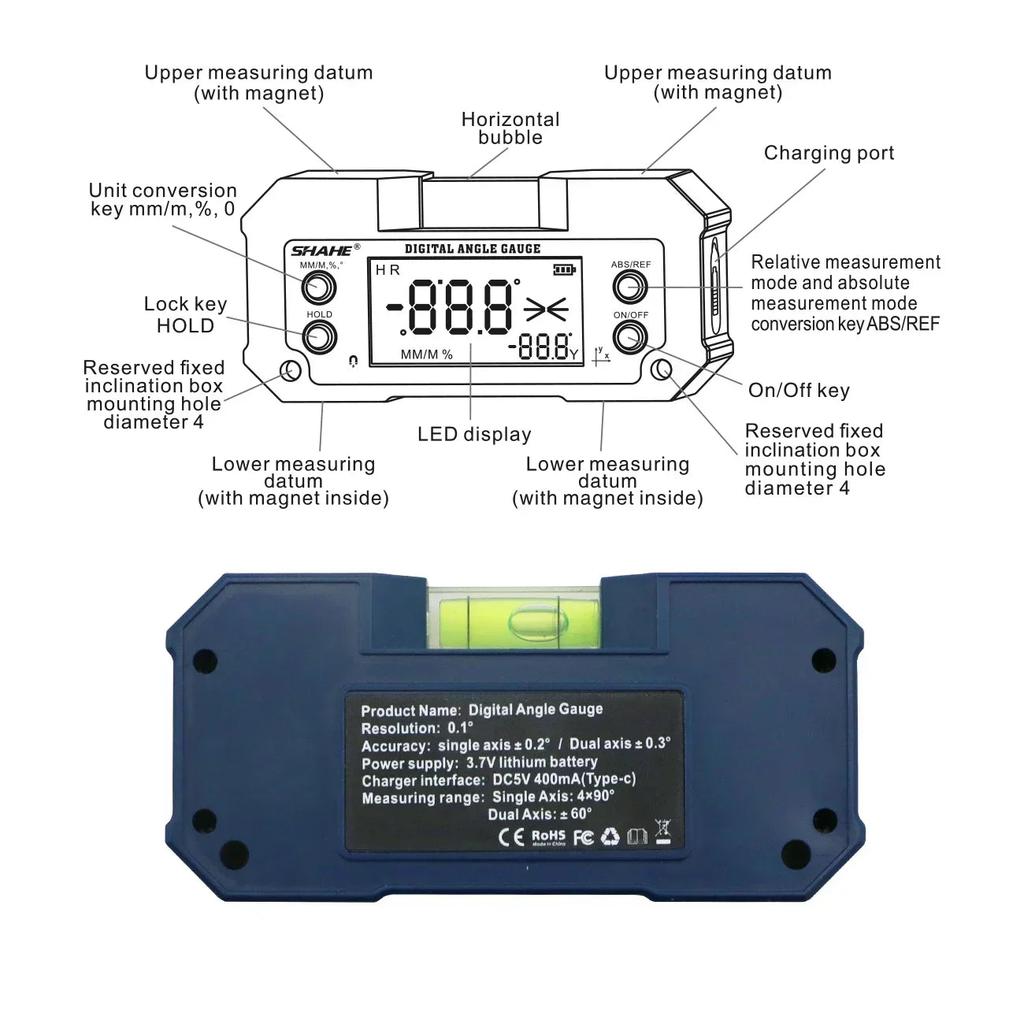

The rechargeable design with a Type‑C charging port means you can power the device from common chargers, power banks, or USB ports, reducing downtime and ongoing battery costs. An automatic power‑off function after a period of inactivity helps conserve power during busy workdays. The lightweight plastic housing is easy to handle with one hand and is designed for regular site use. The interface includes unit conversion between mm/m, angle, and slope, a data hold function to freeze readings on screen, and a dual display mode: for single‑axis use, only X‑axis data is shown, while in dual‑axis mode both X‑ and Y‑axis values are displayed simultaneously. Note: only model 5346‑L includes built‑in wireless transmission; confirm the required version before ordering.

Why It's a Smart Choice

• Dual‑axis measurement with absolute and relative modes supports precise setup and alignment across two planes.
• Rechargeable Type‑C power, auto shut‑off, and magnetic base streamline daily use and reduce operating costs.
• Backlit LCD, data hold, and unit conversion functions improve readability, reduce errors, and speed up workflow.

FAQ

Q: Can this inclinometer be used on saw blades and metal surfaces?
A: Yes. It has built‑in magnets that attach securely to miter saw, band saw, and table saw blades, as well as other ferrous metal surfaces, for stable measurements.

Q: What is the difference between absolute and relative angle modes?
A: Absolute mode measures the angle relative to true level. Relative mode lets you zero on any reference surface and then measure the angle difference between that surface and another, useful for matching or transferring angles.

Q: How is the device charged?
A: The inclinometer uses a Type‑C charging port and can be charged via standard USB chargers, power banks, or other USB power sources.

Q: Does every model include wireless transmission?
A: No. Only the 5346‑L version has built‑in wireless transmission capability. Check the model designation before purchase to ensure you select the correct version.
