Contour Gauge Profile Duplicator for Woodworking

Capture Precise Profiles in Seconds

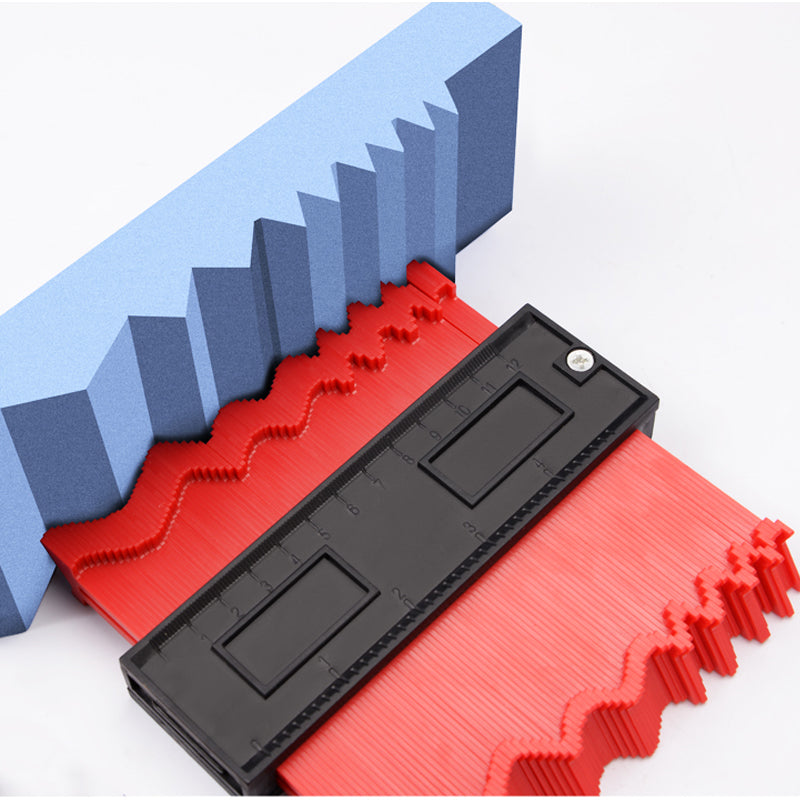

This contour gauge profile duplicator is designed for accurate measurement and transfer of complex shapes, curves and edges in woodworking, flooring, tiling and general construction. Featuring tightly packed measuring pins, it records surface profiles cleanly so you can trace and cut with confidence.

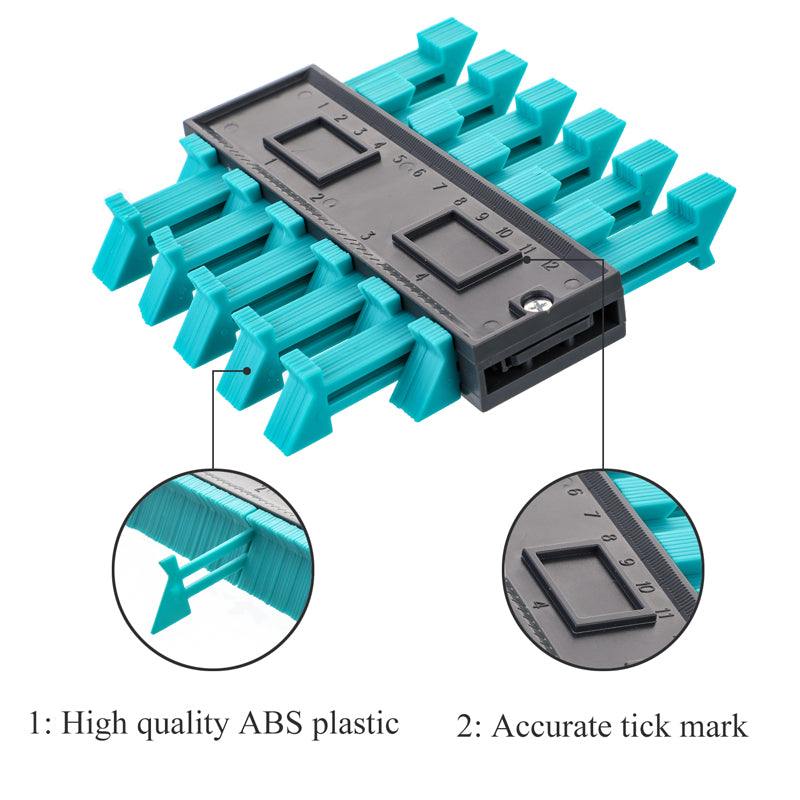

Constructed from durable ABS plastic with corrosion-resistant metal components, the gauge is built for regular use in workshop and on-site environments. The smooth-sliding pins conform easily to irregular shapes while maintaining a stable outline, helping you avoid gaps, misaligned cuts and repeated rework. A clearly marked scale along the body allows quick reference measurements once the contour is captured.

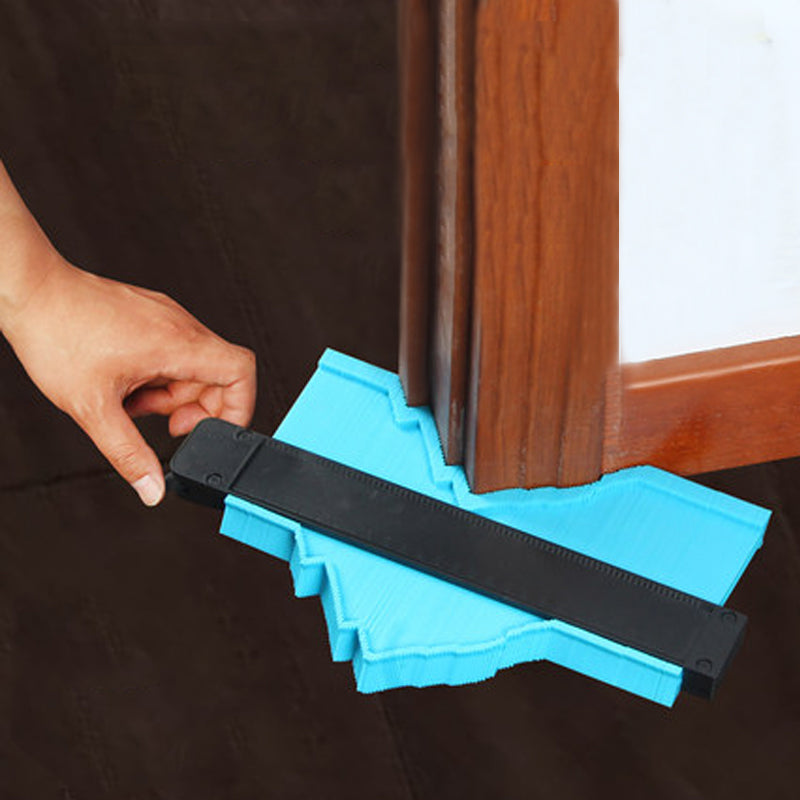

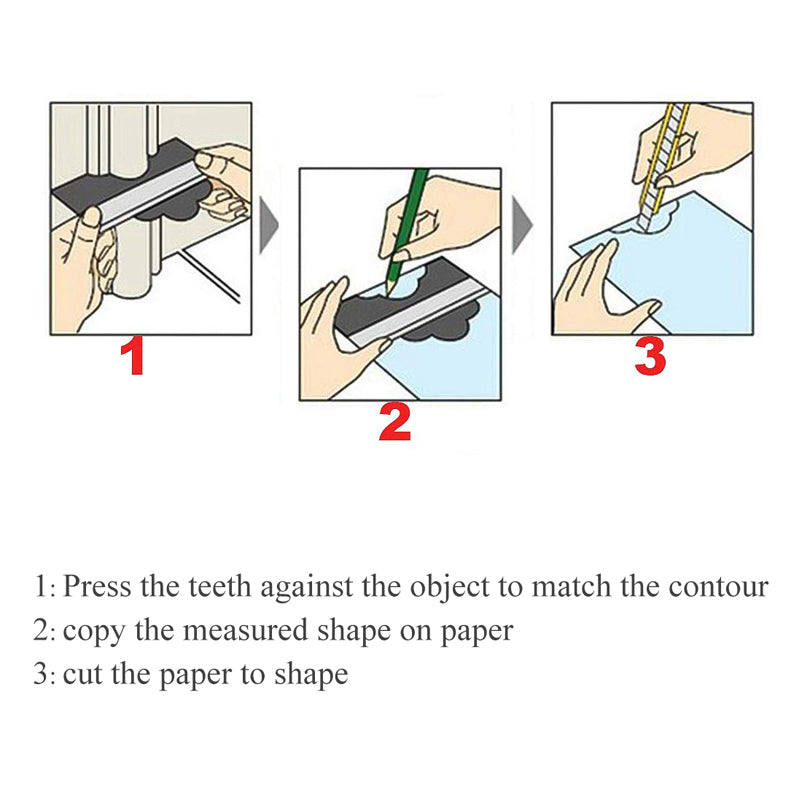

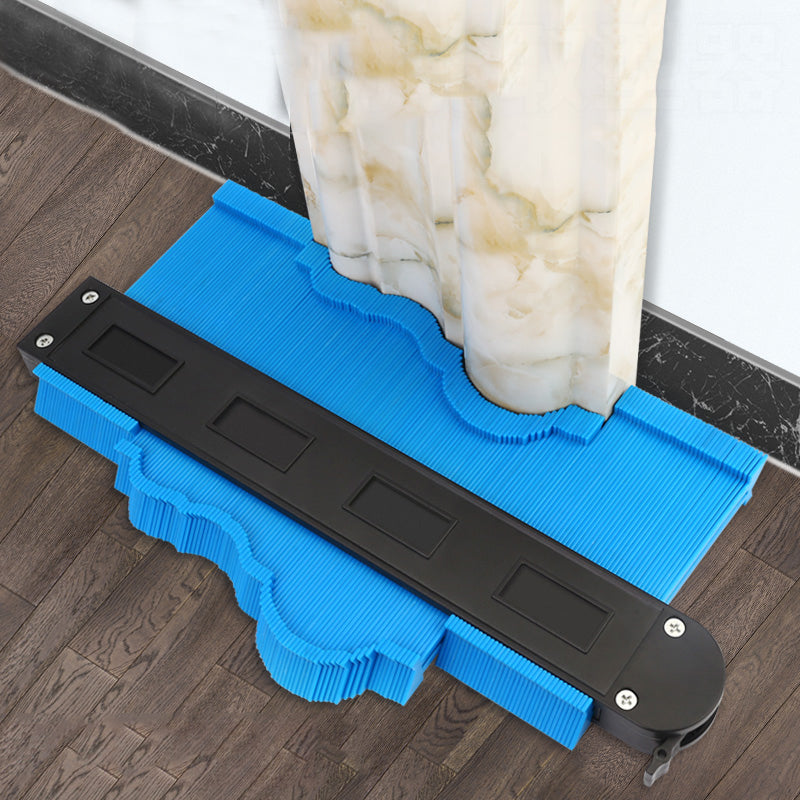

Using the tool is straightforward: press the pins firmly against the object or surface, lock or hold the profile in place, then transfer the outline directly to your workpiece. It is especially effective for fitting laminate or hardwood flooring around door frames, tracing skirting boards, scribing countertops to uneven walls, or replicating mouldings and trim details. The compact, lightweight design fits easily in a toolbox or tool belt for use on any job site.

Why It's a Smart Choice

• Accurate profile duplication - Pins conform closely to contours, allowing you to copy shapes and curves with reliable precision.
• Reduces measuring errors - Eliminates guesswork when scribing complex cuts, helping to minimise material waste and re-cuts.
• Versatile for multiple trades - Ideal for carpenters, installers, remodelers and DIY users working with wood, tile, vinyl, carpet and more.

FAQ

Q: What materials can this contour gauge be used on?
A: It can be used on wood, laminate, tile, vinyl, carpet, pipework and most solid surfaces where you need to copy a profile.

Q: How do I transfer the shape to my workpiece?
A: Press the gauge against the surface, remove it carefully, place it on your material, then trace along the pins with a pencil or marker before cutting.

Q: Is it suitable for professional use?
A: Yes. The sturdy construction and consistent pin movement make it suitable for regular use by carpenters, fitters and contractors.

Q: Does it require any special maintenance?
A: Keep the pins clean and free of debris, store it flat in your toolbox, and avoid excessive force to maintain smooth operation.
