CNC 3018 Pro Mini Laser Engraver & Router 300×180mm

Compact CNC 3018 Pro Laser Engraver for Precise Desktop Fabrication

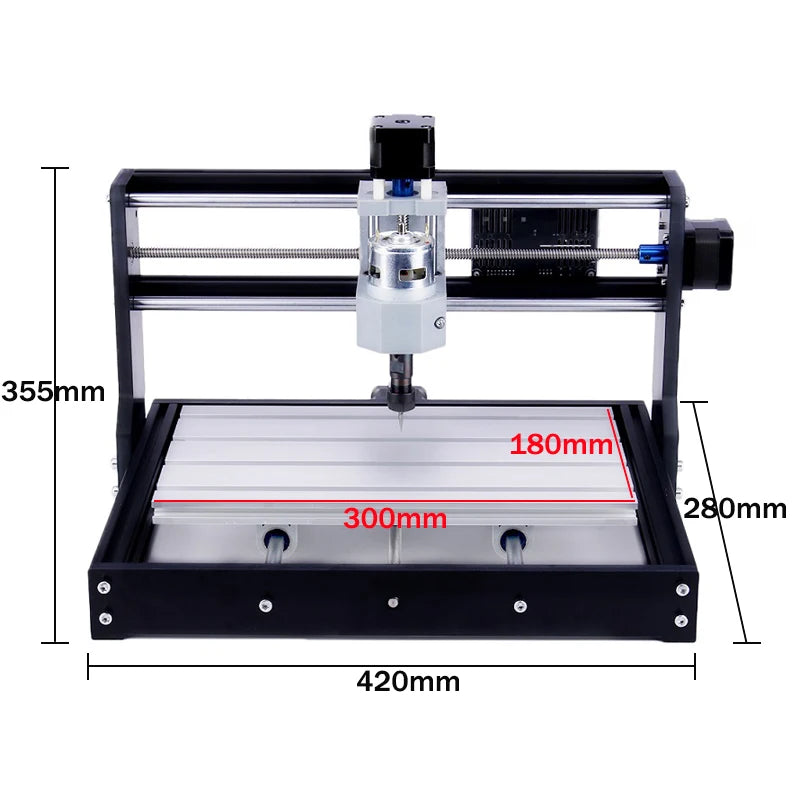

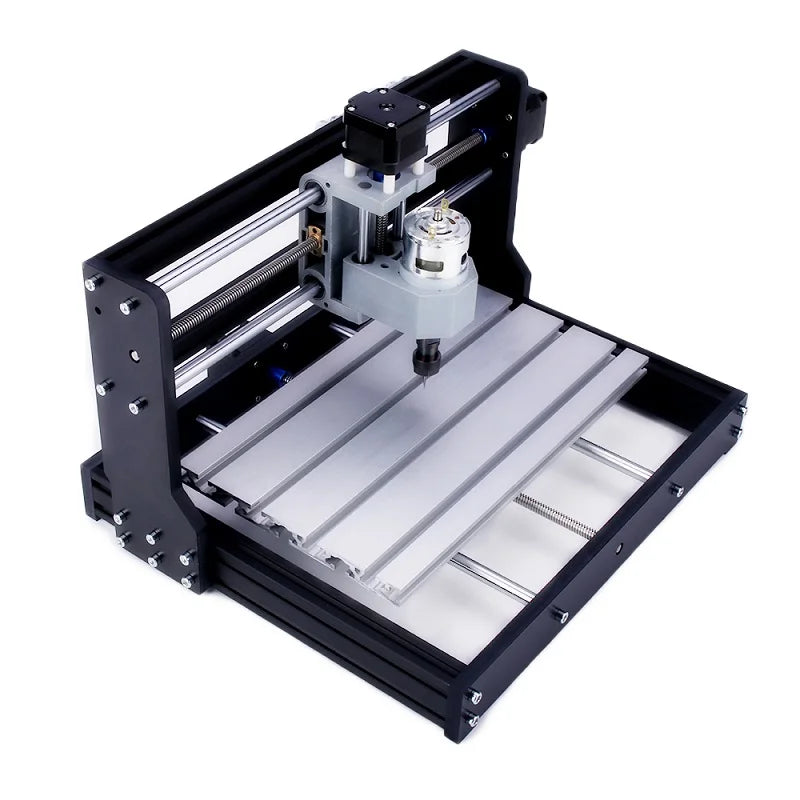

The CNC 3018 Pro Mini Laser Engraver and Router is a versatile desktop machine designed for accurate engraving, milling, and cutting on a range of materials. Built with a rigid aluminum and plastic frame, it offers a stable 300 × 180 × 40 mm working area within a compact 400 × 330 × 240 mm footprint, making it suitable for workshops, studios, and small production environments.

Driven by GRBL control software, this machine delivers reliable motion control for both spindle and laser operations. The DC 24 V spindle motor (up to 120 W, 10,000 rpm) handles routing and light milling on wood, acrylic, PCB and PVC, while the optional 10 W or 20 W (20,000 mW) laser modules enable detailed laser engraving on wood, coated metals, plastics and more. Stepper motors with 1.3 A current and 0.3 N·m torque ensure consistent positioning and repeatable results on fine details and text.

Compatible with Windows XP / 7 / 8 / 10, the CNC 3018 Pro connects via USB and is supplied as a complete kit, including ER11 collet, clips, milling bits, power supply and USB flash drive with software resources. Its compact design, combined with CNC and laser capability, makes it suitable for prototyping, signage, nameplates, PCB engraving, hobby projects and small-batch production.

Why It's a Smart Choice

• Dual CNC and laser capability - Mill, cut and engrave with the spindle, then switch to the laser module (10 W or 20 W) for fine engraving on a wide range of materials.
• Efficient desktop footprint - 300 × 180 × 40 mm working area in a compact frame fits easily on a bench while still supporting practical project sizes.
• Complete, ready-to-configure kit - Includes ER11 collet, clips, 10 bits, power supply and USB flash drive, reducing the need for additional accessories to get started.

FAQ

Q: Which materials can this machine work with?

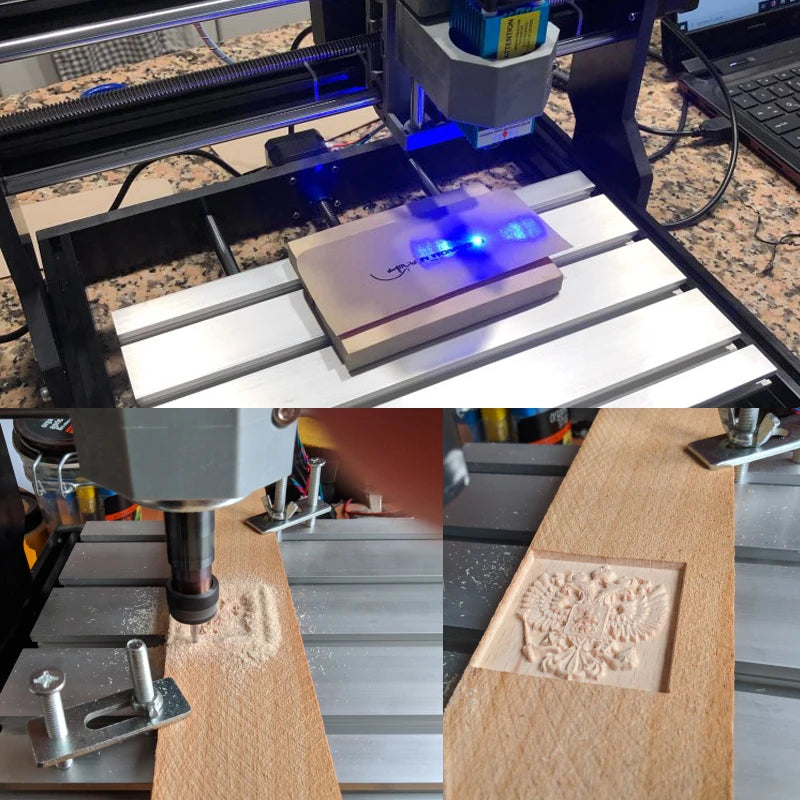

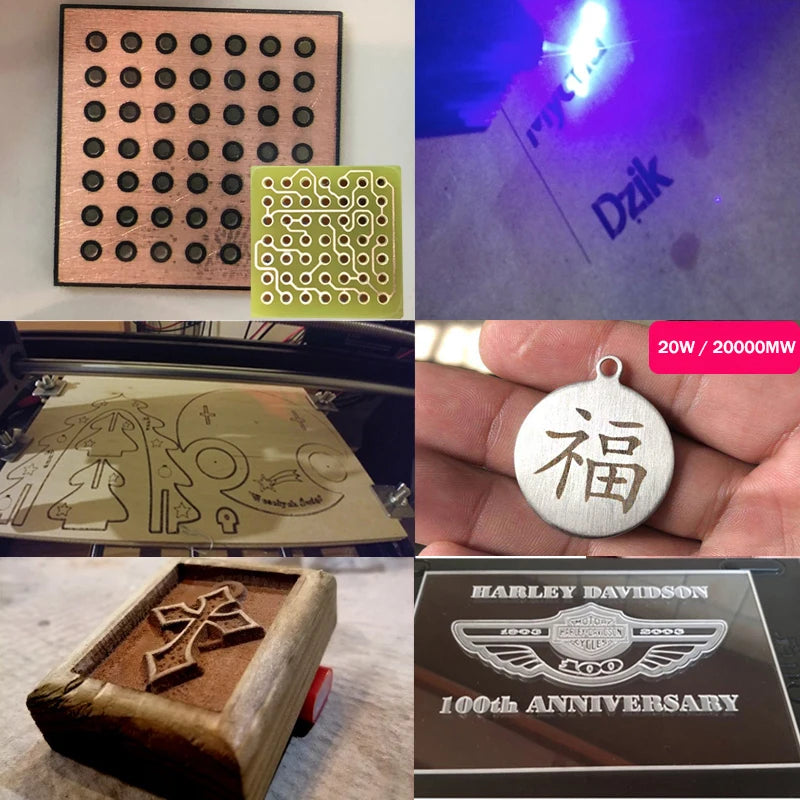

A: It is suitable for engraving and light milling on wood, acrylic, PCB, PVC and similar plastics. The laser modules can engrave on wood, coated or painted metals, plastics and some leathers (always test on a sample first).

Q: What operating systems are supported?

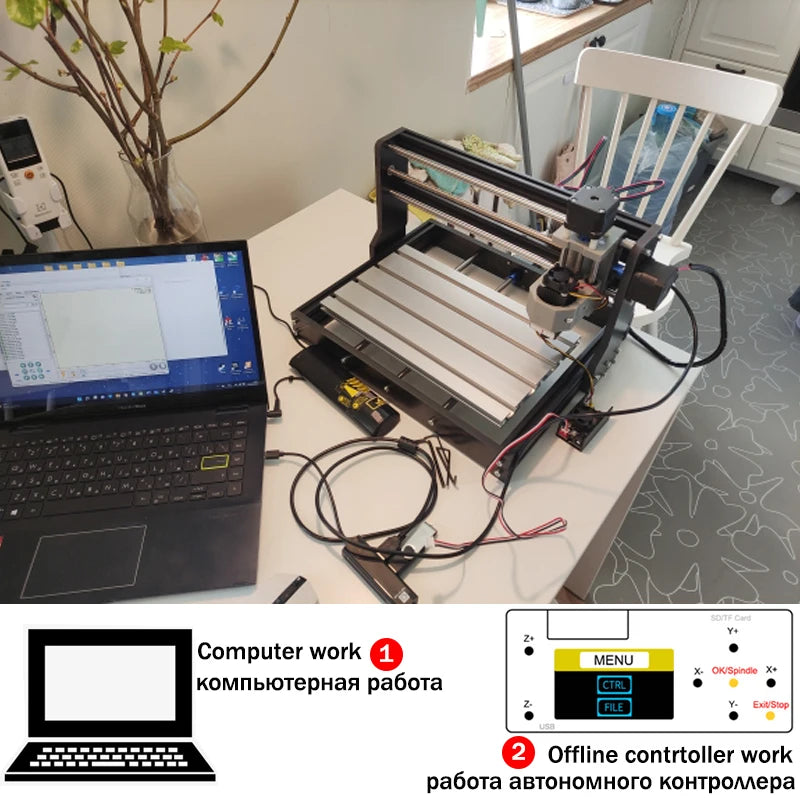

A: The machine works with GRBL-based control software on Windows XP, Windows 7, Windows 8 and Windows 10 Home.

Q: Is the laser module included by default?

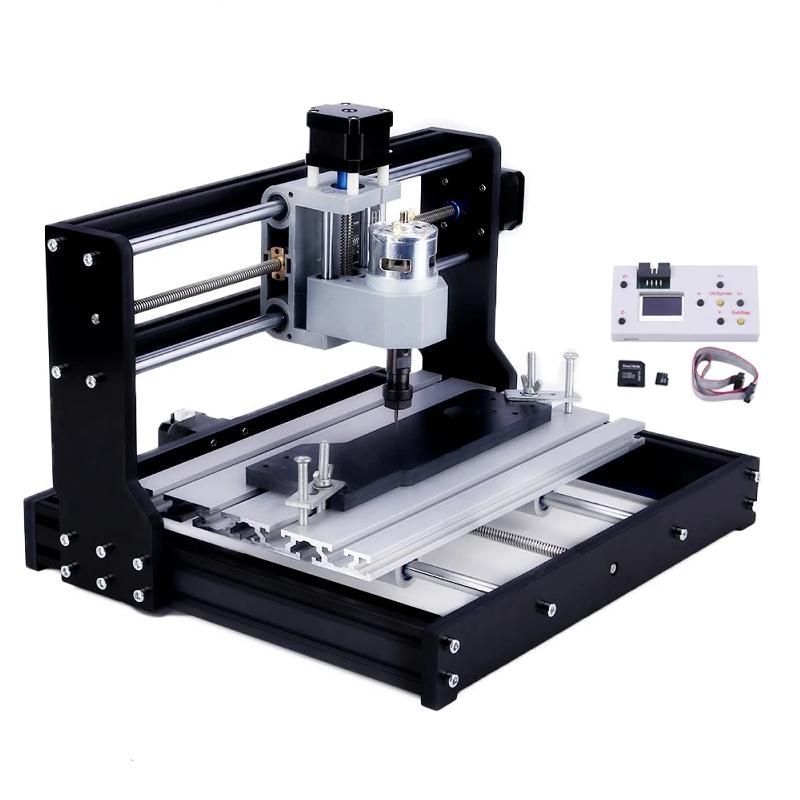

A: The standard configuration includes the CNC 3018 Pro kit with spindle, ER11, clips, bits, power supply and USB flash drive. You can choose additional versions that include either a 10 W laser or a 20 W (20,000 mW) laser module.

Q: Does it come assembled?
A: It is supplied as a complete kit that requires assembly. Basic mechanical and computer skills are recommended for setup and configuration.

Q: What power supply is required?
A: The included power adapter accepts AC 100-240 V, 50/60 Hz input and provides DC 24 V, 5 A output suitable for the machine.
