AN PRC-152 Dual Band Long Range Tactical Radio

Long-Range Tactical Communication You Can Rely On

The AN PRC-152 Dual Band Transceiver is designed for users who need clear, consistent communication across wide areas. Combining CB-style operation with professional VHF/UHF ham radio capability, this handheld radio supports dependable contact in the field, on the road, or during emergency situations. Its high-capacity 12000mAh power system and rugged tactical form factor make it suitable for demanding environments where reliability matters.

The radio operates across VHF 136-174 MHz (RX/TX) and UHF 400-520 MHz (RX/TX) with up to 128 programmable channels, allowing you to organize teams, activities, and scenarios efficiently. A clear LCD menu display makes it straightforward to navigate functions, switch channels, and monitor status in real time. With solid 15W output power, the unit is engineered to reach distant stations and maintain strong reception where lower-power devices struggle. As a true transceiver, it both transmits and receives, supporting smooth, two-way communication in dynamic situations.

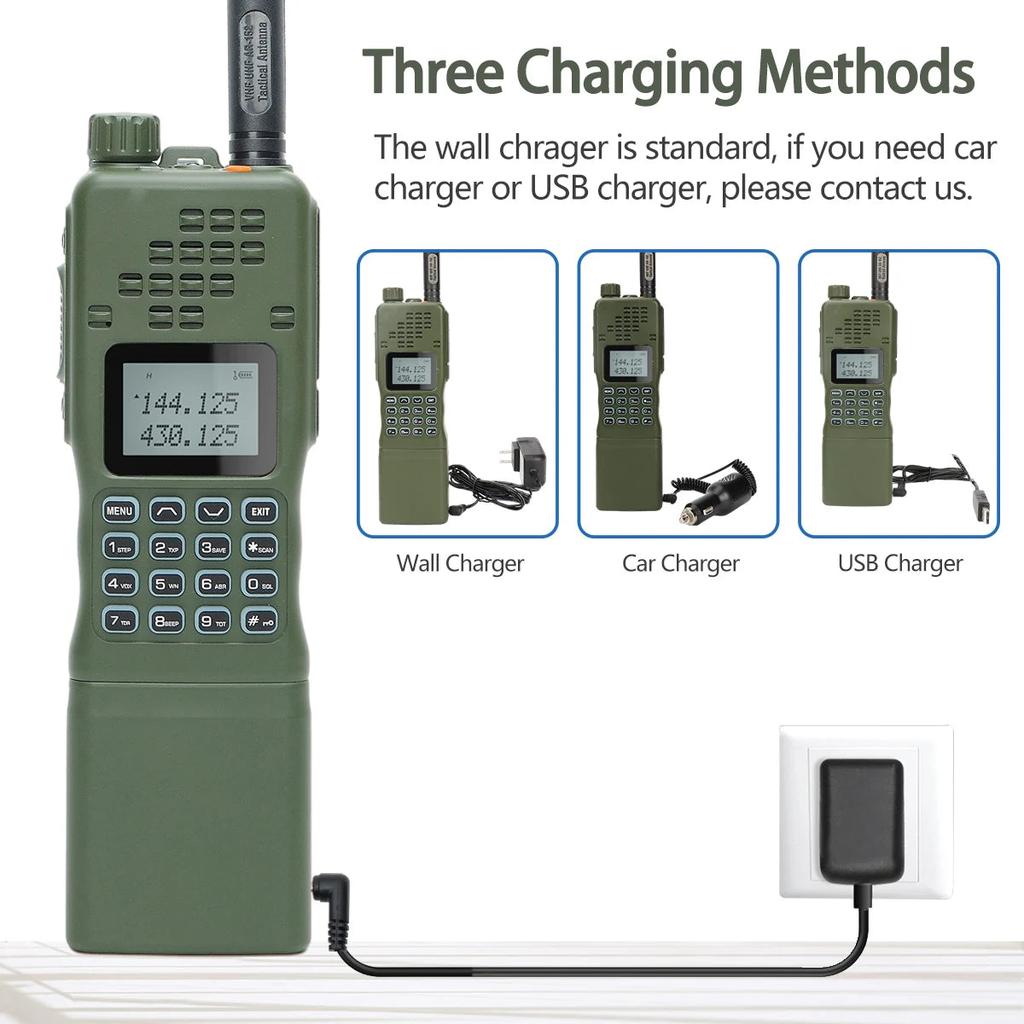

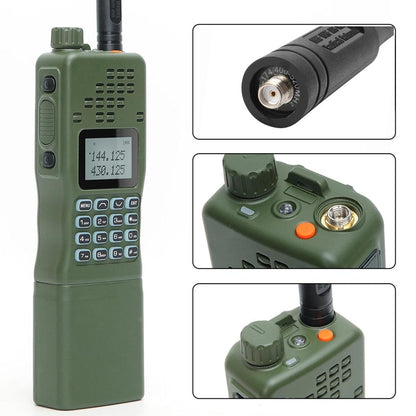

The power system is built around four original 18650 Li-ion cells (12000mAh total), supporting extended operation for multiple days of typical use. The battery module includes a 2.5 mm charging port and supports three charging methods: standard wall charger (included), plus optional car charger and USB charging for flexible power management in the field. The radio features an SMA-Female antenna jack, compatible with SMA-Female antennas, including ABBREE tactical antennas for enhanced performance. A K-port (2-pin) interface supports a wide range of headsets, speaker mics, and programming cables, making it easy to integrate into your existing gear.

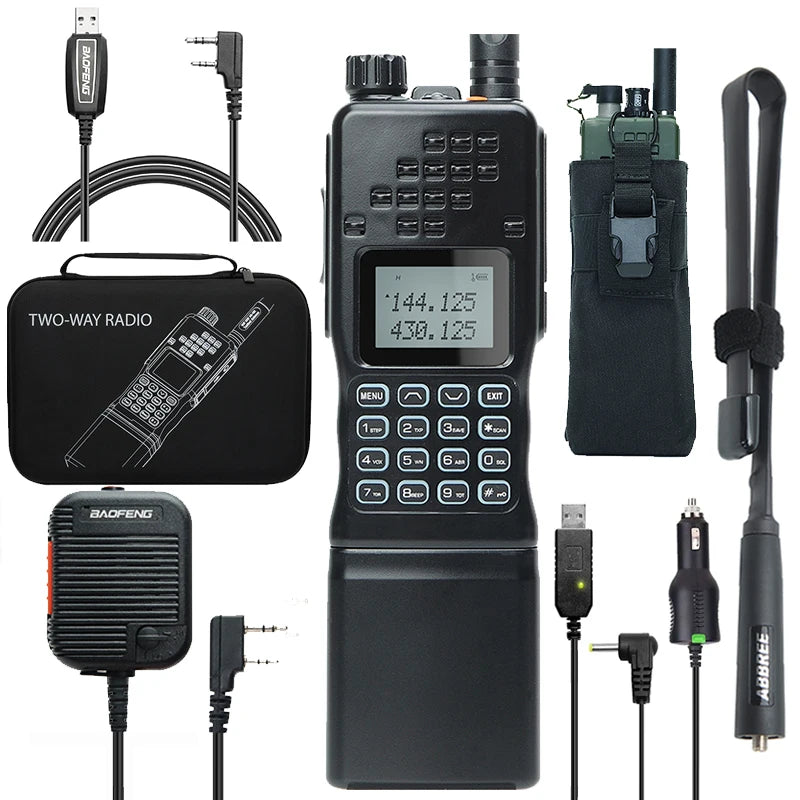

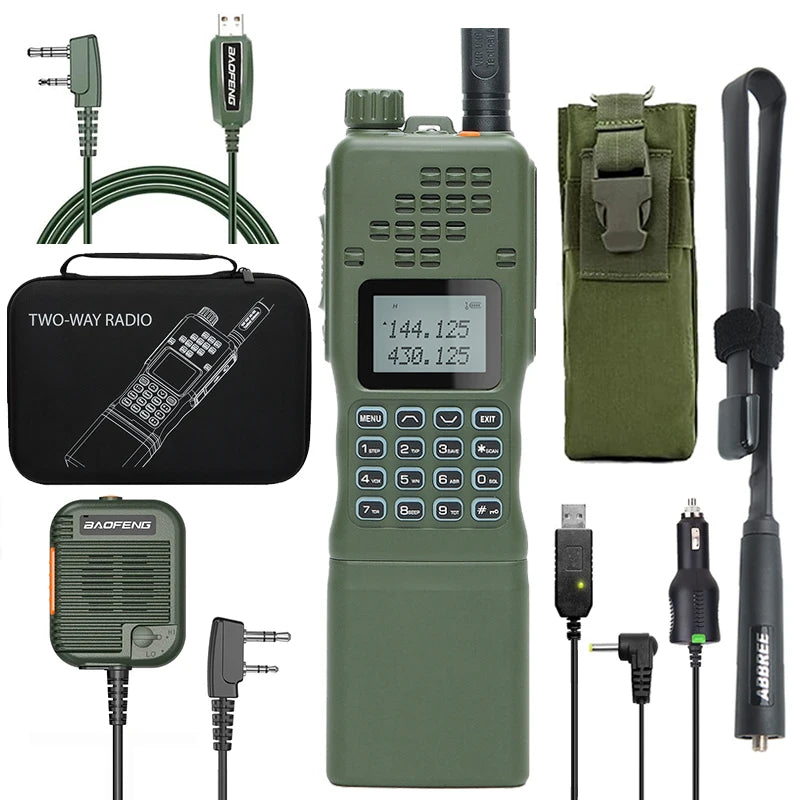

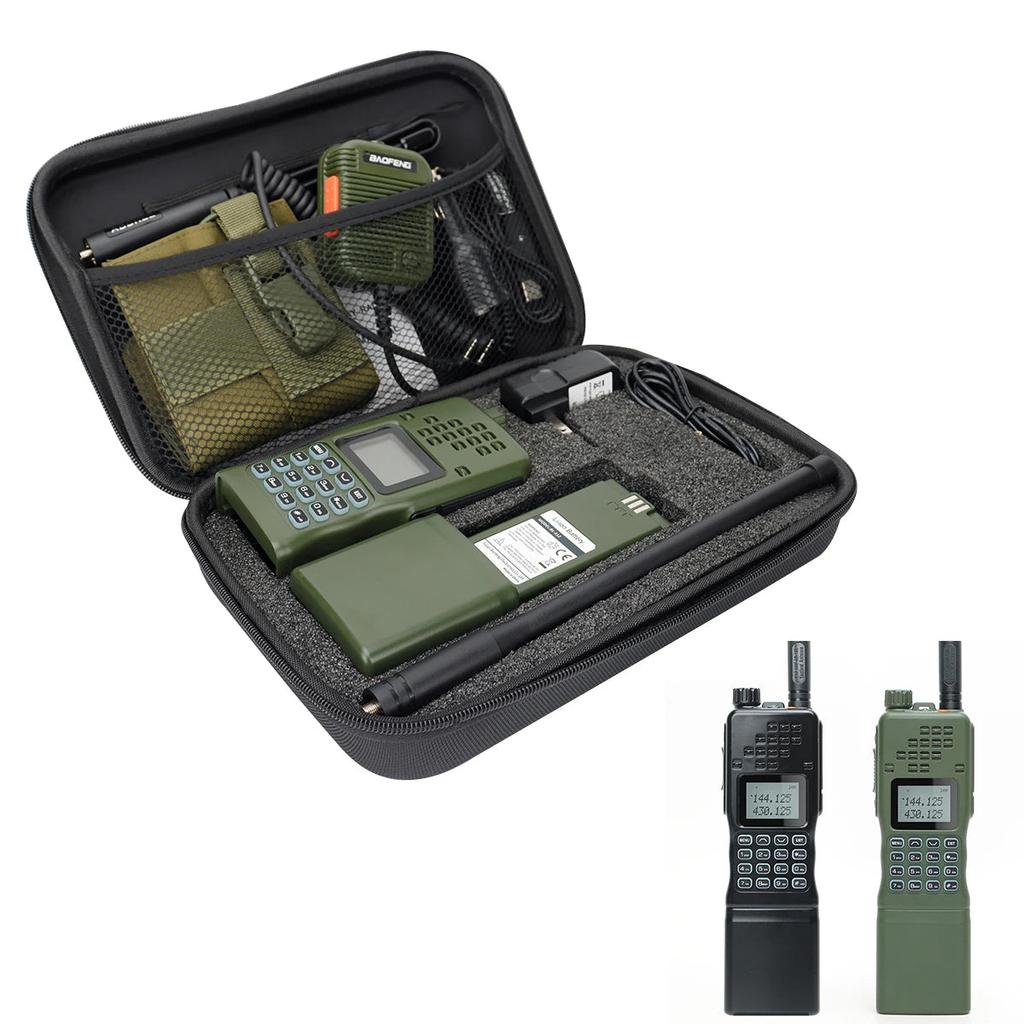

Each package includes the walkie talkie radio, battery pack, adapter/charger, antenna, lanyard, and user manual. Optional AR-152 carrying bag and compatible accessories are available to further protect and customize your setup. Firmware programming support is offered on request, allowing you to tailor channel layouts and functions to your specific use case, with technical guidance and after-sales support provided.

Why It's a Smart Choice

• Extended operating time from the 12000mAh Li-ion power system reduces downtime and charging interruptions.
• Dual-band VHF/UHF coverage with up to 128 channels supports organized, clear communication across varied teams and locations.
• Rugged tactical design with flexible charging options and accessory compatibility suits field operations, outdoor use, and emergency scenarios.

FAQ

Q: What frequency ranges does this radio support?
A: It covers VHF 136-174 MHz and UHF 400-520 MHz for both transmit and receive, suitable for ham and general two-way radio use where legally permitted.

Q: How long does the battery last on a single charge?
A: The 12000mAh battery pack is designed to support multiple days of typical communication use, depending on transmit power level, duty cycle, and environmental conditions.

Q: Which accessories are compatible with this model?
A: It uses an SMA-Female antenna interface and a K-port (2-pin) connector for headsets, speaker microphones, and programming cables. ABBREE tactical antennas and various AR-152 compatible accessories can be used.

Q: How can I charge the radio in the field?
A: The battery can be charged via the included wall charger, and it also supports car charger and USB charging through the 2.5 mm charging port when using appropriate optional adapters.

Q: Can the channels and settings be customized?
A: Yes. The radio can be programmed via a compatible programming cable and software. Special firmware and guidance can be provided on request to help configure channels and functions for your needs.
