Air Hydraulic Foot Pump 10,000 PSI, 1.6L Reservoir

High-pressure air hydraulic pump for precise, hands-free control.

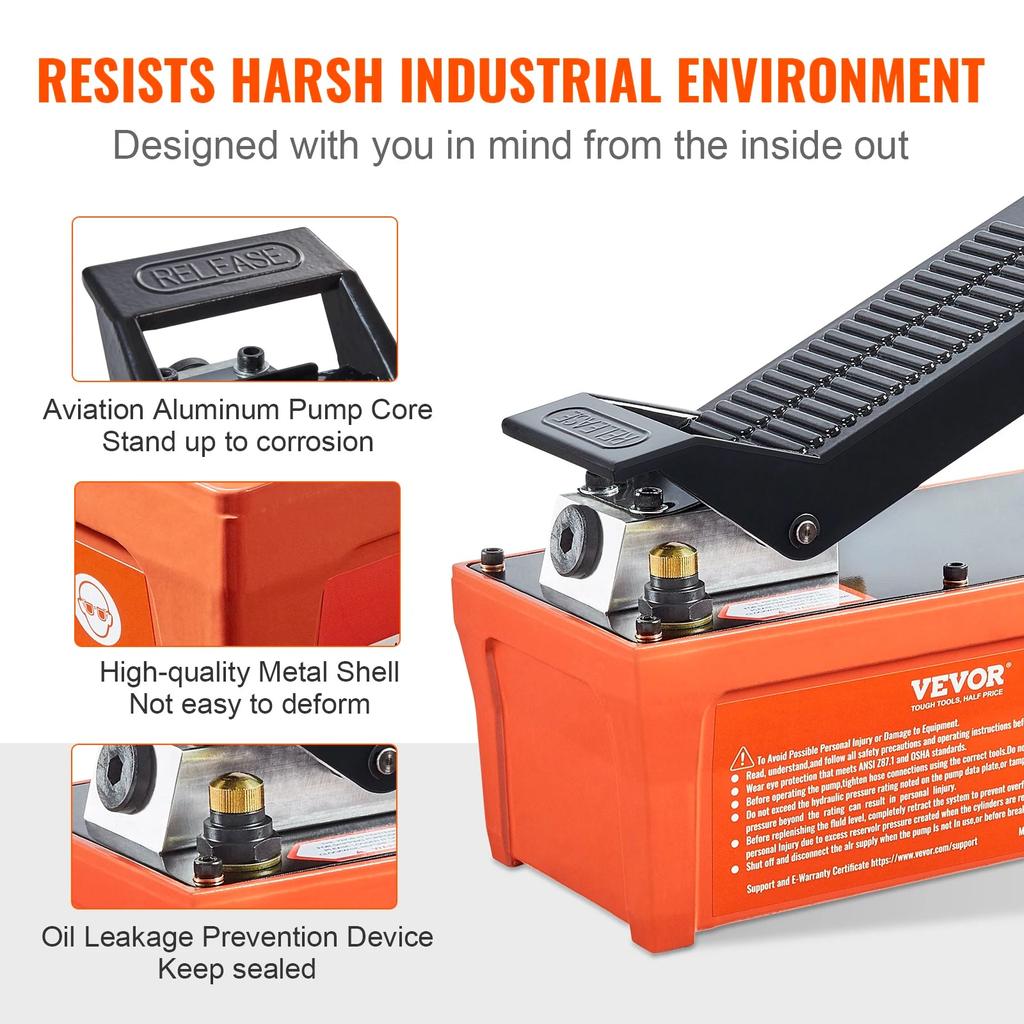

This air hydraulic foot pump delivers up to 10,000 PSI of output pressure, providing reliable power for auto body frame machines, pulling posts, and other hydraulic equipment. Featuring a 1.6 L (approx. 1/2 gal) oil reservoir, it supports consistent operation without frequent refilling. The compact steel housing and treadle design are engineered for durability in demanding workshop and industrial environments.

The pump is foot-actuated, allowing hands-free control of lifting, pulling, and pressing tasks so you can focus on positioning workpieces and tools. Its air treadle provides smooth modulation of flow and pressure, while the clearly defined pedal stages help you advance, hold, and release pressure with control. Designed for use with a standard compressed air supply, it operates within an input air pressure range of 110-145 PSI.

Why It's a Smart Choice

• High output pressure - Generates up to 10,000 PSI to drive rams, pullers, and frame machines for demanding repair and maintenance tasks.
• Hands-free operation - Foot treadle control keeps both hands free for accurate alignment, clamping, and measuring while maintaining hydraulic pressure.

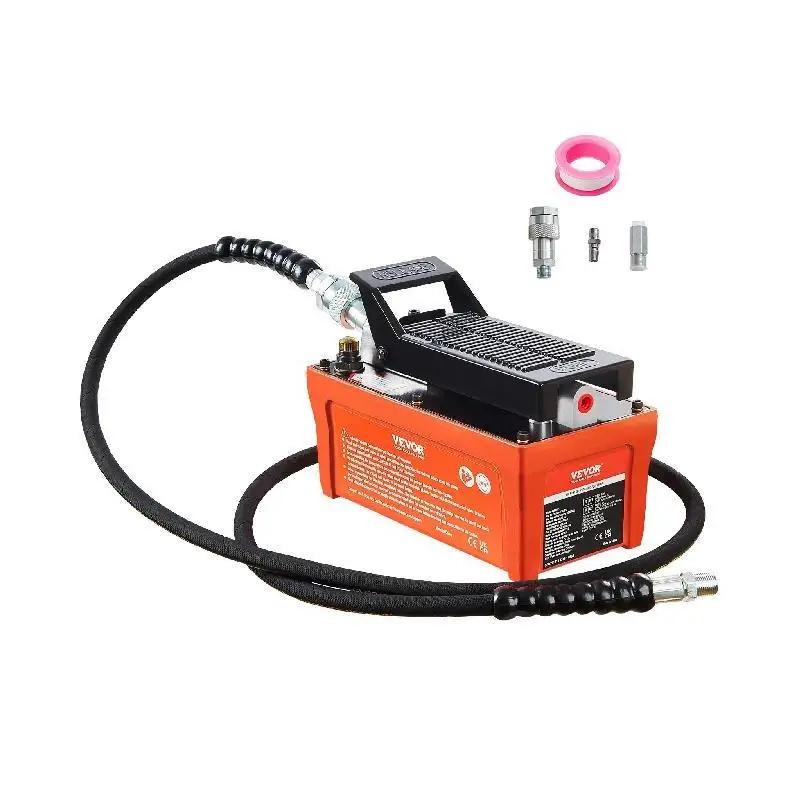

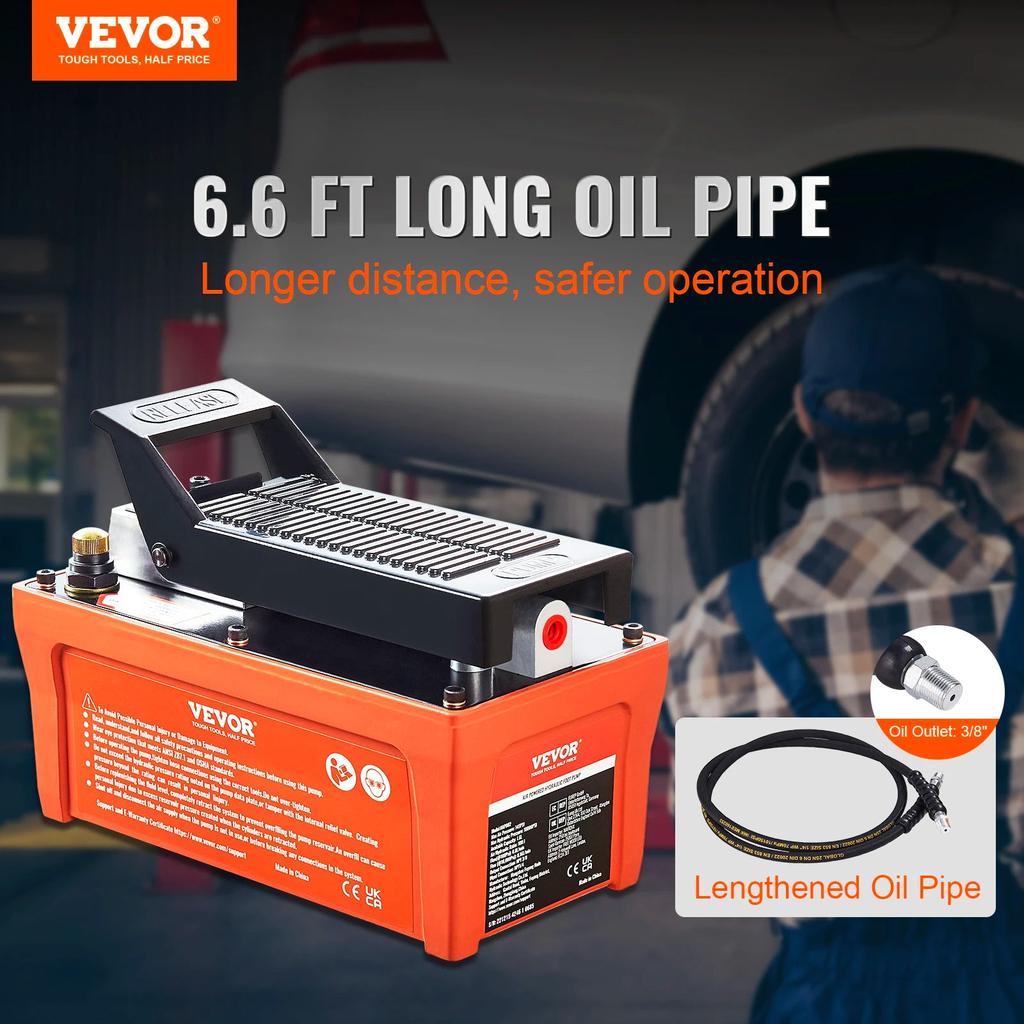

• Complete setup included - Supplied with a 6.6 ft (2 m) oil hose, hydraulic coupler, air inlet adapter, air nozzle, PTFE tape, and user manual for straightforward installation.

FAQ

Q: What air supply do I need to operate this pump?

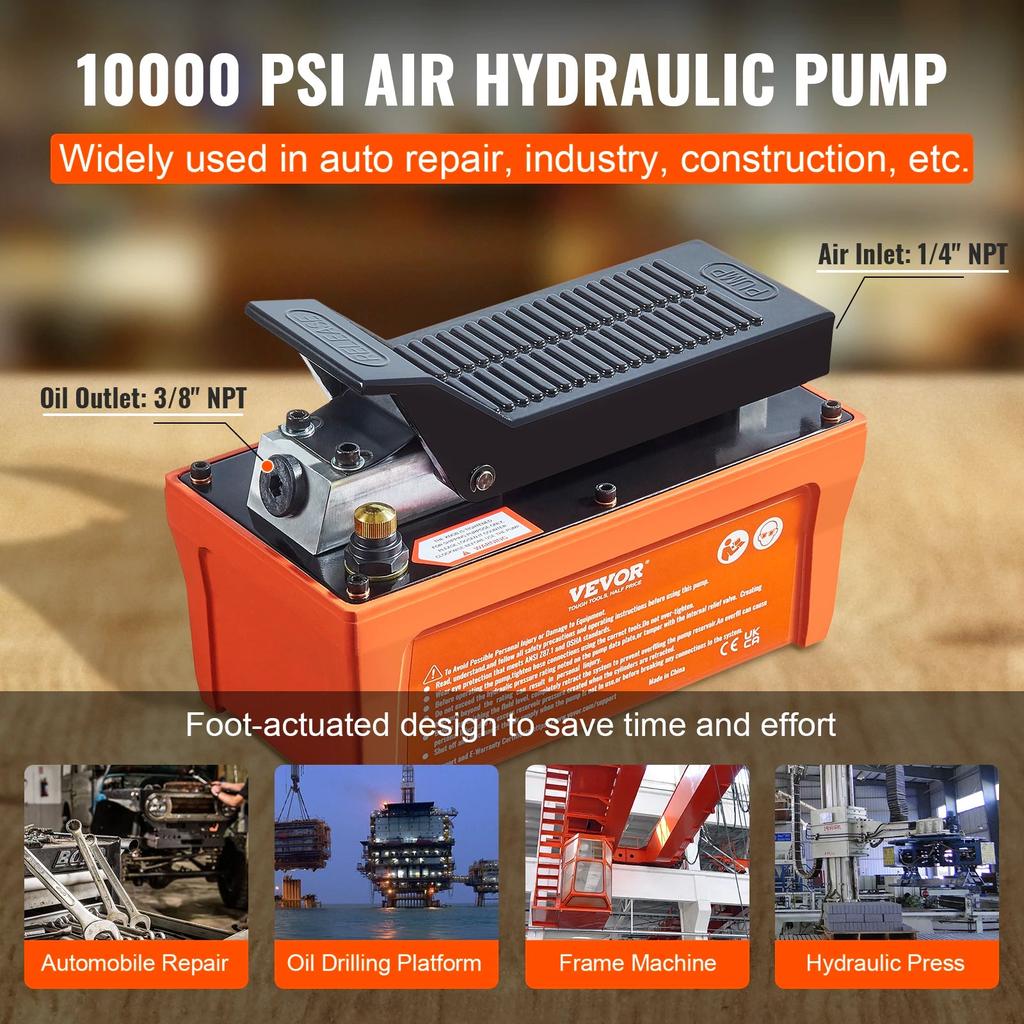

A: The pump requires a compressed air supply within 110-145 PSI and uses a 1/4" NPT air inlet connection.

Q: What type of hydraulic tools can this pump power?
A: It is suitable for single-acting hydraulic cylinders and tools used on auto body frame machines, pulling posts, and similar repair or maintenance equipment rated for 10,000 PSI systems.

Q: What are the hydraulic connections and capacity?

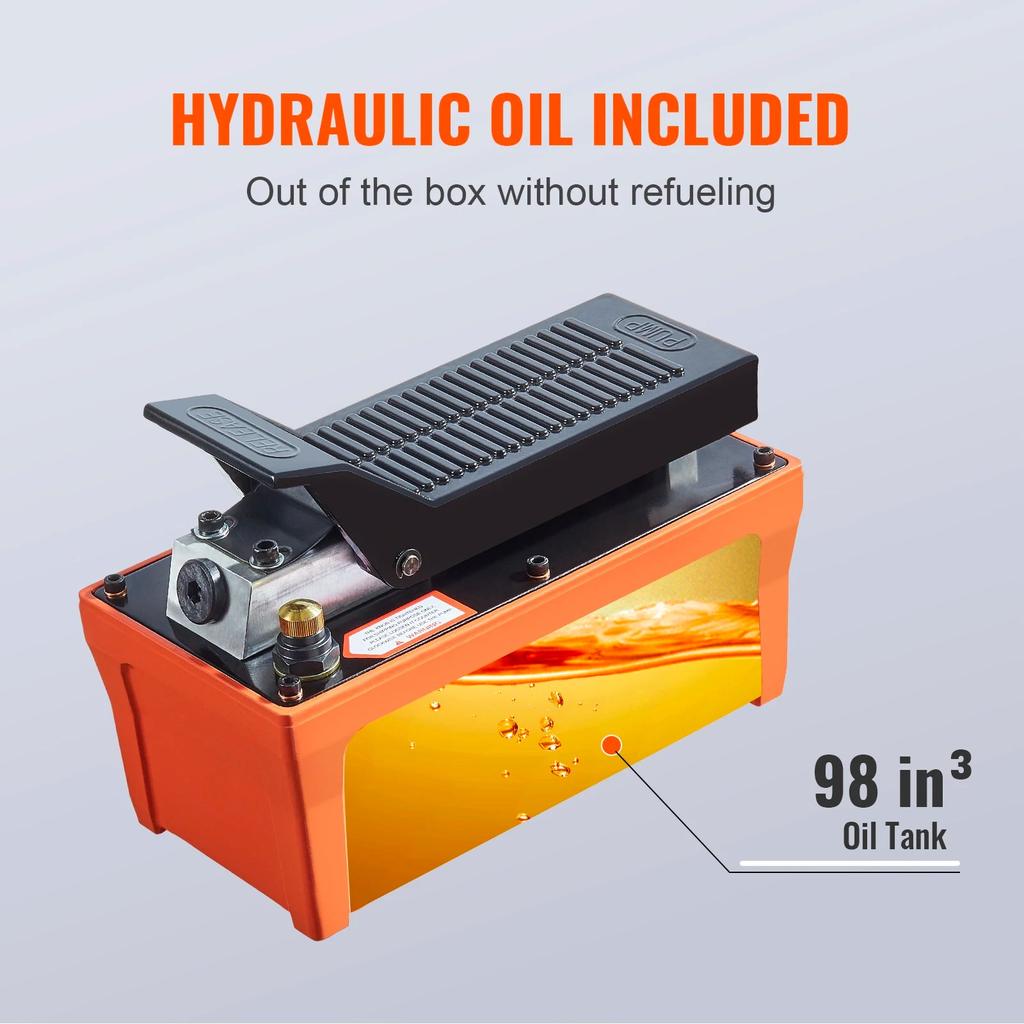

A: The oil outlet is 3/8" NPT, the reservoir capacity is 1.6 L, and the flow rate is 0.8 L/min (no load) and 0.16 L/min (under load).

Q: Is any assembly required?
A: Basic setup is required: connect the supplied oil pipe and coupler to your hydraulic tool, attach the air inlet adapter to your air line, and follow the user manual for filling, bleeding, and safe operation.
