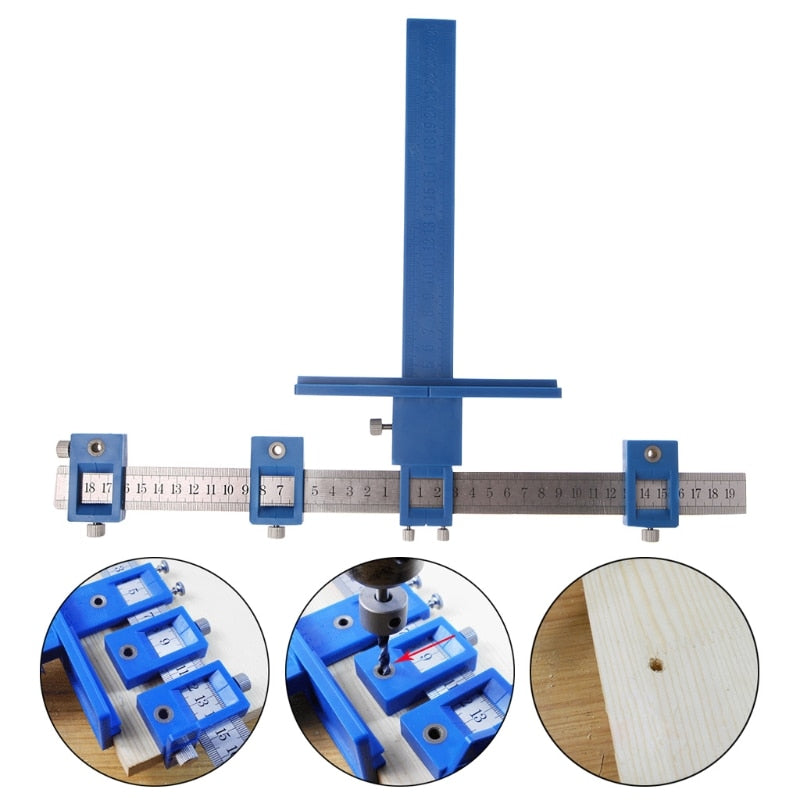

Adjustable Drill Jig Guide Punch Locator Tool

Accurate hole positioning for consistent, professional results.

The Adjustable Drill Jig Guide Punch Locator Tool is designed to help you drill evenly spaced, perfectly aligned holes in a fraction of the time. Constructed from a combination of robust metal components and durable plastic guides, it offers a stable, repeatable setup for a wide range of woodworking and light metalworking tasks. Its compact, lightweight design makes it easy to carry between job sites or use in a home workshop without taking up excess space.

This jig allows you to mark and drill up to four holes in one setup, ensuring consistent spacing across multiple workpieces. The adjustable guides slide smoothly and lock securely in place, helping you maintain accurate distances for cabinet handles, drawer pulls, door hardware, shelving, and other fixtures. Simply set your measurements once, lock the jigs, and repeat the layout across all your parts to reduce errors, rework, and material waste.

Why It's a Smart Choice

• Consistent spacing every time - Adjustable guides let you set precise distances between holes and repeat them across multiple pieces.
• Reduced measuring and marking time - Set the jig once and reuse it, minimizing layout time on cabinets, doors, and panels.
• Stable and easy to handle - The combination of metal and plastic components keeps the tool sturdy yet lightweight for comfortable use.

FAQ

Q: What materials can I use this jig on?
A: It is suitable for wood, plywood, MDF, and many light metal applications, provided you use the appropriate drill bits.

Q: Do I need special tools to adjust the jigs?
A: No. The guides are adjusted by hand and locked in place using the integrated metal locking parts.

Q: Is it suitable for repetitive cabinet and drawer installations?
A: Yes. Once set, the jig can be reused across multiple doors and drawers to keep handle and knob positions consistent.

Q: Is the tool portable?
A: Yes. It is compact and lightweight, making it easy to carry in a toolbox or store in a small workshop space.
