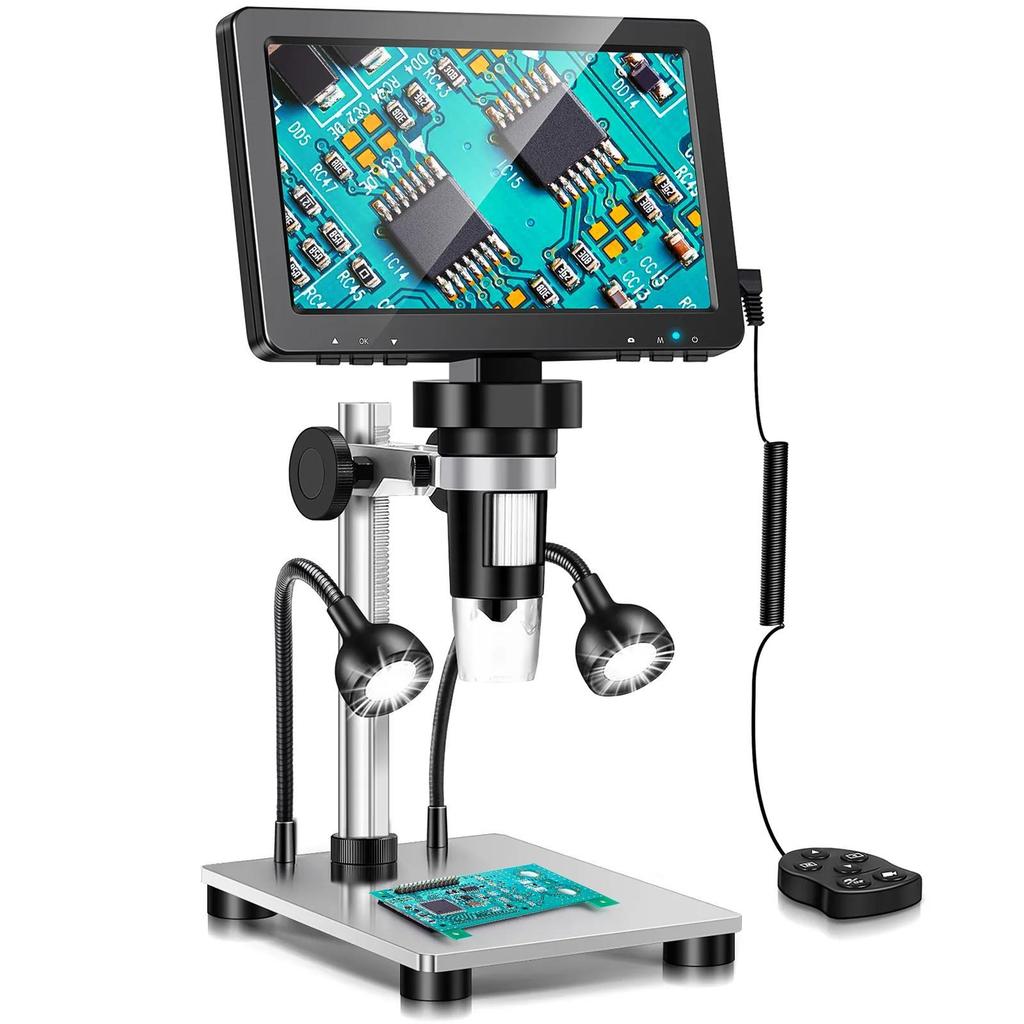

7" Digital Microscope 12MP 1200X with 7" LCD Screen

High-Definition Digital Microscope for Precision Work

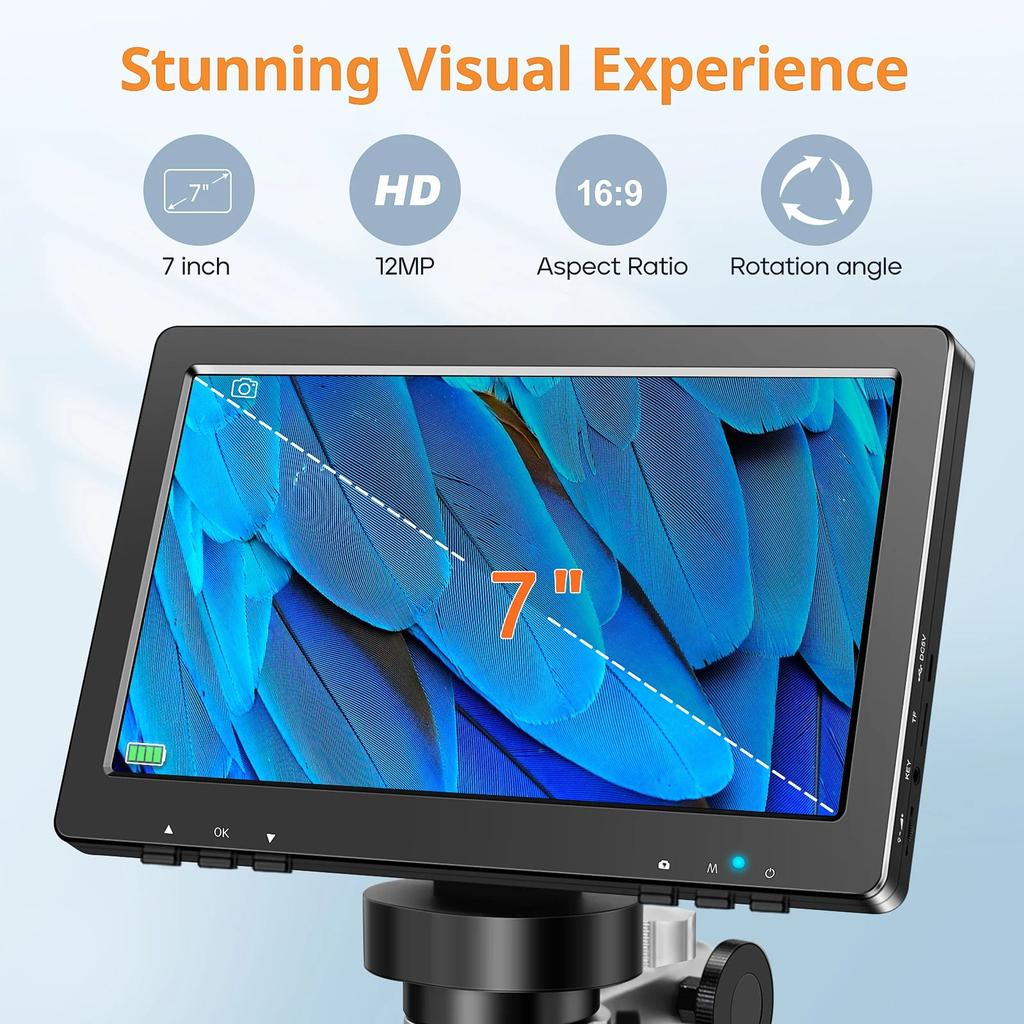

This 7" Digital Microscope (Model DM9) combines a 12MP HD camera with up to 1200X digital magnification, delivering clear, detailed imaging for inspection, repair, and documentation tasks. The integrated 7-inch LCD screen provides a wide, comfortable viewing area, allowing you to see fine details on circuit boards, phone components, coins, and other small objects without needing an external monitor.

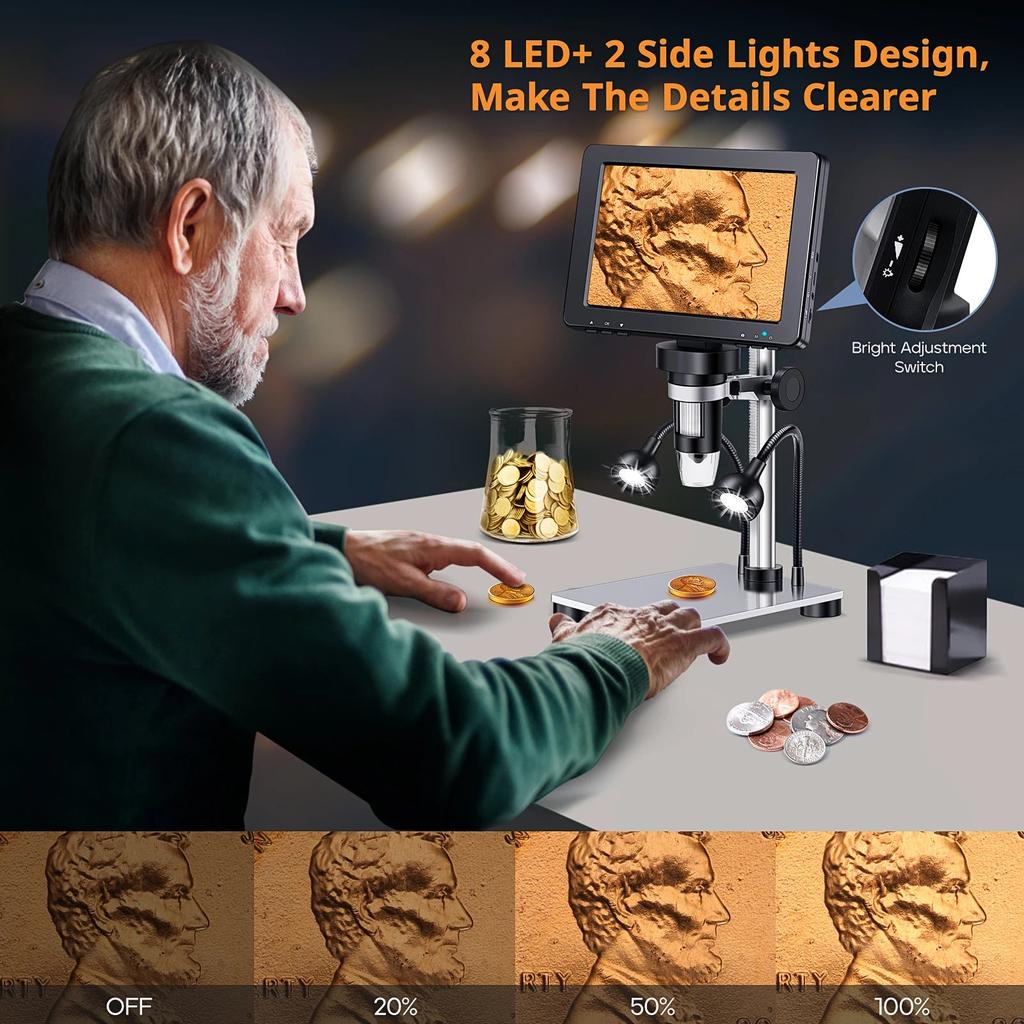

Equipped with 8 adjustable LED lights around the lens and 2 independent flexible gooseneck lights, this microscope offers controlled, uniform illumination from multiple angles. Manual focus (10-40 mm working distance) lets you fine-tune sharpness for different object heights, while automatic white balance and exposure help maintain consistent image quality. Photos (up to 12MP) and 1080FHD videos are stored directly to the included 32GB micro SD card for easy archiving and sharing.

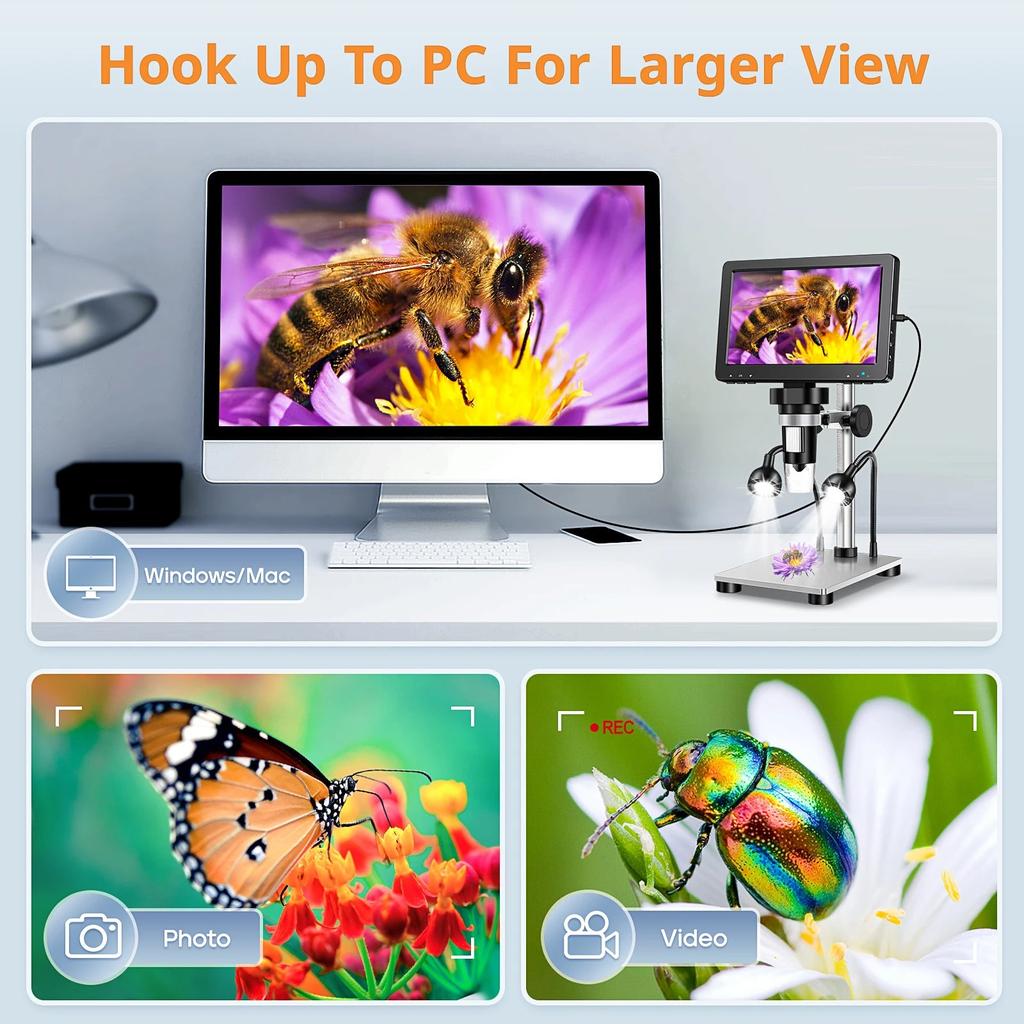

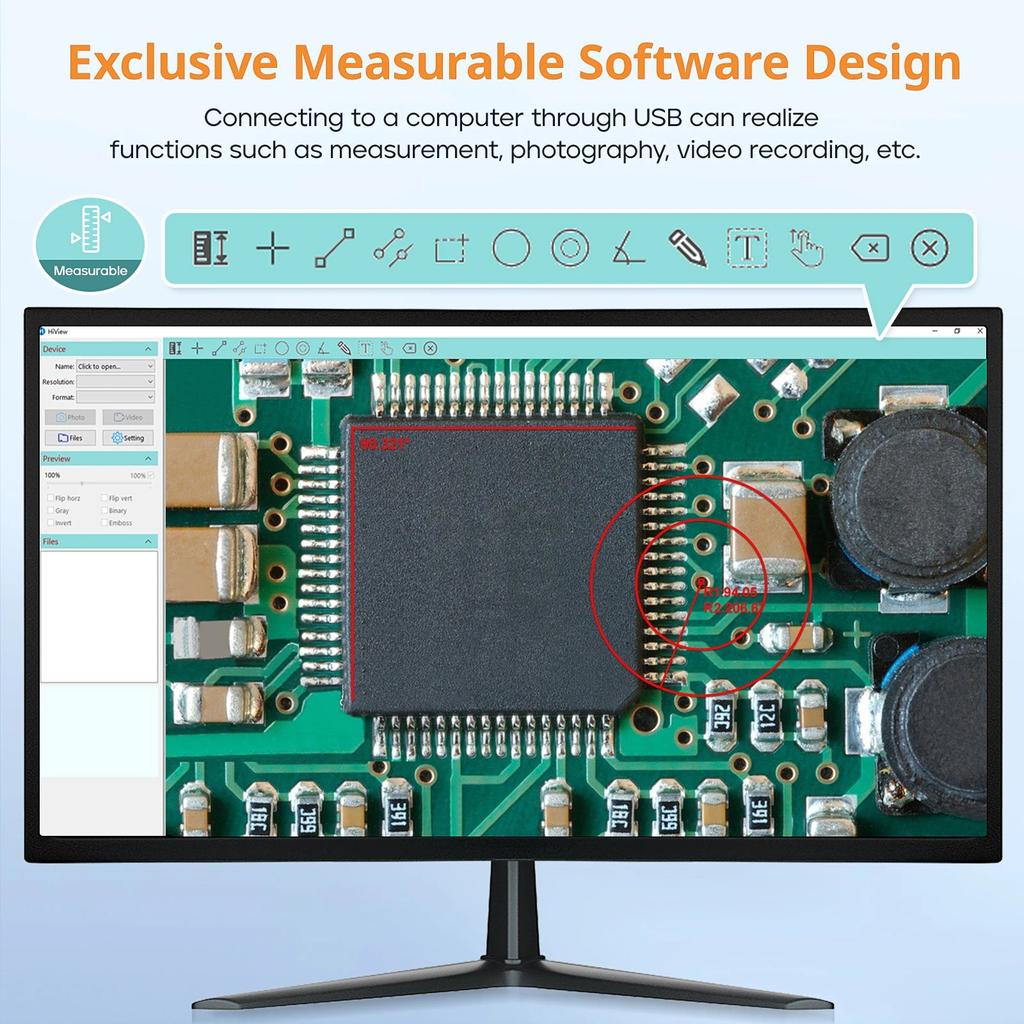

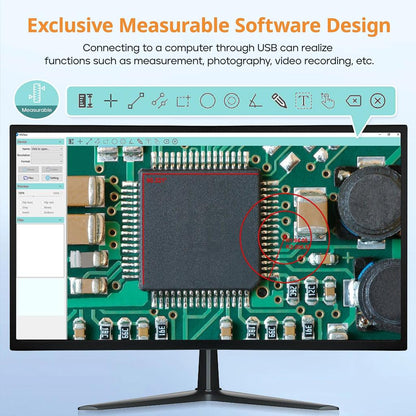

For larger-scale viewing and analysis, the microscope connects to Windows and macOS computers via USB-no additional drivers required. It supports live viewing at 1280 × 720 / 30 fps, making it suitable for inspection workflows, demonstrations, and training. With wide OS compatibility and support for multiple languages, it fits seamlessly into both workshop and classroom environments.

Why It's a Smart Choice

• Clear, large on-device display - 7" LCD screen with adjustable angle reduces eye strain and enables precise work without external monitors.
• Flexible illumination control - 8 ring LEDs plus 2 independently powered gooseneck lights ensure bright, even lighting across complex surfaces.
• Efficient capture and connectivity - 12MP photo, 1080FHD video, 32GB SD card, and PC connectivity streamline inspection, documentation, and reporting.

FAQ

Q: Can I use this microscope without a computer?
A: Yes. All viewing, focusing, and recording can be done directly on the 7" LCD screen. The PC connection is optional for larger viewing or data transfer.

Q: Is it suitable for soldering and phone repair?
A: Yes. The 10-40 mm focusing range, high magnification, and adjustable lighting make it well-suited for PCB inspection, solder joint checks, and small component work.

Q: Which operating systems are supported for PC connection?
A: It supports Windows XP, 7, 8.1, 10 and macOS 10.5 or higher. It works with built-in camera apps such as Windows Camera and Photo Booth.

Q: Does it require special software?
A: No. For most users, the default camera applications on Windows and macOS are sufficient. All core functions are available directly on the microscope itself.

Q: What is included in the package?
A: The package includes the LCD microscope, aluminum base, aluminum holder, 32GB SD card, wired remote, USB cable, straightedge, light barrier, and user manual.
