6GHz Portable Spectrum Analyzer & Tracking Generator

Field-Ready 6GHz Spectrum Analysis for Modern RF Systems

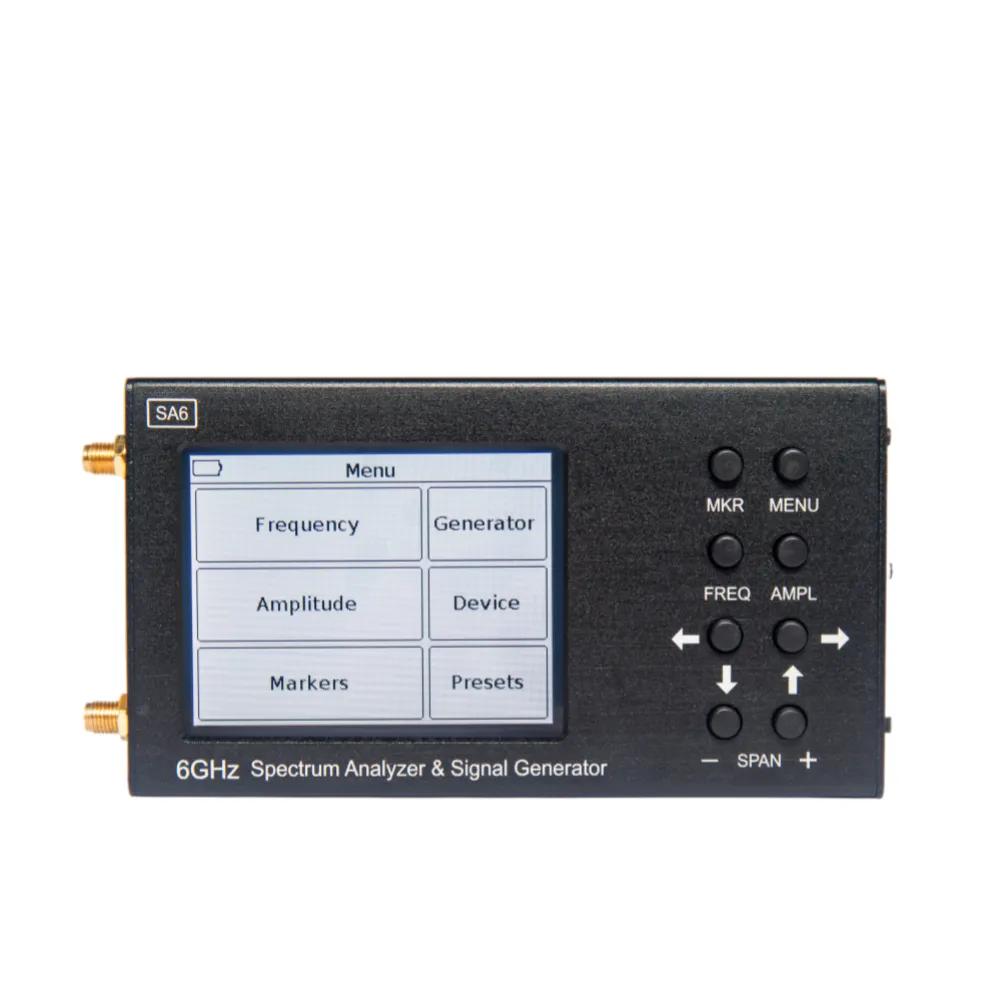

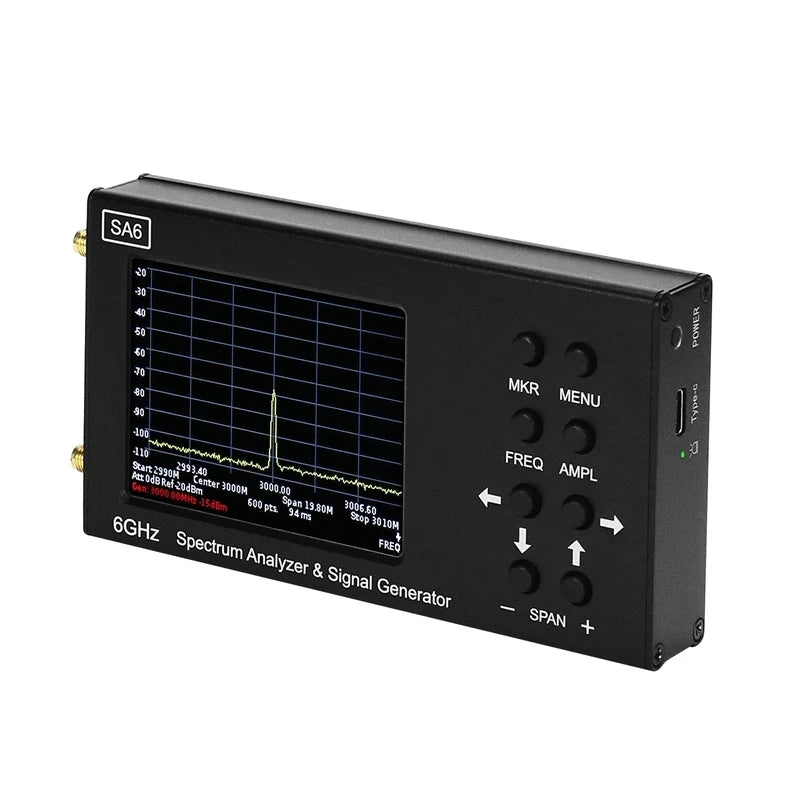

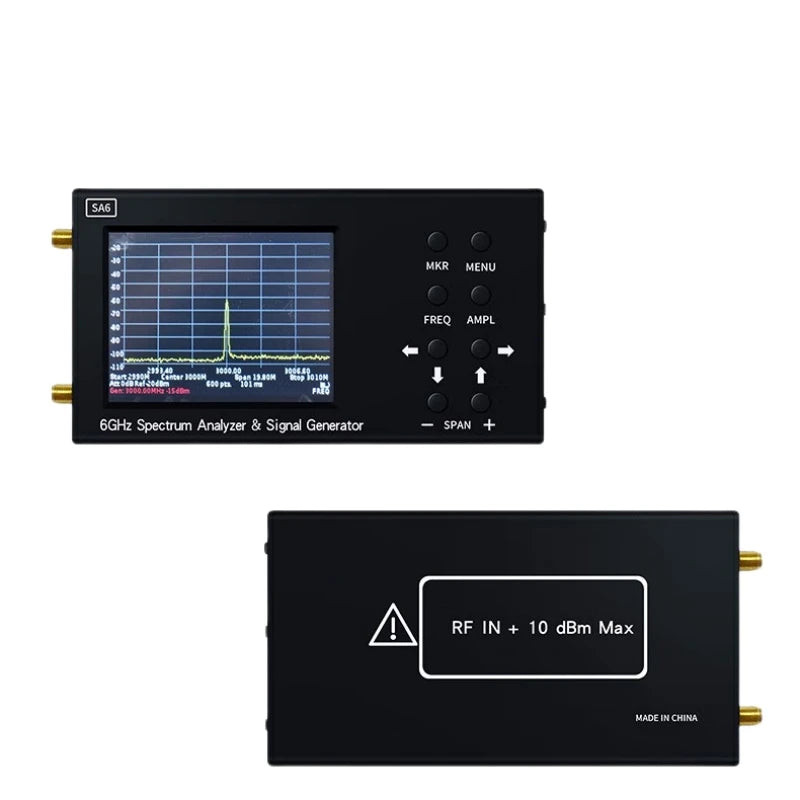

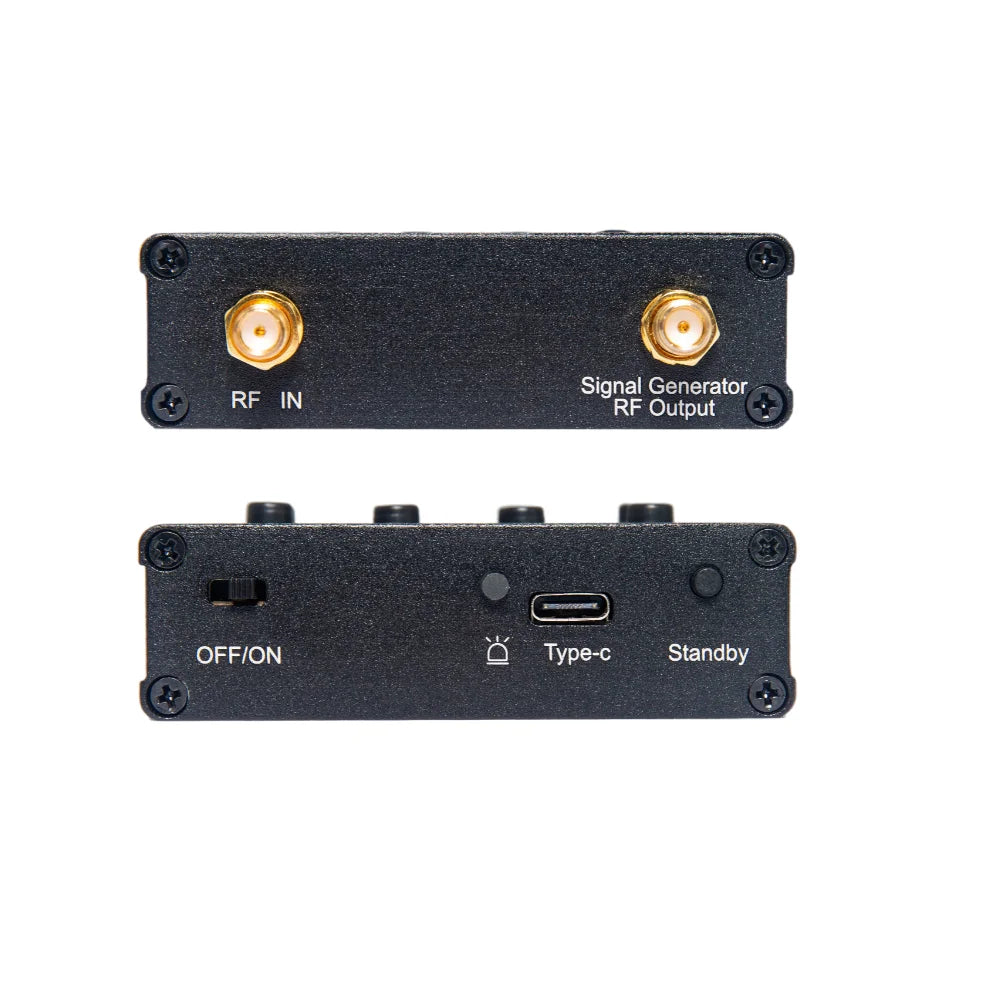

The SA6 6GHz Portable Spectrum Analyzer with tracking generator is designed for accurate RF measurements in demanding wireless environments. Covering 35-6200 MHz, it displays frequency and amplitude characteristics for signals used in Wi‑Fi, 2G, 3G, 4G LTE, CDMA, DCS, GSM, GPRS and GLONASS systems. A 3.2" color resistive touch screen, physical keys and USB connectivity support both standalone and PC-assisted operation.

Engineered for on-site work, the analyzer delivers a dynamic range up to 75 dB and a noise floor down to -90 dBm (below 3 GHz), enabling reliable detection of weak and interfering signals. The integrated tracking generator allows measurement of frequency response for filters, amplifiers and other RF components, and-when used with an external directional coupler-supports SWR and return loss measurements. Powered by a 2500 mAh rechargeable battery via USB‑C, the unit typically operates for up to 4 hours in the field.

Why It's a Smart Choice

• Wide 35-6200 MHz coverage - Analyze cellular, Wi‑Fi and satellite-related bands in a single compact instrument.
• Integrated tracking generator - Characterize filters, amplifiers and cables, and verify RF paths without additional bench equipment.
• Portable, service-focused design - Lightweight housing, battery power and USB/PC connectivity support commissioning, maintenance and troubleshooting on site.

FAQ

Q: What is the main frequency range for measurements?
A: The display range is 35-6200 MHz, with a specified measurement range of 35-4500 MHz and a maximum span of 6165 MHz.

Q: Can it measure SWR and return loss?

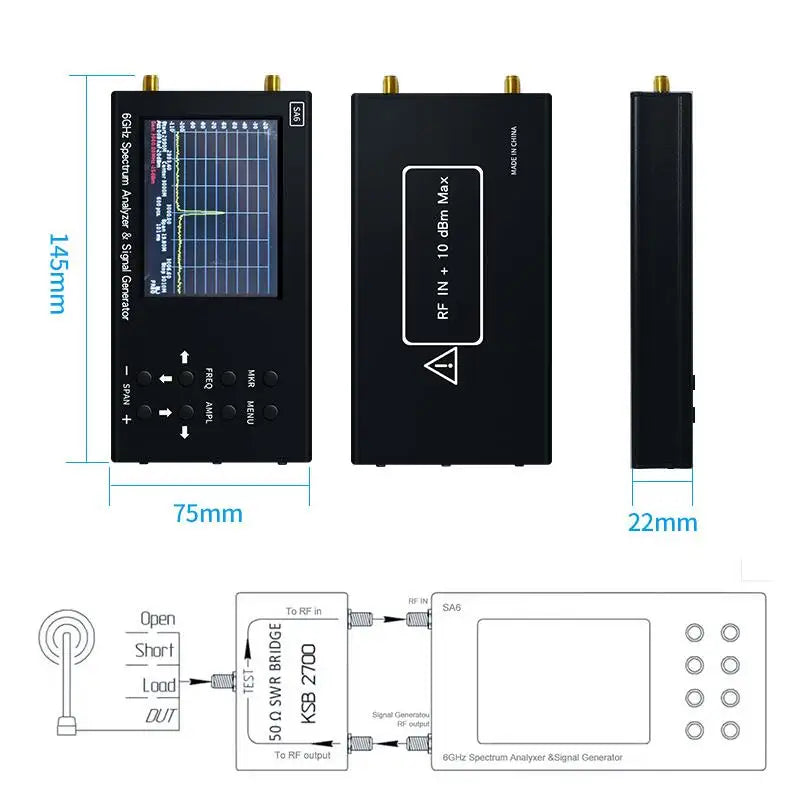

A: Yes. With an external directional coupler and appropriate calibration standards, the included software supports SWR and return loss measurements.

Q: How is the device powered and charged?
A: It uses an internal 2500 mAh rechargeable battery and charges via a USB Type‑C connection. Typical operating time is up to 4 hours, depending on usage.

Q: Is PC connectivity supported?
A: Yes. Data can be transferred to a Windows-based computer via USB, allowing real-time display, control and logging of measurement results.

Q: What is included in the package?
A: The package includes the SA6 spectrum analyzer with tracking generator, a resistive touch pen, an SME 30 cm extension cable and a USB Type‑C cable.
