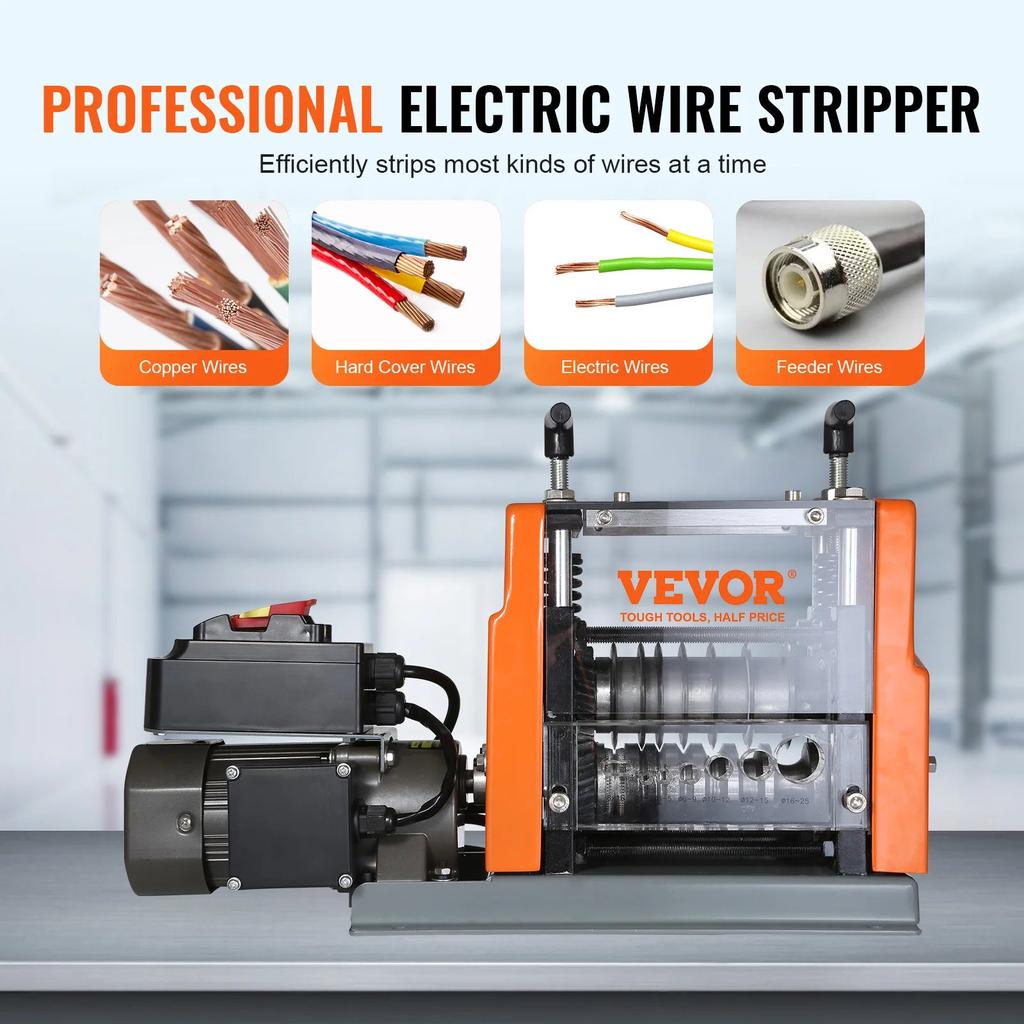

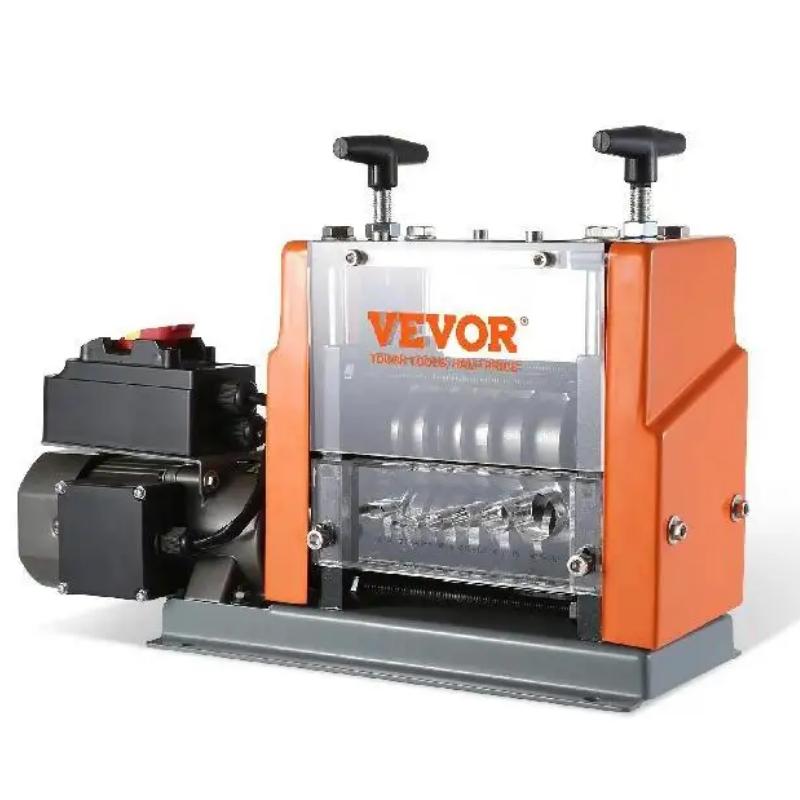

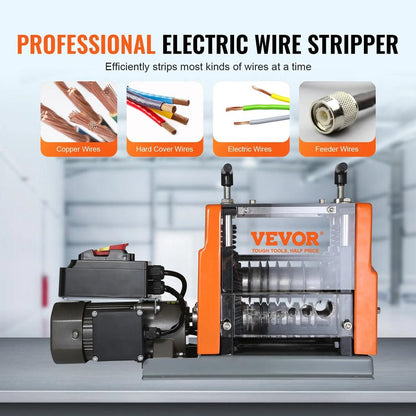

60W Electric Wire Stripping Machine 1.5-25mm

Efficient, Accurate Wire Stripping for Copper Recycling

This 60W Electric Wire Stripping Machine is engineered for consistent, accurate insulation removal on copper wires ranging from 1.5 mm to 25 mm in diameter. Constructed from durable cast iron, it delivers stable performance in workshops, recycling centers, and small industrial environments. The clearly visible stripping depth scale allows you to set and monitor cutting depth in real time, helping reduce errors and material loss.

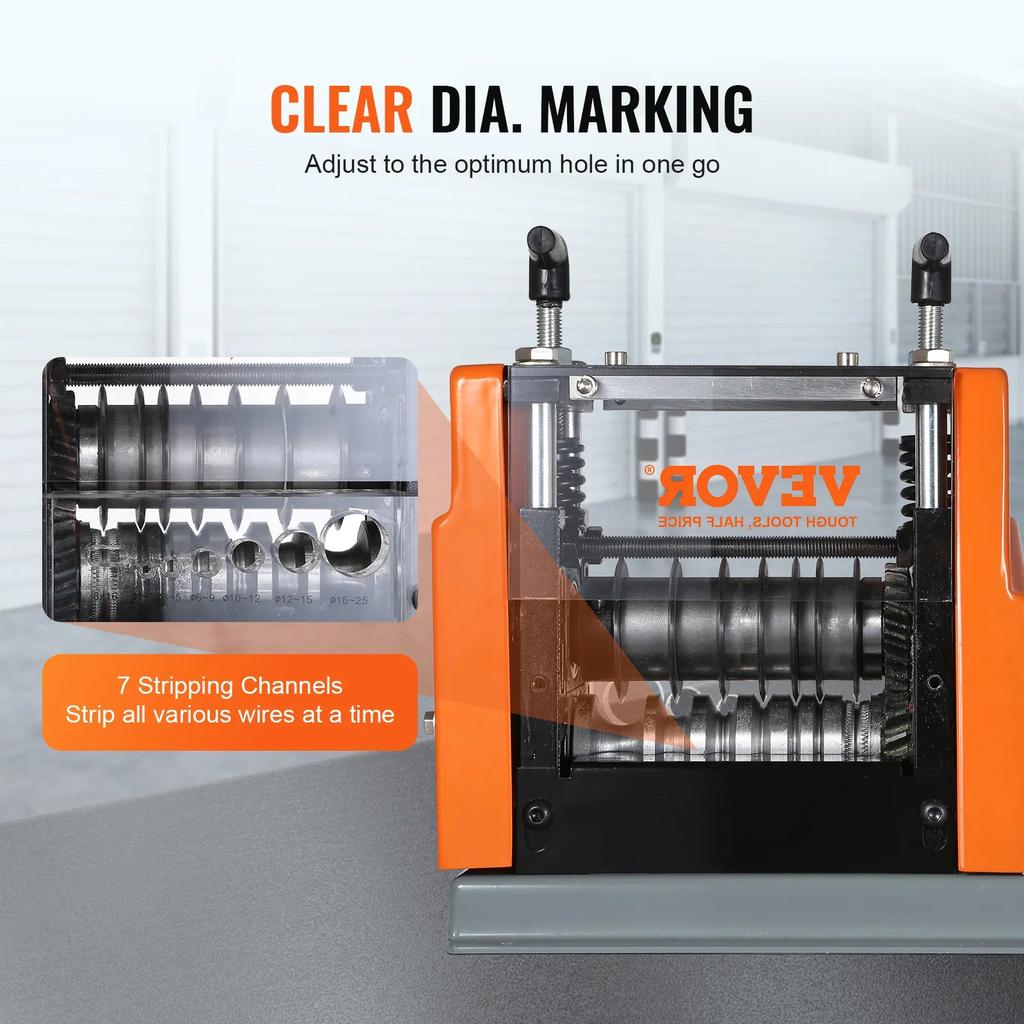

Equipped with six round channels and one flat channel, the machine accommodates a wide variety of cable types, including standard round cables and flat conductors. The adjustable depth function enables precise blade positioning so you can strip insulation cleanly without damaging the copper core. Its compact footprint (480 x 170 x 320 mm) and solid 15.5 kg build provide reliable stability during operation while remaining manageable for bench-top use.

Why It's a Smart Choice

• Wide wire compatibility - Handles wire diameters from 1.5-25 mm via six round and one flat channel for flexible use across different cable types.
• Controlled, visible stripping depth - Depth-adjustable design with visible scale supports precise setup, reducing copper damage and rework.
• Durable cast iron construction - Rigid housing and components support long service life and consistent performance in demanding environments.

Specifications:

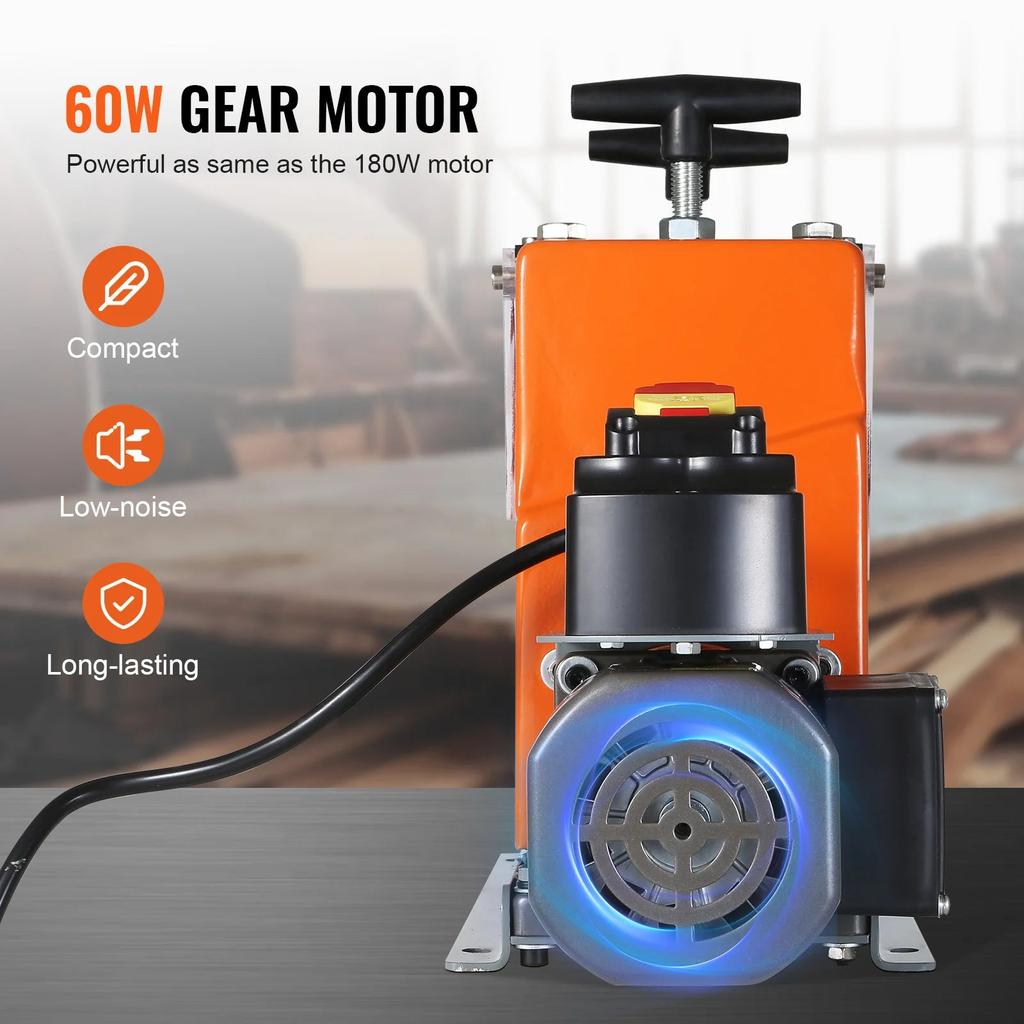

Rated Power: 60 W
Wire Diameter Range: 1.5-25 mm (approx.)
Material: Cast iron
Size: 18.9 x 6.7 x 12.6 in / 480 x 170 x 320 mm
Weight: 34.2 lb / 15.5 kg

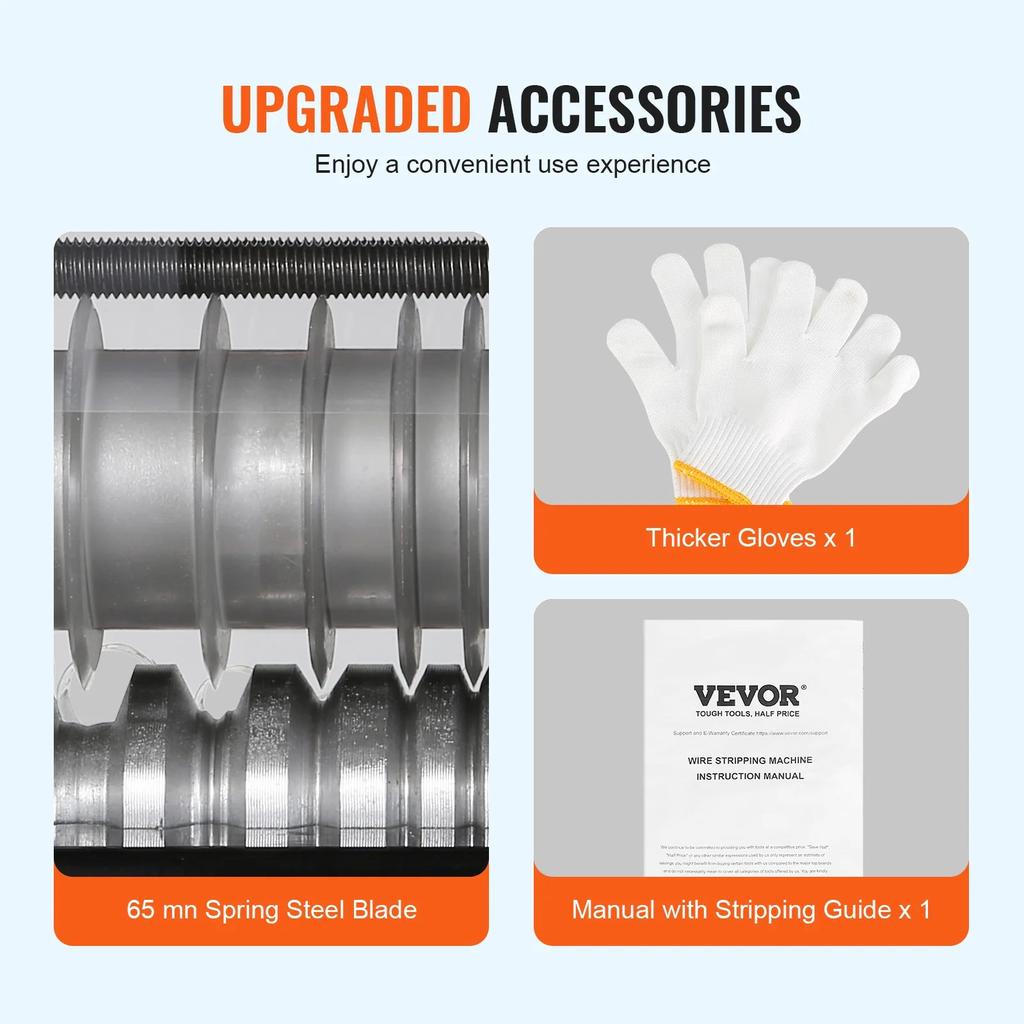

Package Includes:
1 x Electric Wire Stripping Machine
1 x Pair of Gloves
1 x User Manual

FAQ

Q: What types of wires can this machine strip?
A: It is suitable for most insulated copper cables within the 1.5-25 mm diameter range, including round and flat cables that fit the provided channels.

Q: Is the stripping depth adjustable?
A: Yes. The machine features an adjustable depth mechanism with a visible scale, allowing you to set the blade depth according to wire size and insulation thickness.

Q: Does it require complex setup?
A: No. Basic assembly and adjustment are described in the included user manual. Once configured, operation is straightforward for repeated stripping tasks.

Q: Can this be used in a small workshop?

A: Yes. Its compact size and stable cast iron body make it well-suited for bench-top use in small workshops and recycling operations.
