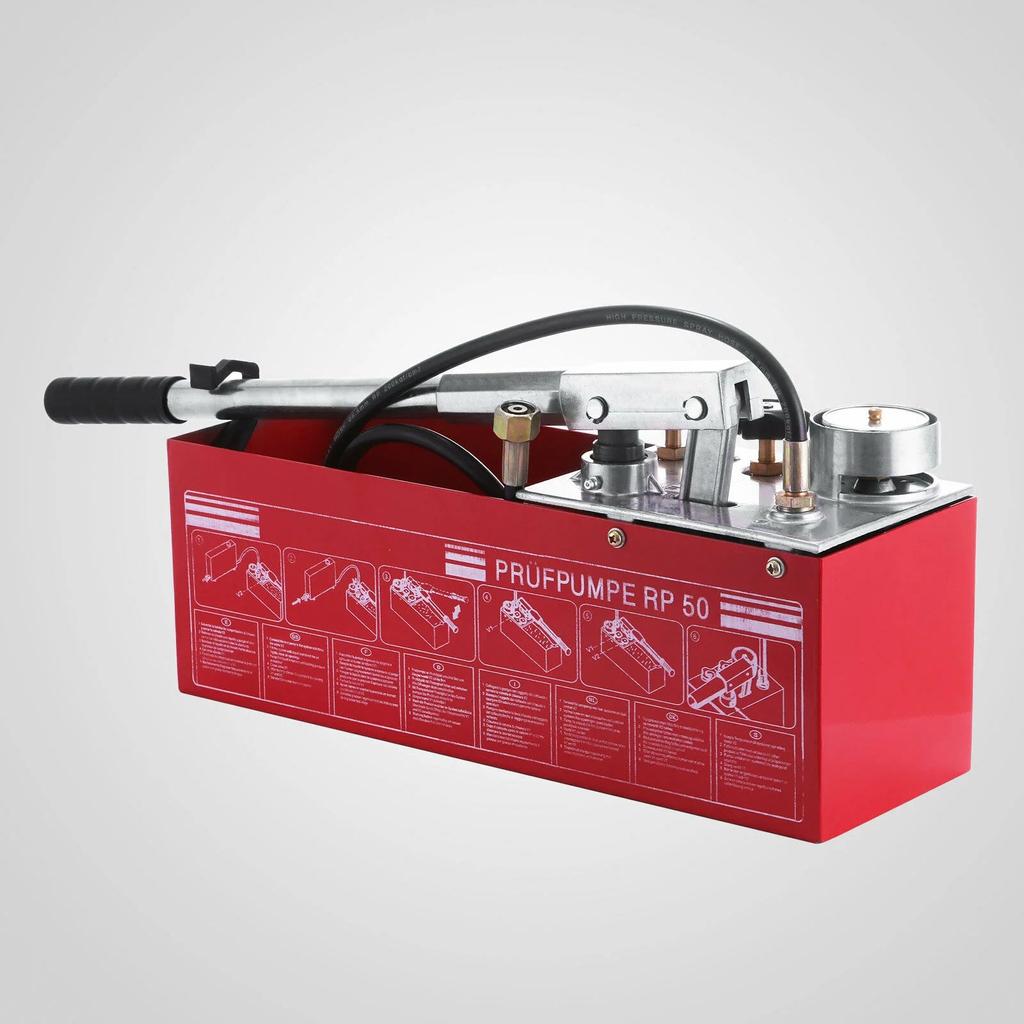

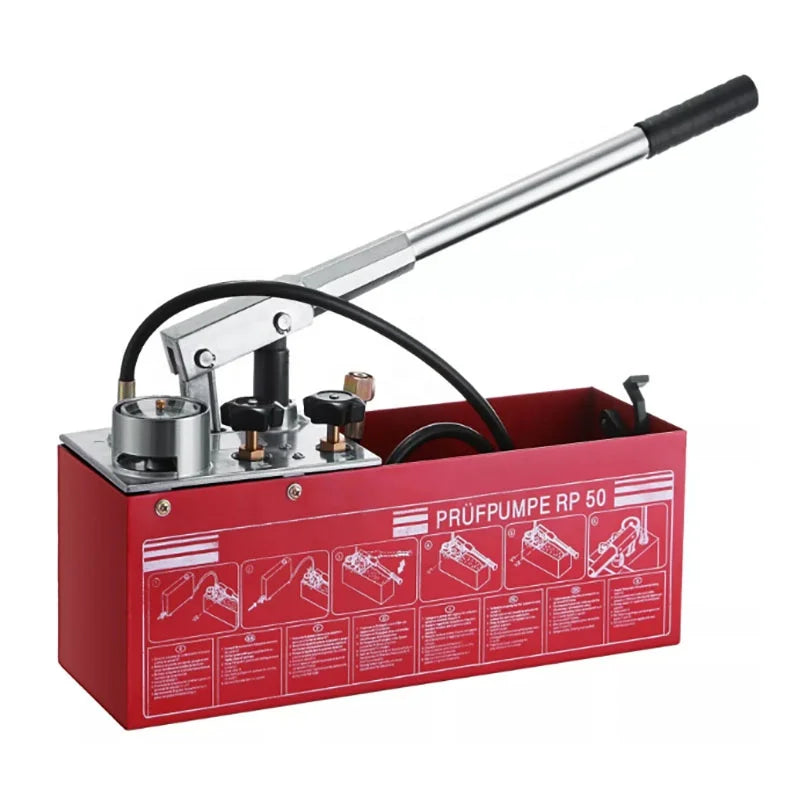

50 Bar Manual Pressure Test Pump for Pipelines

Accurate Manual Pressure Testing for Water & Pipeline Systems

- This 50 bar manual pressure test pump is designed for professionals who need reliable, controlled pressure testing of PPR tap water pipelines, valves, heating systems, and industrial vessels. Operated entirely by hand, it delivers dependable results on-site or in the workshop without requiring electricity, making it suitable for construction, maintenance, and inspection tasks.

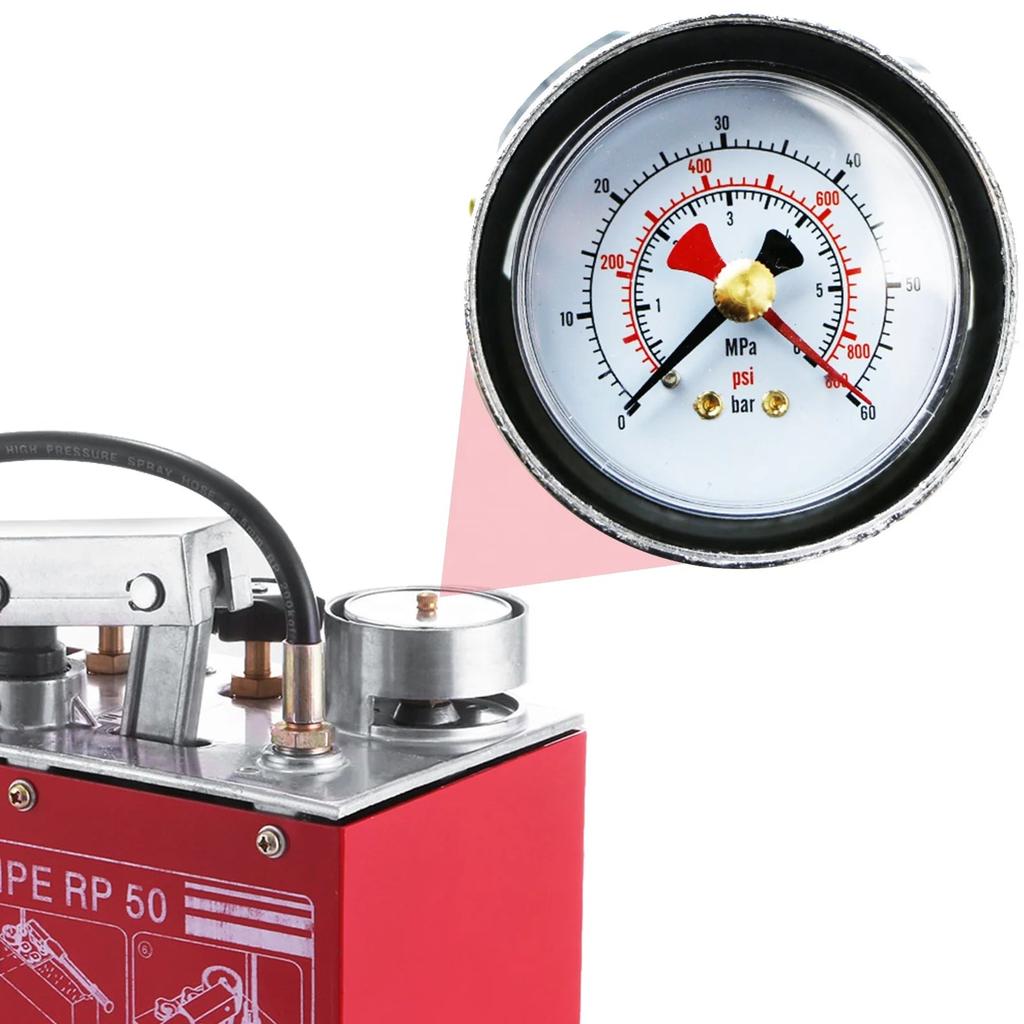

Built with a robust steel body, this hydraulic pressure test pump combines high hardness with long service life. The extended handle (approx. 56 cm) is wrapped in anti‑skid rubber to improve grip and reduce operator fatigue during repetitive pumping. A large 12 L steel water tank with thick walls and strong sealing performance offers stable operation and resistance to cold and harsh weather conditions. The integrated precision gauge displays three units - bar, psi, and MPa - with dual pointers (black and red) for clear reading and fast reference. With a pressure range of 0-50 bar (0-5 MPa / 0-725 psi) and a suction volume of 45 ml per stroke, the pump provides consistent, controllable pressure build‑up for accurate testing.

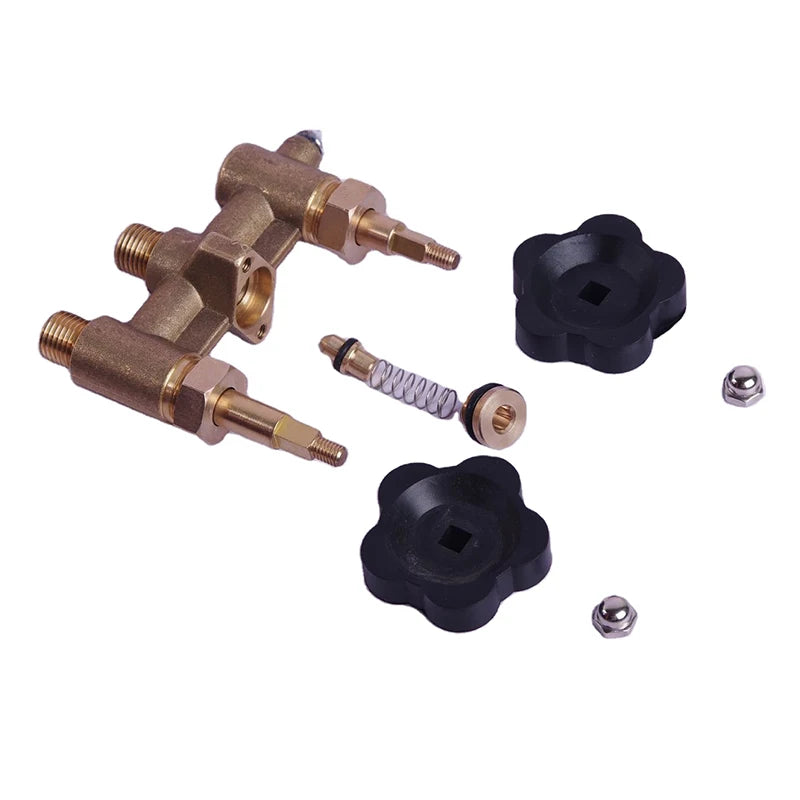

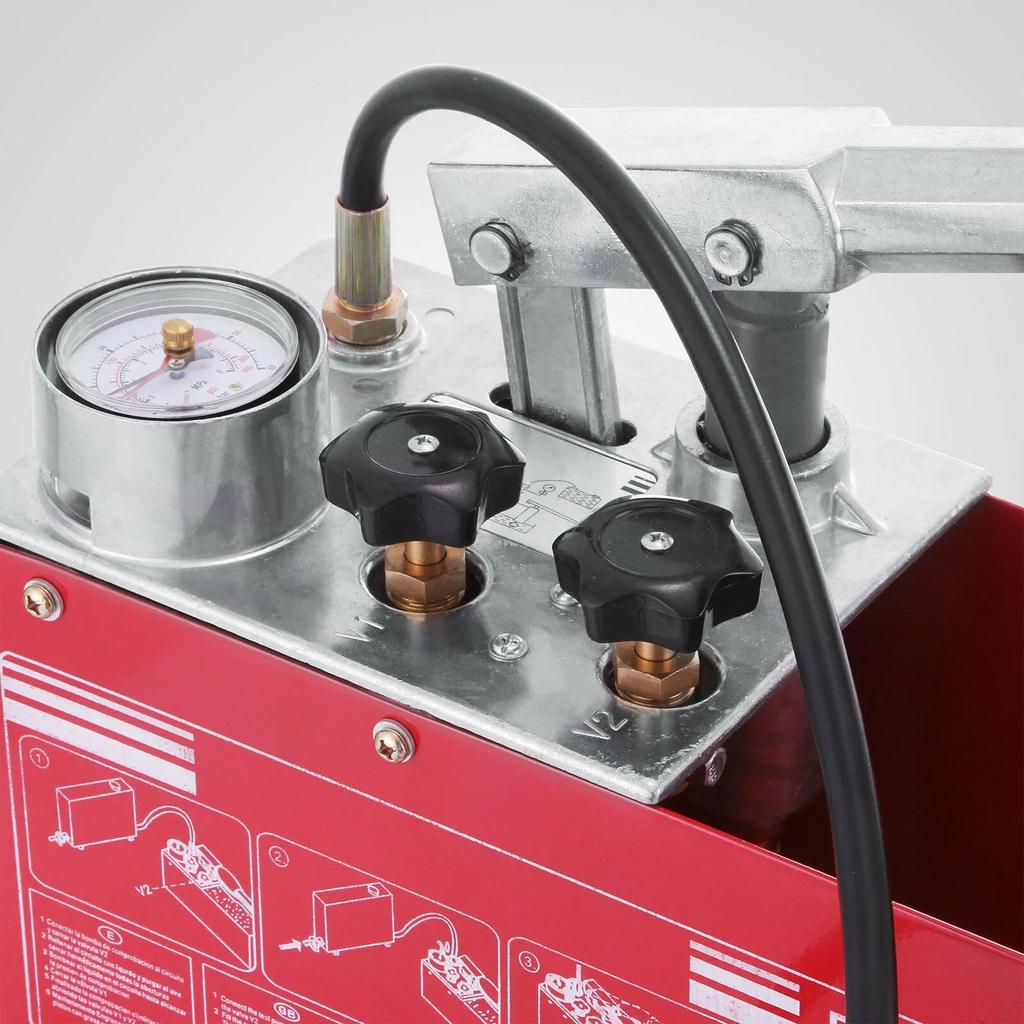

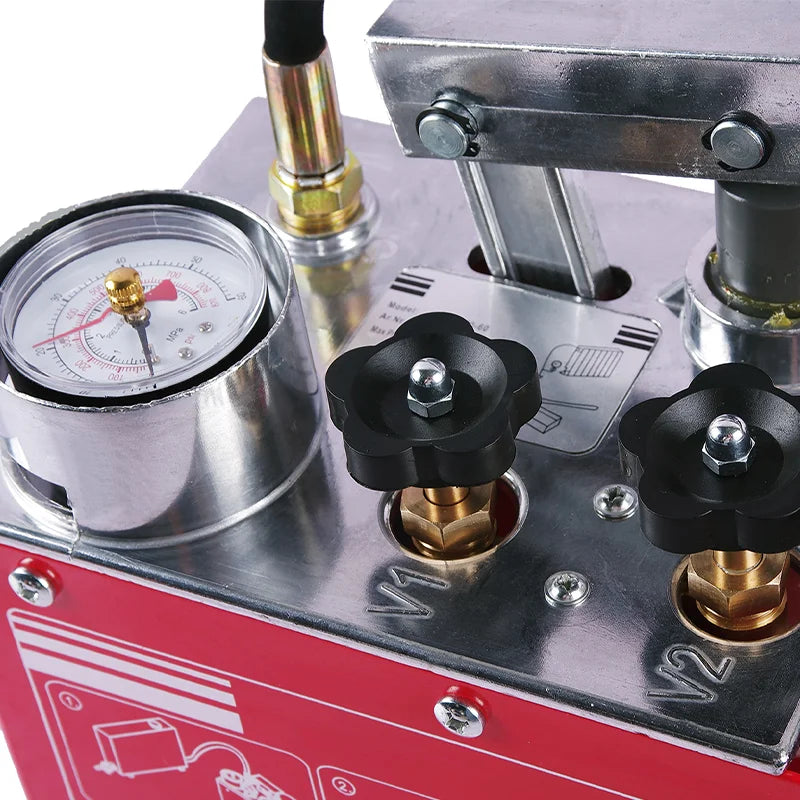

The dual‑valve system allows fine adjustment of test pressure and secure setting of the pump's self‑check pressure, helping you achieve repeatable, traceable results. A standard R 1/2" connection supports common pipeline fittings, and the compact dimensions (approx. 650 × 165 × 260 mm) make it easy to transport between job sites. Suitable for water or compatible oil media, it can be used on heating pipes, pressure containers, irrigation lines, fire hoses, sewers, and general building pipeline systems. Supplied as a complete set, the unit is ready to integrate into your existing testing and maintenance workflow.

Why It's a Smart Choice

• Manual operation provides full control over pressure build‑up and eliminates dependence on power sources.
• Precision gauge with multi‑unit display and dual pointers supports accurate, easy‑to‑read measurements.
• Durable steel construction, 12 L sealed tank, and dual‑valve control support consistent, repeatable testing in demanding environments.

FAQ

Q: What applications is this pressure test pump suitable for?
A: It is suitable for testing water or compatible oil pressure in PPR tap water pipelines, heating systems, building pipelines, industrial vessels, irrigation systems, fire hoses, and similar closed circuits.

Q: Does the pump require electricity to operate?
A: No. The unit is fully manual, making it ideal for field work, remote locations, and sites without a power supply.

Q: What is the maximum test pressure?
A: The pump is designed for a pressure range of 0-50 bar (0-5 MPa / 0-725 psi), as indicated on the integrated pressure gauge.

Q: What type of connection does it use?
A: The pump uses a standard R 1/2" connection, compatible with many common pipeline and valve fittings used in residential and industrial systems.

Q: Can it be used with both water and oil?
A: Yes. The pump is designed for use with water or suitable test oil, depending on the requirements of the system being tested and the applicable standards.
