4K 48MP Digital Microscope for PCB & Electronics

4K Close‑Up Clarity for PCB Inspection and Soldering

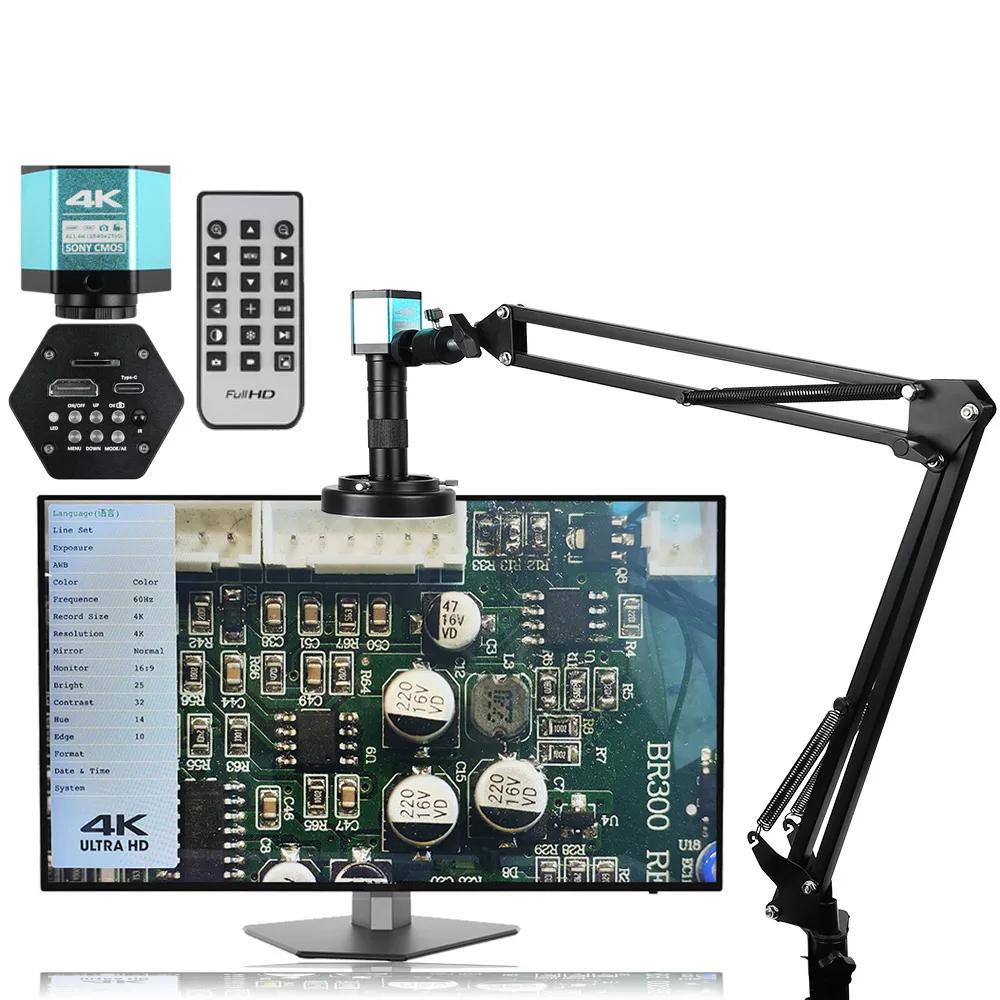

Experience detailed electronic inspection with this 4K 48MP digital microscope system, designed specifically for PCB repair, phone board soldering, and precision electronics work. With HDMI and USB outputs, a 1-150X C‑mount zoom lens, and adjustable LED ring lighting, it delivers sharp, stable imaging for both real‑time viewing and recording.

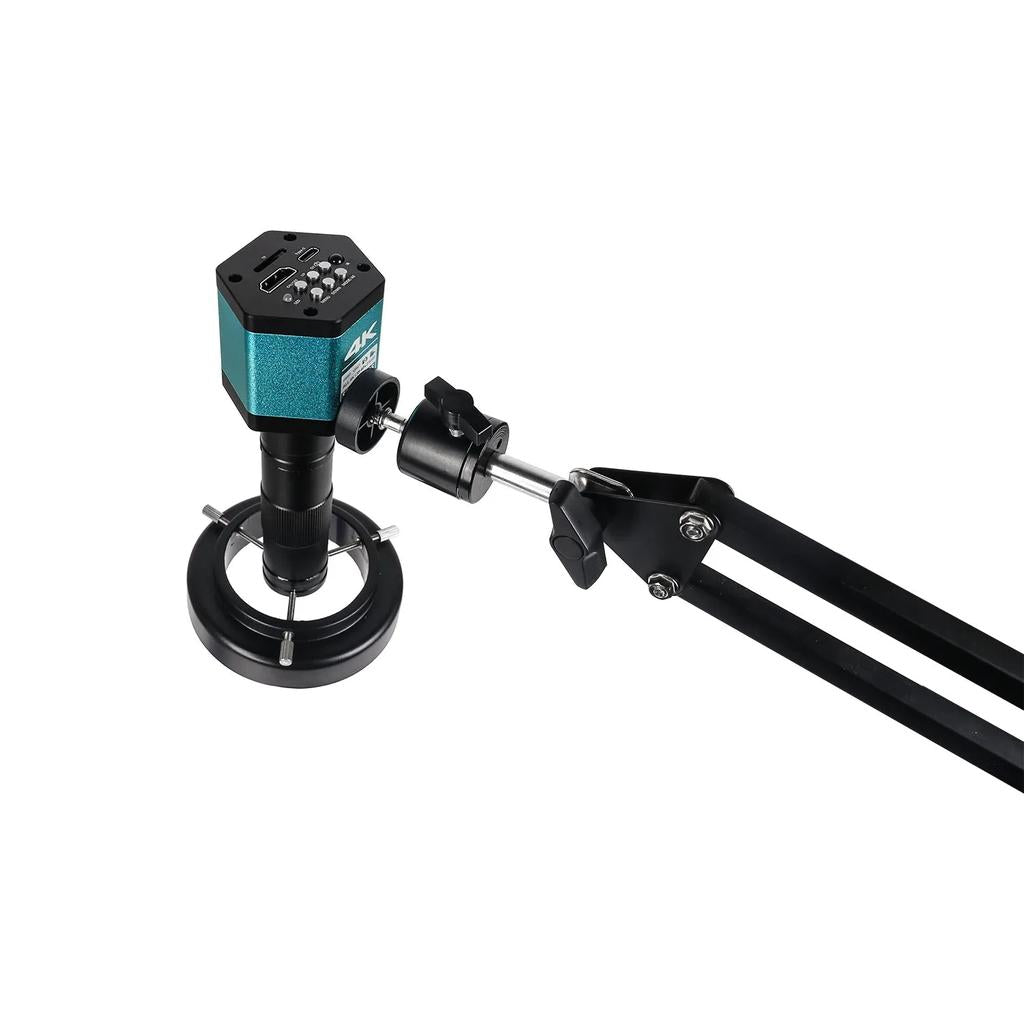

The microscope is built around a 48MP Sony sensor camera with an aluminum alloy housing. It supports HDMI 1080p/60fps live output for lag‑reduced viewing on monitors, plus Type‑C/USB output at 1080p/30fps for connection to a computer. You can record video in 4K, 2K, 1080p, or 720p (MOV format) directly to a TF card, and capture still images up to 8000 × 6000 resolution. The camera offers 5× digital zoom, manual/auto exposure and white balance, one‑click freeze, mirroring, and multiple aspect ratios (16:9, 16:10, 4:3) to match different displays.

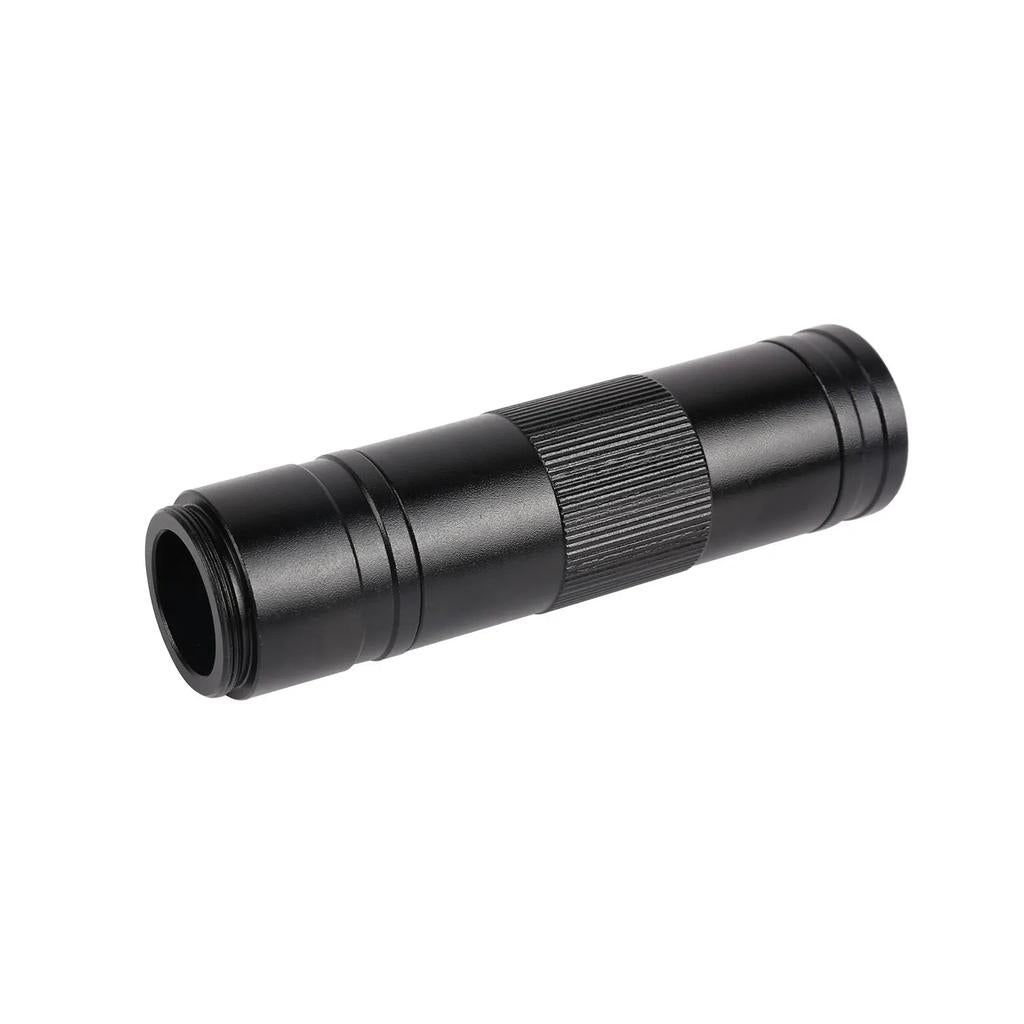

The included 1-150X C‑mount zoom lens provides a working distance of approximately 50-1000 mm with a 1:15 zoom ratio. On‑screen magnification ranges from about 1X to 150X, with a maximum field of view of about 130 × 70 mm and a minimum field of view of about 4.2 × 2.4 mm, allowing you to move from full‑board inspection to fine pad and trace work without changing lenses. A 56‑LED ring light with adjustable brightness (0-100%) delivers even, shadow‑reduced illumination across components and solder joints.

The camera firmware includes on‑screen measurement aids such as up to 16 configurable grid and cross lines with adjustable color, thickness, and position, plus a center crosshair option. Image parameters such as brightness, contrast, sharpness, saturation, and exposure compensation can be tuned directly from the on‑screen menu or via the included remote control. The system supports multiple languages (including English and Chinese) and stores your last settings at shutdown for consistent operation.

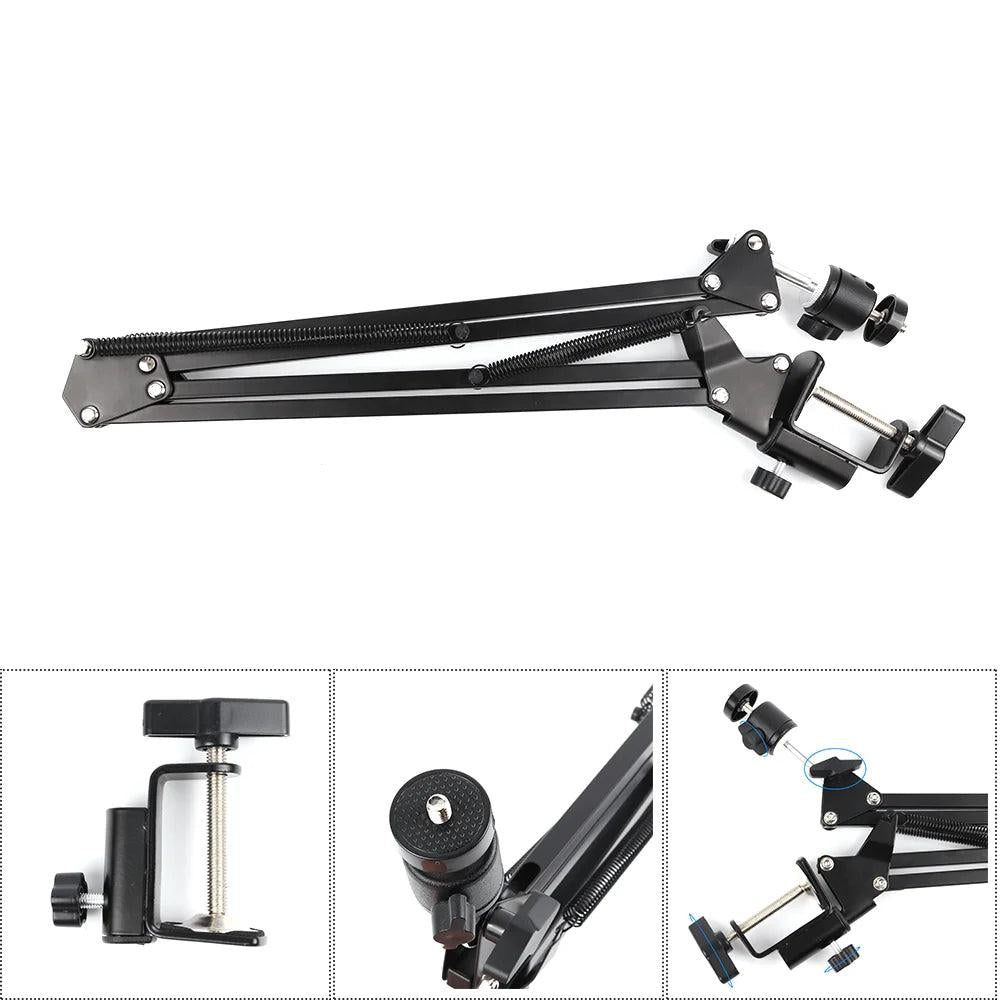

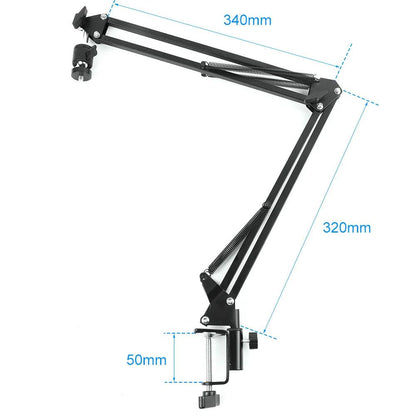

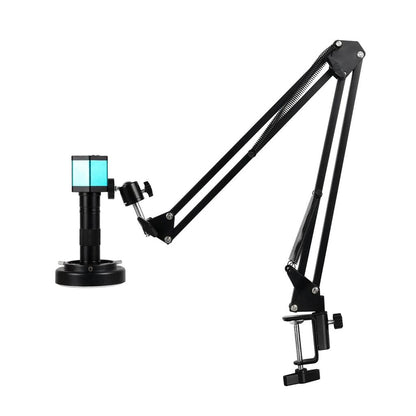

An adjustable stand with a long vertical reach provides stable positioning for boards and assemblies of various sizes. The system is suitable for electronics technicians, repair shops, small manufacturing lines, laboratories, and hobby users who need clear visual access to fine details on PCBs, connectors, and micro‑components. For working distances beyond roughly 40 cm, an additional workbench lamp is recommended as supplementary lighting.

Why It's a Smart Choice

• Clear 4K imaging with 48MP Sony sensor for precise inspection of pads, traces, and micro‑components.
• Flexible viewing and recording via HDMI and USB outputs, plus TF card storage for photos and videos.
• Wide 1-150X zoom range with adjustable LED ring light and stand for a variety of PCB and electronics tasks.

FAQ

Q: Can this microscope connect directly to a monitor?
A: Yes. It supports HDMI output for direct connection to most HDMI‑equipped monitors or TVs for real‑time viewing.

Q: Do I need a computer to capture images and video?
A: No. You can record photos and videos directly to a TF card inserted in the camera. A computer connection via USB is optional.

Q: Is it suitable for phone PCB and micro‑soldering work?
A: Yes. The 1-150X zoom range, fine focus, and adjustable LED ring light are designed for detailed phone PCB inspection and soldering tasks.

Q: What type of lens mount does the camera use?
A: The camera uses a C‑mount interface and comes with a 1-150X zoom C‑mount lens compatible with this system.

Q: Does it support on‑screen measurement aids?
A: It provides multiple grid and cross lines with adjustable color, thickness, and position, plus a center crosshair to help align and inspect components.
