40A Plasma Cutter with Digital Display 240V

Precision Plasma Cutting for Metal Fabrication

This 40A Plasma Cutter is designed for accurate, efficient cutting of electrically conductive metals, including mild steel, stainless steel, aluminium, copper and brass. Powered by a 240V single-phase supply and built with IGBT inverter technology, it delivers stable output and consistent performance in workshop, site and home-garage environments. A robust carry handle and compact footprint (380 x 300 x 275 mm) make it easy to move between work areas.

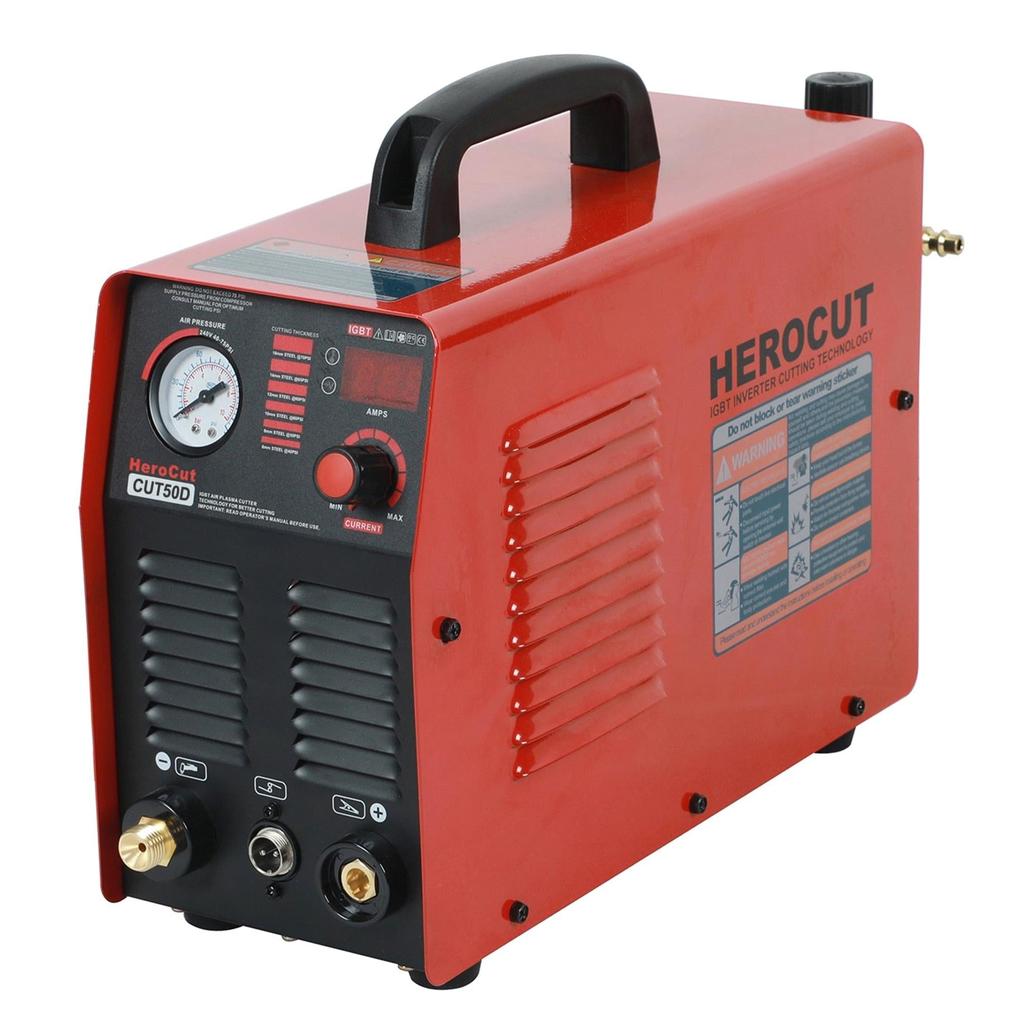

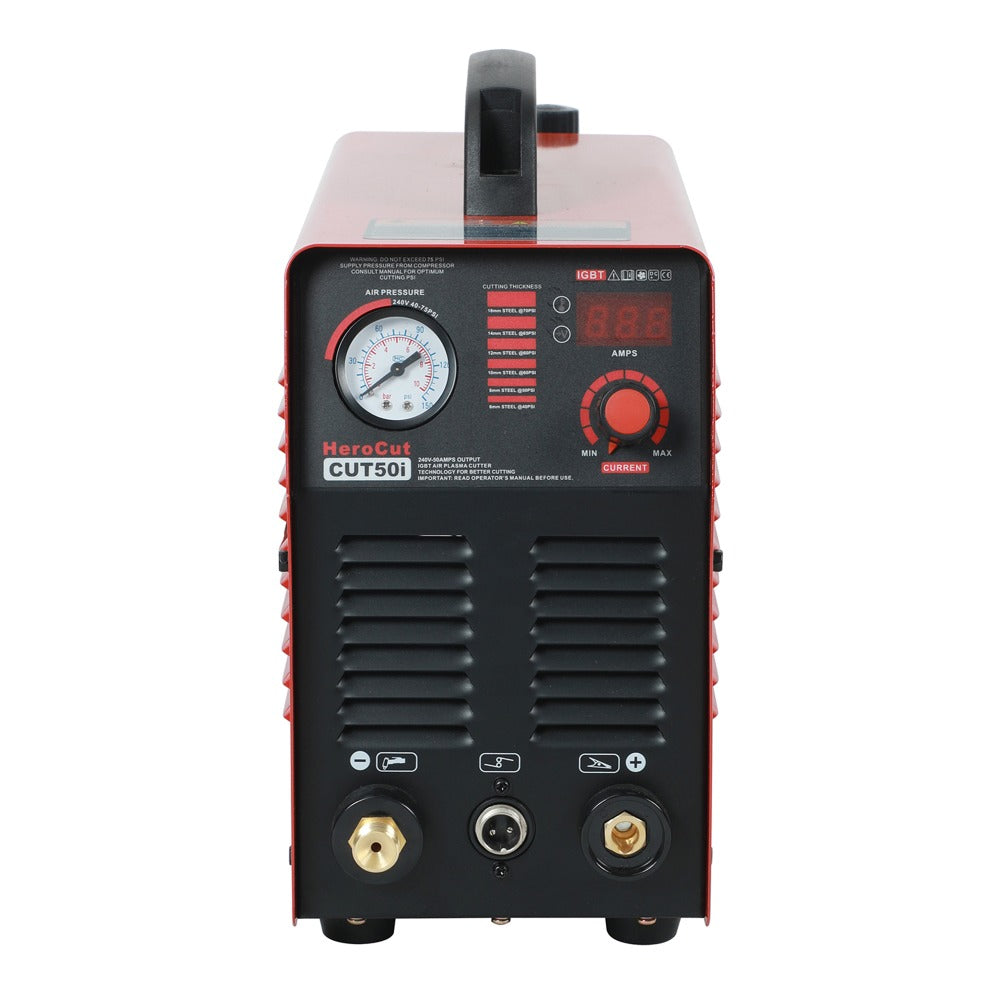

The front control panel features a clear digital display for precise current adjustment from 20-50A, allowing you to match output to material thickness and cutting speed. An integrated air pressure gauge lets you monitor working pressure at a glance, helping maintain clean, controlled cuts. At 70 PSI, the cutter provides a clean cut up to 14 mm and a severance cut up to 16 mm, supported by a 60% duty cycle at 50A and 100% duty cycle at 40A for sustained use.

Why It's a Smart Choice

• Accurate, controllable cutting - Digital amperage display and 20-50A range enable fine tuning for thin sheet metal through to thicker plate.
• Efficient workflow - High duty cycle (60% at 50A, 100% at 40A) supports longer cutting runs with reduced downtime.
• Ready-to-use kit - Supplied with PT-31 torch, earth clamp, air hose, consumables and user manual for straightforward setup.

FAQ

Q: What thickness can this plasma cutter handle?

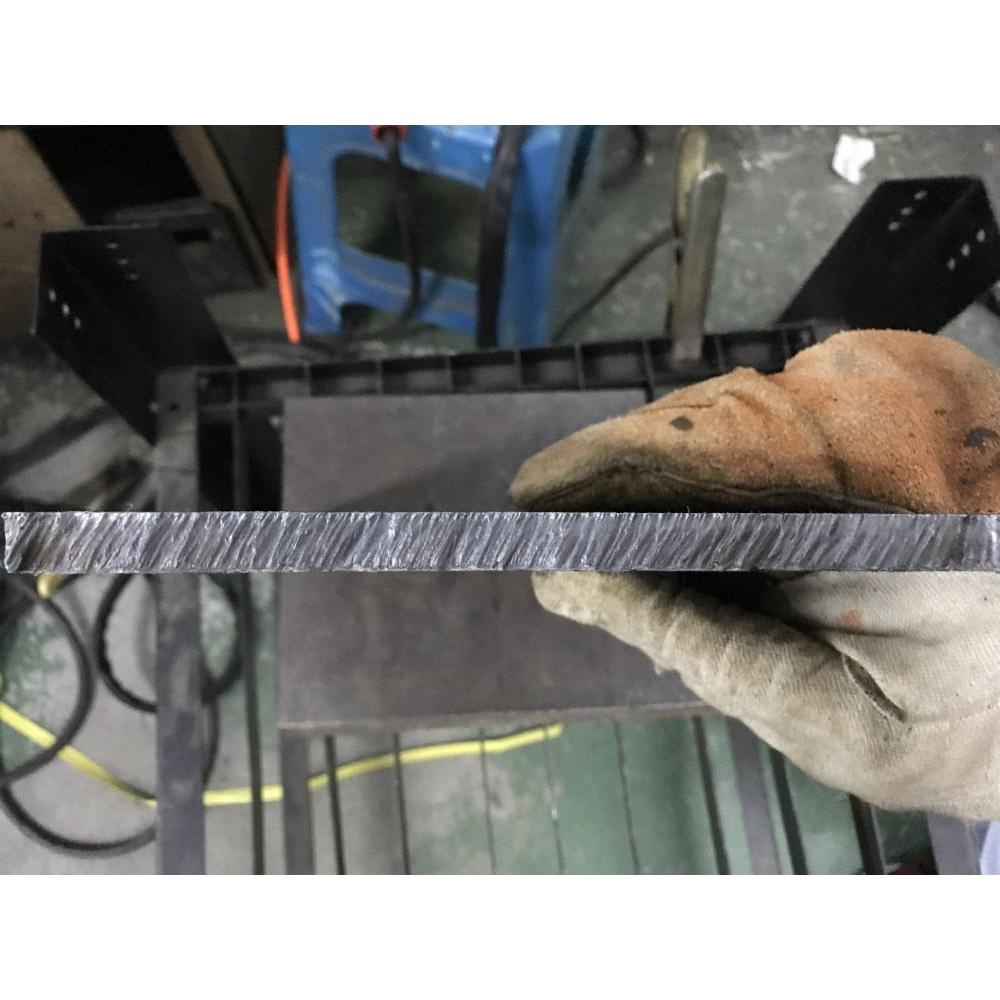

A: At 70 PSI, it achieves a clean cut up to 14 mm and a severance cut up to 16 mm on suitable metals.

Q: What power supply is required?
A: The machine operates on a 240V ±10% single-phase supply. A mains plug is not included and should be fitted to suit your local standard.

Q: Is an external air compressor needed?
A: Yes. An external compressed air source is required. The built-in pressure gauge helps you set and monitor the correct working pressure.

Q: What is included in the package?

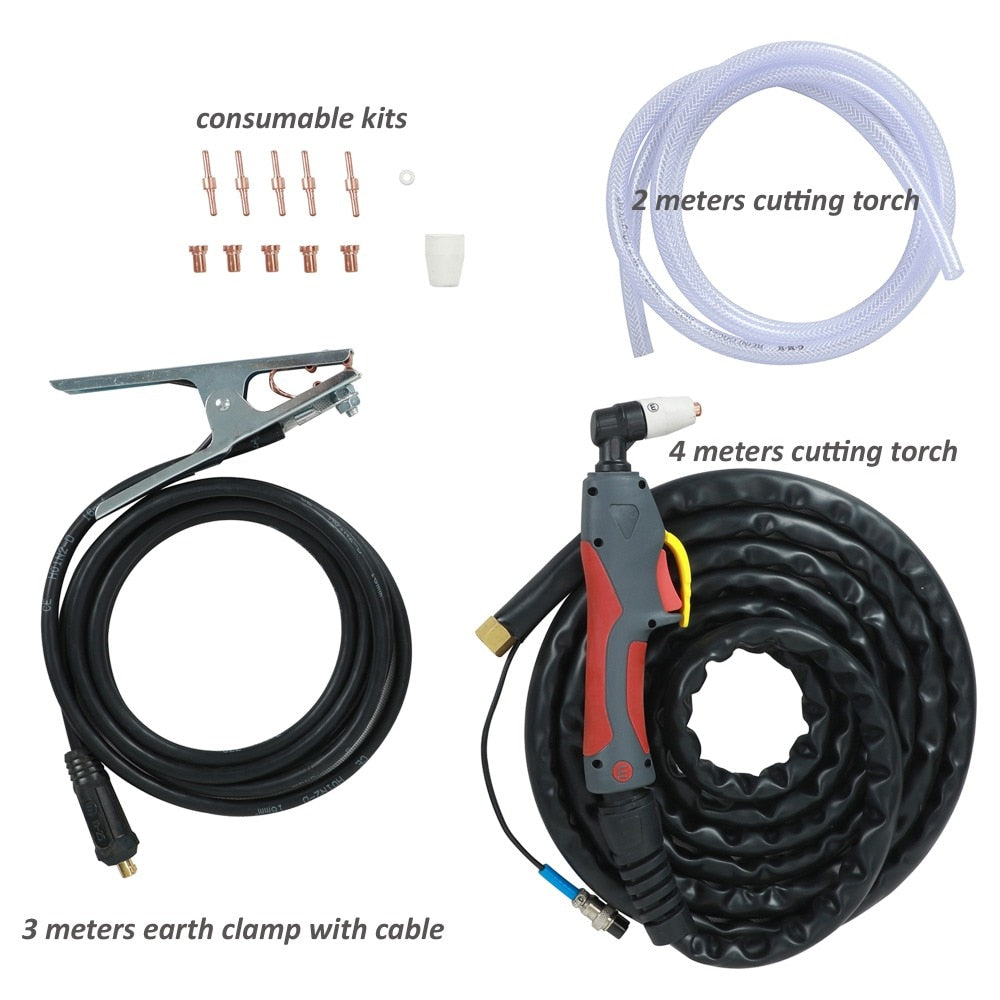

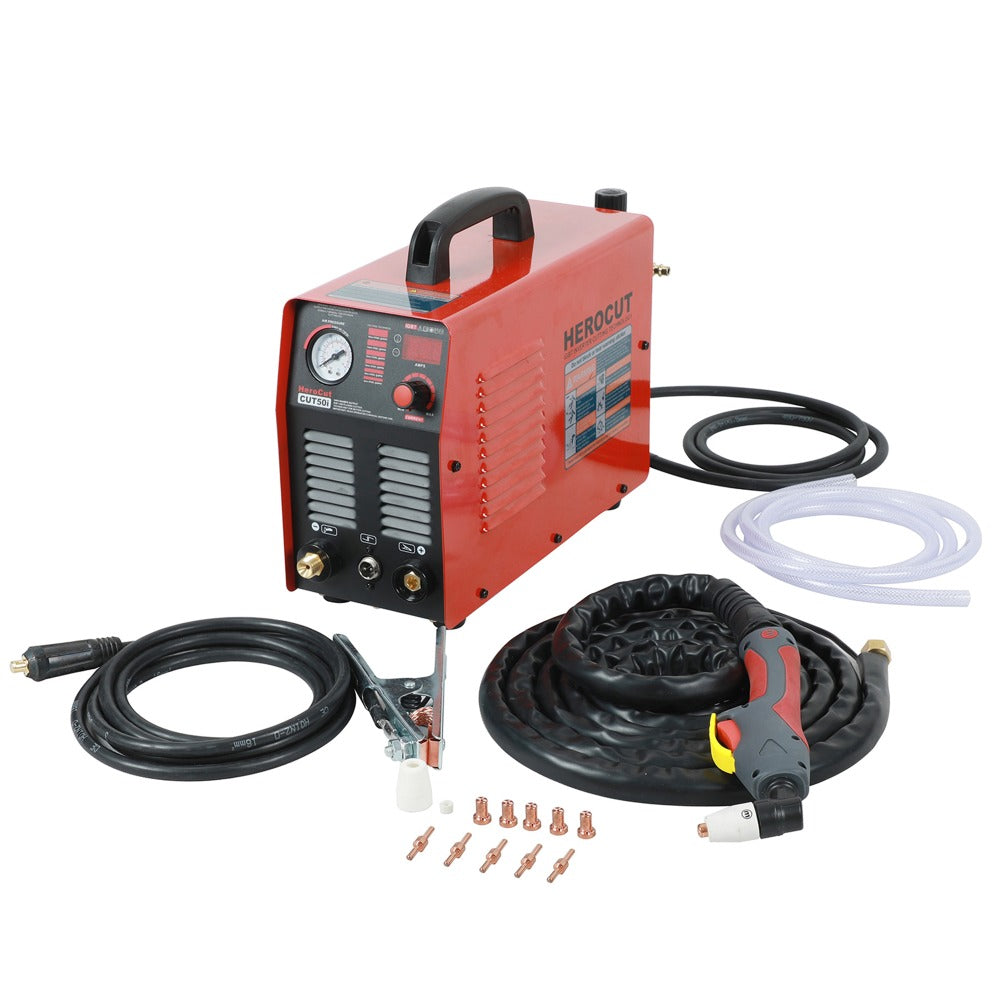

A: You receive the plasma cutter, PT-31 cutting torch with 4 m cable, earth clamp with 3 m cable, 2 m air hose, 2 hose clamps, 5 tips, 5 electrodes, 1 ring, 1 shield cup and a user manual.
