3T / 5T Triple Bag Pneumatic Air Jack with Wheels

Fast, Stable Lifting for Professional Vehicle Work

This triple bag pneumatic air jack is engineered for reliable lifting of passenger cars, SUVs and light commercial vehicles. Available in 3 ton and 5 ton capacities, it uses compressed air to raise vehicles quickly and smoothly, reducing manual effort in busy workshops and mobile repair operations. The triple air bag design offers a broad, stable lifting platform, while the integrated wheels and folding handle support easy positioning and storage.

The 3T model measures approximately 13.4 x 9.8 x 17.7 in (34 x 25 x 45 cm) and weighs 35.7 lb (16.2 kg). The 5T model measures 15.7 x 9.8 x 18.5 in (40 x 25 x 47 cm) and weighs 48.3 lb (21.9 kg). Both versions feature a 30.7 in (780 mm) handle for comfortable operation, and work within a pressure range of 0.8-1.0 MPa, suitable for most standard workshop air systems. Designed to perform in demanding environments, they operate in temperatures from -76°F to 122°F (-60°C to 50°C).

Why It's a Smart Choice

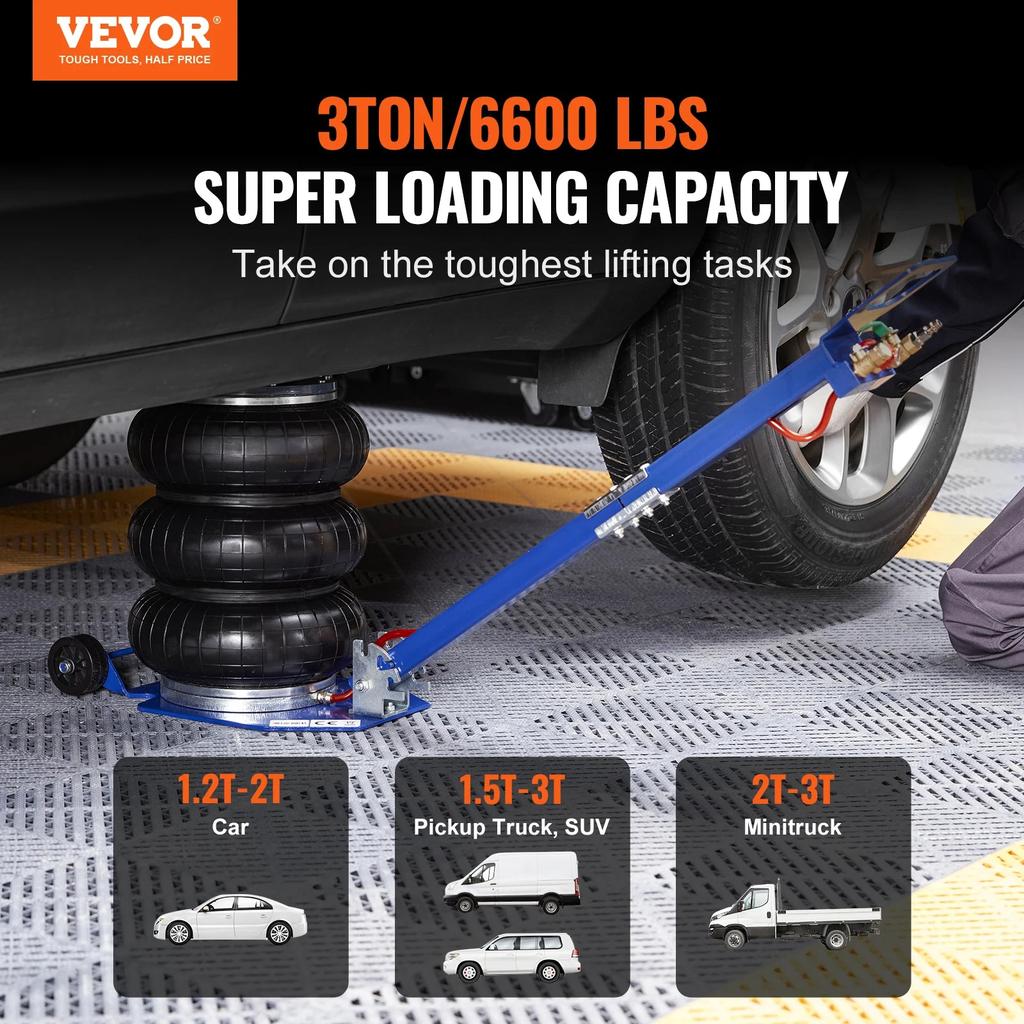

• High lifting capacity - Choose between 3T and 5T options to match passenger vehicles, SUVs and light-duty commercial applications.

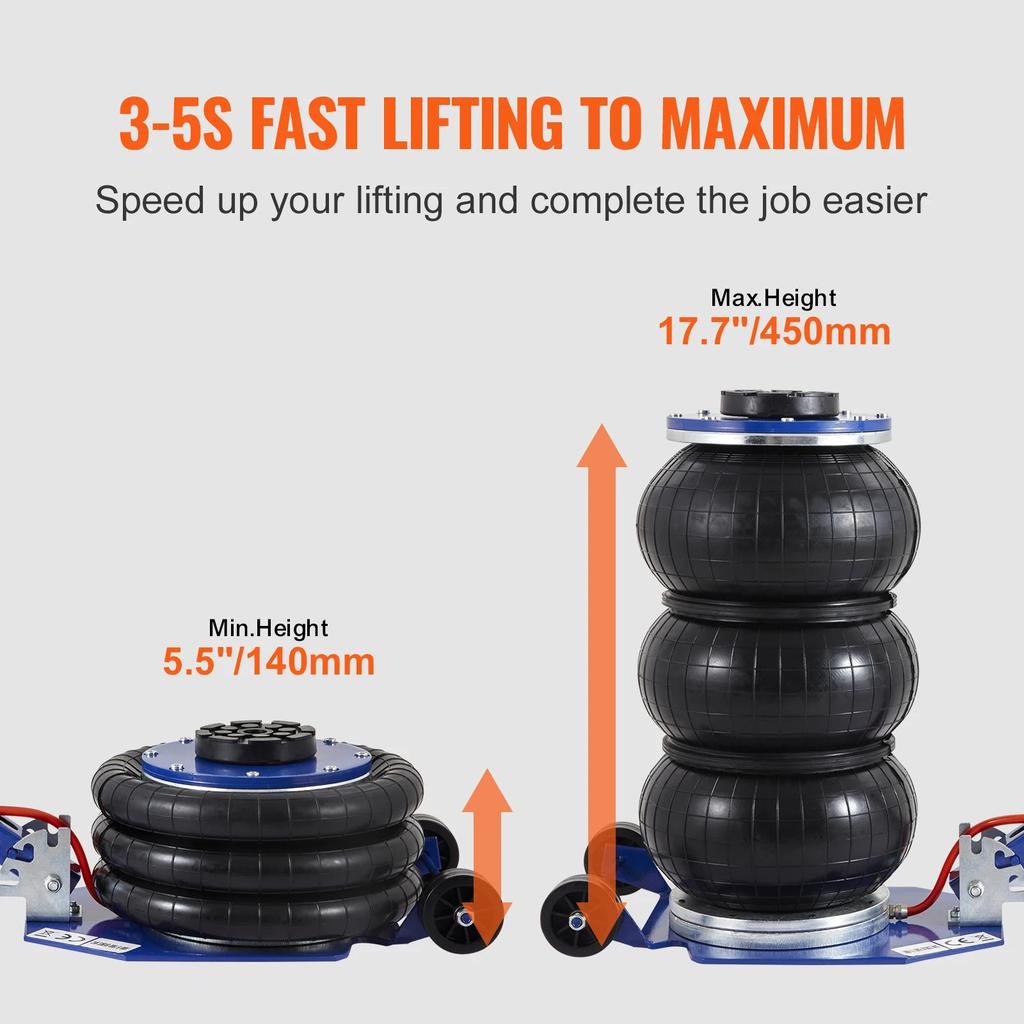

• Quick air-powered lift - Compressed air operation raises vehicles rapidly, improving workflow compared to traditional mechanical jacks.

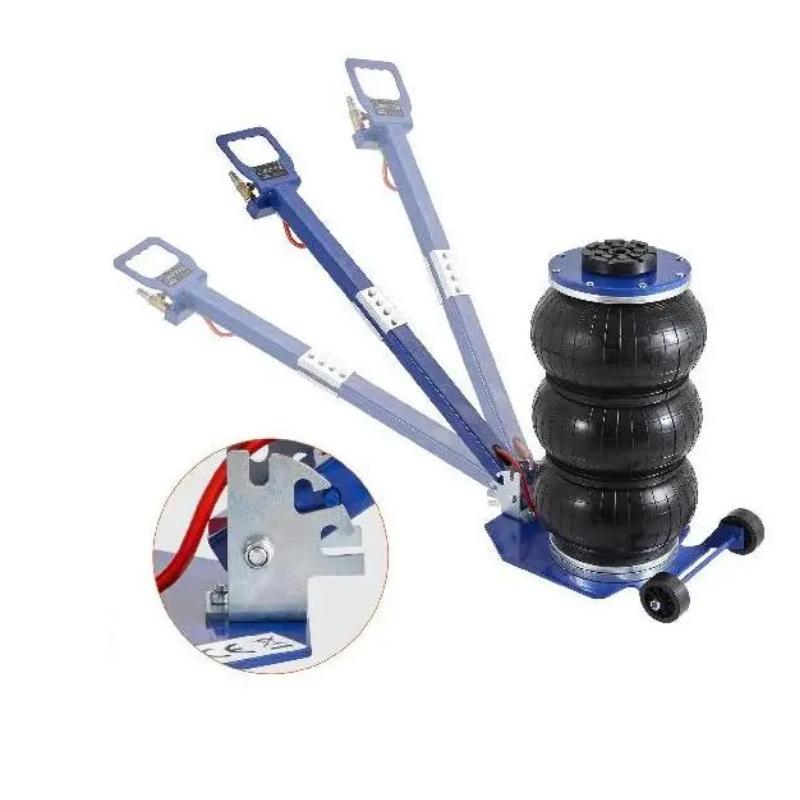

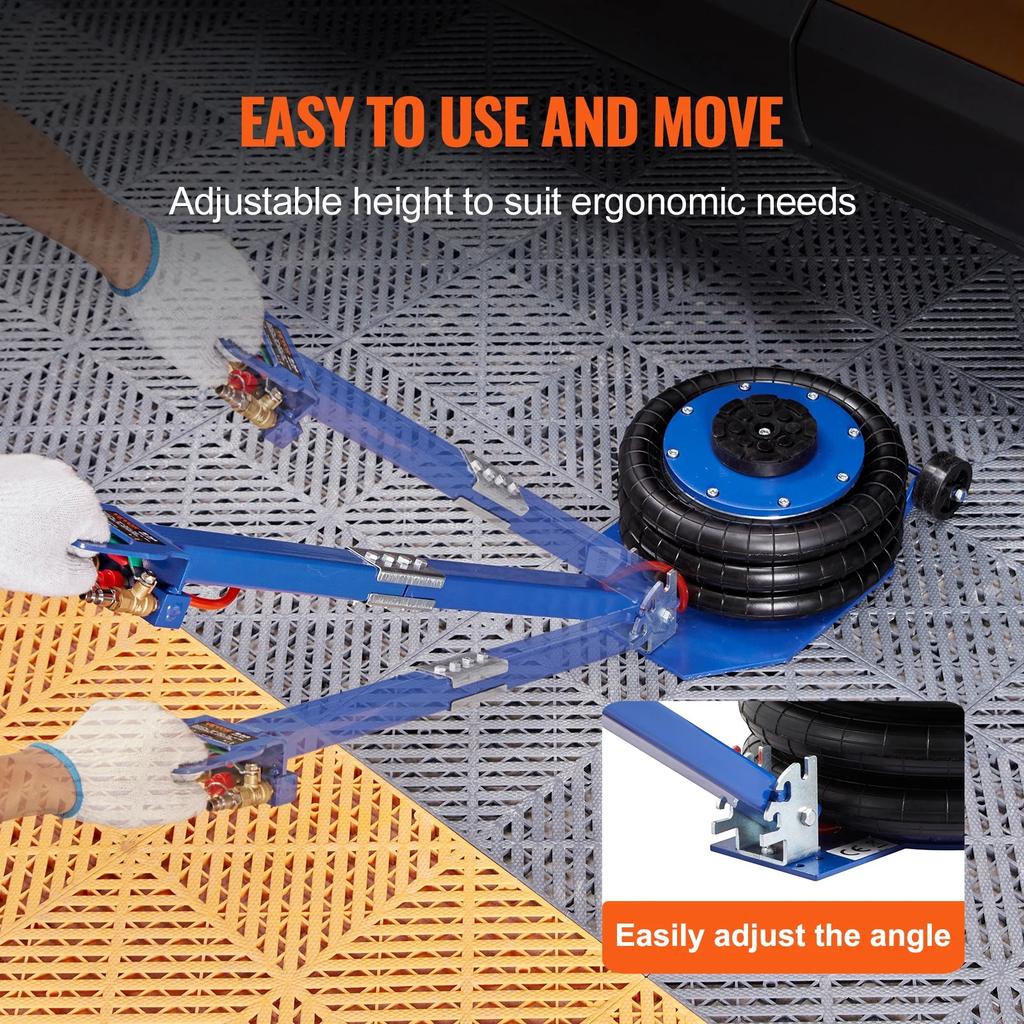

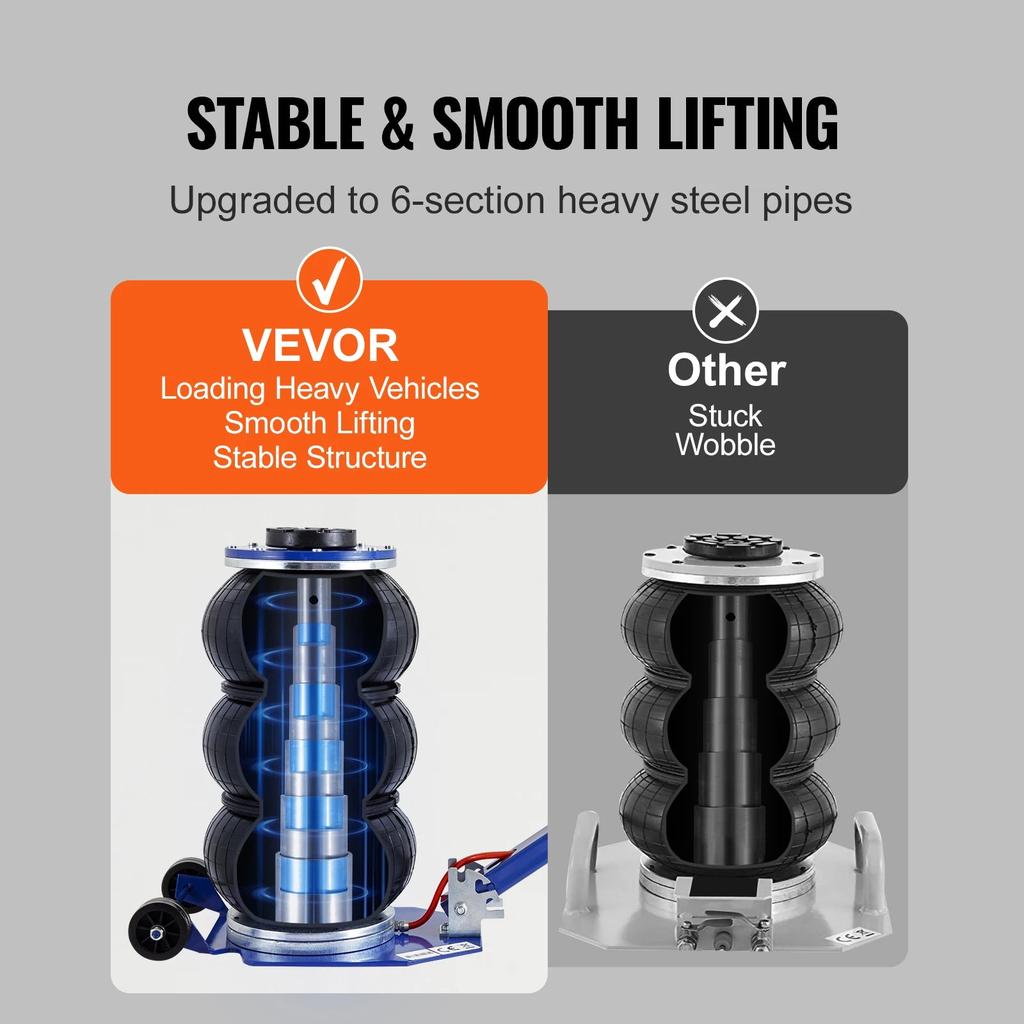

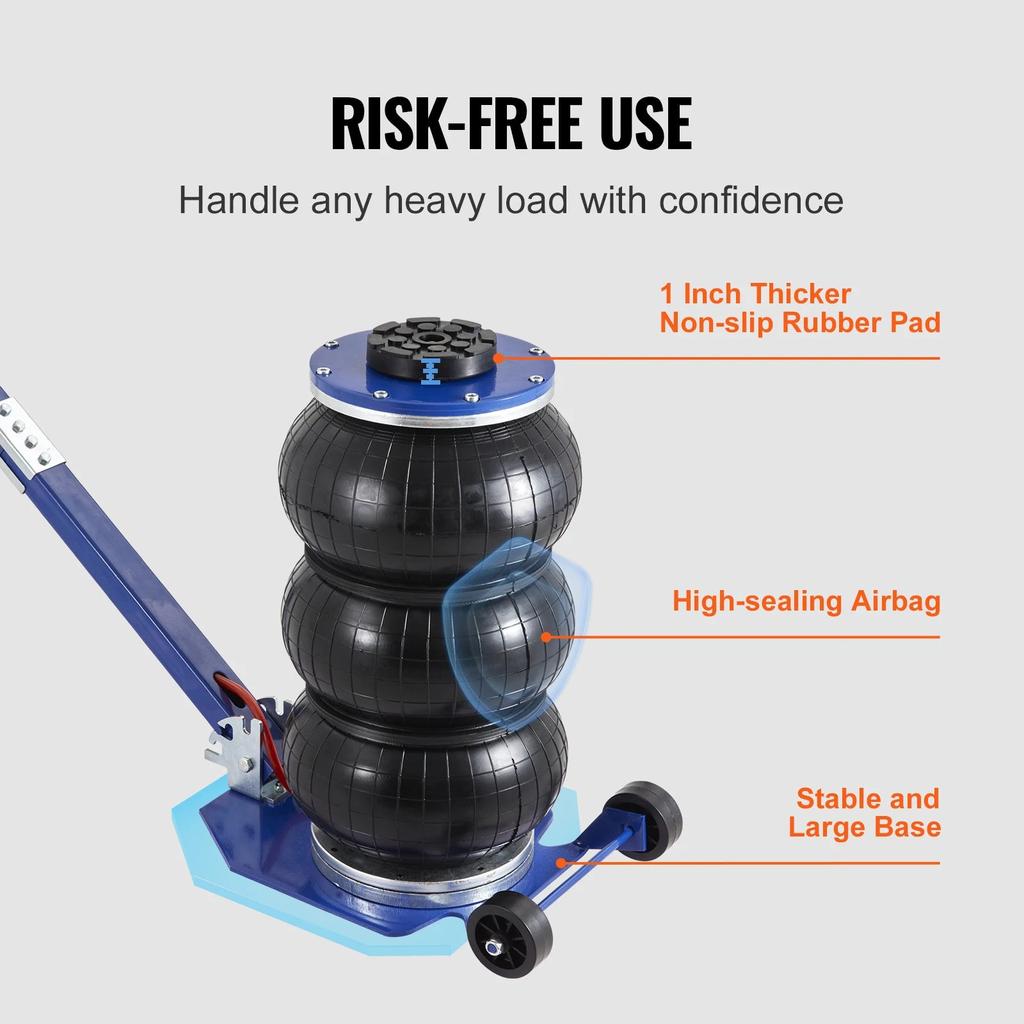

• Stable, mobile design - Triple bag construction, two transport wheels and a folding handle provide stable lifting, easy maneuvering and compact storage.

FAQ

Q: What air supply do I need to operate this jack?
A: The jack requires a working pressure of 0.8-1.0 MPa. It can be powered by a suitable workshop air line or a compatible portable air compressor.

Q: Is this jack suitable for professional workshop use?
A: Yes. Its lifting capacity, operating pressure range and durable construction make it well suited to garages, tire shops and mobile service vehicles.

Q: Can it be used on uneven ground?
A: For safety and stability, use the jack on a firm, level surface and always follow standard vehicle lifting and support procedures.

Q: What is included in the package?
A: Each package includes 1 pneumatic triple bag jack in the selected capacity (3T or 5T).
