3" Cross Slide Vise Compound Table for Drill Press

Accurate Workholding for Milling and Drilling Tasks

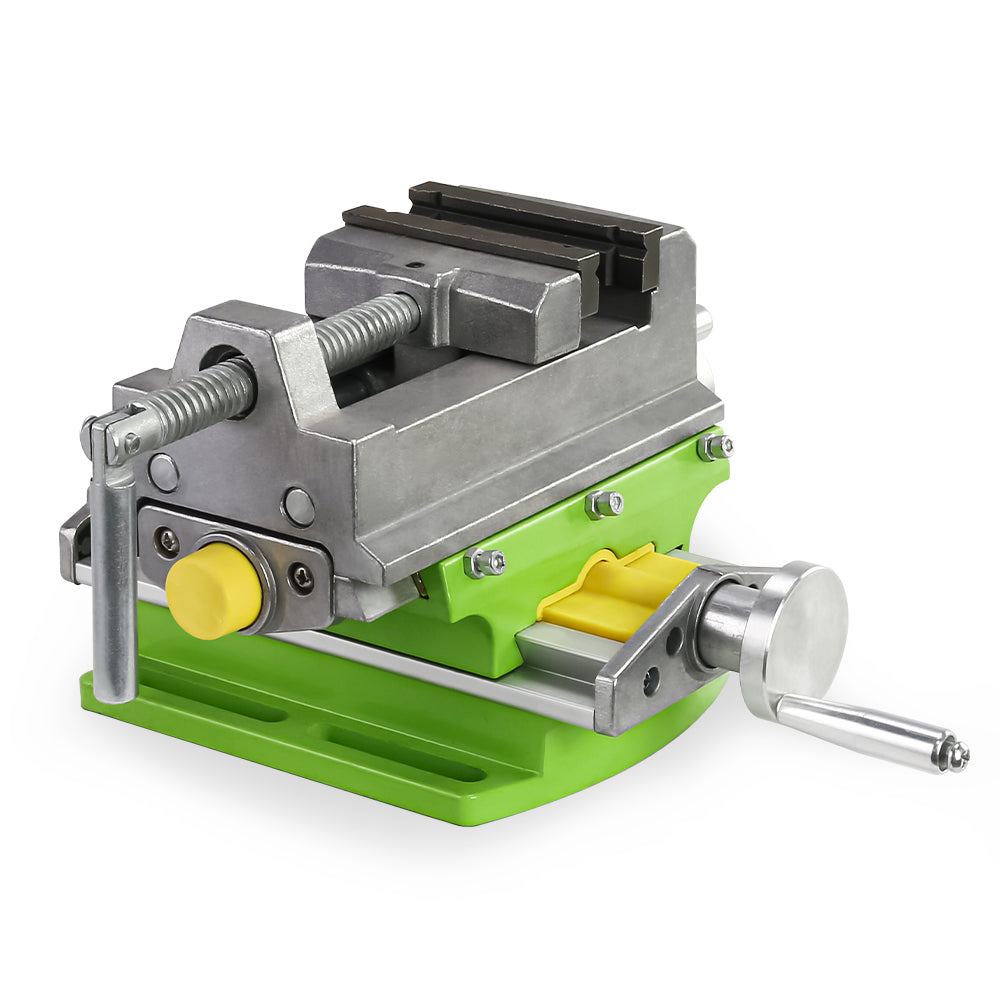

This 3" Cross Slide Vise with compound table (model HT2878) is designed to deliver controlled, repeatable positioning for light milling, drilling, and layout work. Built from rigid aluminum alloy, it offers a solid workholding solution while keeping overall weight manageable for smaller benches and compact drill press setups.

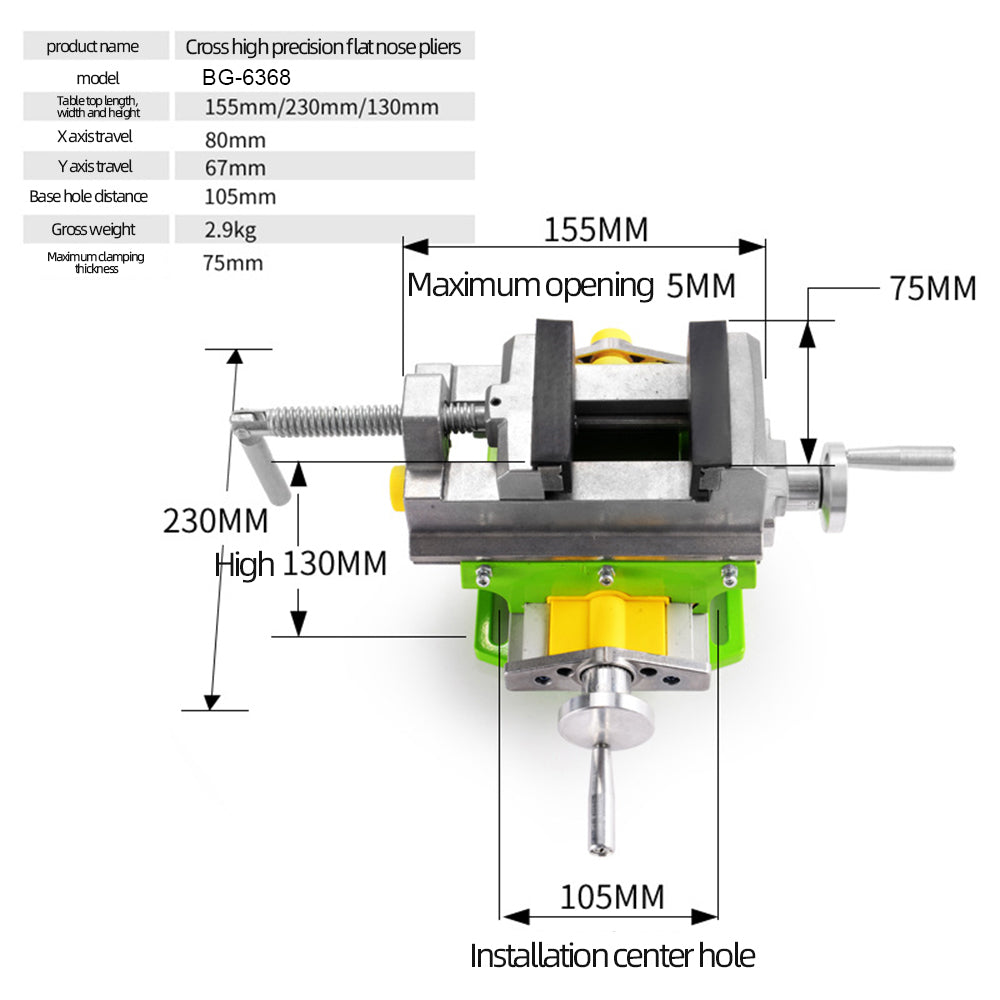

The vise features 3" (75 mm) jaws with a smooth, parallel clamping surface to hold small to medium workpieces securely. The cross slide mechanism provides independent movement on both the X and Y axes, with clearly marked graduated scales for precise incremental adjustments. With an approximate X-travel of 80 mm and Y-travel of 67 mm, it offers enough range for typical slotting, boring, and hole pattern operations on small parts.

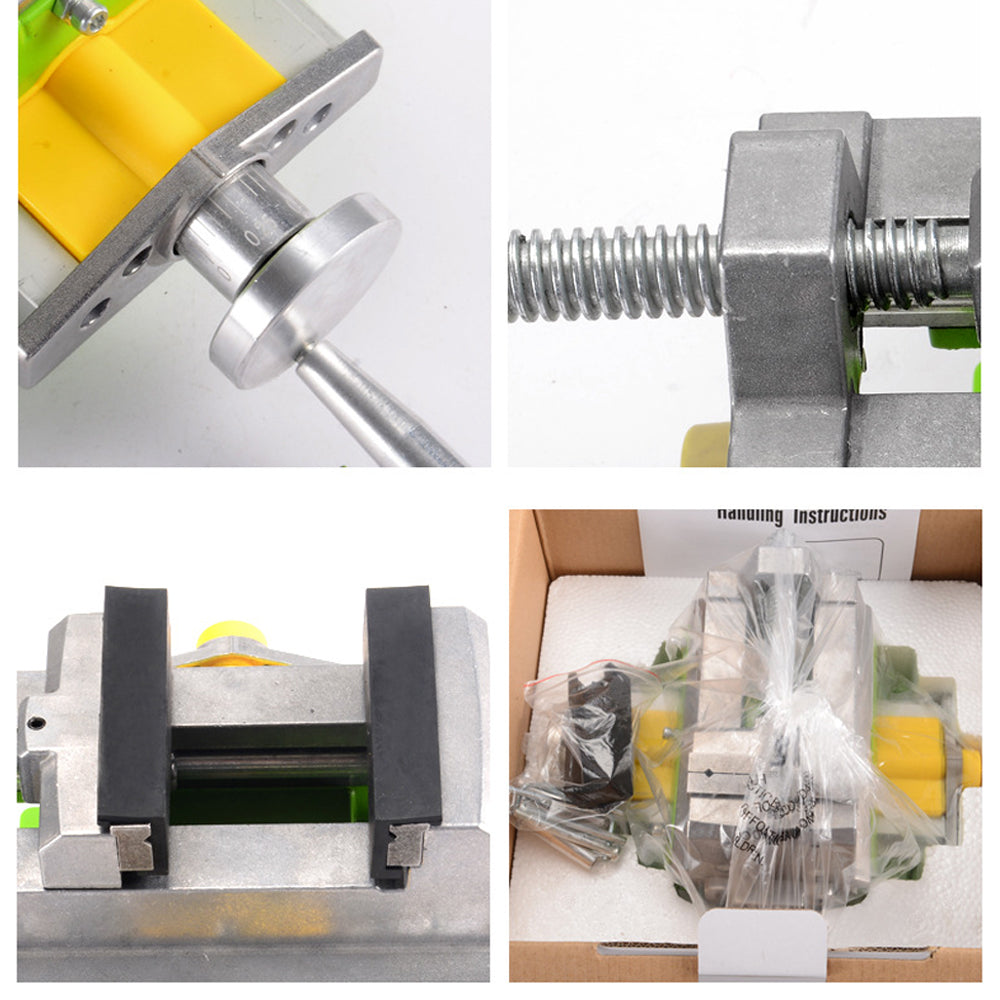

Hand cranks with readable graduations (1.5 mm per revolution) allow controlled, predictable feed so you can position the work exactly where it's needed under the tool. The aluminum alloy body resists corrosion and is well suited for use on drill presses and small milling setups in home workshops, maintenance departments, and light fabrication environments.

Why It's a Smart Choice

• Precise Two-Axis Positioning - Independent X and Y travel with graduated scales supports accurate hole patterns, slots, and step operations.
• Stable Clamping for Small Parts - 3" jaw width and secure vise action reduce workpiece movement and help improve machining accuracy.
• Compact, Bench-Friendly Design - Lightweight aluminum alloy body fits smaller drill presses and workbenches without sacrificing rigidity for light-duty work.

FAQ

Q: What machines is this cross slide vise suitable for?
A: It is intended for use on bench drill presses and small milling or machining setups where a compact, light-duty cross slide is required.

Q: What is the jaw capacity?
A: The vise has a 3" (75 mm) jaw width and is suitable for holding small to medium workpieces within that range.

Q: Can this be used for heavy milling operations?
A: No. It is best suited for light milling, drilling, and positioning tasks. For aggressive or high-load milling, a heavier cast iron vise is recommended.

Q: Does the table provide measurable travel?
A: Yes. It offers approximately 80 mm of X-travel and 67 mm of Y-travel, with handwheel graduations of 1.5 mm per revolution for controlled adjustments.

Q: Is mounting hardware included?
A: Mounting methods may vary by drill press or machine. Check the product contents and your machine's table slot pattern to select appropriate fasteners or clamps.
