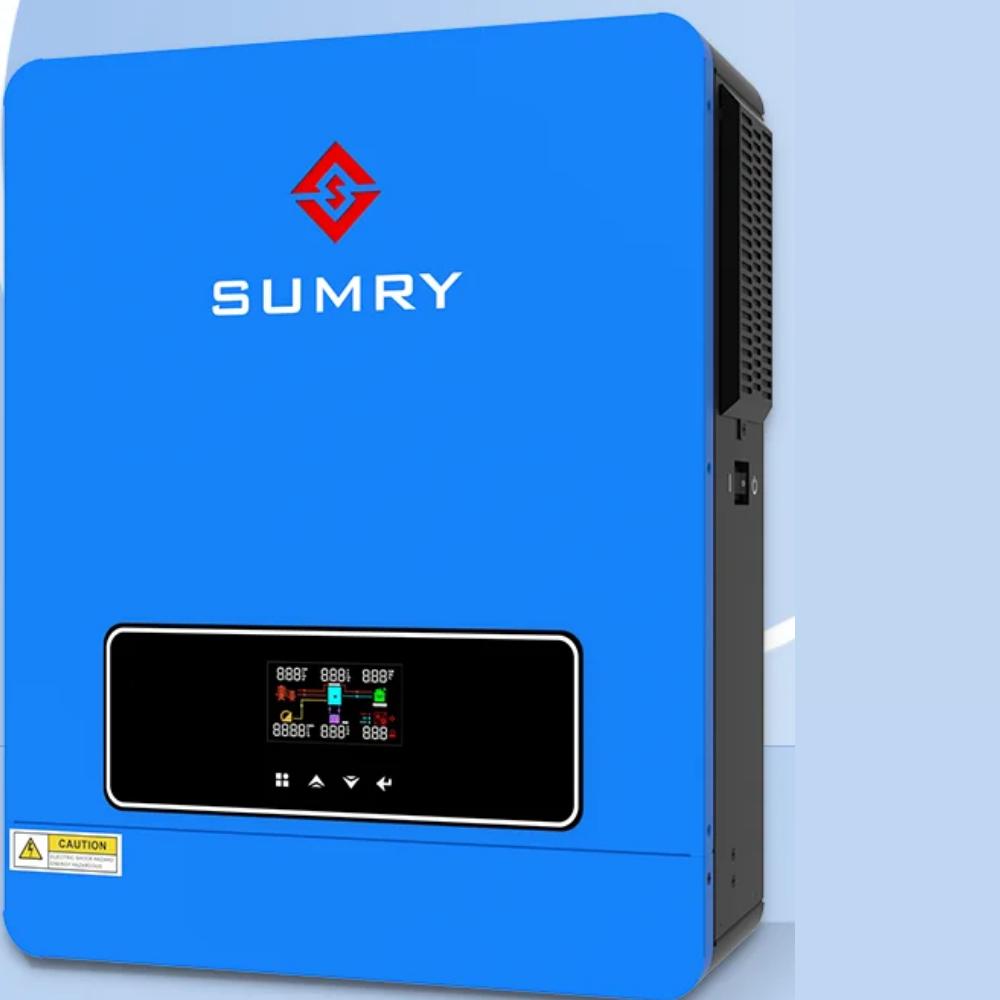

3.6kW 24V Hybrid Solar Inverter 120V Dual Output MPPT

3.6kW Hybrid Solar Inverter for Stable Home Power

Harness solar power, grid power, or both with this 3.6kW hybrid solar inverter, designed for reliable 110/120V single‑phase output and 24V battery systems. With an integrated 120A MPPT solar charge controller and pure sine wave output, it supports sensitive household and office loads while giving you flexible control over how your energy is produced, stored, and used.

The inverter integrates three core functions in one unit: inverter, solar charger, and battery charger. It supports a wide PV input range of 60-500V DC and up to 4200W of solar charging power, allowing you to build efficient string configurations and reduce cable loss. The 120V AC output (50/60Hz selectable) is suitable for many regional standards and can run appliances such as refrigerators, lighting, TVs, fans, computers, and small air conditioners. Dual output design allows you to manage different load priorities from the same unit.

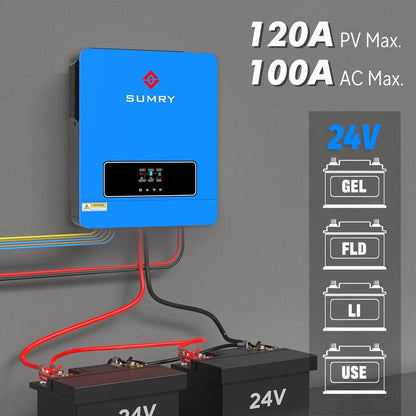

This model can operate with or without batteries, making it suitable for backup, self‑consumption, or grid‑assisted systems. Four charging modes (Only Solar, Mains First, Solar First, Mains & Solar) and three output modes (Solar First, Utility First, SBU First) let you customize how the inverter uses solar, battery, and grid power. The smart battery charger supports common chemistries including lithium, LiFePO4, gel, AGM, and lead‑acid, with optimized charging stages to help extend battery life.

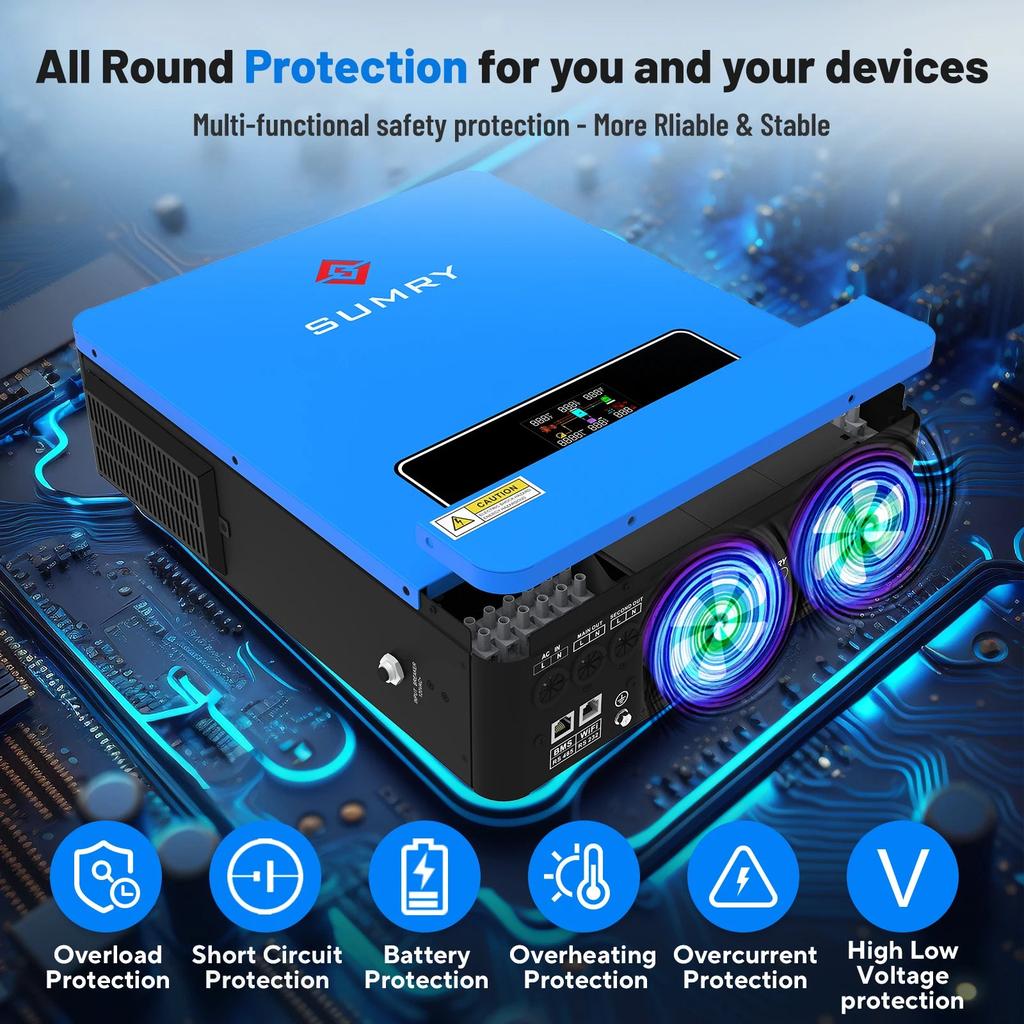

For monitoring and control, the inverter includes RS232 and RS485 communication ports. RS232 can be used with an optional Wi‑Fi module for remote monitoring via smartphone, while RS485 supports lithium battery BMS communication using compatible protocols such as PACE or PYLONTECH. Built‑in protections include overload, over‑temperature, and short‑circuit protection, automatic restart, cold start capability, and an anti‑dust kit for harsher environments. An LCD interface provides easy access to key parameters such as charging current, input priority, and voltage settings.

Why It's a Smart Choice

• Pure sine wave output helps protect sensitive electronics and ensures smooth, stable power for home and office loads.
• Wide PV input range and 120A MPPT controller support efficient solar harvesting and flexible array design.
• Multiple working modes and battery compatibility allow you to tailor the system to backup, off‑grid, or self‑consumption applications.

FAQ

Q: Can this inverter work without a battery?
A: Yes. The inverter can operate in a battery‑less configuration, using solar and/or grid power depending on your selected mode and available input.

Q: What battery types are supported?
A: It supports lithium, LiFePO4, gel, AGM, and traditional lead‑acid batteries, with configurable charging parameters for different chemistries.

Q: Is it suitable for both 50Hz and 60Hz grids?
A: Yes. The output frequency can be set to 50Hz or 60Hz, making it suitable for regions with different grid standards.

Q: Can I monitor the inverter remotely?
A: Yes. By adding the optional Wi‑Fi module to the RS232 port, you can monitor and adjust basic settings from your smartphone as long as the inverter is within range of your router.

Q: What kind of loads can it power?
A: The inverter is designed for typical household and office loads, including refrigerators, lighting, televisions, fans, computers, and similar appliances within its power rating.
