2D Barcode Scanner USB 2.4G Wireless & Bluetooth

Fast, Flexible Scanning for Modern Workflows

The 2D Barcode Reader USB Wired/Wireless 2.4G WiFi Bluetooth Scanner is designed for teams that need accurate, high-speed scanning across multiple devices and environments. With support for USB, 2.4G wireless and Bluetooth connections, it fits easily into POS, warehouse, logistics, office and checkout setups without locking you into a single platform.

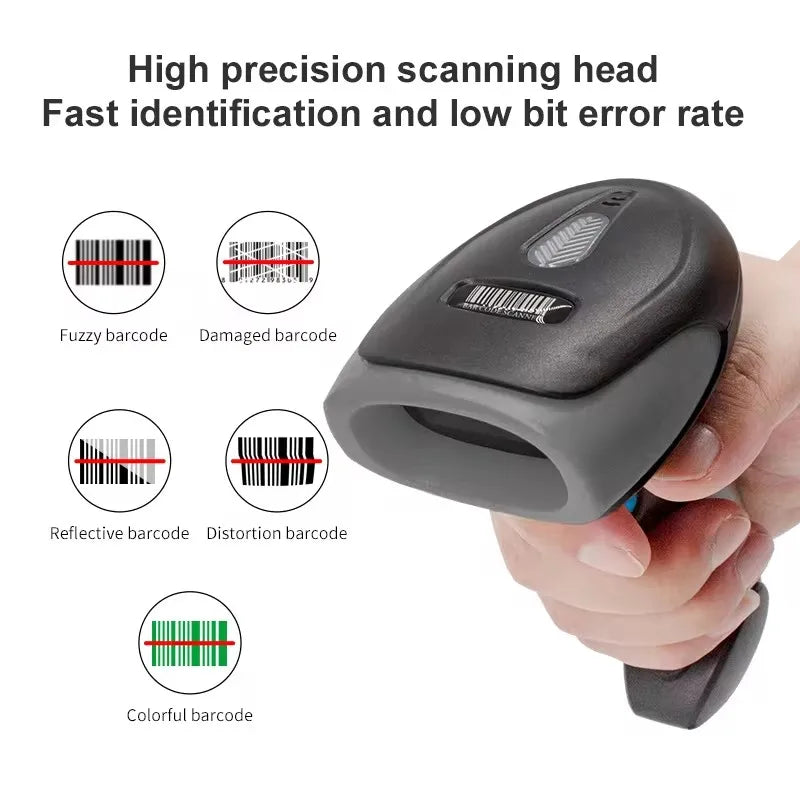

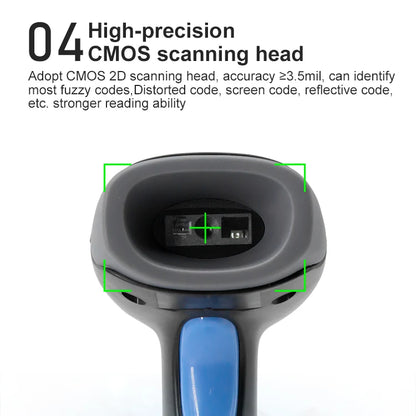

Powered by a CMOS image sensor (640×480) and white LED illumination, this handheld scanner delivers reliable decoding of both 1D and 2D barcodes, including EAN-13, UPC, Code128, Code39, QR Code, Data Matrix, PDF417, MaxiCode and Aztec. It supports mobile screen codes for payment and ticketing, and reads low-contrast codes down to 15% printing contrast. With a scan rate of 120 fps, key trigger, auto-sensing and continuous scanning modes, it keeps pace with busy counters and packing lines.

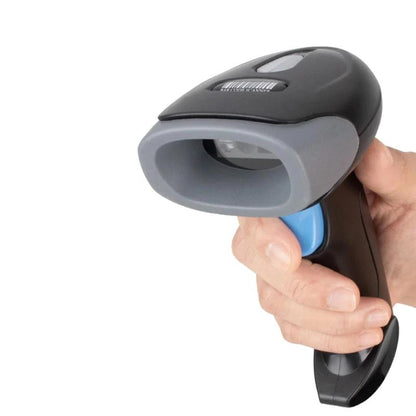

The U20 scanner is built with an ABS + PC housing and IP54-rated dust and water resistance, and is tested to withstand drops from 1.5 m. Its ergonomic, compact design (approx. 160 × 66 × 95 mm) and 1.6 m straight USB cable support comfortable all-day use. Flexible depth of field enables reliable reading at typical working distances: QR (15 mil) 30-210 mm, mobile QR payment codes 80-550 mm, Data Matrix (10 mil) 30-140 mm, EAN-13 (13 mil) 50-280 mm, Code 39 (8 mil) 30-190 mm, and Code 128 (15 mil) 80-320 mm. Visual and audible feedback via LED and buzzer confirm successful scans, and configuration is handled by simply scanning setup barcodes in sequence. Operating from DC 5 V ±10%, with working current around 350 mA, it performs reliably in 0-50°C working temperatures, 5-95% non‑condensing humidity and up to 5,000 Lux ambient fluorescent light.

Why It's a Smart Choice

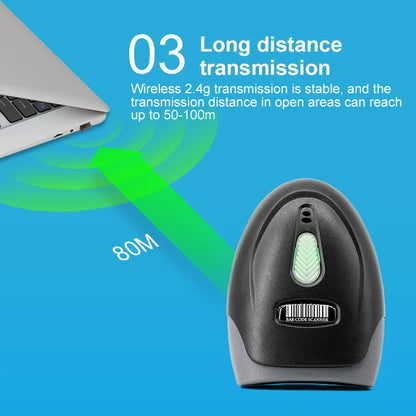

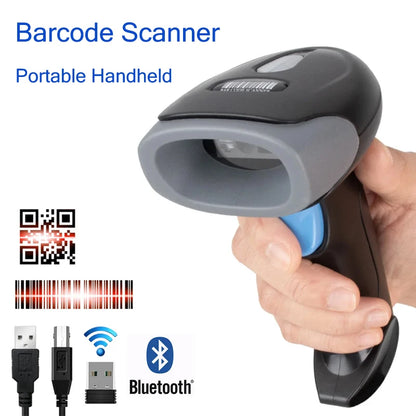

• Multi-interface connectivity (USB, 2.4G wireless, Bluetooth) for easy integration with POS systems, PCs, tablets and mobile devices.
• High-speed CMOS imaging and 120 fps decoding for quick, accurate reads on 1D and 2D codes, including mobile screen barcodes.
• Durable, ergonomic IP54-rated design that withstands 1.5 m drops, supporting intensive daily use in retail, warehouse and logistics environments.

FAQ

Q: Does this scanner read both 1D and 2D barcodes?
A: Yes. It supports common 1D codes (EAN, UPC, Code128, Code39 and more) as well as 2D codes such as QR Code, Data Matrix, PDF417, MaxiCode and Aztec, including codes displayed on mobile screens.

Q: How do I connect the scanner to my system?

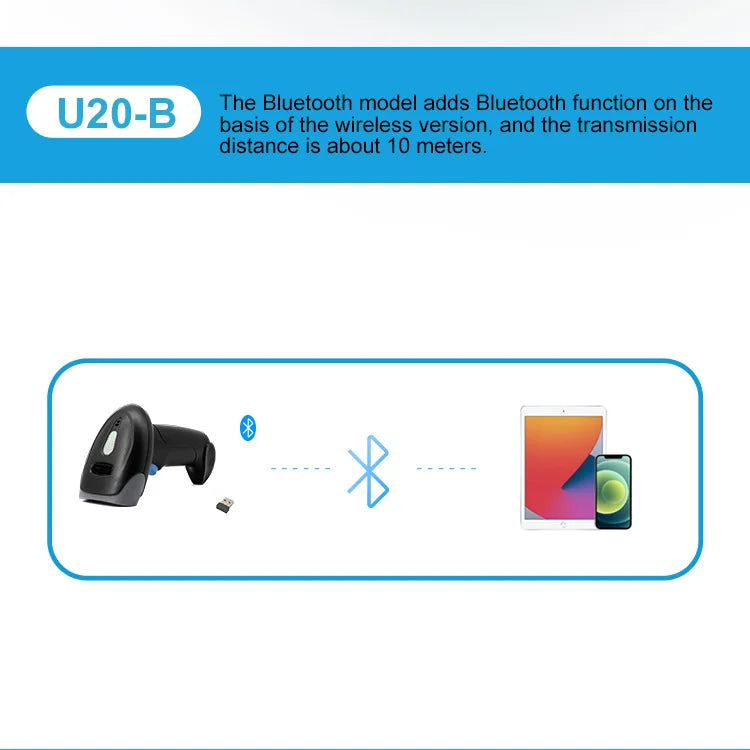

A: You can connect via USB cable, 2.4G wireless receiver or Bluetooth, depending on your setup. After connection, scan the provided setup barcodes in the manual to configure the desired mode.

Q: Is it suitable for intensive use in retail or warehouses?
A: Yes. The IP54 protection, 1.5 m drop resistance, fast 120 fps decoding and ergonomic housing make it well suited for checkout counters, stockrooms, packing stations and logistics operations.

Q: Can it scan barcodes from phone screens for payments?
A: Yes. It is designed to read mobile QR payment codes and other barcodes from smartphone screens within the specified depth of field range.
