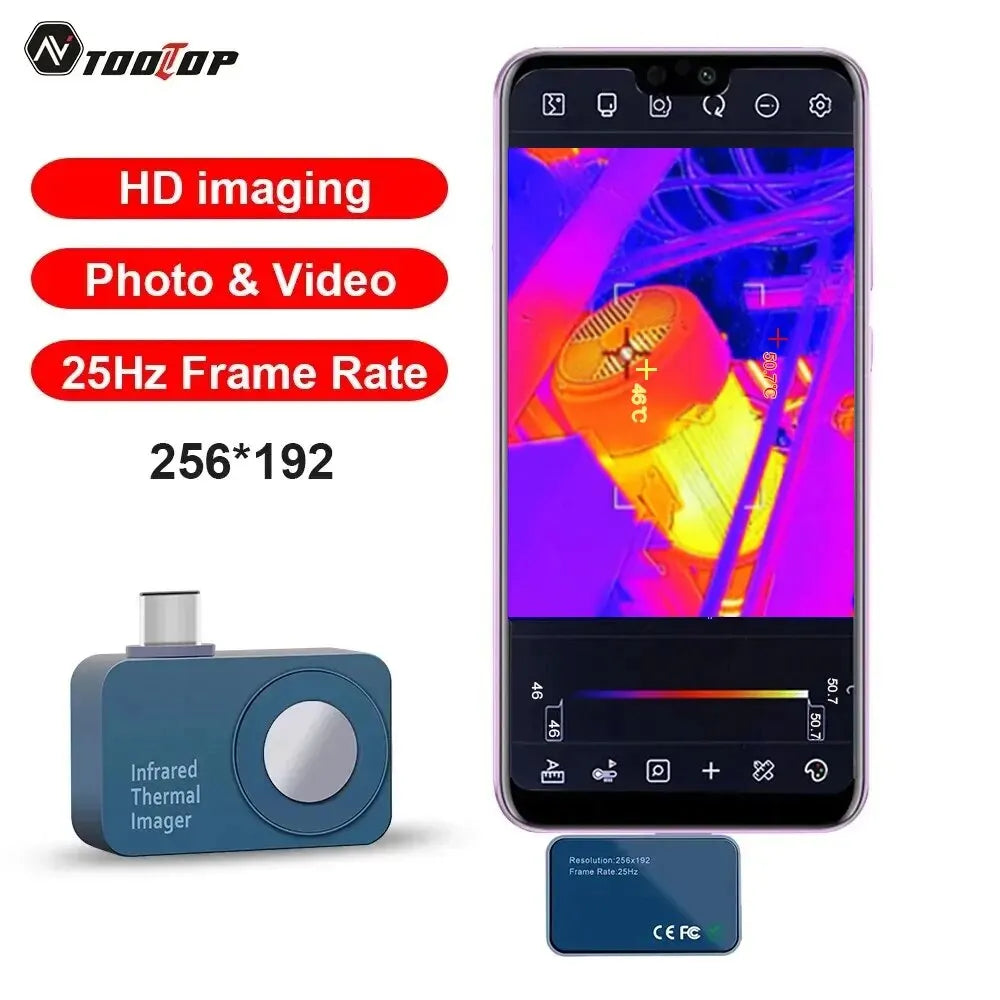

256x192 USB-C Android Thermal Imaging Camera 25Hz

High-Resolution Mobile Thermal Imaging for Fast Fault Detection

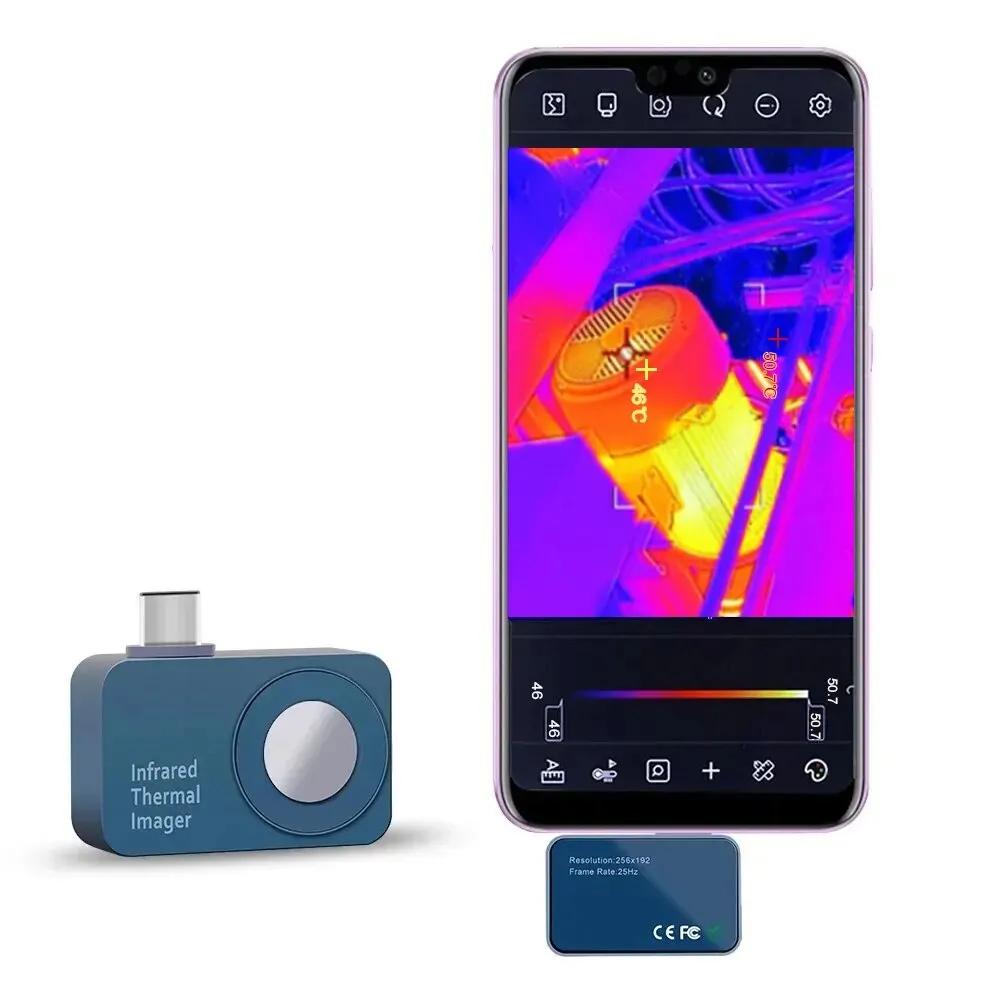

This 256 x 192 Android Type-C Thermal Imager transforms your compatible smartphone or tablet into a precise thermal inspection tool. With a 25 Hz frame rate, wide 56° x 42° field of view and a -15°C to 600°C measurement range, it delivers clear, real-time thermal images for professional diagnostics in the field or workshop.

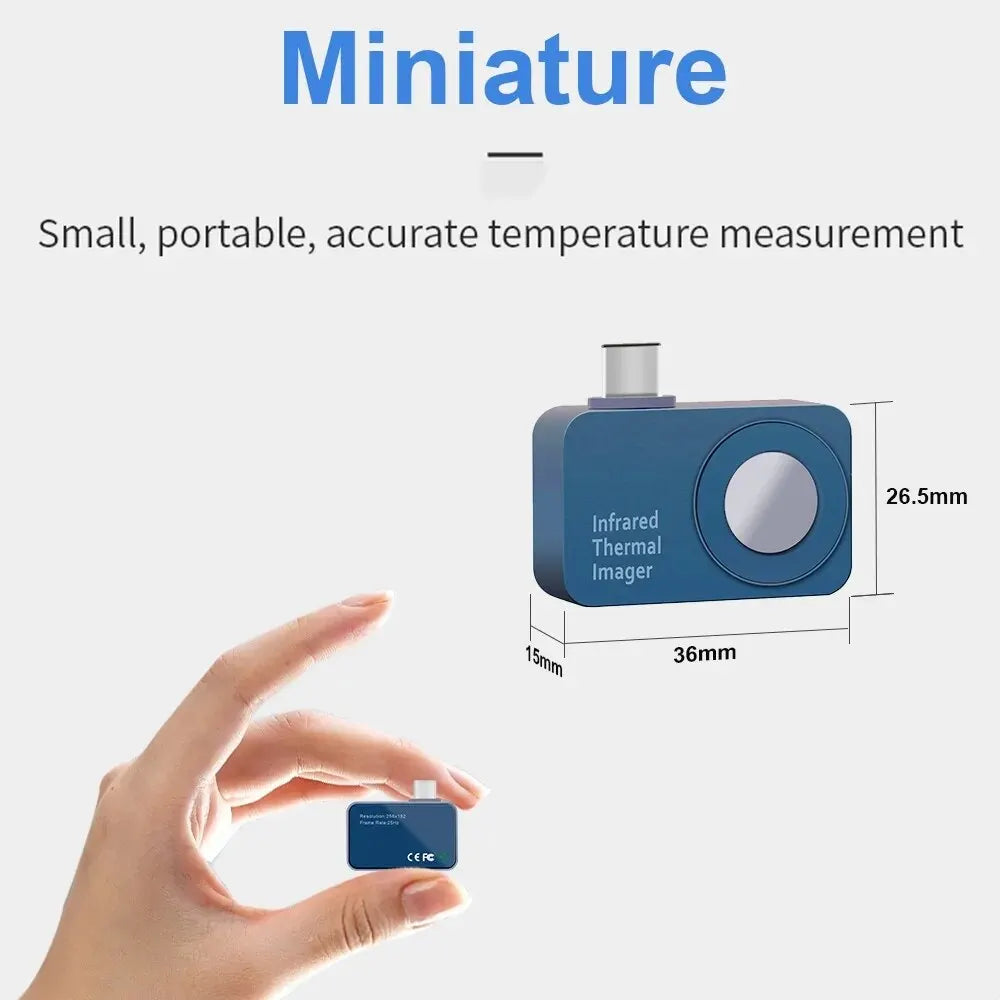

Connecting via USB-C, the compact 23 g camera is easy to carry and deploy on site. The detector sensitivity (NETD < 50 mK @ 25°C) enables the identification of subtle temperature differences, helping you pinpoint hotspots, cold spots, and anomalies early. The integrated 3.2 mm lens and 256 x 192 resolution provide a balanced combination of coverage and detail for solar panel inspection, electrical maintenance, HVAC checks and general equipment monitoring.

Why It's a Smart Choice

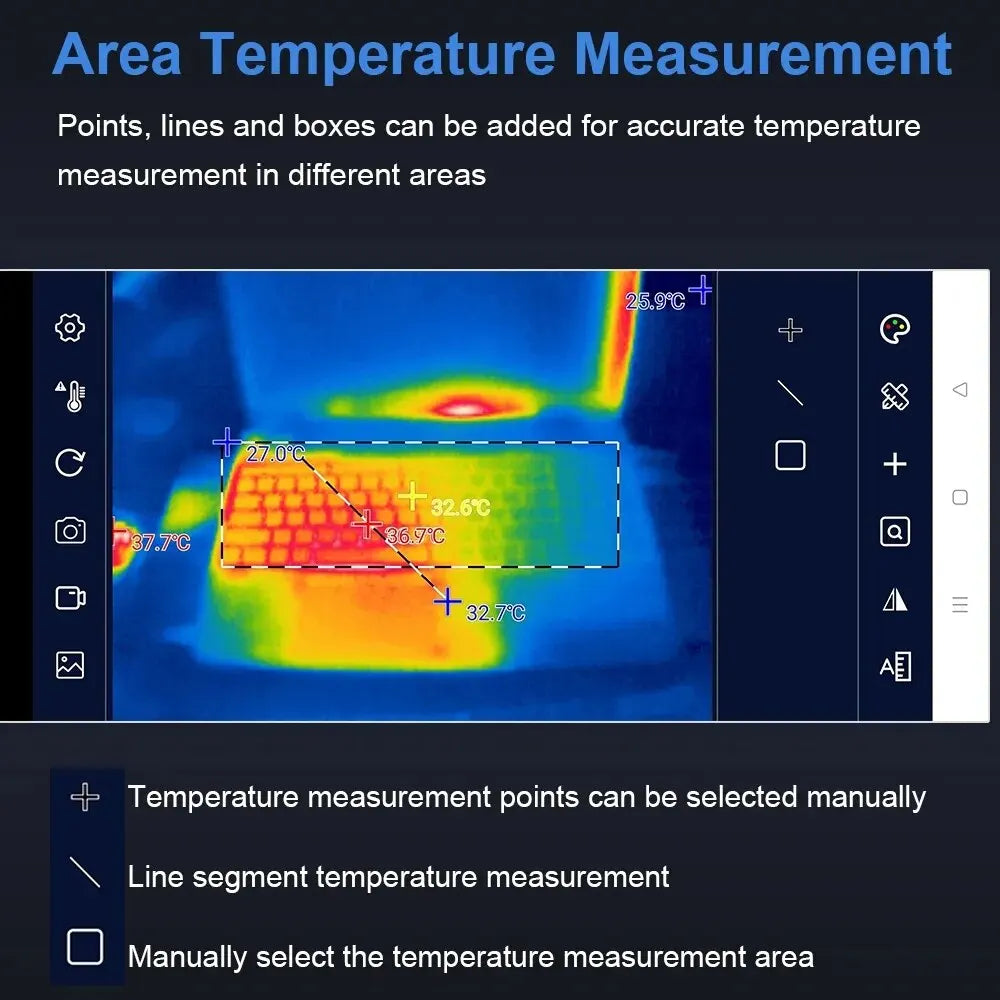

• Accurate temperature measurement - Measures from -15°C to 600°C with ±2°C or ±2% accuracy, supporting highest, lowest, center point and area temperature analysis.
• Reliable field performance - IP54-rated housing, -10°C to 75°C working temperature and robust design support demanding on-site environments.
• Efficient, real-time inspections - 25 Hz live imaging, automatic temperature tracking and multi-language interface (including English) streamline diagnostics and reporting.

FAQ

Q: Which devices is this thermal imager compatible with?
A: It is designed for Android smartphones and tablets with a USB-C port and support for OTG (On-The-Go). Please confirm OTG support on your device before use.

Q: What applications can it be used for besides solar panels?
A: It is suitable for checking electrical panels, cables, motors, HVAC systems, building insulation, plumbing, and general equipment temperature monitoring.

Q: Why does the image pause briefly during use?
A: A mechanical calibration plate automatically corrects sensor non-uniformity approximately every 10 seconds. This causes a 1-3 second pause and is a normal part of ensuring accurate measurements.

Q: Is it suitable for outdoor work?
A: Yes. With an IP54 rating and a wide operating temperature range, it is well-suited for typical outdoor inspection conditions when used with a protected mobile device.

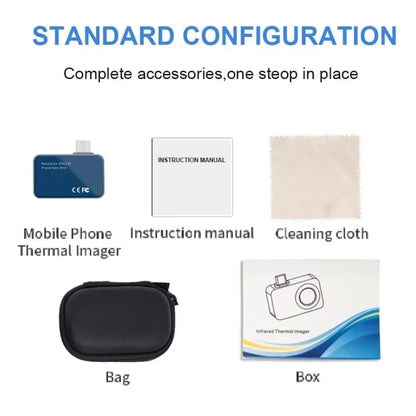

Q: What is included in the package?
A: The package contains 1 x Thermal Imager, 1 x English User Manual, 1 x Cleaning Cloth, 1 x Box, and 1 x Storage Bag.
