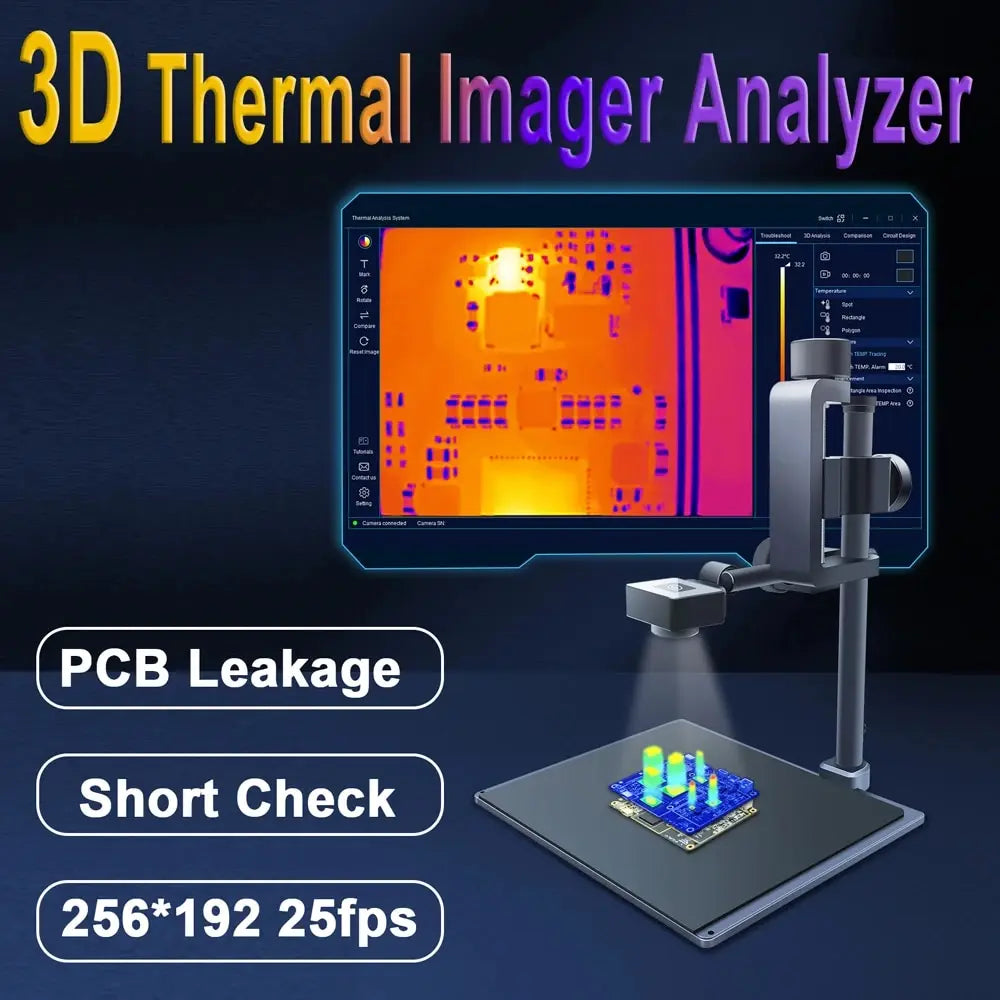

256x192 3D PCB Thermal Imaging Analyzer

High-Precision 3D Thermal Imaging for PCB Diagnostics

The 256x192 3D Thermal Imaging Analyzer is designed for accurate fault detection on printed circuit boards used in computers, smartphones and other electronic devices. With a 256 x 192 infrared resolution, 25 Hz frame rate and 56° x 42° field of view, it delivers clear thermal images and 3D thermal field visualization, helping you locate short circuits, leakage paths and abnormal components quickly and reliably.

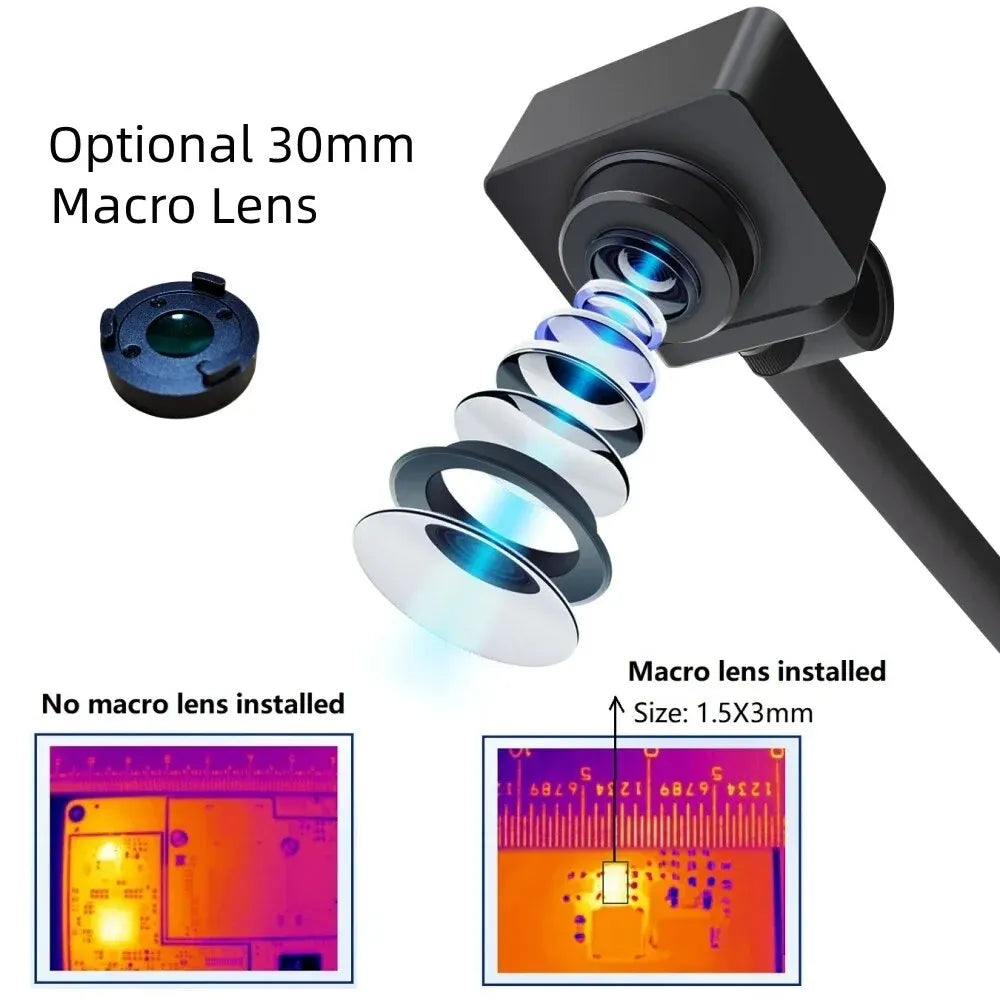

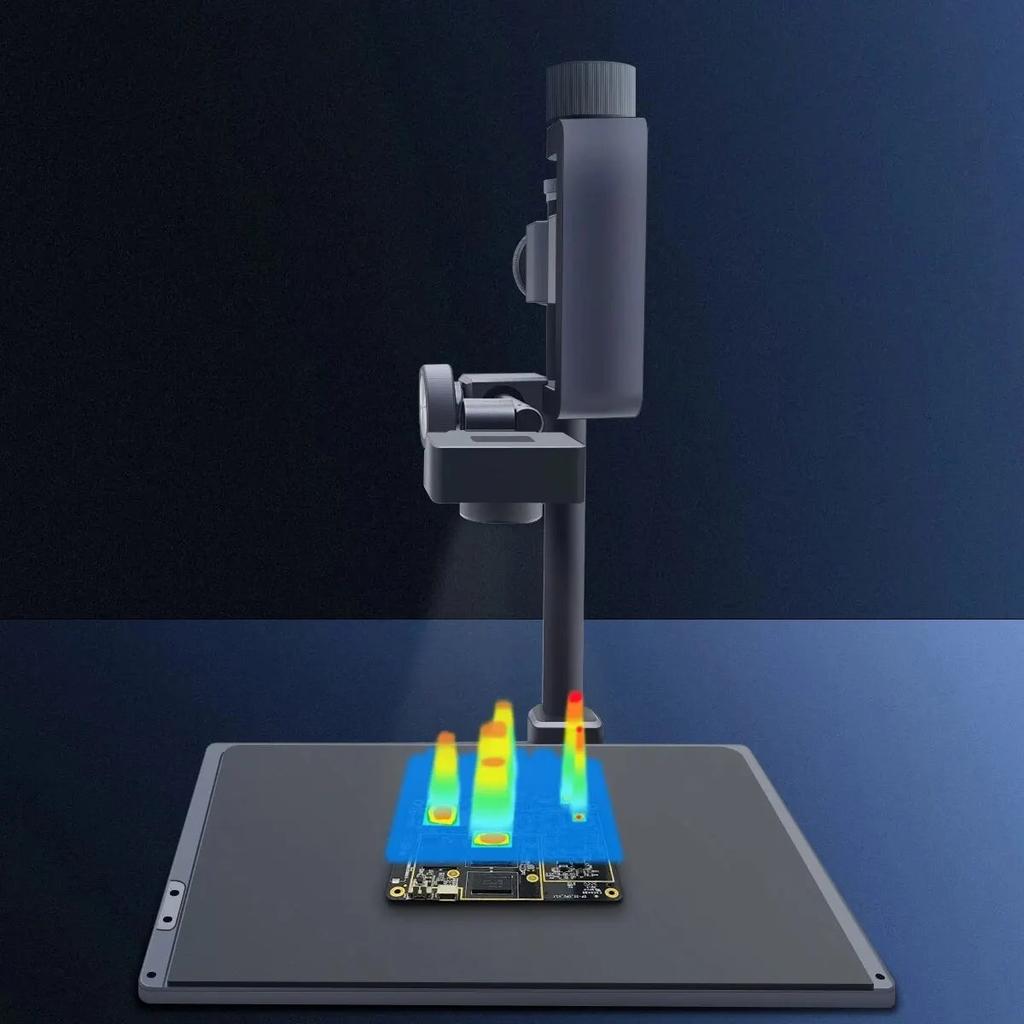

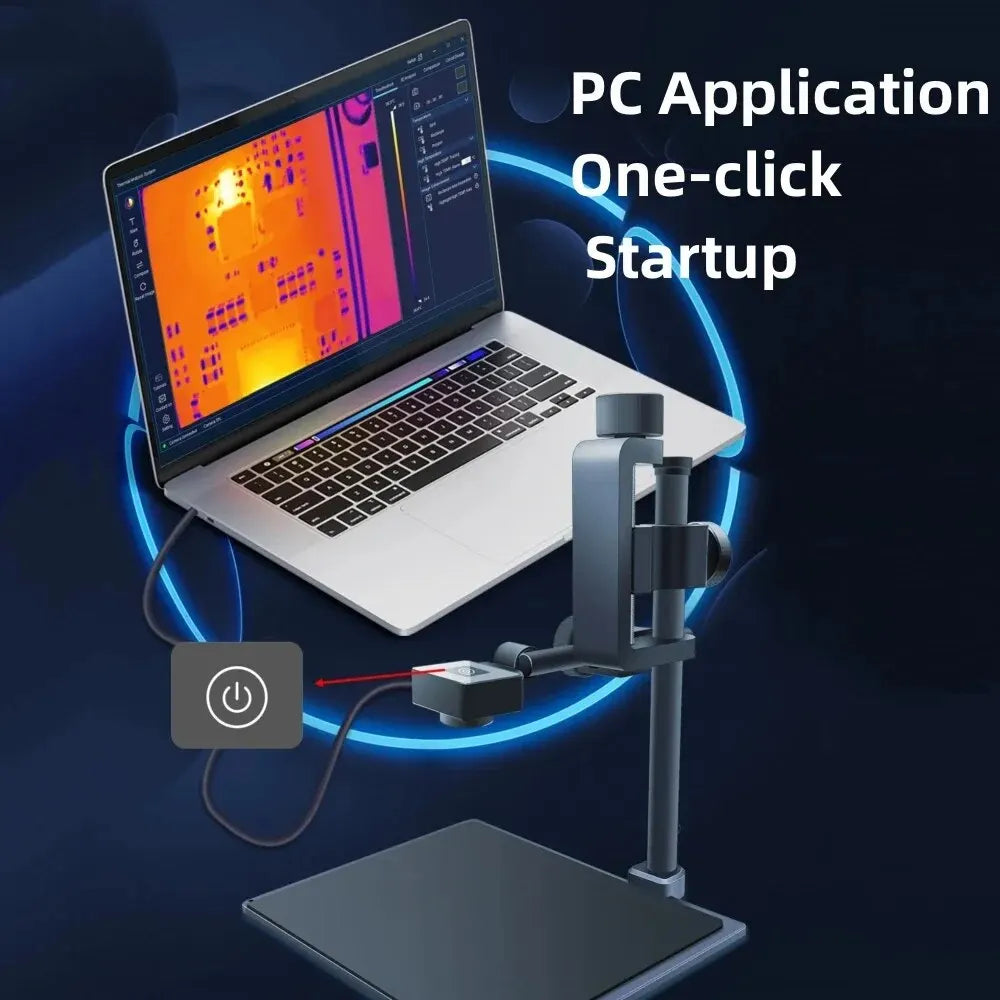

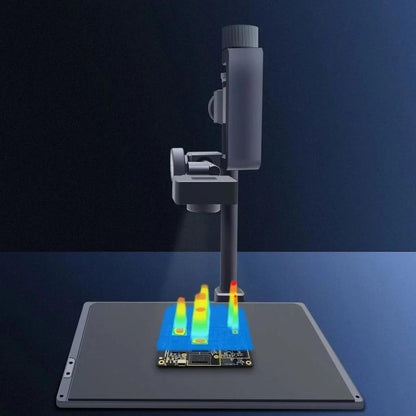

Connected via USB Type‑C to a Windows PC (recommended Windows 10/11), the included analysis software captures real-time images and videos, applies up to five color palettes, and provides detailed temperature measurement from -20°C to +150°C (-4°F to +302°F). A high-stability metal stand with a heat‑resistant workbench and fine-tunable measuring distance (30-150 mm) makes it suitable for continuous bench-top diagnostics. Optional 30 mm macro optics allow clear visualization of components and pins down to approximately 0.3 mm.

Why It's a Smart Choice

• Efficient PCB fault location - Detects leakage currents down to approximately 6 mA and highlights high-temperature zones for fast identification of shorts and faulty parts.

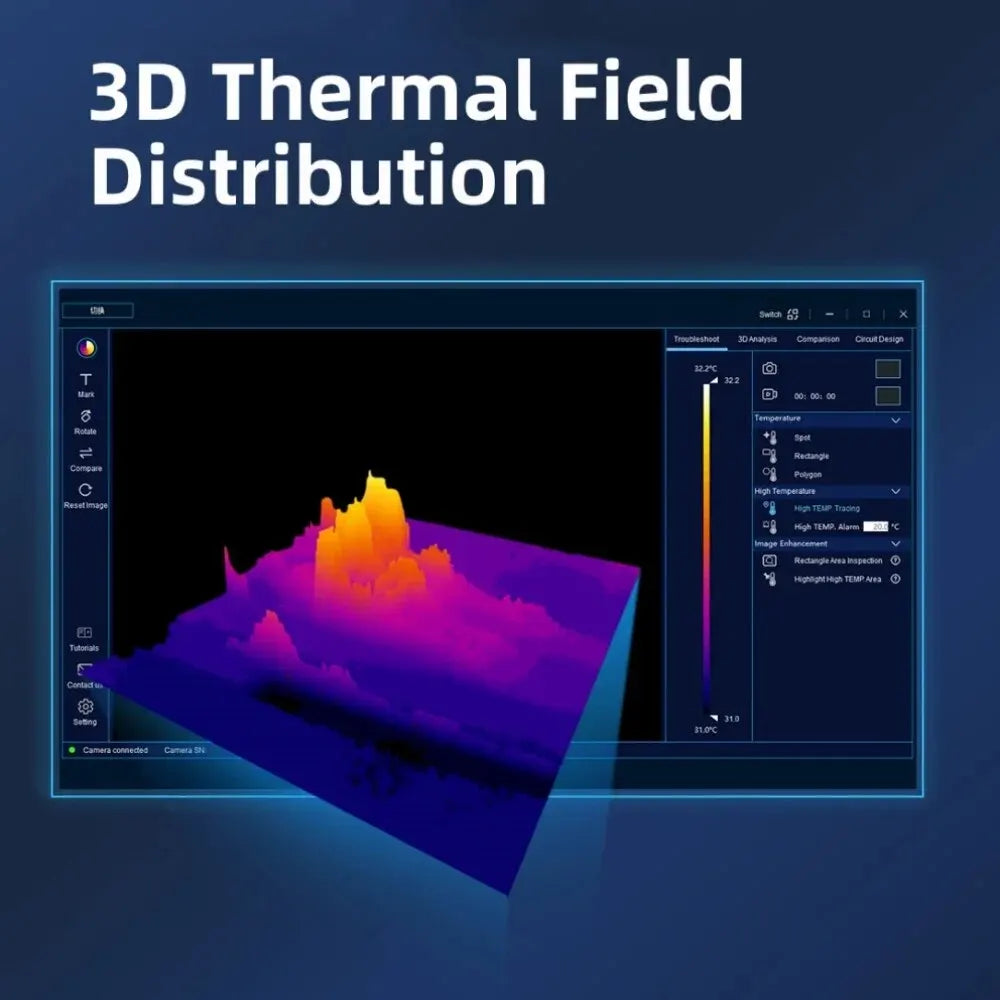

• 3D thermal field analysis - 3D mode makes small current and temperature variations easier to interpret, improving accuracy on dense or multilayer boards.

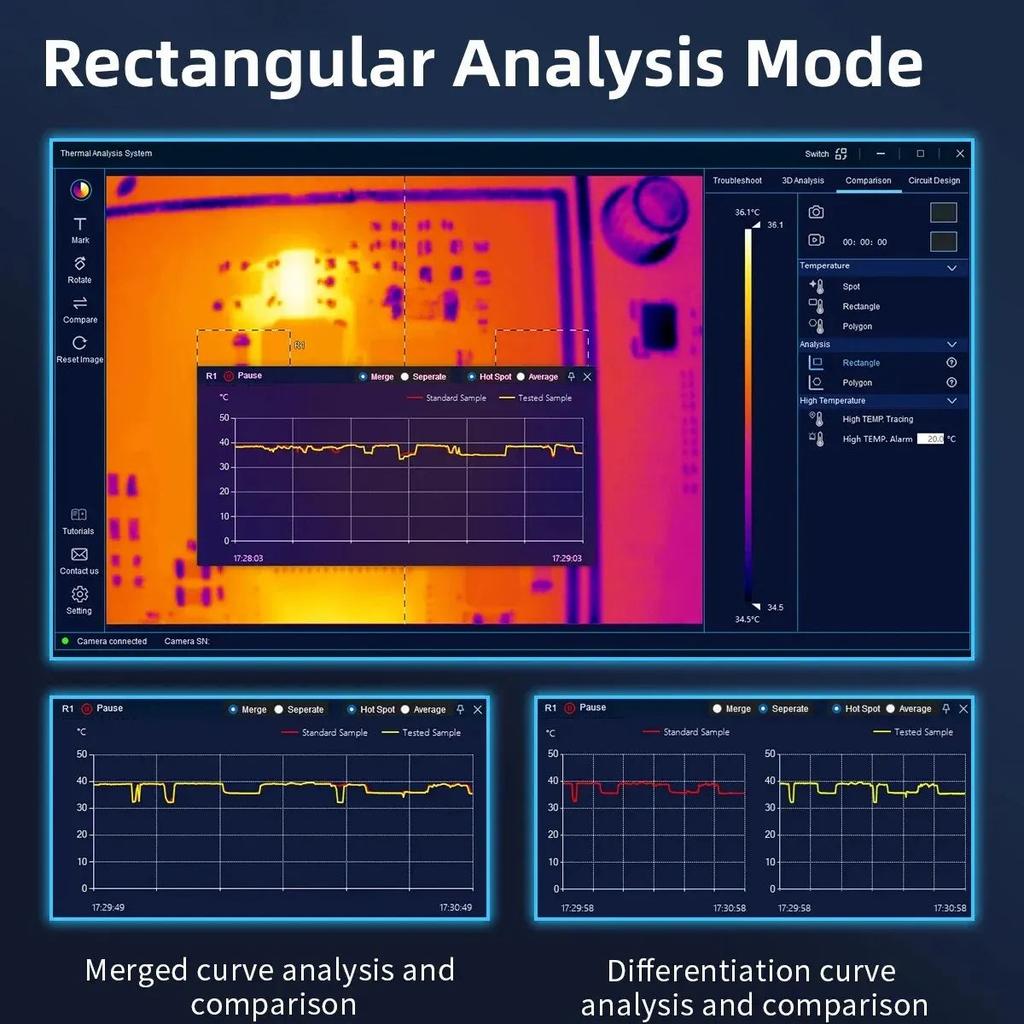

• Professional PC software tools - Supports image and video capture, temperature charts, rectangular analysis, and good/bad board comparison for structured troubleshooting and reporting.

FAQ

Q: Which operating systems are supported?
A: The software is designed for Windows and is recommended for Windows 10 or Windows 11. Windows 7 and other systems are not recommended.

Q: What is the working distance for measurement?
A: The effective temperature measurement distance is approximately 30 mm to 150 mm from the PCB surface.

Q: Does it support temperature alarms?
A: Yes. Users can set a high-temperature alarm threshold within the -20°C to +150°C measurement range.

Q: What is included in the package?
A: Package includes: Thermal Imager Analyzer, bracket/stand, data cable, macro lens (if selected), U disk with PC software, user manual and storage box.

Q: Is the brief pause during use normal?
A: Yes. The instrument periodically calibrates using an internal mechanical shutter, causing a 1-3 second pause to maintain measurement accuracy.
