100W Foldable Portable Solar Panel Charger

100W Foldable Solar Power for Reliable Off‑Grid Charging

Harness consistent, clean energy anywhere with this 100W foldable and portable solar panel. Designed for outdoor use and backup power, it delivers stable output to keep your power station, phones, laptops and other USB or DC devices running during camping trips, road travel or unexpected outages.

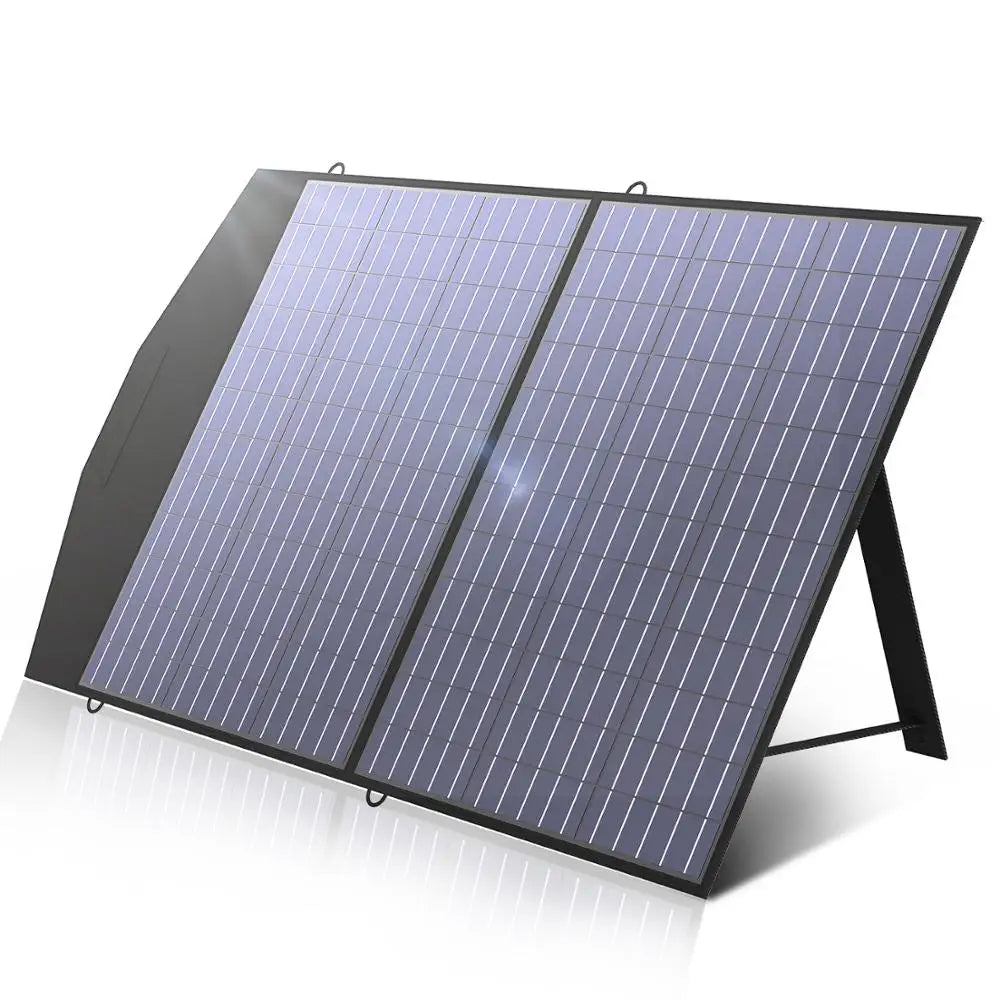

The panel unfolds to a large 1220 × 650 × 10 mm (48 × 25.6 × 0.4 in) array to capture maximum sunlight, then folds down to a compact 510 × 650 × 30 mm (20 × 25.6 × 1.2 in) briefcase-style form for easy transport and storage. With a high conversion efficiency of up to 22%, it generates more power from the same sunlight compared with many panels rated around 15%. The integrated adjustable kickstand lets you angle the panel toward the sun, helping you gain up to 25% more input versus laying it flat.

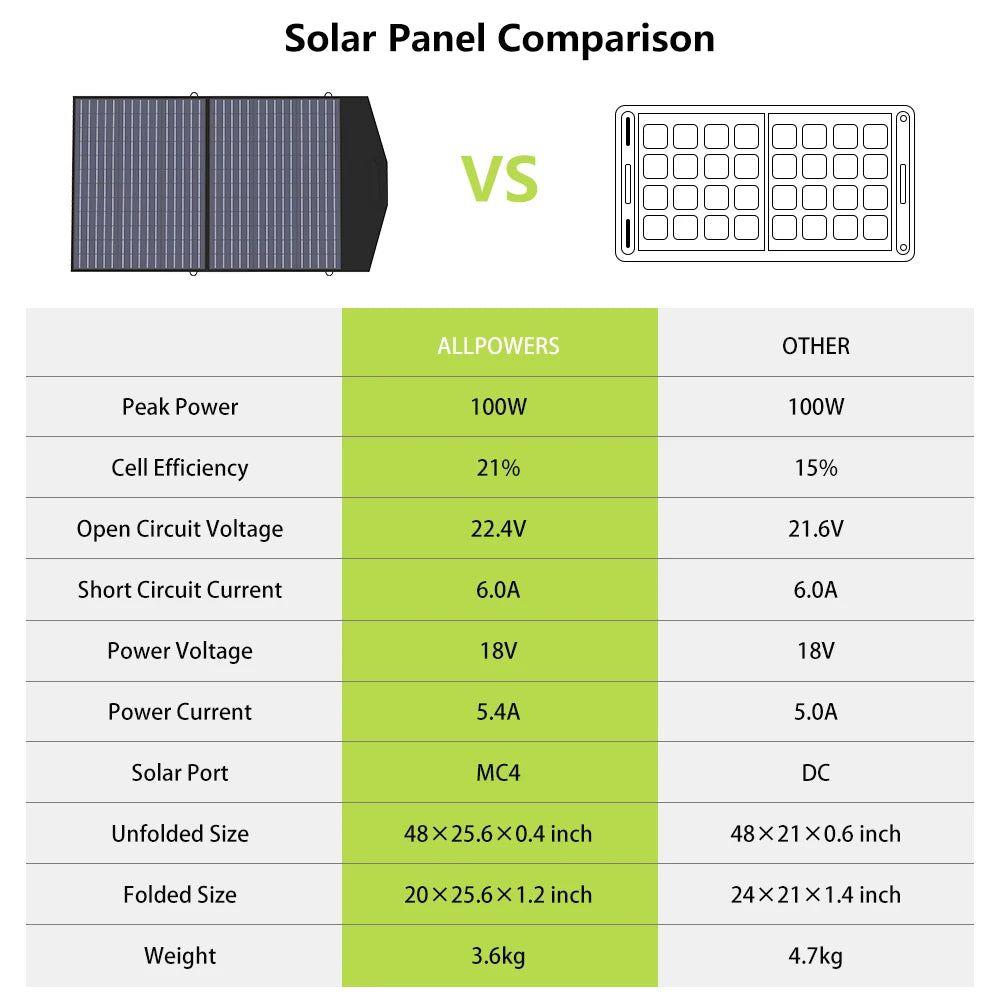

This 100W panel is engineered around a Multi-Contact 4 output system capable of delivering up to 25A (max), offering higher current capacity than a standard 10A DC port. Electrical performance is optimized around these key parameters: Peak Power 100W, Open Circuit Voltage (Voc) 22.4V, Short Circuit Current (Isc) 6.0A, Maximum Power Voltage (Vmp) 18V and Maximum Power Current (Imp) 5.4A (tested at STC: 1000W/m², 25°C, AM 1.5). The panel includes PV-rated Multi-Contact 4 cables, with male positive and female negative connectors suitable for series or parallel configurations when used with appropriate connectors.

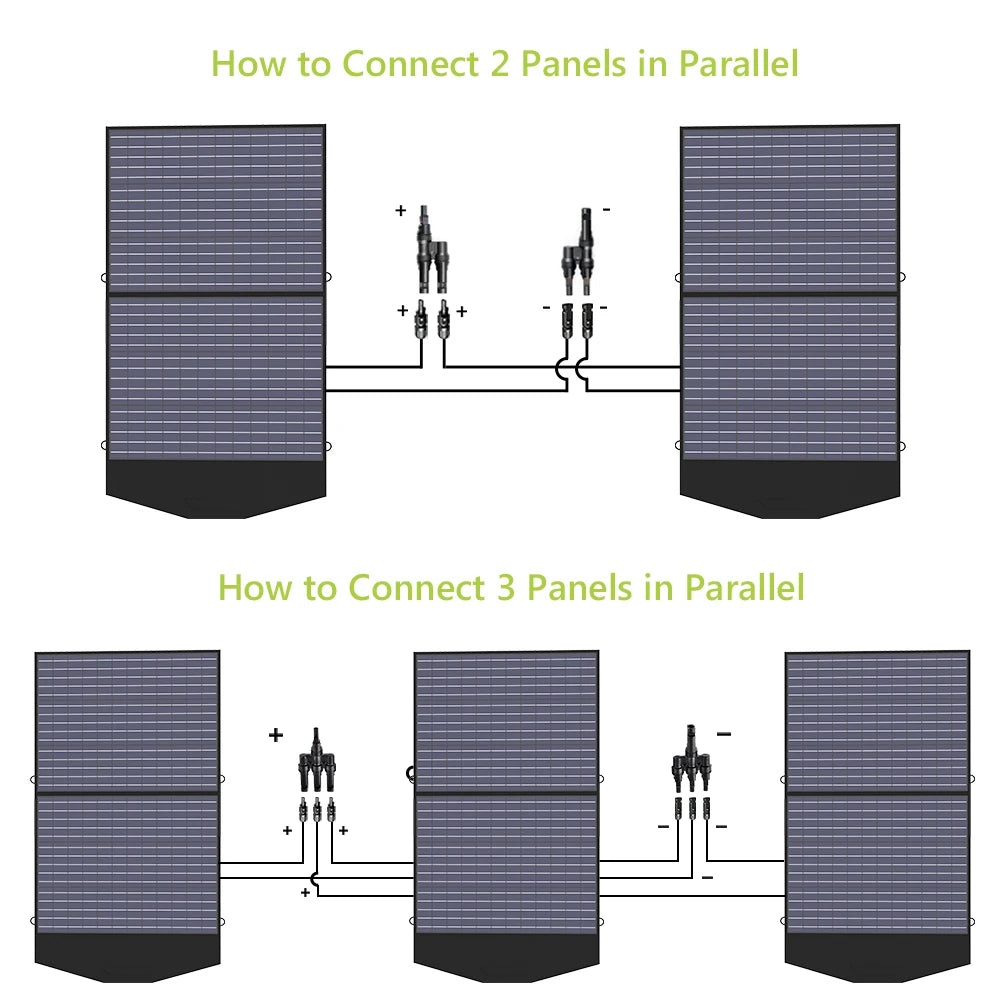

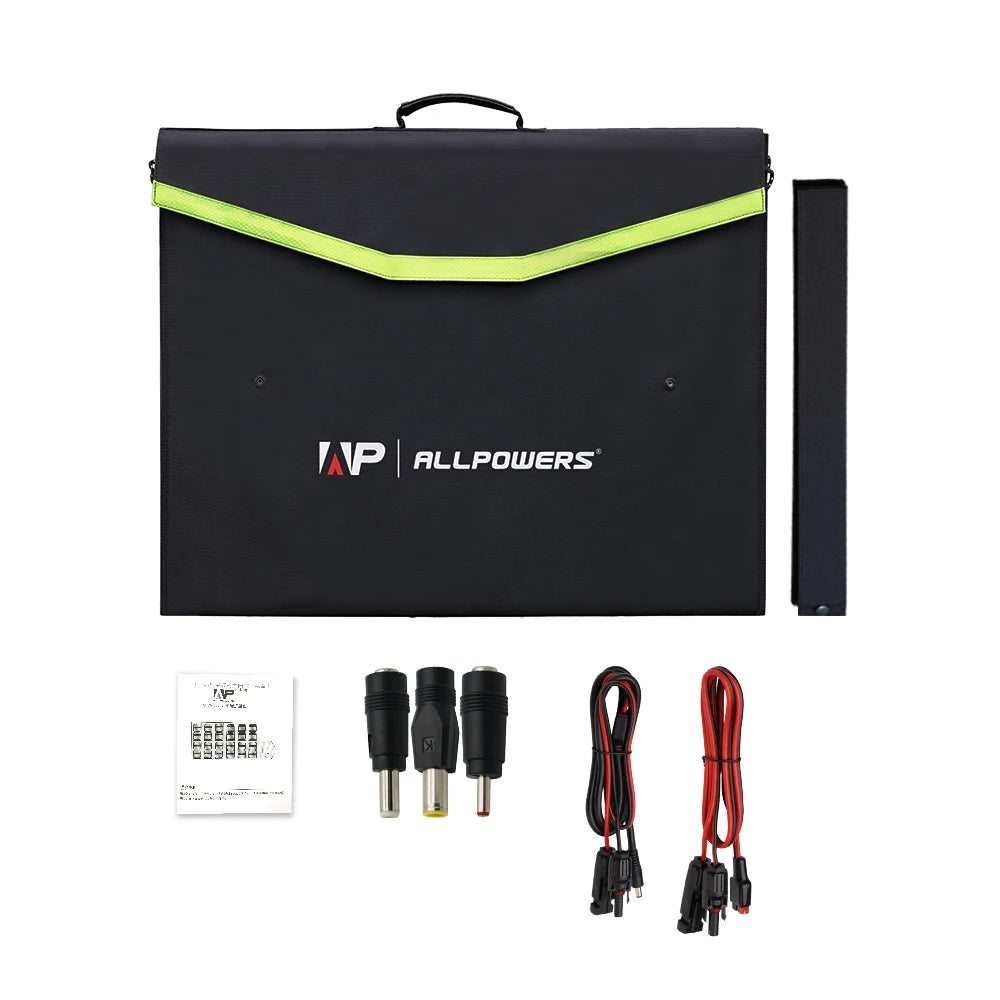

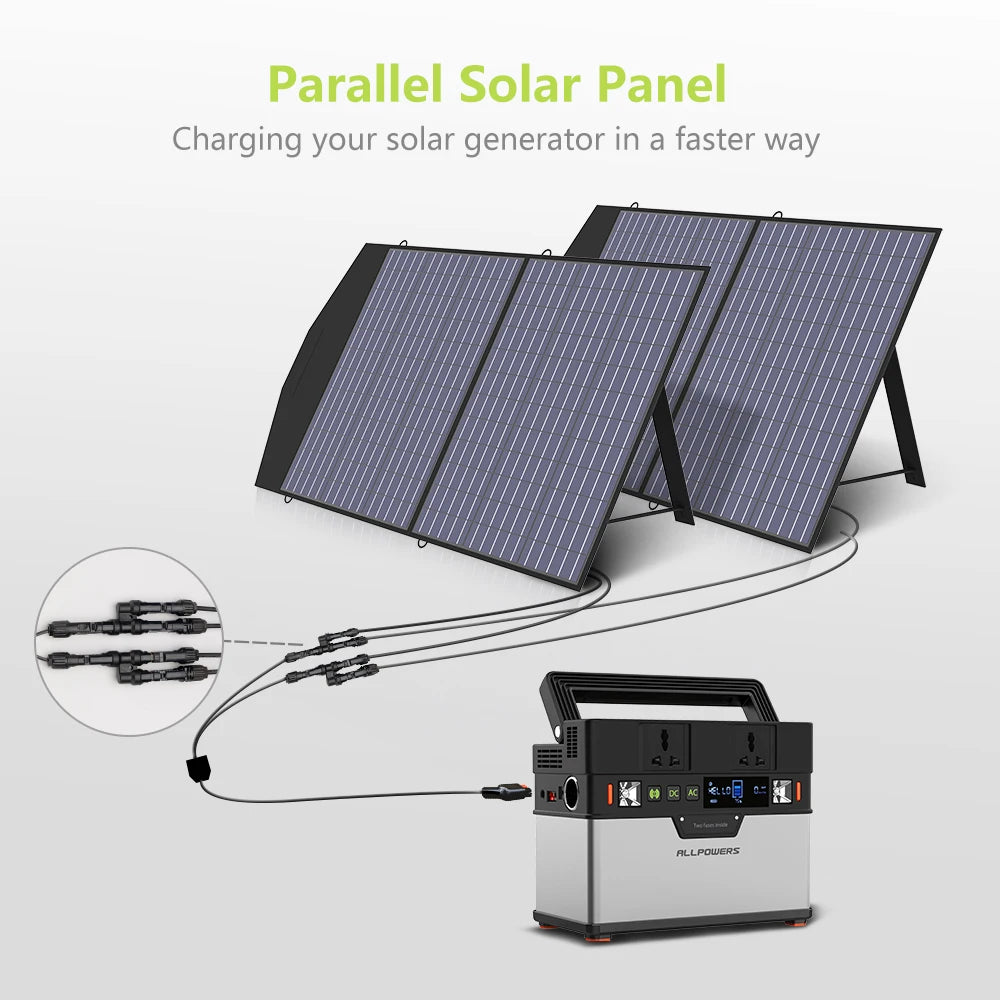

Compatibility with portable power stations and solar generators is a core feature. The package includes a range of DC adapters, such as an 8 mm DC adapter (for many Goal Zero and Jackery models), a 5.5 × 2.5 mm DC adapter (for many Suaoki portable generators), and an Anderson adapter (for many ALLPOWERS and similar power stations). This broad connector set allows you to plug directly into most mainstream solar generators without additional accessories. For parallel connections, dedicated Multi-Contact 4 Y-connectors can be used (purchased separately) to combine panels and increase current.

The exterior is built for outdoor conditions, featuring a rugged, water-resistant, dust-resistant and anti-shock housing suitable for camping, hiking, RV use and emergency deployment. Reinforced attachment points allow the panel to be fixed to backpacks, tents or vehicles while on the move, maintaining power generation as you travel. When not in use, it folds into a briefcase-style panel that is straightforward to carry and store in a car, RV or emergency kit.

Why It's a Smart Choice

• High-efficiency 100W output (up to 22% conversion) for more usable power in limited sunlight.
• Foldable, briefcase-style design with adjustable kickstand for efficient, portable outdoor setup.
• Multi-Contact 4 system with multiple adapters for broad compatibility with leading solar generators and power stations.

FAQ

Q: Is this solar panel compatible with my portable power station?
A: The panel includes 8 mm, 5.5 × 2.5 mm and Anderson adapters, making it compatible with many popular models from brands such as Jackery, Goal Zero, Suaoki and ALLPOWERS. Always confirm your power station's input voltage, connector size and maximum input wattage before use.

Q: Can I charge devices directly from the panel?
A: The panel is primarily designed to charge portable power stations and solar generators via DC outputs. Many users connect their phones, tablets and laptops to the power station's outputs for stable, regulated power. Check your specific setup and any integrated ports on the panel before connecting devices directly.

Q: How should I position the panel for best performance?
A: Place the panel in direct, unobstructed sunlight and use the adjustable kickstand to angle it toward the sun. Reposition it periodically as the sun moves to maintain optimal exposure. Output will be reduced in shade, through windows or in cloudy weather.

Q: Can I connect more than one panel together?
A: Yes. The Multi-Contact 4 connectors allow series or parallel connections when used with appropriate Multi-Contact 4 Y-connectors (sold separately). Series connections increase voltage, while parallel connections increase current. Always ensure the combined voltage and current stay within your power station's input limits.

Q: Is this panel suitable for long-term outdoor installation?
A: It is built for outdoor use and frequent deployment, but it is primarily intended as a portable solution rather than a permanently mounted rooftop panel. For long-term fixed installations, a dedicated rooftop or ground-mounted solar panel system is recommended.
