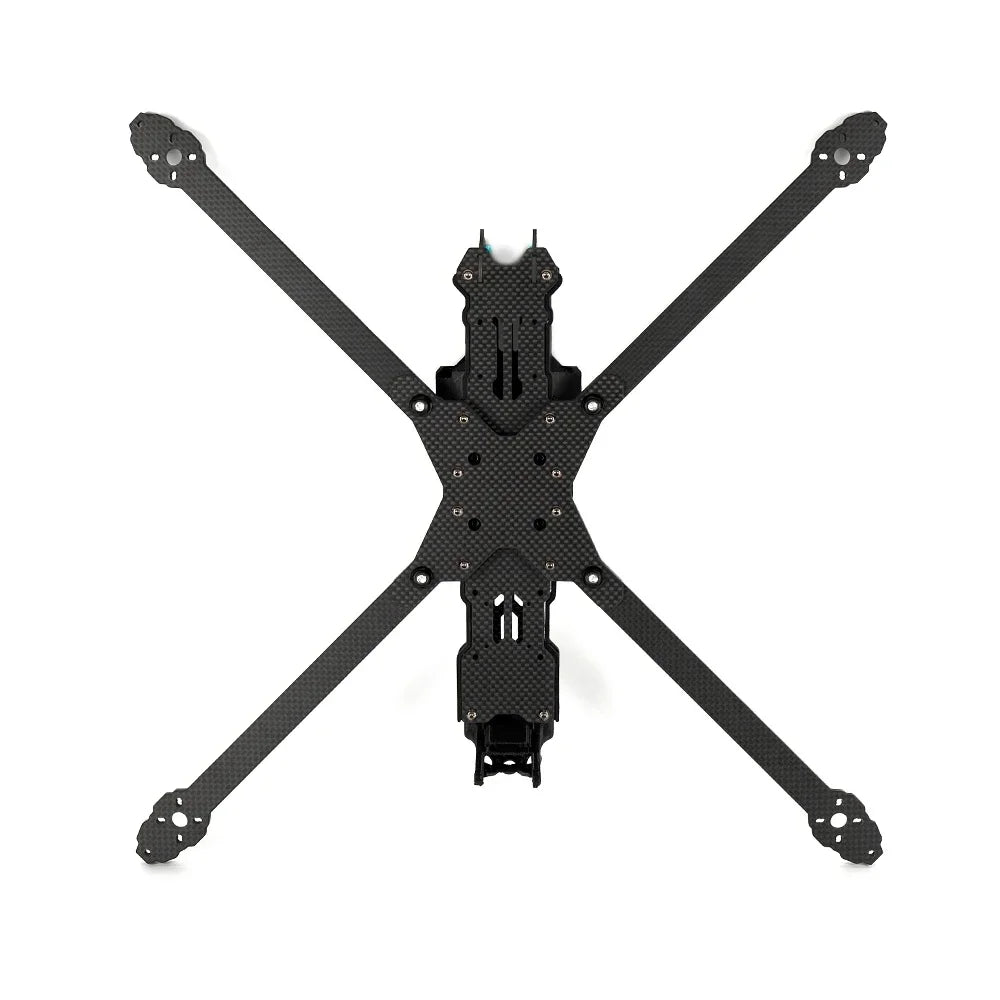

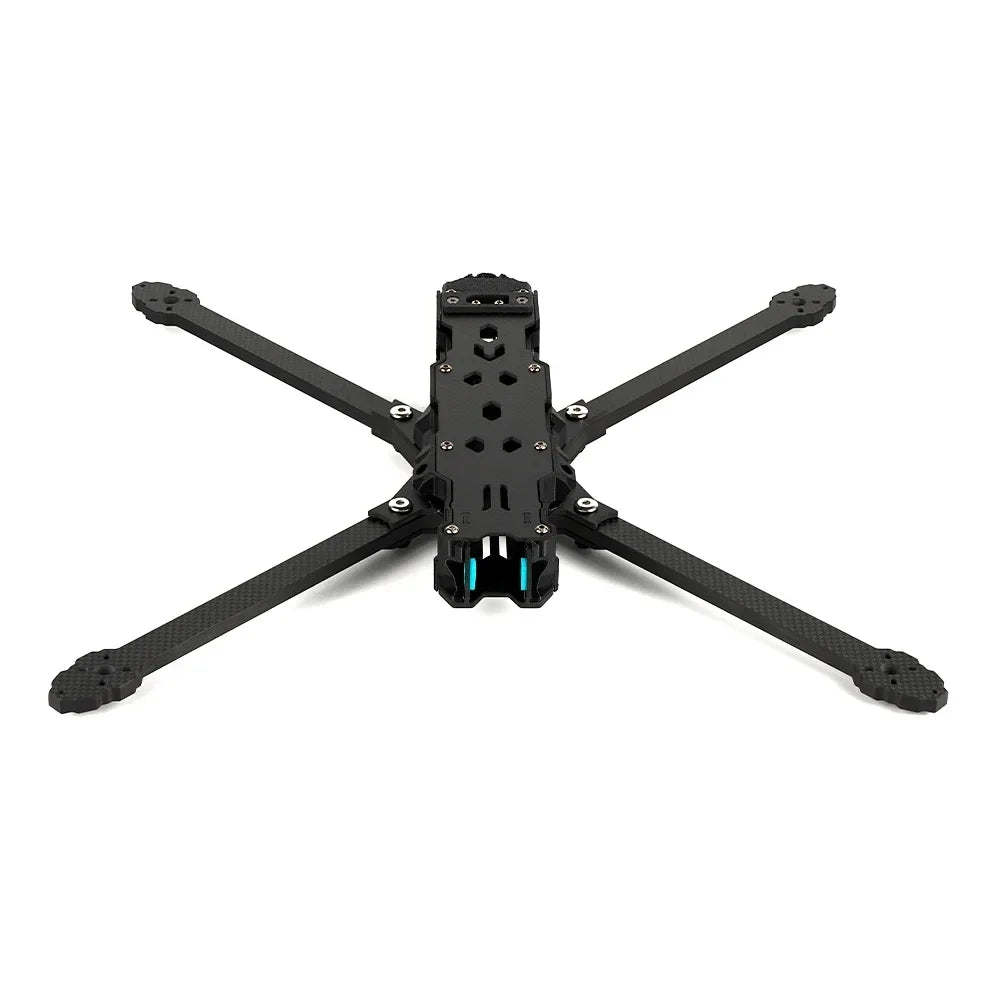

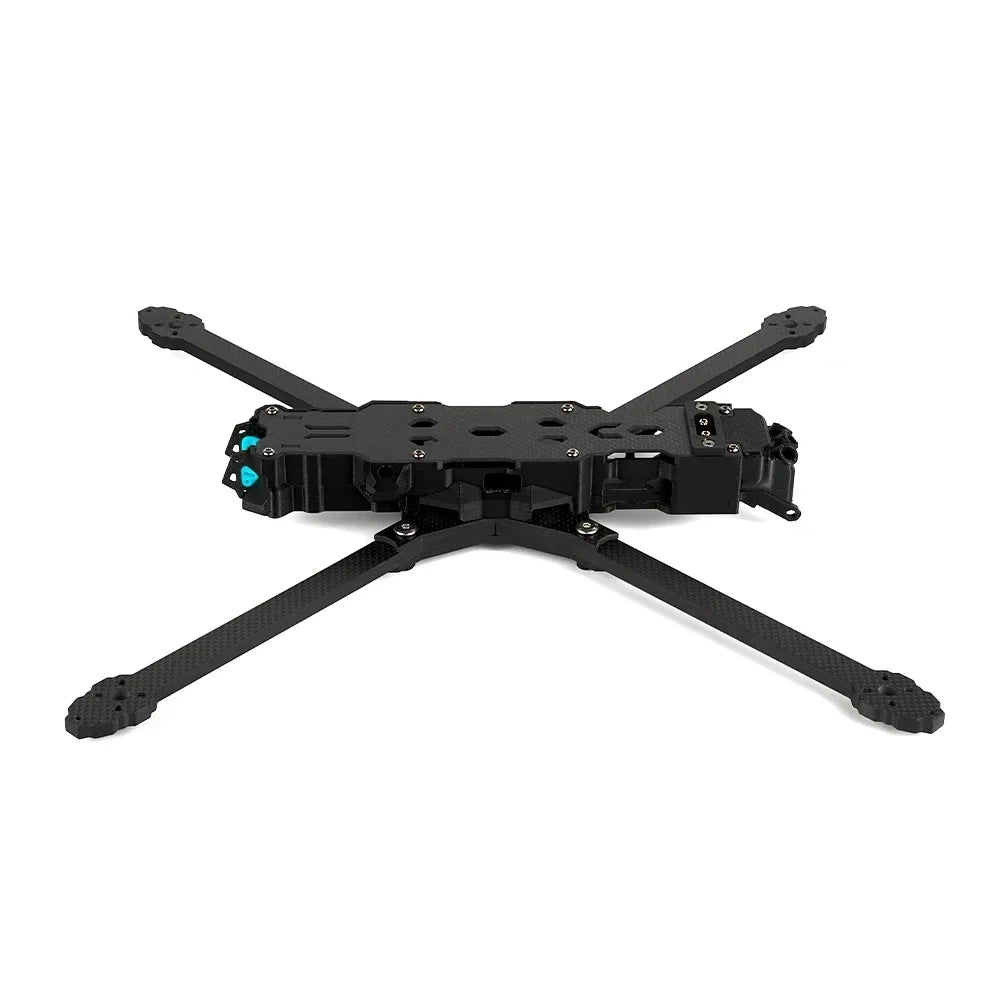

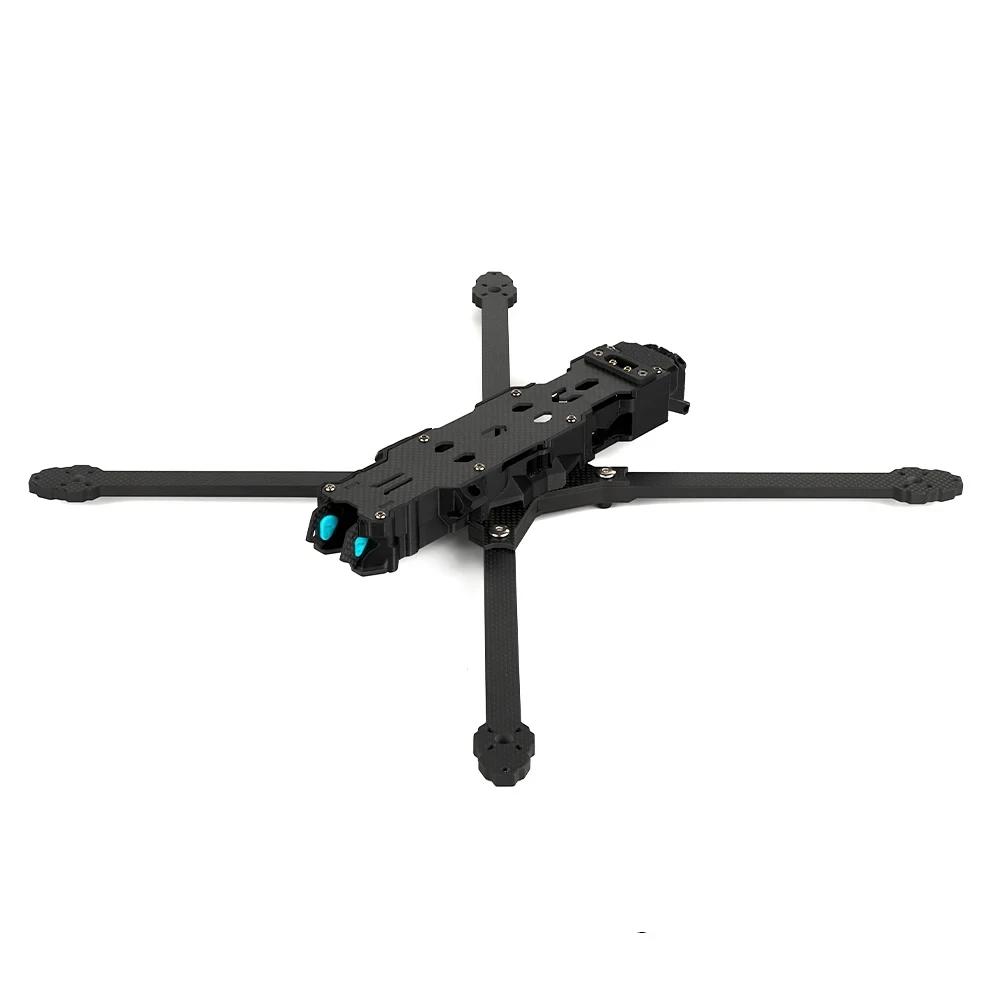

10" Lite True X 402mm FPV Freestyle Frame Kit

10" Lite True X Freestyle Frame for Confident Long-Range FPV

- Built around a 402mm wheelbase and a precise True X geometry, this 10-inch FPV frame kit is designed for pilots who want stable cinematic cruising and controlled freestyle performance in a larger format. The layout offers balanced weight distribution, predictable handling, and plenty of build space for modern electronics, long-range systems, and clean wiring.

The frame uses T700 carbon plates combined with CNC-machined aluminum elements to create a rigid yet lightweight structure that resists flex during demanding maneuvers. This rigidity helps maintain consistent tune, sharp response, and clear HD footage by reducing vibration. The design supports up to 10-inch propellers, giving you the lift and efficiency needed for heavier batteries, GoPro-style action cameras, and long-range gear while still keeping throttle response manageable and precise.

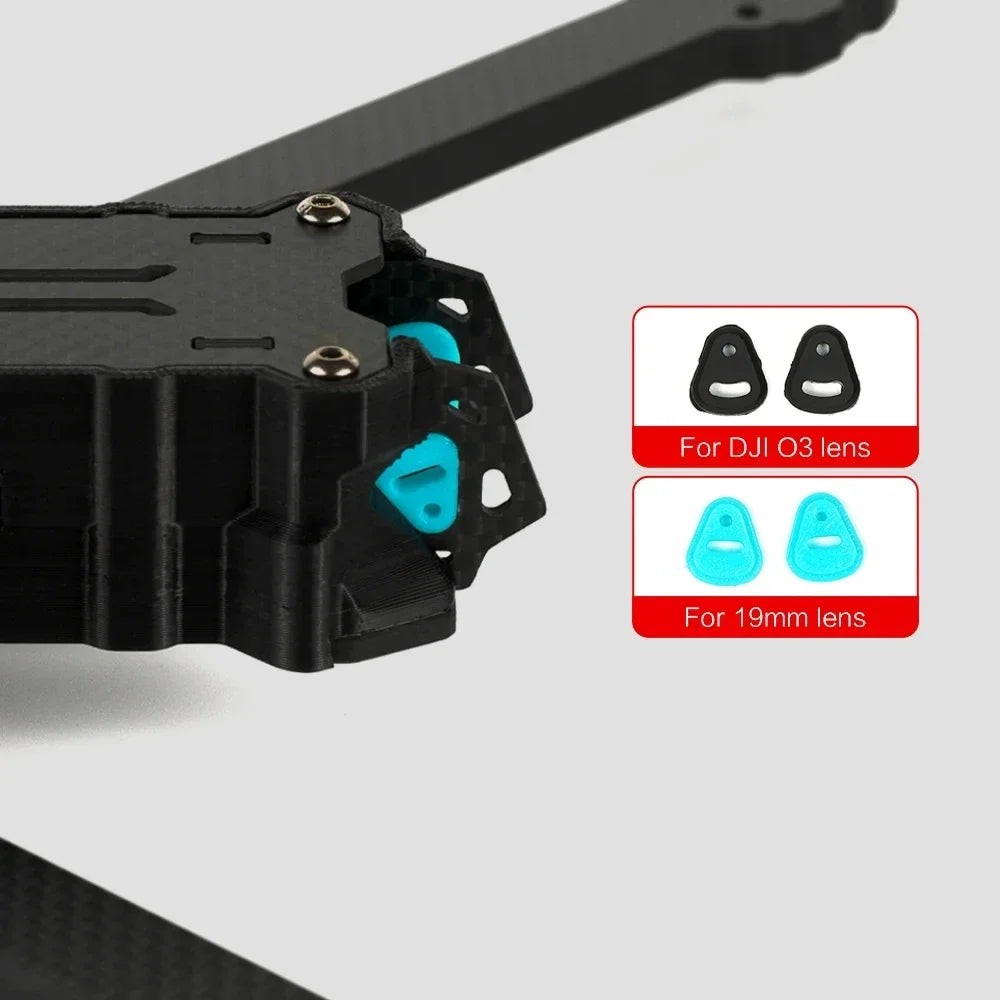

The camera mount is compatible with 19-22 mm wide FPV cameras, with aluminum side plates that shield the lens area from impacts and reduce the chance of jello in your video. The updated printed parts improve camera retention, so the angle stays locked in even after repeated flights. Motor mounting patterns of M3 16×19 mm fit popular 10-inch class motors such as AE3115 900KV, pairing well with 6S power systems and high-capacity packs for extended flight times. A generous central section and stack area make it straightforward to install flight controllers, ESCs, and video systems while maintaining good airflow and service access.

Why It's a Smart Choice

• Stable True X geometry and 402mm wheelbase for smooth freestyle and cinematic flying with 10-inch props.
• T700 carbon and CNC aluminum structure for a rigid, impact-resistant frame that holds tune and reduces vibration.
• Spacious, builder-friendly layout with 19-22 mm camera support and 16×19 mm motor pattern for flexible component choices.

FAQ

Q: Is this a complete drone or just the frame kit?

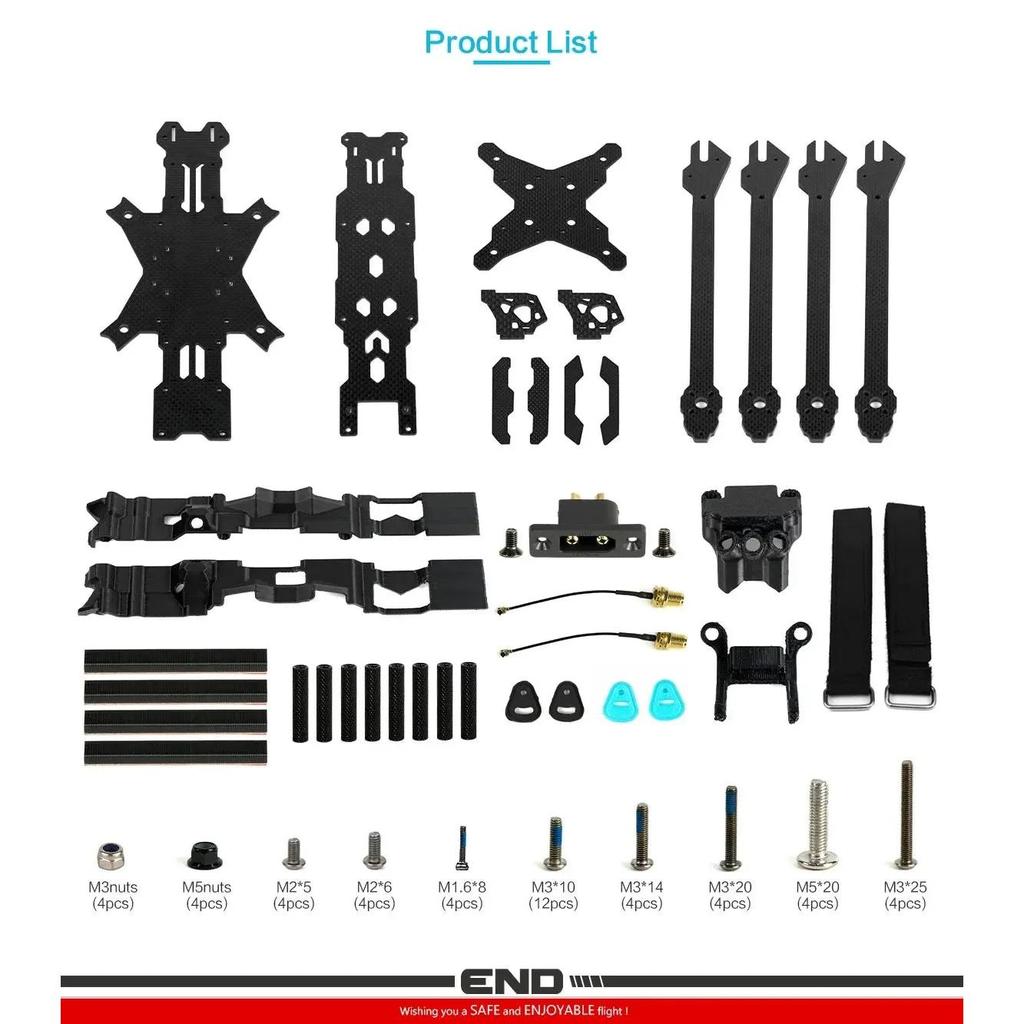

A: This product is a frame kit. Motors, electronics, FPV system, and props are not included and must be purchased separately.

Q: What propeller size does this frame support?
A: The frame is designed for up to 10-inch propellers, making it suitable for long-range and heavier payload builds.

Q: Which motors and battery are recommended?
A: A common setup uses 16×19 mm pattern motors such as AE3115 900KV on a 6S LiPo around 7500 mAh, depending on your target weight and flight time.

Q: Can I use an HD or analog FPV camera?
A: Yes. The front mount supports 19-22 mm FPV cameras, so most modern micro-size analog and digital FPV cameras will fit with the appropriate mounting hardware.

Q: Is this frame suitable for beginners?
A: It can be used by beginners who are comfortable building larger quads. The rigid construction and clear component layout help with assembly and maintenance, but basic FPV build experience is recommended.
