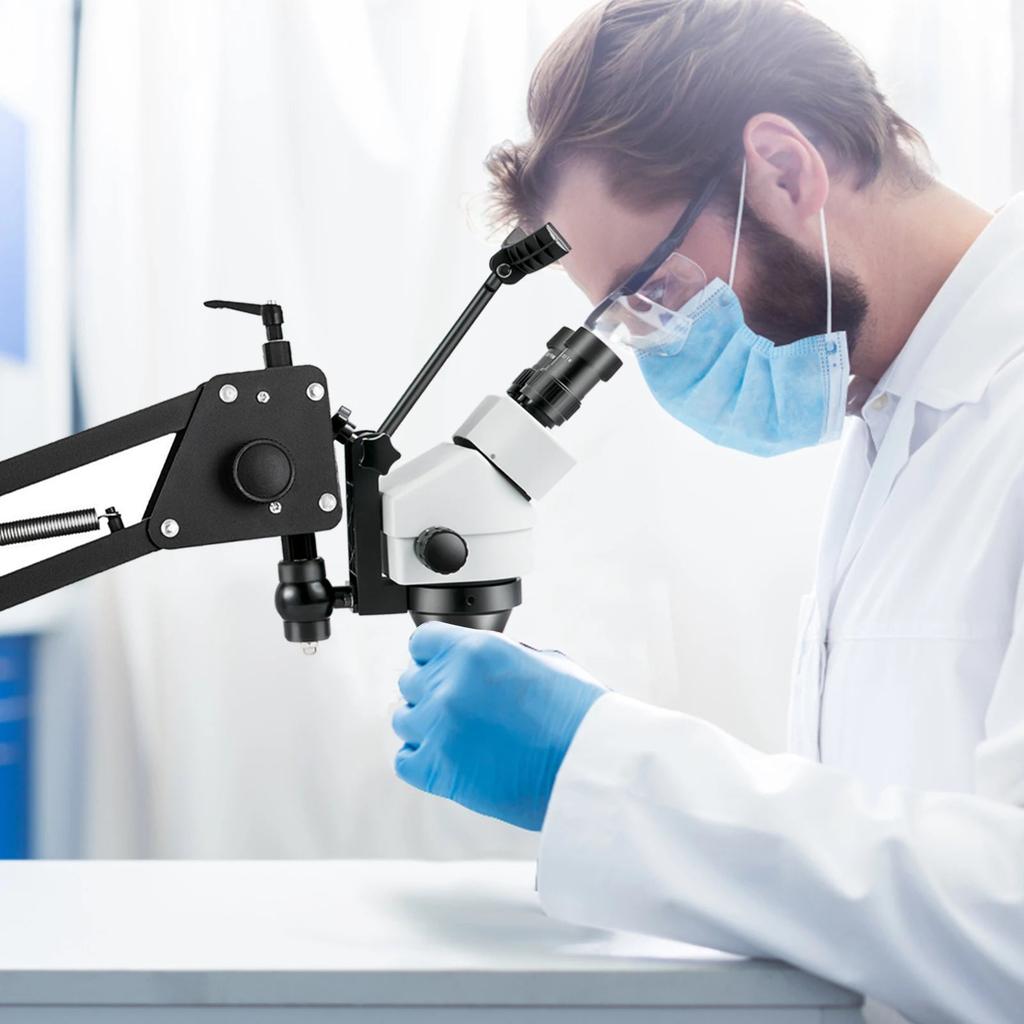

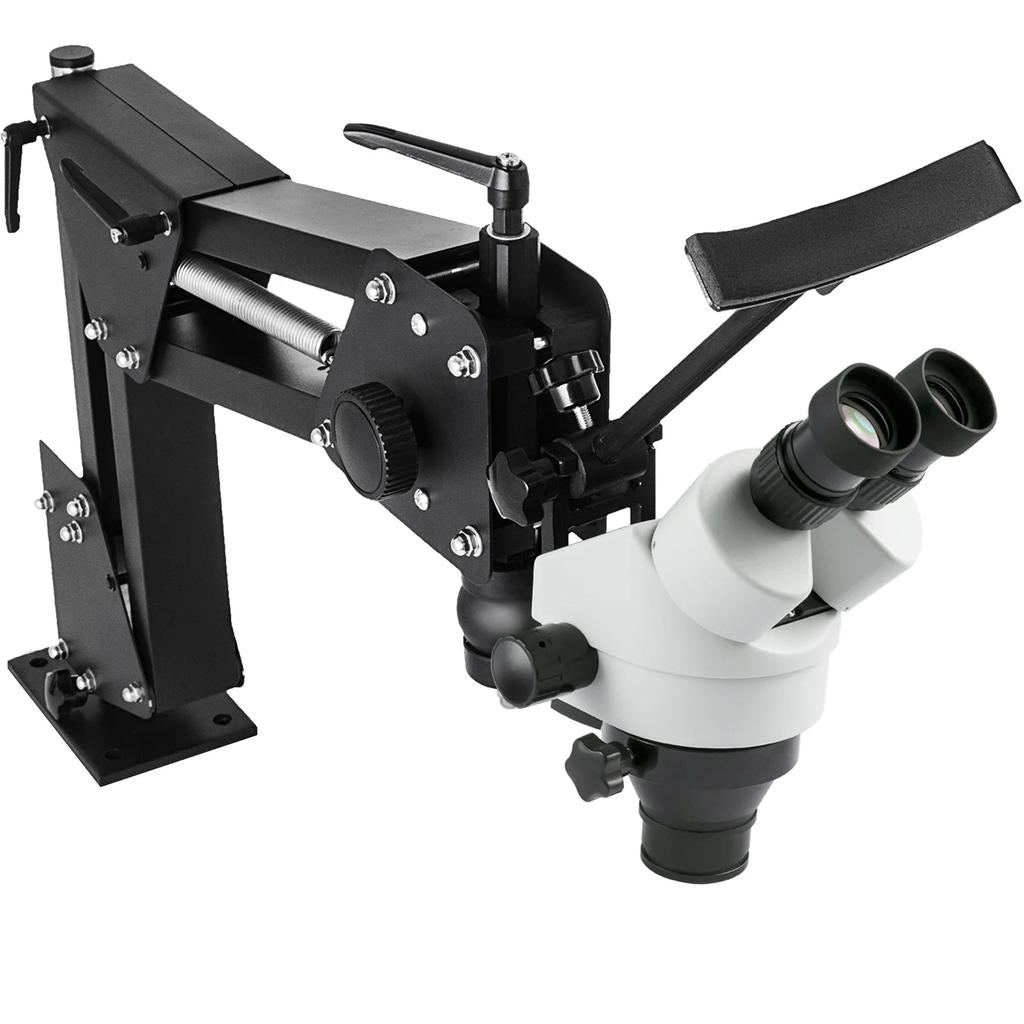

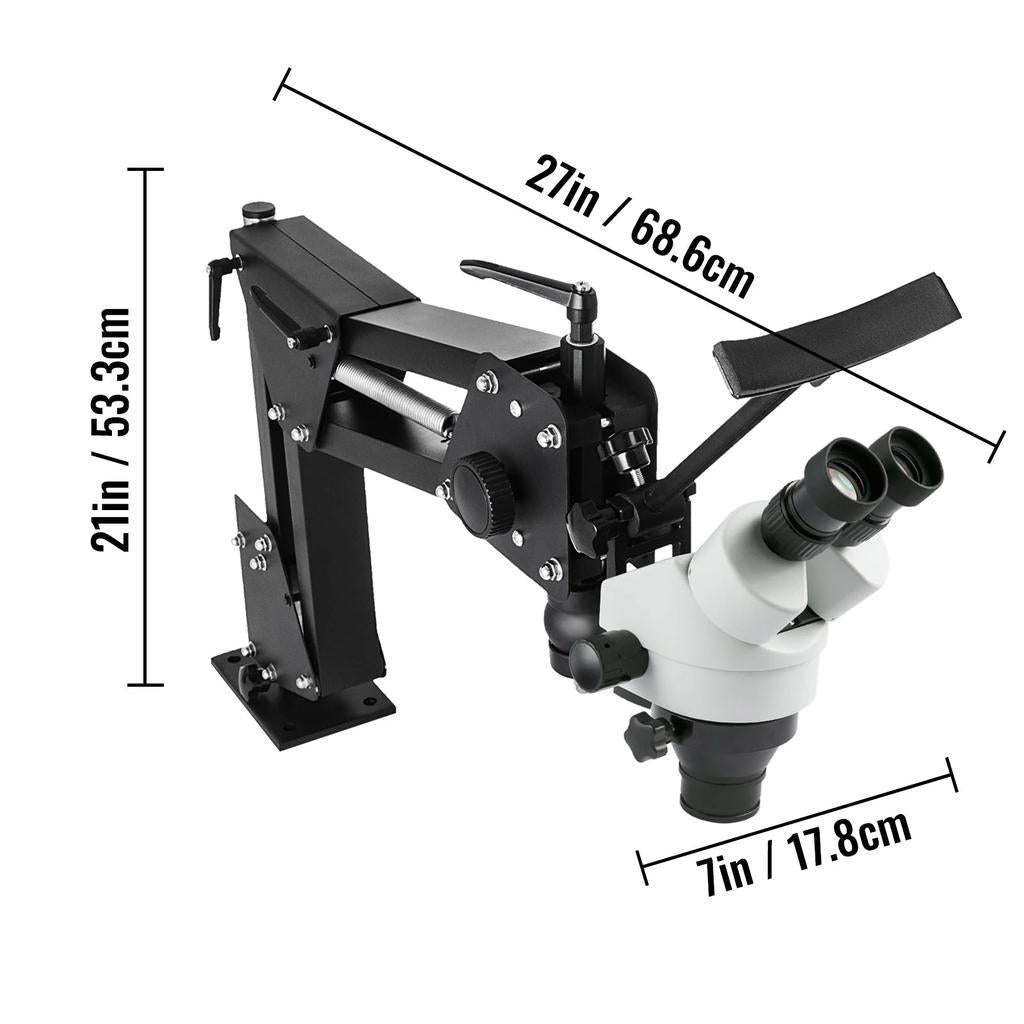

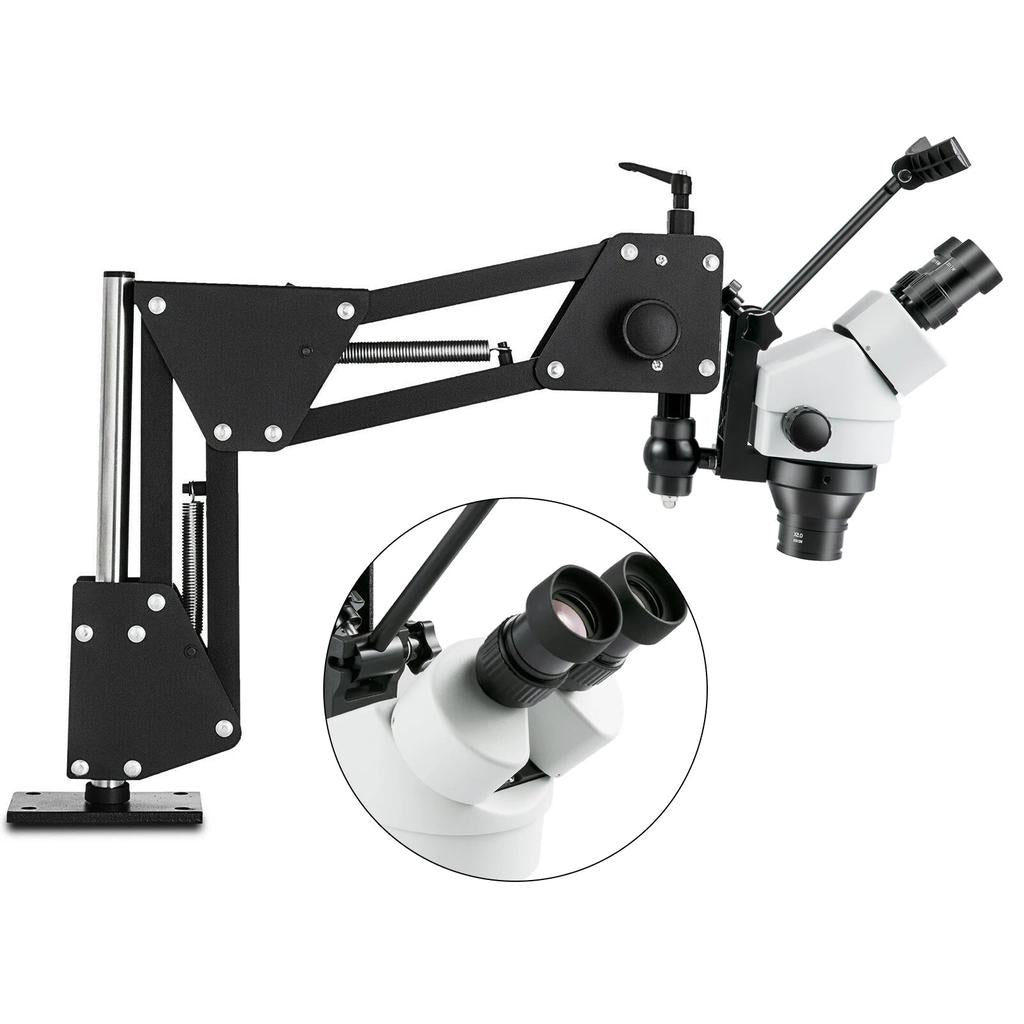

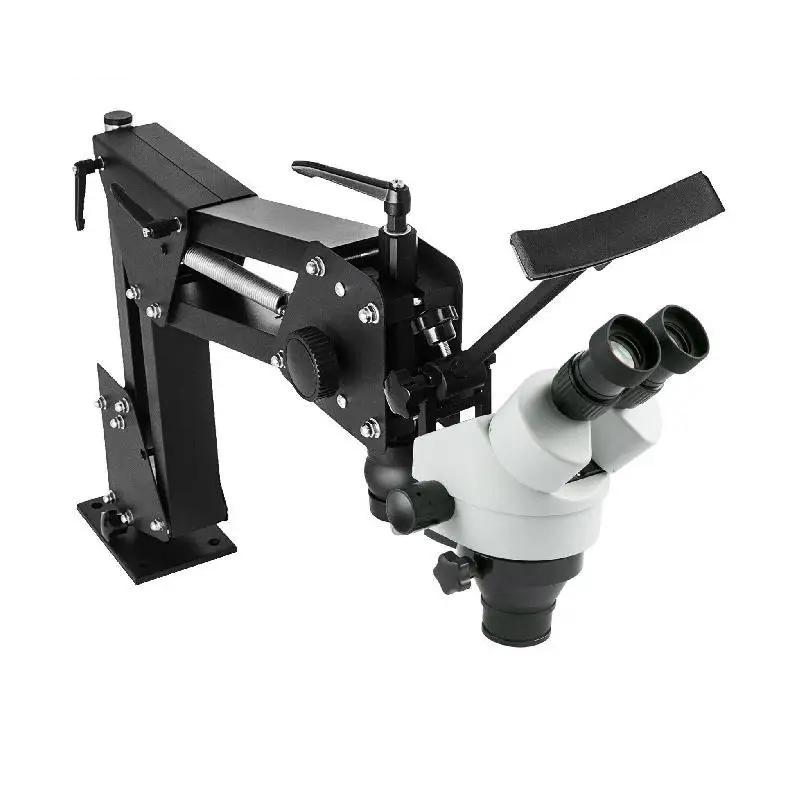

0.7-4.5X Micro-Setting Jewelry Microscope

Precision Micro-Setting Microscope for Professional Bench Work

This micro-setting microscope is engineered for jewelers and technicians who require accurate, repeatable results at the bench. With a continuous zoom range of 0.7X-4.5X and a long working distance of 95-300 mm (3.7-11.8 in), it provides a clear, comfortable view of fine details while leaving ample space for tools and workpieces.

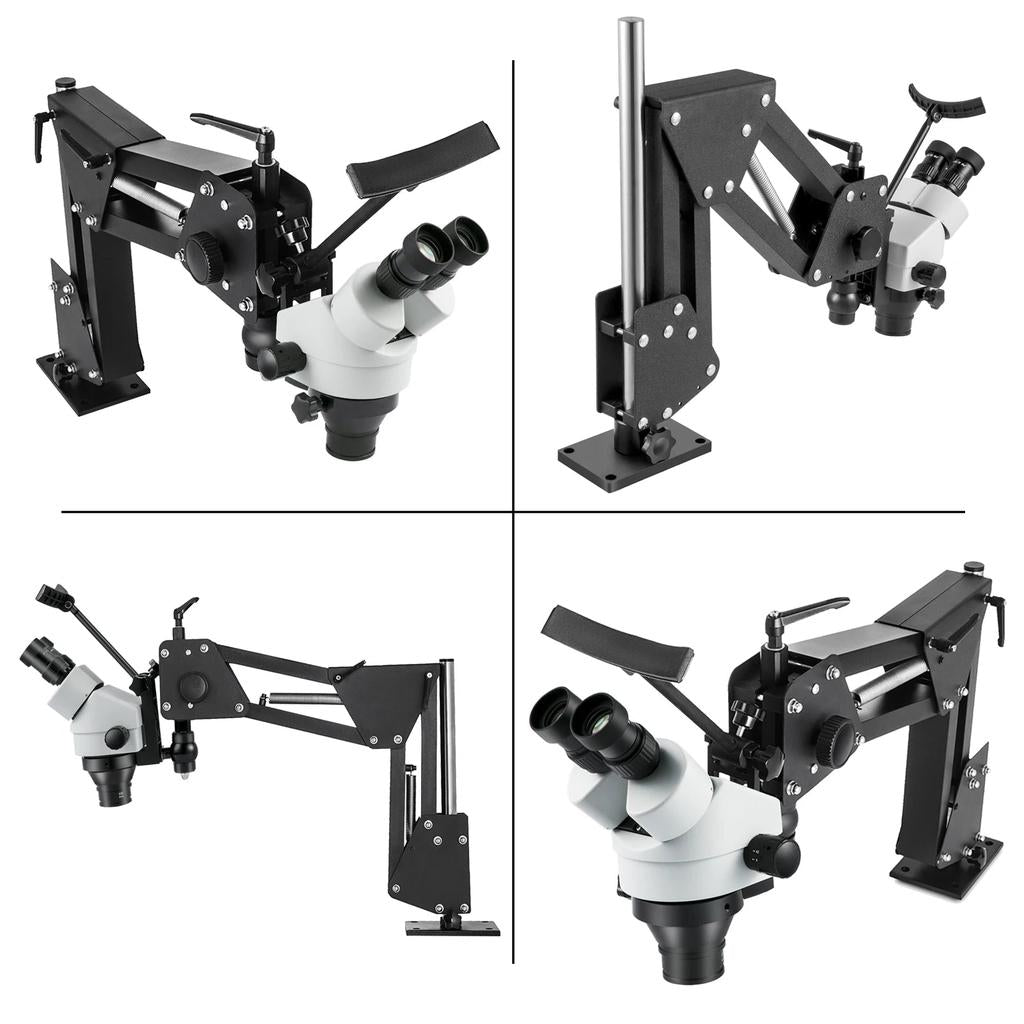

Constructed from hard aluminum alloy, the stand and spring bracket offer a rigid, stable platform with a compact footprint. The multi-directional design allows smooth angle and height adjustments, including ±15° tilt and 270° main rotation, so you can position the optics exactly where you need them for stone setting, engraving, repair, and inspection tasks. Wide-field WF10X/20 mm eyepieces and an adjustable interpupillary distance of 54-76 mm ensure a comfortable fit for different users, while the 5.1-33 mm (0.2-1.3 in) field of view makes it easy to monitor both the work area and surrounding surfaces.

Why It's a Smart Choice

• Clear, continuous zoom - 0.7X-4.5X zoom lets you move seamlessly from overview to fine detail without refocusing.
• Stable, adjustable support - Rigid aluminum alloy construction with spring bracket and multi-directional adjustment keeps your view steady while you work.
• Comfortable long working distance - 95-300 mm clearance provides room for tools and hands, ideal for micro-inlay, setting, and inspection.

FAQ

Q: Is this microscope suitable for professional jewelry stone setting?
A: Yes. The continuous zoom, long working distance, and stable multi-directional stand are designed specifically for micro-inlay and stone setting tasks at a professional bench.

Q: Can more than one person use it comfortably?
A: Yes. The interpupillary distance adjusts from 54-76 mm, allowing different users to set the eyepieces to their preferred spacing.

Q: What is included in the package?
A: The package includes the micro-setting microscope body with objective and WF10X/20 mm eyepieces, mounted on a spring-supported bracket and stand.

Q: Can it be used outside the jewelry field?
A: It can also be used for fine inspection and rework tasks in watchmaking, small electronics, and other applications that require close visual control.
