SpeedyBee F405 Wing Mini Fixed Wing Flight Controller

Compact, capable flight control for fixed wing RC builds

The SpeedyBee F405 WING MINI is a dedicated fixed wing flight controller designed for RC airplanes and flying wings that need stable, accurate control in a compact format. Built around the F4 processor and tailored for 2-6S LiPo power systems, it delivers smooth flight performance while keeping wiring and setup straightforward for both new and experienced pilots.

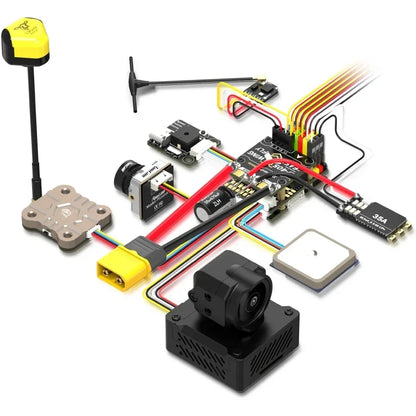

This controller supports an input voltage range of 4-25V and includes 6 hardware UART ports, giving you ample connectivity for receivers, GPS, telemetry radios, and additional peripherals. The integrated Bluetooth module lets you configure key parameters directly from a mobile app, so you can tune and adjust your model at the field without connecting a computer. An MPU6000 gyro and 6-axis sensor suite work together with the onboard barometer to provide stable attitude control and responsive handling, even in changing wind conditions.

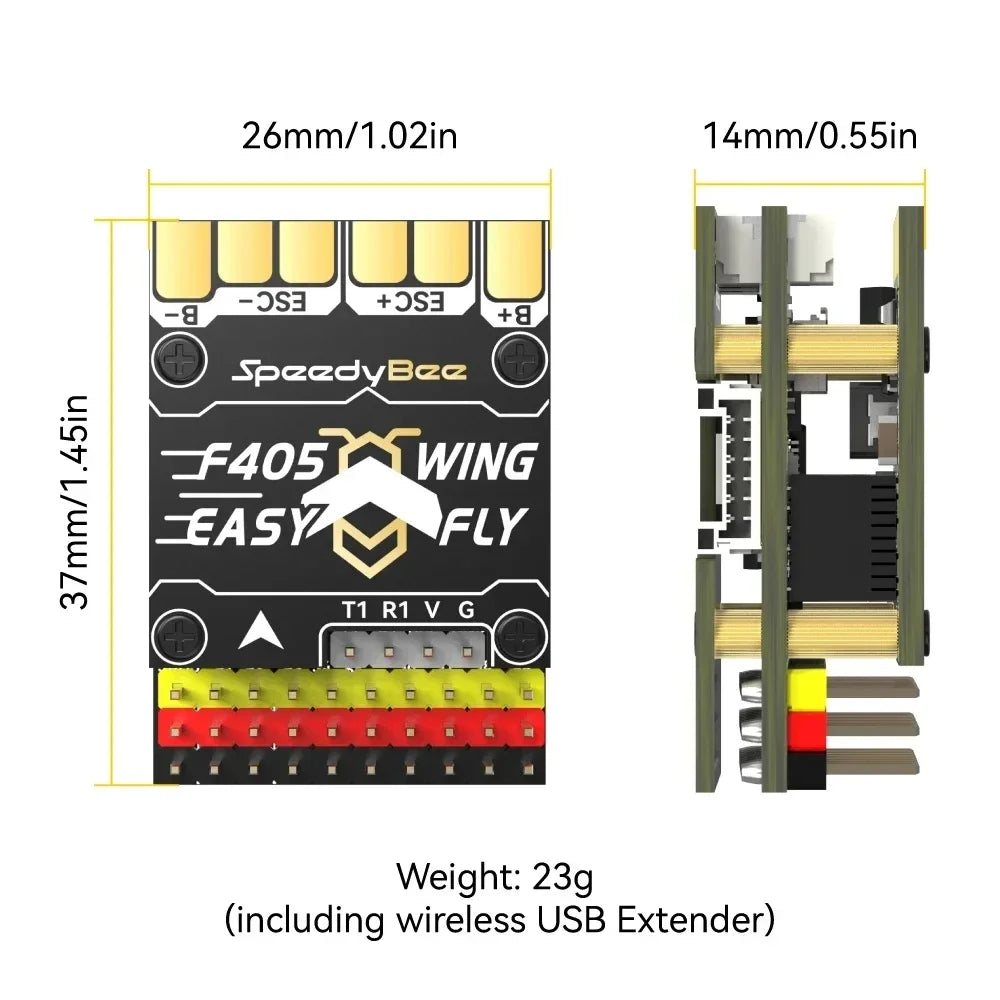

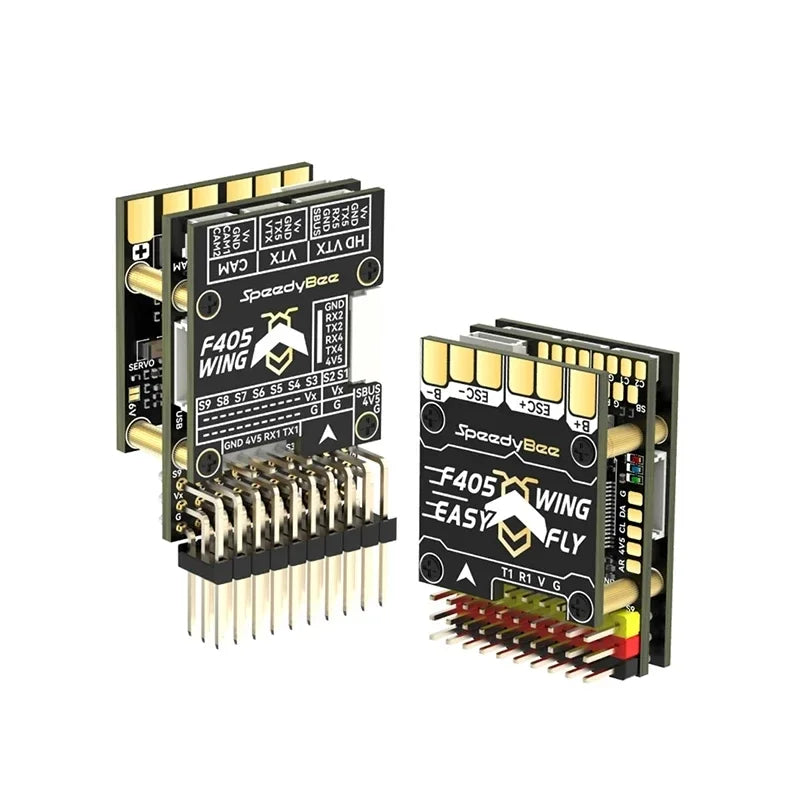

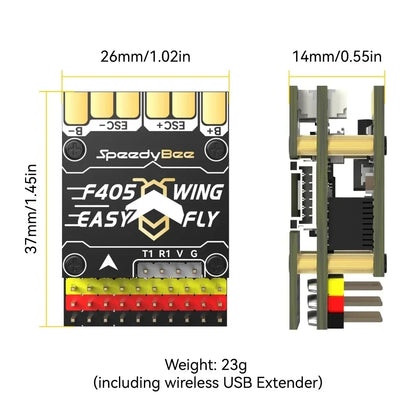

The compact form factor makes it suitable for smaller airframes where space and weight are limited, while the integrated OSD (On-Screen Display) can overlay critical flight data such as voltage, flight mode, and other telemetry on your FPV feed. A practical pin layout and clear labeling simplify installation, and the board is compatible with popular receiver protocols including Crossfire, SBUS, IBUS, and DSMX, giving you flexibility in how you build and upgrade your system.

Why It's a Smart Choice

• Designed specifically for fixed wing RC models, with features tuned for airplane and wing flight characteristics.
• Integrated Bluetooth, OSD, gyro, and barometer reduce extra modules and wiring in your airframe.
• Multiple UARTs and broad receiver compatibility make it easy to expand and adapt as your setup evolves.

FAQ

Q: Which battery types are supported?
A: The SpeedyBee F405 WING MINI supports 2-6S LiPo power systems within a 4-25V input range.

Q: Can I use this with my existing radio receiver?
A: Yes. It supports a wide range of receiver protocols including Crossfire, SBUS, IBUS, and DSMX, making it suitable for most modern radio systems.

Q: Do I need a computer to configure it?
A: You can configure many settings via the built-in Bluetooth module and a compatible mobile app, and you can also connect to a PC for more detailed configuration if required.

Q: Is it suitable for small airframes?
A: Its compact size and integrated features make it well suited to smaller fixed wing and flying wing builds where space is limited.
