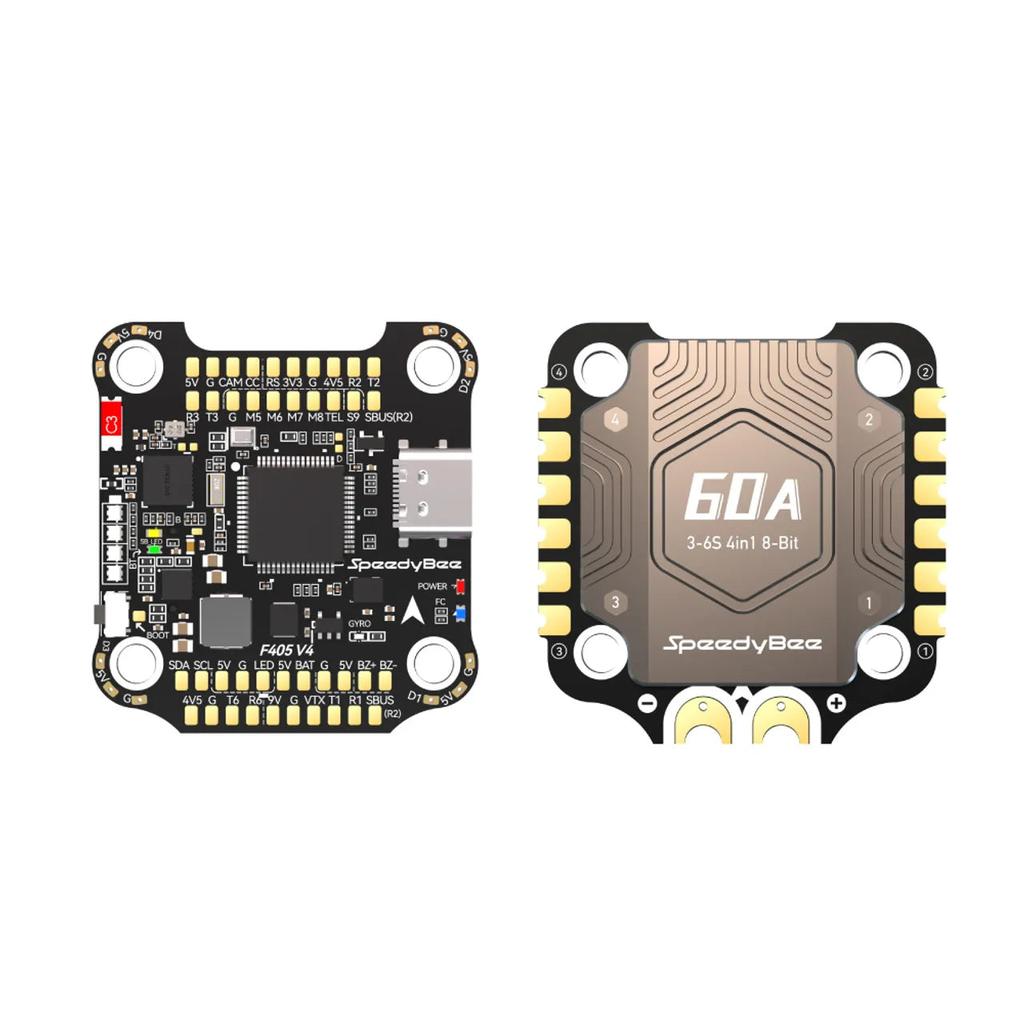

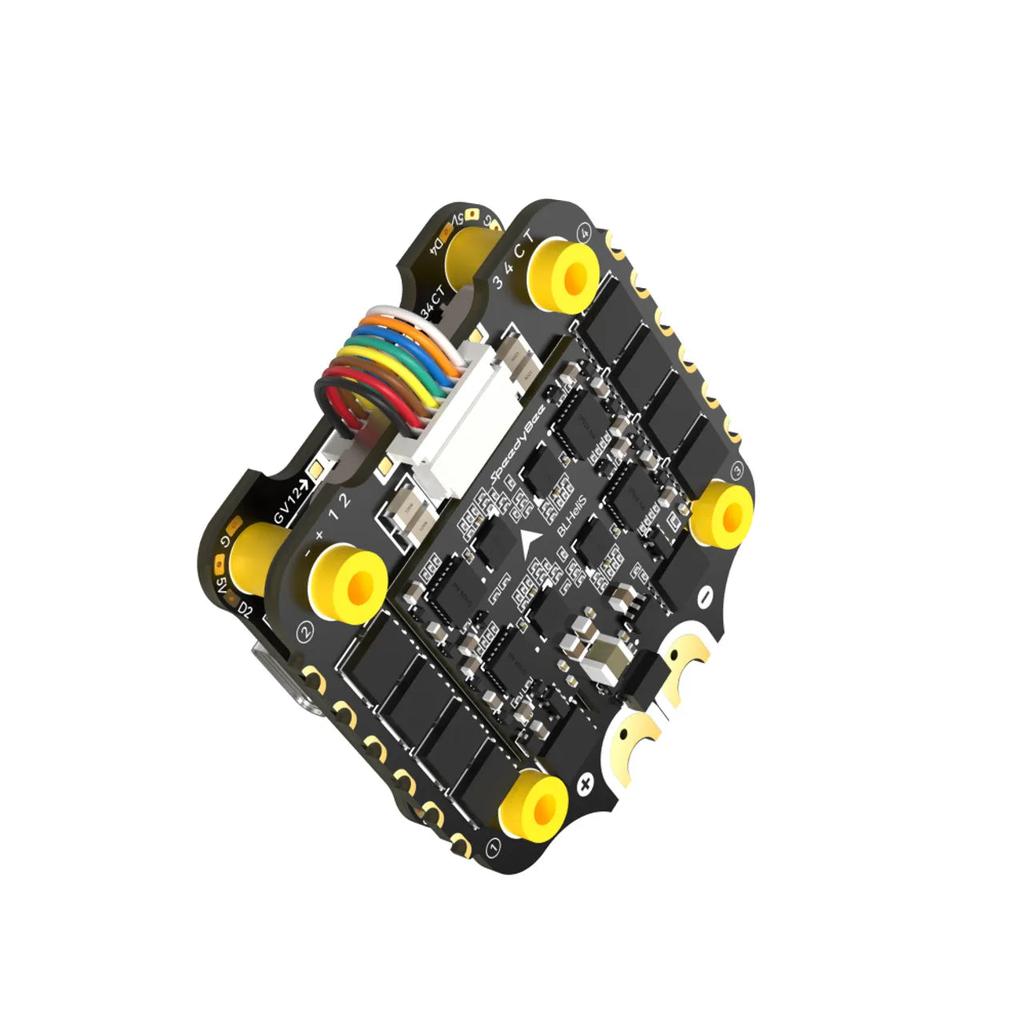

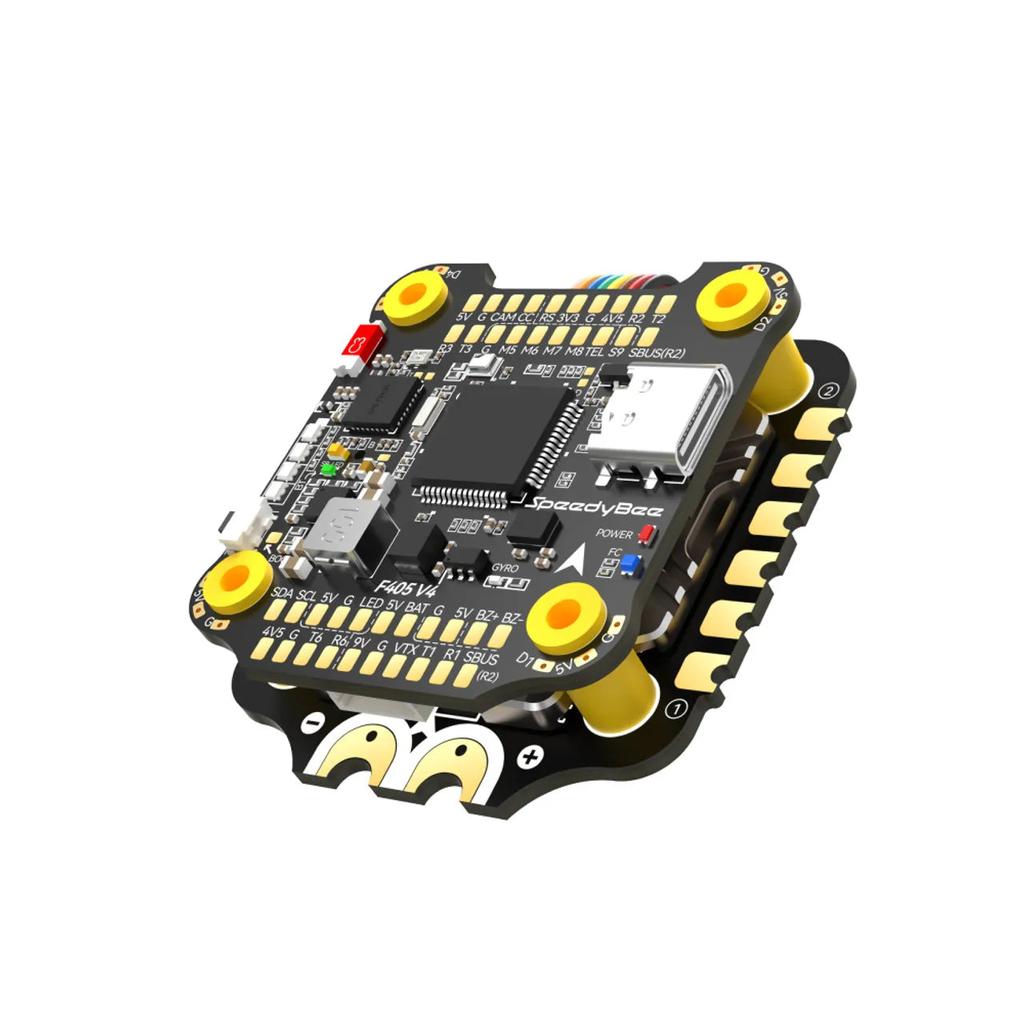

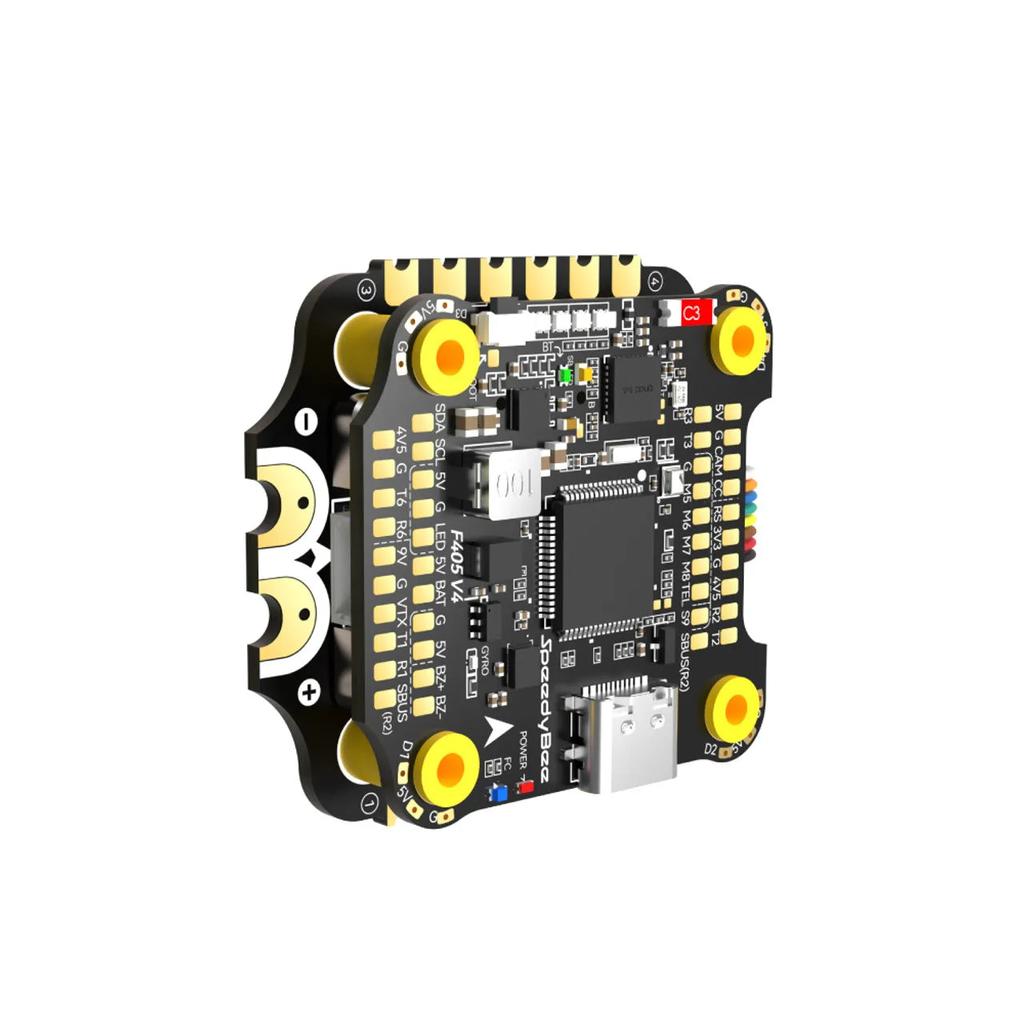

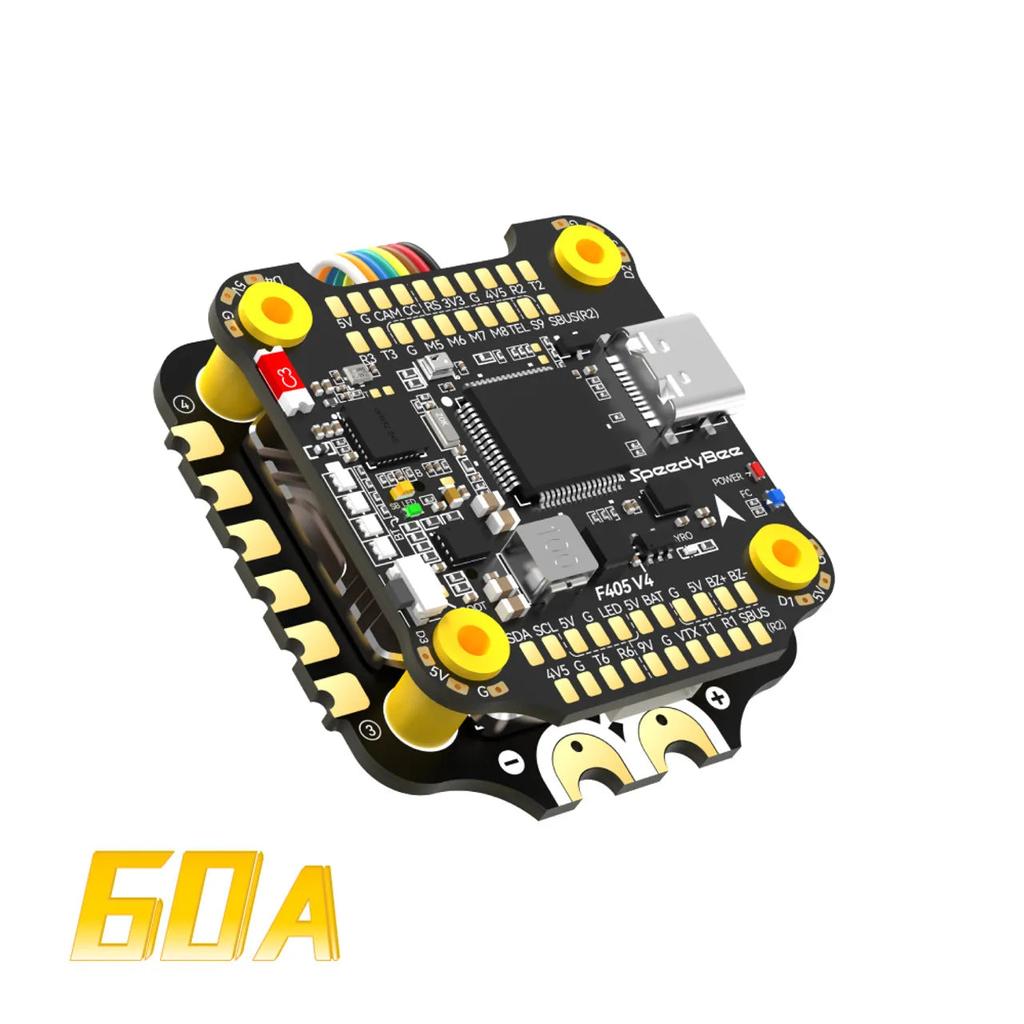

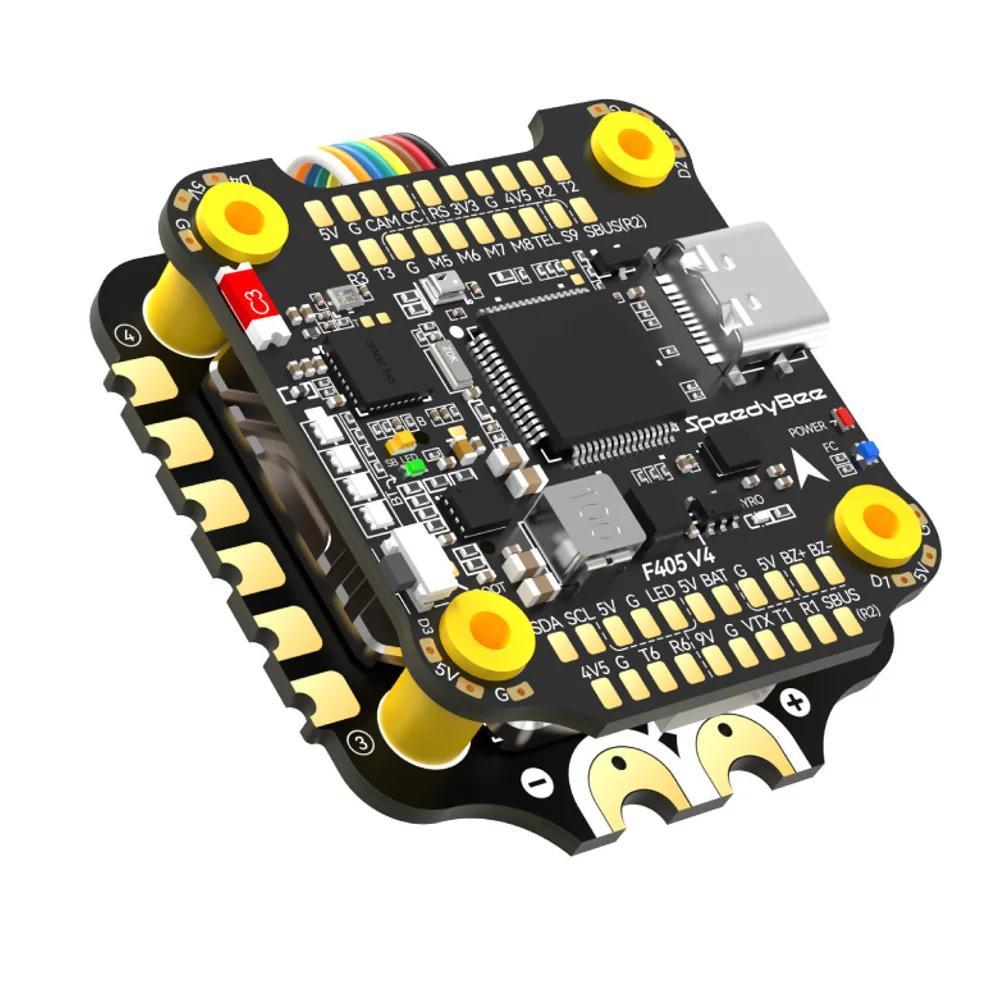

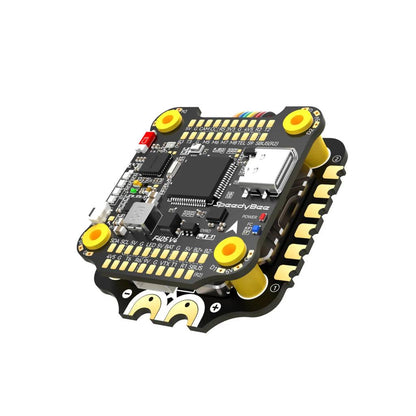

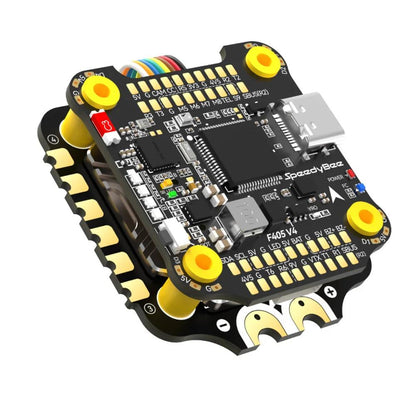

SpeedyBee F405 V4 60A 30x30 FC & ESC Stack

SpeedyBee F405 V4 60A Stack for Confident FPV Builds

The SpeedyBee F405 V4 BLS 60A 30×30 FC & ESC Stack is designed for pilots who want stable flight performance, reliable current handling and straightforward configuration in one compact package. Combining an STM32F405 flight controller with a 60A 4-6S ESC, this stack delivers responsive control and consistent power delivery for freestyle, racing and long-range multirotors using a standard 30×30 mounting pattern.

The F405 V4 flight controller features an STM32F405 processor paired with an MPU6000 gyro, a proven combination for smooth flight performance and precise stabilization. With 4 UART ports, you can easily connect peripherals such as a receiver, GPS, VTX, and digital systems. Built‑in Betaflight OSD allows you to monitor critical flight data directly in your goggles without extra hardware. Firmware can be updated and tuned via SpeedyBee or Betaflight Configurator, giving you flexibility in how you manage your setup.

The 4-6S compatible BLS ESC supports a continuous current of 60A per channel, providing ample headroom for powerful motors and aggressive flying styles. Brushless motor compatibility and a 30×30 mm mounting pattern make integration straightforward on most 5-inch and larger frames. Integrated Bluetooth support enables wireless connection to the SpeedyBee app on iOS and Android, so you can adjust PIDs, rates and other parameters at the field without a laptop or USB cable.

Why It's a Smart Choice

• Integrated FC and 60A ESC stack simplifies wiring and reduces build time.
• Bluetooth connectivity lets you tune and configure settings wirelessly via mobile app.
• Stable F405 processor and MPU6000 gyro combination supports smooth, predictable flight behavior.

FAQ

Q: What battery voltage is this stack compatible with?
A: The SpeedyBee F405 V4 BLS 60A stack supports 4-6S LiPo batteries, making it suitable for most modern 5-inch and larger FPV builds.

Q: Can I configure it without a computer?
A: Yes. You can connect via Bluetooth to the SpeedyBee app on iOS or Android to adjust key Betaflight settings, PIDs, rates and more without using a PC.

Q: Which firmware does the flight controller support?
A: The flight controller is compatible with Betaflight and can be updated or configured using Betaflight Configurator or the SpeedyBee app.

Q: Will it fit my frame?
A: The stack uses a 30×30 mm mounting pattern, which is standard on many 5-inch and larger FPV frames. Check your frame specifications to confirm compatibility.
