5MP Wide-Angle Camera for Sculpfun Ultra Engravers

Enhance your Sculpfun Ultra workflow with precise, software-integrated camera control.

This 5MP wide‑angle camera is engineered as an assist module for Sculpfun Ultra series laser engravers and other compatible machines. It provides a clear overhead view of your working area, enabling accurate positioning, efficient batch jobs and visual monitoring directly inside LightBurn.

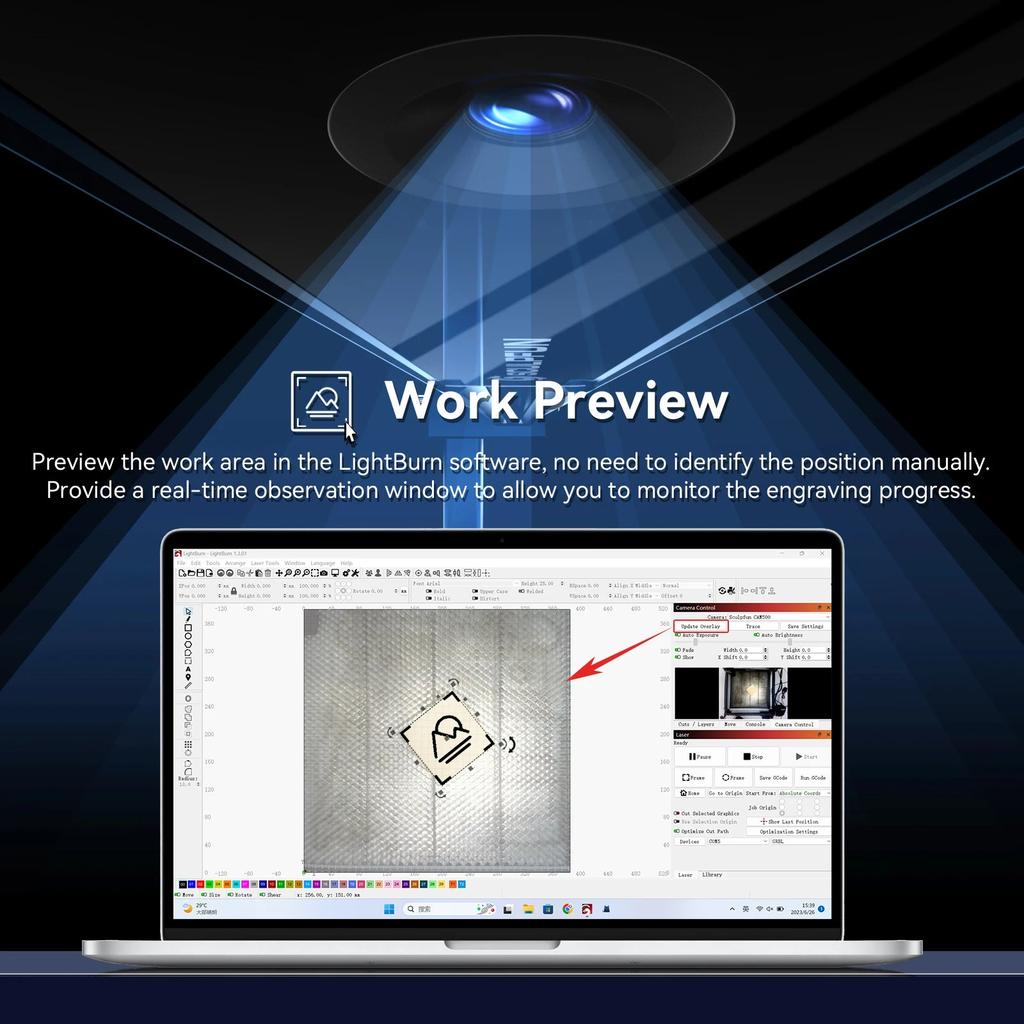

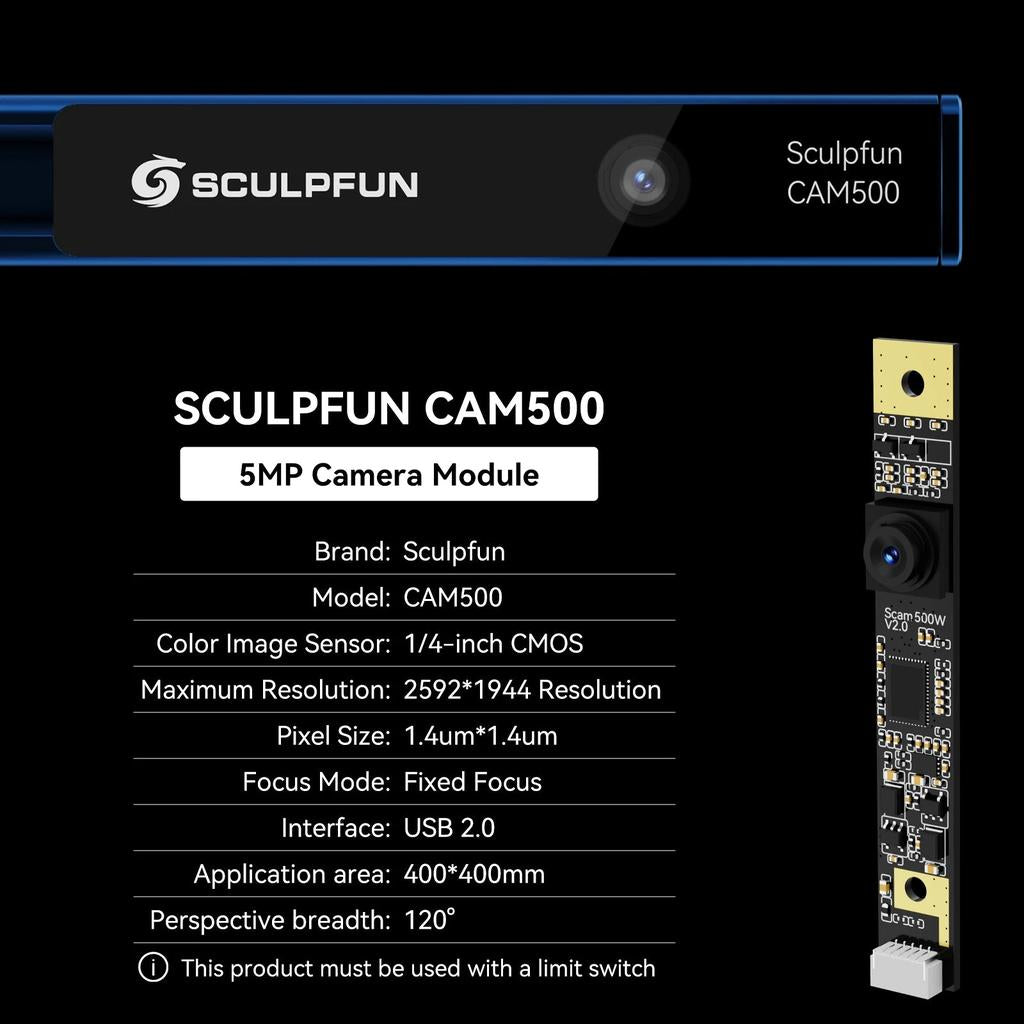

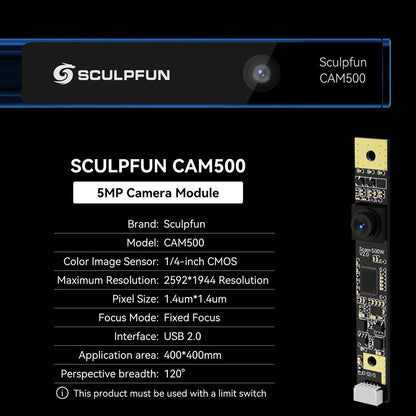

The SCULPFUN CAM500 uses a 5MP, 1/4-inch CMOS color sensor with a maximum resolution of 2592 × 1944 and a fixed-focus lens optimized for a working distance of 325 mm. Its 120° wide-angle field of view covers an optimal 400 × 400 mm working area, allowing you to see the full bed in a single frame. Fully matched with LightBurn's camera (CAM) functions, it supports precise object recognition with a typical positioning deviation of less than 1 mm when correctly calibrated and mounted at the recommended height. Through the LightBurn interface, you can drag and drop artwork onto the live camera image so the engraver places designs exactly where you intend on the material.

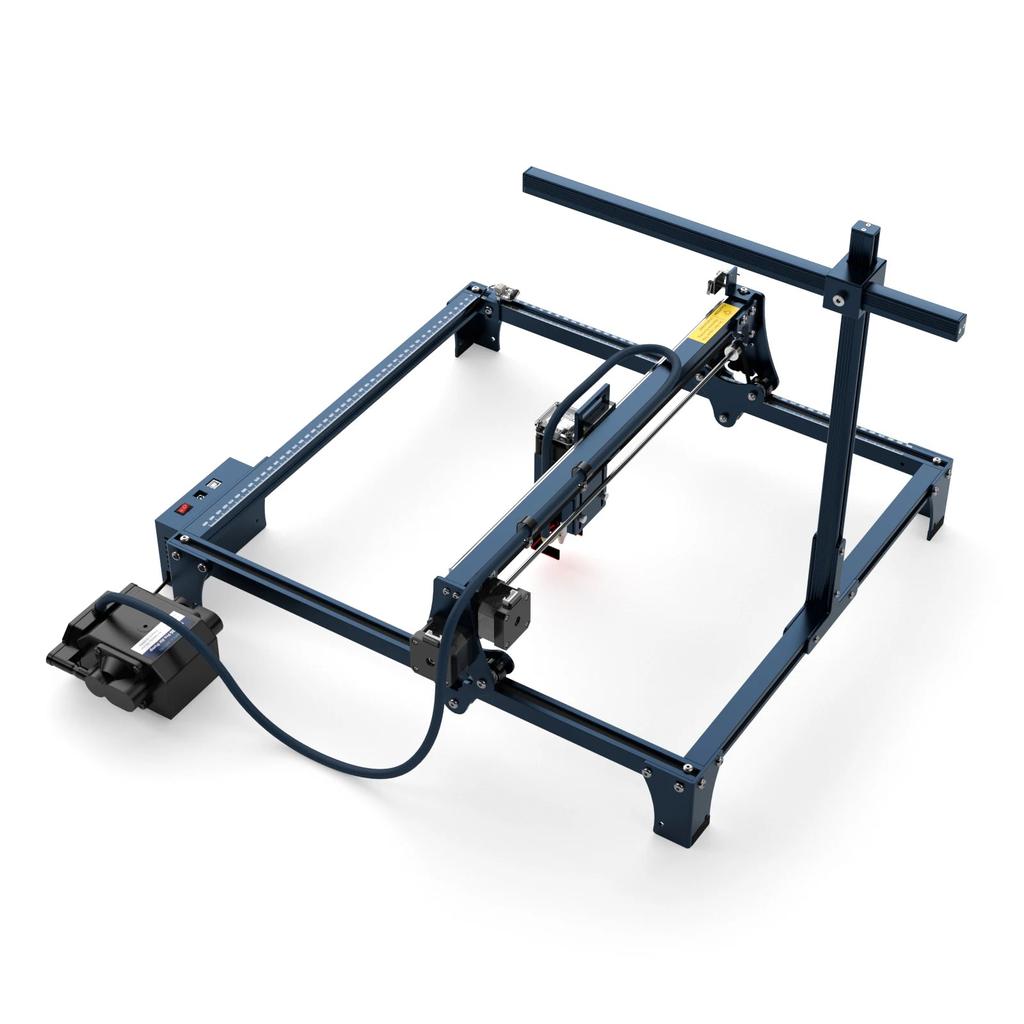

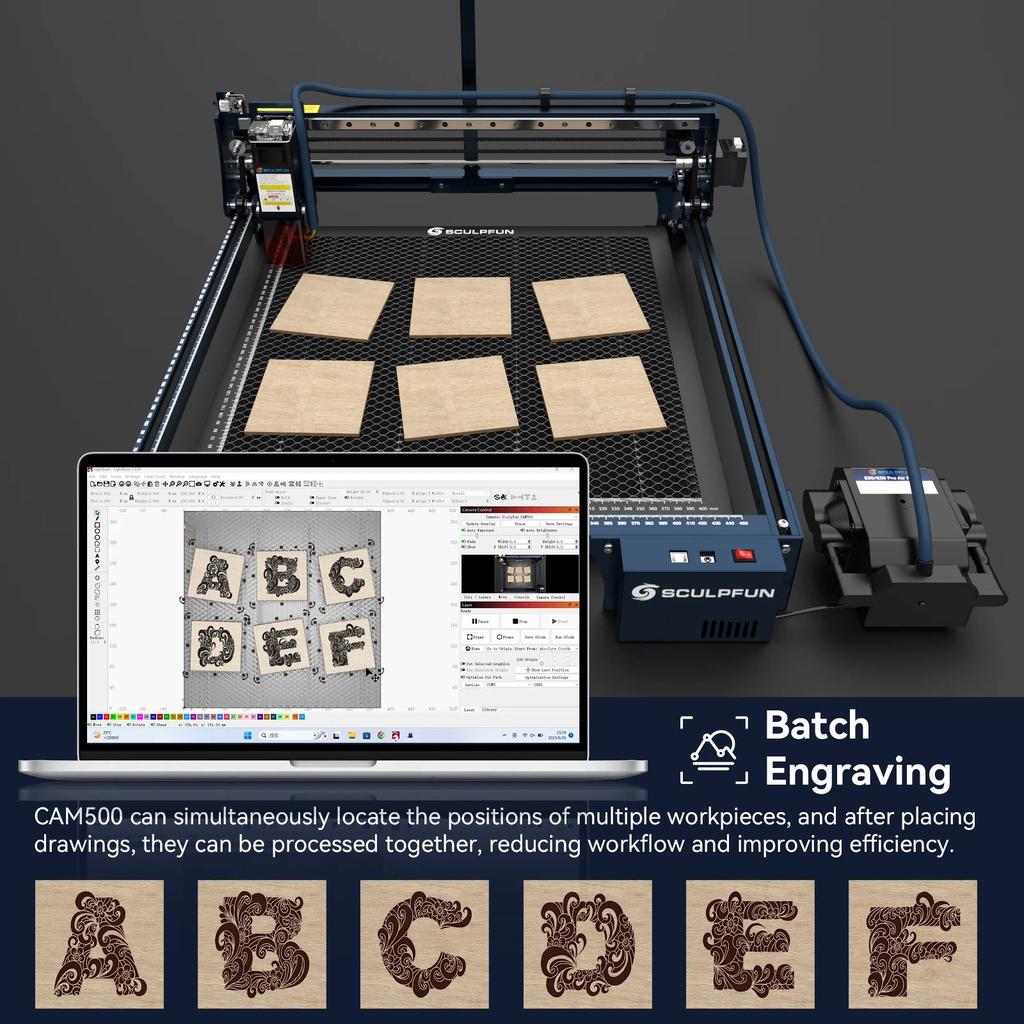

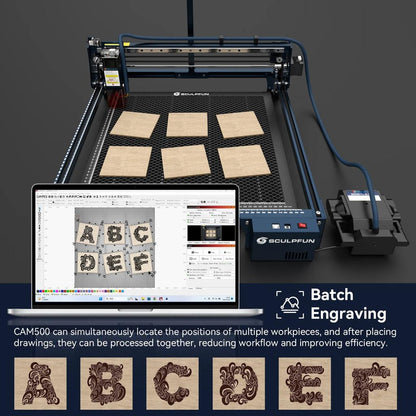

Beyond positioning, the camera supports image tracing directly from real objects such as T-shirt prints, hand-drawn sketches or simple graphics, converting them into vector files for engraving. Batch engraving is supported: place multiple items within the 400 × 400 mm area, assign different tasks, and let the software and camera locate each object without manual re-alignment for every piece. The 120° lens also makes it suitable for time-lapse and process recording, so you can capture and review complete engraving and cutting sessions. The mount system is made from aluminum and includes both T-shaped and U-shaped clamps for broad compatibility with Sculpfun S6, S6 Pro, S9, S10, S30/S30 Ultra series and most V-slot or U-beam laser frames, as well as machines such as D1PRO, Falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3 and 3 MAX V2 (area expansion kits are not supported). Connection is via USB 2.0, and the camera is compatible with Windows 7/10/11 and macOS (Windows 7 or later recommended).

Why It's a Smart Choice

• Improves positioning accuracy to under 1 mm across a 400 × 400 mm area when properly calibrated and mounted.
• Reduces setup time with direct pattern placement, batch engraving and automatic object detection in LightBurn.
• Expands creative options by tracing real-world images into vectors and recording your engraving process for review or sharing.

FAQ

Q: Is this camera a standalone device or does it require a laser engraver?
A: It is an assist camera designed to work with laser engravers and LightBurn software. It is not intended for standalone use.

Q: Which software is this camera designed to work with?
A: The camera is designed to integrate with LightBurn and its camera (CAM) functions for positioning, image tracing and batch engraving.

Q: What is the recommended mounting height and working area?

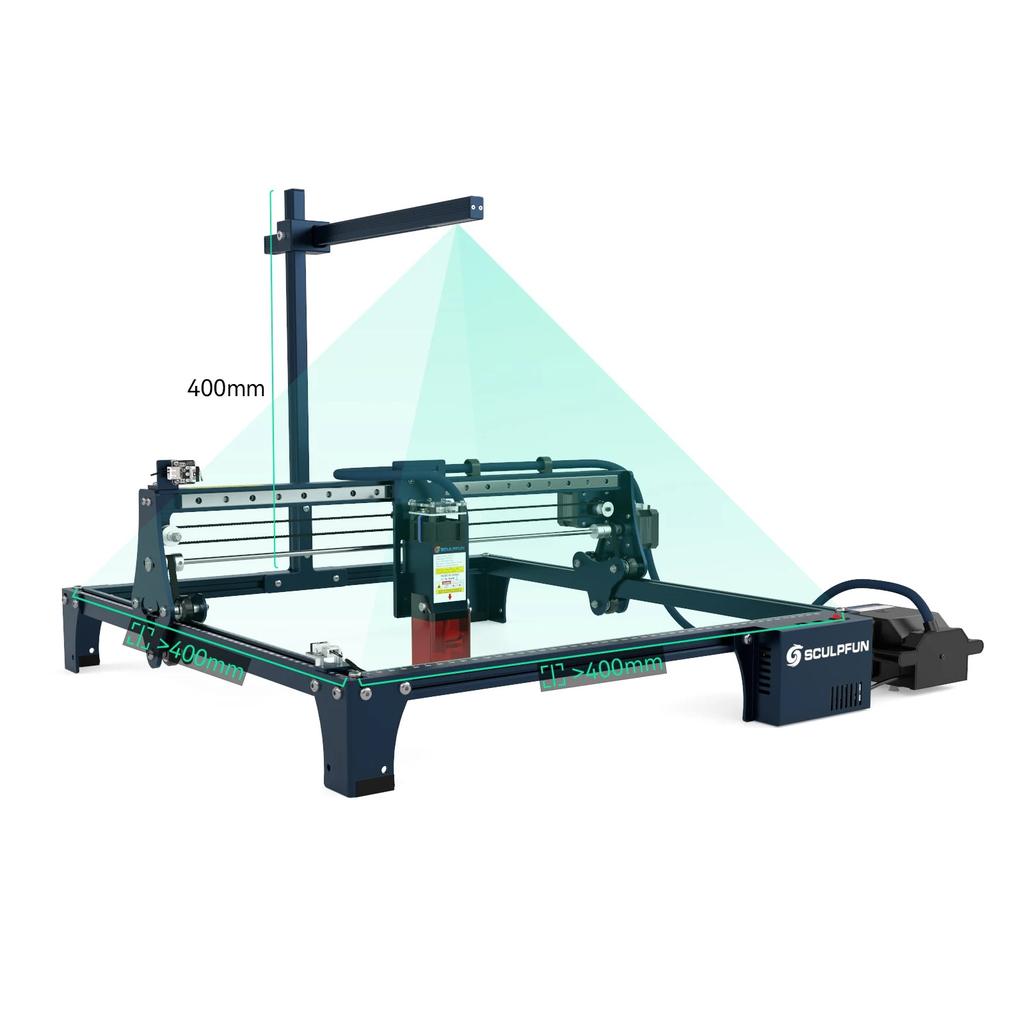

A: The recommended distance from the camera to the engraving surface is 325 mm, with an optimal working area of 400 × 400 mm centered under the lens.

Q: Which laser engravers are compatible?

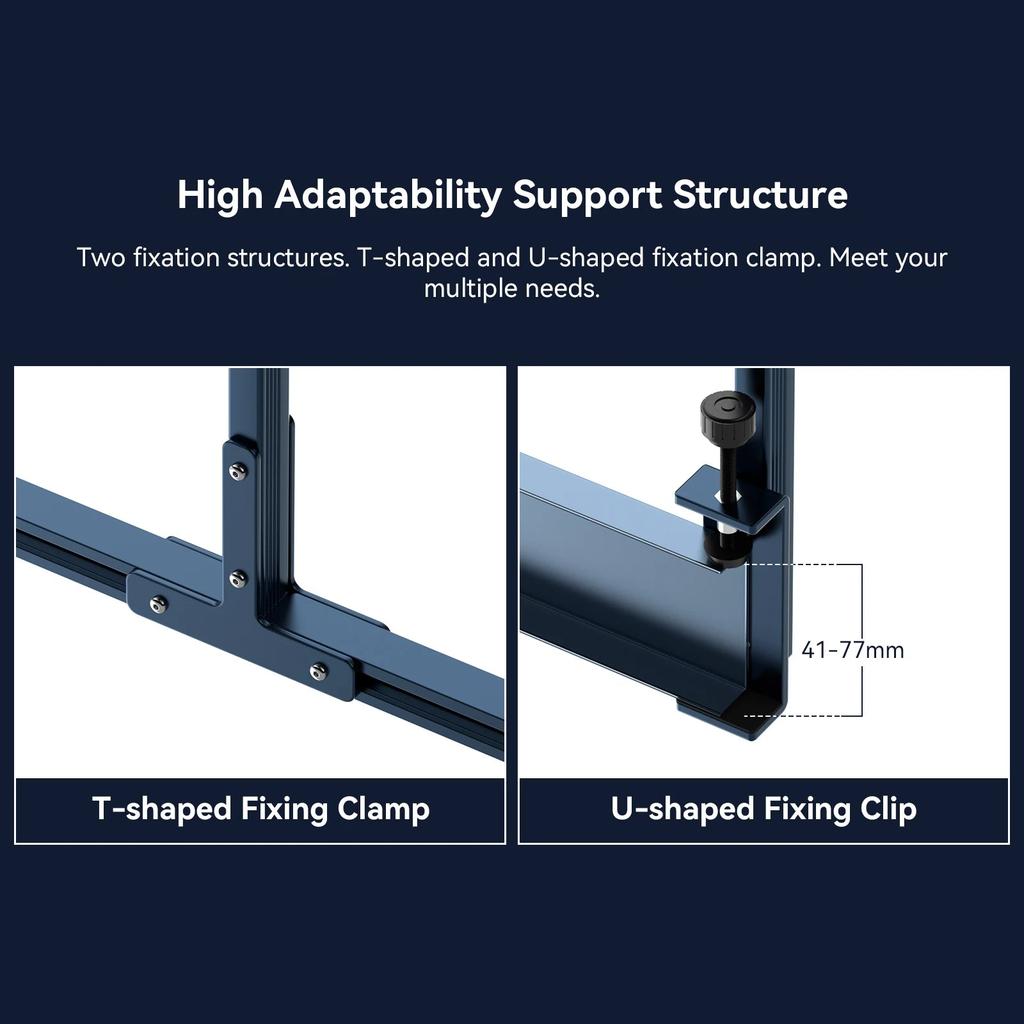

A: The included T-shaped clamp fits Sculpfun S6, S6 Pro, S9, S10, S30/S30 Ultra and most V-slot frame machines (excluding area expansion kits). The U-shaped clamp supports U-beam machines including models such as D1PRO, Falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3 and 3 MAX V2.

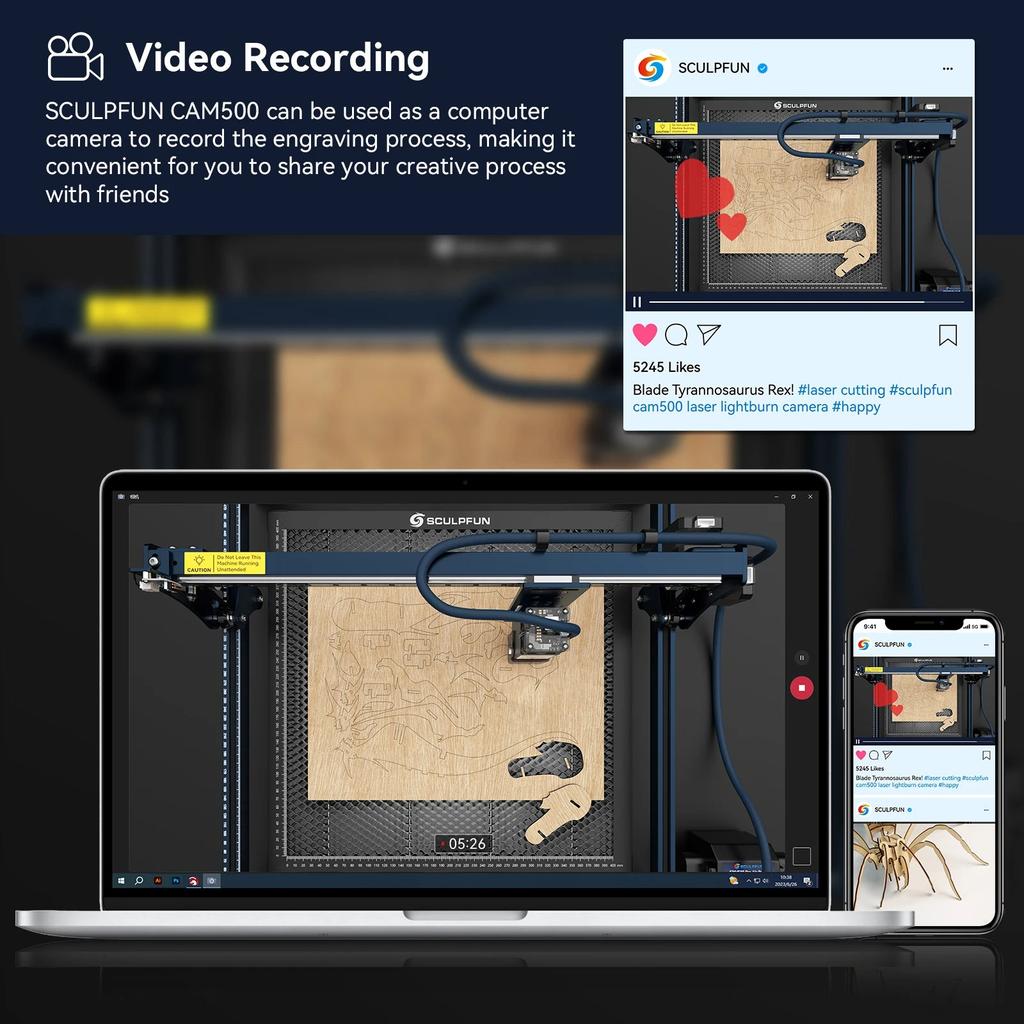

Q: Can it record video of the engraving process?
A: Yes. With its 120° wide-angle lens, the camera can capture time-lapse or continuous video of the entire 400 × 400 mm working area, making your engraving and cutting process visible and easy to document.
